SERVICE MANUAL: 60 RANGE (R600a)
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
05 FEBRUARY 2016
WHIRLPOOL SOUTH AFRICA
CUSTOMER SERVICE
KBF634/1ME WATER – 853933543320ab
BOTTOM FREEZER
Contents
Revision History
Wiring Diagram
MODEL
PLATFORM
Page
5,6,7&8
9,10&11
2
3
4
1
Advertisement
Table of Contents
Related Manuals for KIC KBF634/1ME WATER
Summary of Contents for KIC KBF634/1ME WATER
-
Page 1: Customer Service
05 FEBRUARY 2016 WHIRLPOOL SOUTH AFRICA CUSTOMER SERVICE SERVICE MANUAL: 60 RANGE (R600a) MODEL KBF634/1ME WATER – 853933543320ab PLATFORM BOTTOM FREEZER Contents Page Revision History Specifications Wiring Diagram Exploded View 5,6,7&8 Spares Parts List 9,10&11 This documentation is only intended for qualified technicians who are aware of the respective safety regulations. - Page 2 05 FEBRUARY 2016 REVISION HISTORY KBF634/1ME WATER Rev. Date Revision Ecn. No. Compressor changed to T1114GYL TL CP 0028/14P 24.11.14 Gasket assembly outsourced. 0052/14P 05.02.16 T/stat changed to Ranco was Atea (item 2a) This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
-
Page 3: Specifications
05 FEBRUARY 2016 SPECIFICATIONS KBF634/1ME WATER H=1740 DIMENSIONS: W=604 D=618 WEIGHT: 52kg POWER SUPPLY: 230V 50Hz MAXIMUM AMPERAGE 0.98A CHARGE (R600a): CLIMATIC CLASS: COUNTRY OF ORIGIN: SOUTH AFRICA This documentation is only intended for qualified technicians who are aware of the respective safety regulations. -
Page 4: Wiring Diagrams
WIRING DIAGRAMS KBF634 KBF634/1ME WATER This documentation is only intended for qualified technicians who are aware of the respective safety regulations. This documentation is only intended for qualified technicians who are aware of the respective safety regulations. This documentation is only intended for qualified technicians who are aware of the respective safety regulations. - Page 5 EXPLODED EXPLODED VIEW KBF634 KBF634/1ME WATER This documentation is only intended for qualified technicians who are aware of the respective safety regulations. This documentation is only intended for qualified technicians who are aware of the respective safety regulations. This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
- Page 6 EXPLODED EXPLODED VIEW KBF634 KBF634/1ME WATER This documentation is only intended for qualified technicians who are aware of the respective safety regulations. This documentation is only intended for qualified technicians who are aware of the respective safety regulations. This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
- Page 7 EXPLODED VIEW EXPLODED VIEW KBF634 KBF634/1ME WATER This documentation is only intended for qualified technicians who are aware of the respective safety regulations. This documentation is only intended for qualified technicians who are aware of the respective safety regulations. This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
- Page 8 SPARES PARTS LIST SPARES PARTS LIST KBF634 KBF634/1ME WATER This documentation is only intended for qualified technicians who are aware of the respective safety regulations. This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
- Page 9 05 FEBRUARY 2016 SPARES PARTS LIST KBF634/1ME WATER Item no. Description Spare Part No. CABINET TOP (GREY) 481290800589 COMPLETE LOW LOW BOX ASSEMBLY (JASCO) 481290801106 THERMOSTAT - RANCO 481290801198 HINGE ASSEMBLY - TOP 481290800899 HINGE ASSEMBLY - CENTRE 481290800488 HINGE ASSEMBLY - BOTTOM...
- Page 10 05 FEBRUARY 2016 SPARES PARTS LIST KBF634/1ME WATER Item no. Description Spare Part No. TRIGGER (GREY) SCREW UPH 4x16 ACCORDING 481290800815 SCREW COVER (GREY) 481290801138 CONDENSER 481290800836 DRIER-FILTER 5gram WITH CAP 481290801135 DISH - COMPRESSOR 481290801136 COMPRESSOR ASSEMBLY-T1114GYL TL CP...
- Page 11 05 FEBRUARY 2016 SPARES PARTS LIST KBF634/1ME WATER Item no. Description Spare Part No. BASKET ASSY.-TOP WITH FRONT 481290800972 BASKET ASSY. TOP-PAINTED 481290800680 FRONT FREEZER BASKET 120mm.-WITH SERIGRAPHY 481290800973 BASKET ASSY.-MID WITH FRONT 481290800974 BASKET ASSY. MID-PAINTED 481290800390 FRONT FREEZER BASKET 220mm.-WITH SERIGRAPHY 481290800975 BASKET ASSY.-BOTTOM WITH FRONT...
Need help?
Do you have a question about the KBF634/1ME WATER and is the answer not in the manual?
Questions and answers
Hi . I need the gas pipe layout for KBF 634 1ME water. Tech have cut all pipes
The document does not provide specific details about the gas pipe layout for the KIC KBF634/1ME WATER model. Therefore, the gas pipe layout cannot be determined.
This answer is automatically generated
Is there a relay the compressor
The document does not explicitly mention a relay for the compressor. However, it lists a "TERMINAL BOARD-BDG" (Spare Part No. 481290801125) and a "TERMINAL BOARD COVER" (Spare Part No. 481290801120), which may indicate the presence of a relay or related components. Without explicit confirmation in the document, the presence of a relay cannot be determined with certainty.
This answer is automatically generated

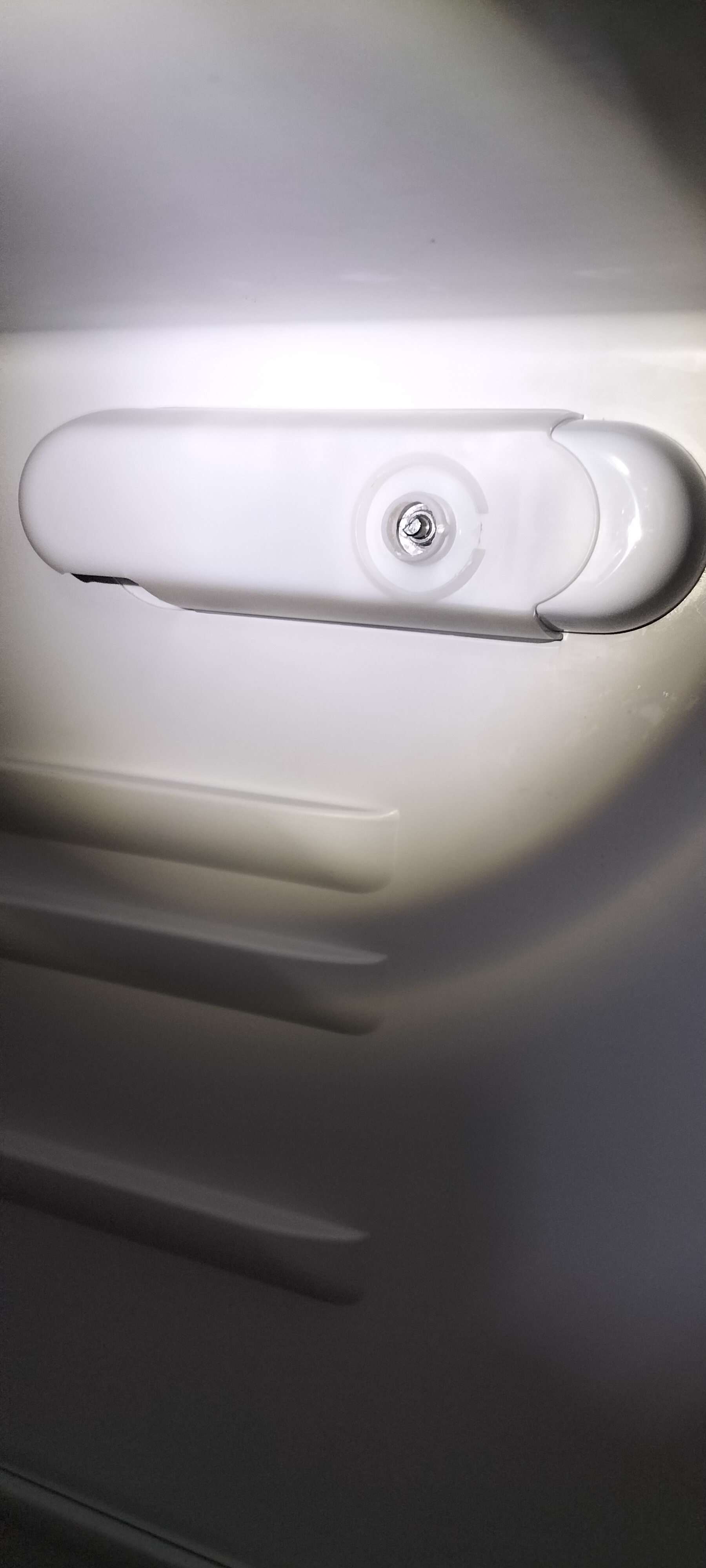

How do I remove the thermostate cover to replace the thermostet
