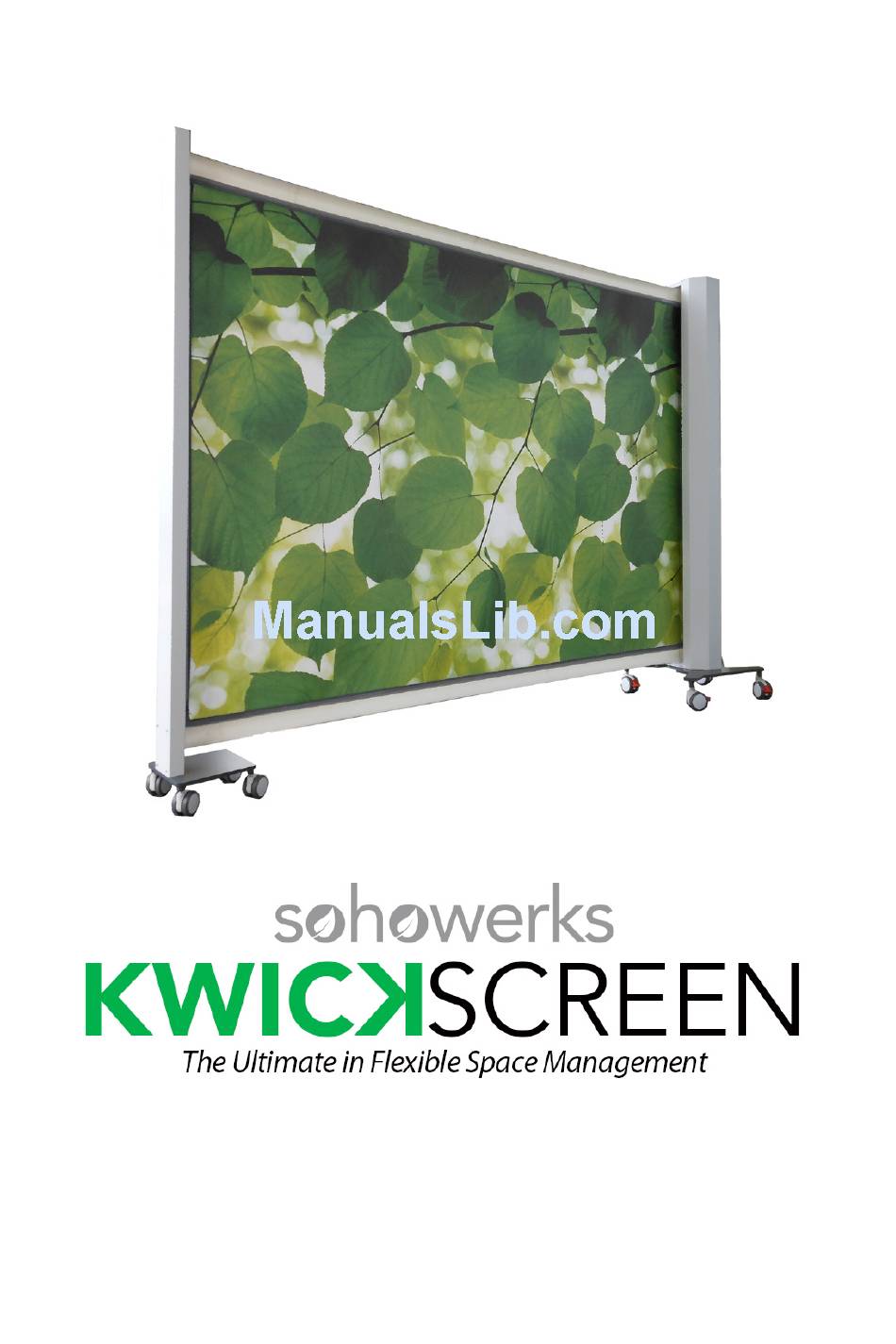

Page 1 USER MANUAL...
Page 2: Table Of Contents
USER MANUAL INTRODUCTION CONTENTS Exploded View Thank you for purchasing a KwickScreen. Operation KwickScreen is an award winning portable, retractable room divider with a very small Configuration footprint for easy storage and use. Cleaning KwickScreens are simple to transport and clean.
Page 3 PLEASE READ BEFORE USE It is important to be gentle when pulling the KwickScreen out for use. This is especially true when the product is new or if it has not been used recently. The screen must be allowed to find its ‘natural position’ where the screen moves smoothly in and out of the casing.
Page 4: Exploded View
Front handle Rear base Front base Screen inner panel C-tube Main body (top view below) Left Back Right...
Page 5: Operation
OPERATION GENERAL INSTRUCTIONS The KwickScreen is designed for use on smooth, horizontal surfaces. Extra care should be taken when using on other surfaces When moving the KwickScreen check all 4 brakes have been released. The unit should then be moved with two hands at low down waist height...
Page 6: C-Tube
HOW TO USE THE KWICKSCREEN Working area to pull out / push in Screen cannot be pulled Working area is +/- 45° out / pushed in beyond from the centre line this area Bending direction Do not bend C-tubes back...
Page 7: Configuration
CONFIGURATION The KwickScreen is a versatile room divider which can be arranged in a number of configurations to provide flexible space management. Below are a few arrangements demonstrating some of the possible combinations. FREE STANDING Standard Front to back Front to front...
Page 8 FIXED TO WALL The KwickScreen can be used in a more permanent way by being fixed to the wall with a top and bottom bracket. Here are a few examples of possible configurations: Fixed to back Fixed to left Fixed to right...
Page 9: Cleaning
The metal parts are powder-coated and the screen material is WHEN CLEANING THE polyester film manufactured by DuPont. KWICKSCREEN DO NOT USE: NORMAL CLEANING • Wax polishes or solvents Surfaces should be cleaned using •...
Page 10: Replacing/Changing
REPLACING OR CHANGING THE INNER PANEL To insert follow steps 1-6 To remove follow 2-3 then 6-1 Extend screen fully Inserting screen, start in top left corner and start zip With one hand supporting rolled Pass extra screen around roller and align magnetic strips screen slowly zip top zip.
Page 11: Base Assembly
UNIVERSAL BRACKET PAIR The universal bracket pair is a top and bottom bracket set which allows the attachment of a KwikScreen to a wall. The right, left and back sides of the main body can be fixed to a wall using the different holes provided on the brackets.
Page 12 BOTTOM VIEWS - showing the bottom universal bracket in 3 orientations: Right Left Back Left Back Right The universal brackets are desgined to fit on any side of the product. As such the brackets have multiple holes on them, this is not a manufacturing default and the appropriate holes to use will become apparent during installation.
Page 13: Universal Bracket Pair
INSTALLING THE UNIVERSAL BRACKET PAIR Screw Bracket To fix the KwickScreen to the wall, the top of the main body needs to sit flush with the top of the front handle. Therefore the bottom of the main body needs to be mounted 5-5⁄16 in from the floor,...
Page 14 Measure down 69-17⁄32 in from Align the bottom edge of the the top bracket line and make a bottom bracket to this line, making new horizontal line. sure the two brackets are vertically aligned, and fix to the wall. ATTACHING THE BRACKET TO THE MAIN BODY For the top bracket, remove the 3 Re-insert the removed screws appropriate screws from the top...
Page 15: Extended Bracket Pair
EXTENDED BRACKET PAIR A top bracket and a bottom bracket set that can only be positioned at the back of the product but that has 3 hole positions to give clearance between the back of the product and the wall, to allow for trunking or other wall-based obstacles.
Page 16 If this method is used, make sure that the top of the KwickScreen’s main body is level with the top of the front handle.
Page 17: Warranty
3. The warranty does not cover replacements, adjustments or repairs which may be required as a result of normal wear and tear, willful or accidental damage, misuse, neglect or any cause which is beyond the control of SohoWerks/Kwickscreen 4. Modifications and repairs made to this product by unauthorised persons will render the warranty void 5.
