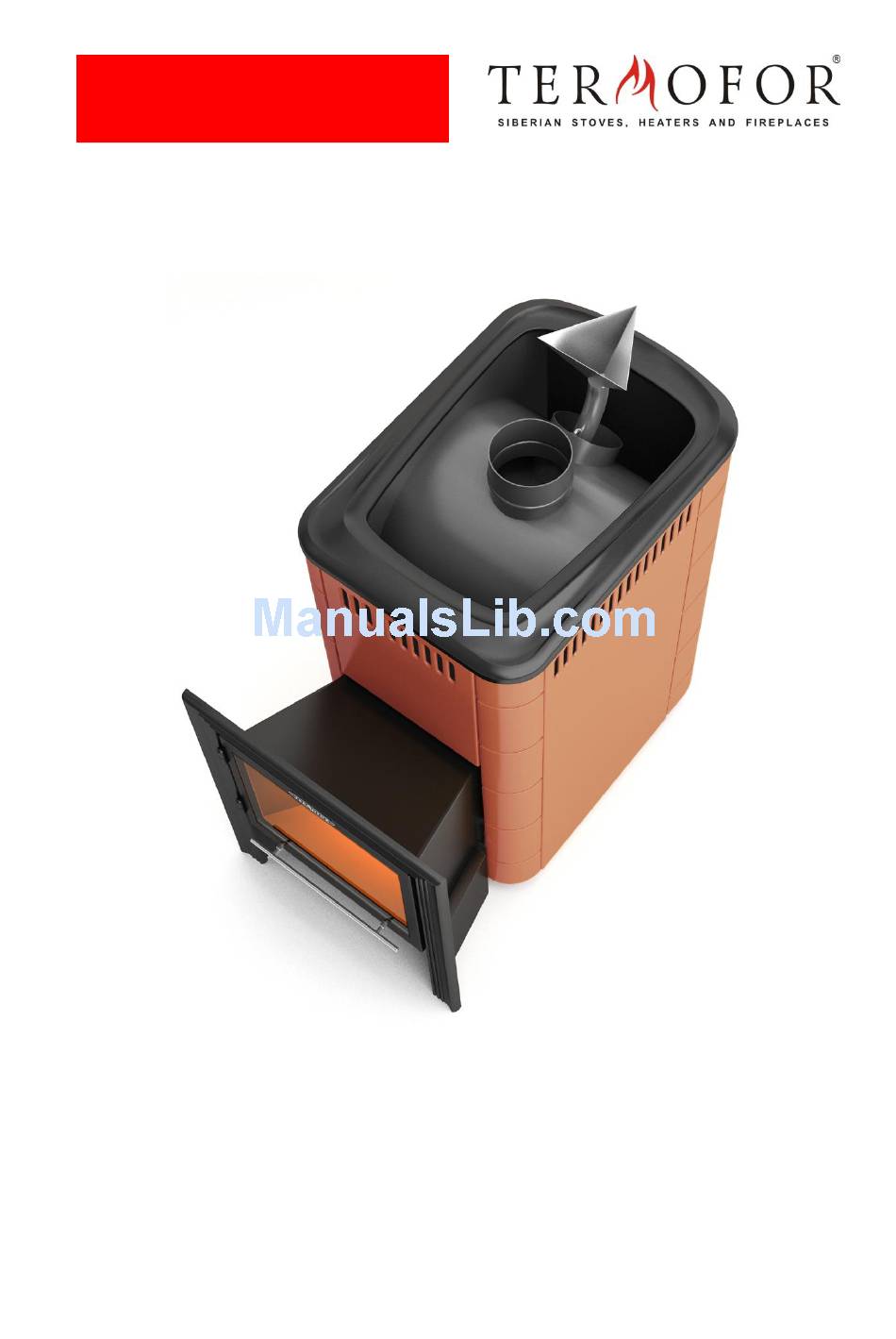

Page 1 Angara 2012 The wood-burning sauna stove OPERATION MANUAL Made in Russia...
Page 2 This maintenance manual is intended to learning of work principle, operating rule and service regulations of the wood-burning sauna stove «Angara 2012» (hereinafter – the stove). The maintenance manual contains instructions needed for correct and safe operation of the stove.
Page 3: Table Of Contents
TABLE OF CONTENTS Application ........................4 Design features ........................4 Characteristic of existing heat-resistant steel. Expressions and commentaries ....4 Model series ........................5 Specifications ........................5 Stove structure and operation .................... 8 Marking and packing of the stove ..................10 Suitable application ......................
Page 4: Application
1. APPLICATION The wood-burning sauna stove «Angara 2012»for heating of sauna’s steam room and its adjacent rooms. Also, the stove is destined for steam generation and water heating. The stove is destined for private use in Russian sauna and renders possible to get all comfortable combinations of temperature and humidity of air.
Page 5: Model Series
This action is not needed under manufacture of wood-burning stoves. The manufacturer considers that buyers of stoves «Angara 2012» shall only pay for those special characteristics of steel which are needed for its using into wood-burning stoves.
Page 6 The capacity of built-in heat exchange unit (for the model with the heat exchange unit) equals to 0.65l. The size of the connecting thread of heat exchange unit fitting equals to G3/4. Mounting dimensions are presented in figure 2. Table1. Specifications of the stove with stones section «Angara 2012» and «Angara 2012 Vitra». Model Angara 2012...
Page 7 Figure2. Overall sizes of the stove «Angara 2012 Vitra». Figure3. Overall sizes of the stove « Angara 2012» with a short fuel channel.
Page 8: Stove Structure And Operation
The stove overall look and the main elements layout are shown in Figure 4. «Angara 2012» stoves's firebox and stones section (1) made of heat-resistant high-alloy steel with a chromium content not less than 13% with the wall thickness of 3 mm.
Page 9 8. Fire box 9. Cast iron stove bar 10. Ash box with sliding ash drawer 11. Steel door 12. Door with translucent screen Figure 4. layout of the main elements of the stove ―Angara 2012‖. Modification with heat exchange unit.
Page 10: Marking And Packing Of The Stove
7. MARKING AND PACKING OF THE STOVE 7.1. Marking On a stove there is an information code plate with details about a model of a stove, its mass, factory serial number, production date of a stove and other technical features, and also the information on certificates for this model.
Page 11 Overheating of the stove can be identified by red glow of the metal in the dark. This situation can appear upon the uncontrolled air supply into the fire box. For example, when the door is open. The stove warming up may lead to dangerous conditions of the stove operation and its premature breakdown.
Page 12 Stones shall be rinsed by scrub brush in flowing water before load. Do not put stones higher than a top level of the stove, because stones will not heat-up to temperature needed for quality steam formation.  Attention! Exclude the possibility of excessive water supply to the non-burning hot stones. In this case the intensive stones section walls oxidation process will take place due to the direct contact of water and metal.
Page 13: Stove Assembly
Wall opening for fuel channel from the level of support feet shall have the following dimensions (height × width):  for «Angara 2012 2011» models — 480×270 mm.  for «Angara 2012 2011 Vitra» models — 545×410 mm.
Page 14 For installation of the model «Vitra» on the site of operation it is necessary: 1. Unscrew self-tappers 8 ps. that fixes a door with a frame to a fuel channel and remove a door; (see Figure 5) 2. Install the stove on the site of operation (edge of a fuel channel shall emerge from another side of a baffle);...
Page 15 For the models «Angara 2012», the stove is installed on the site and then a door put on a fuel channel. A door is included in a delivery set. Installation of a door on the models «Angara 2012»: 1. Remove a stop quick-detachable collar, then remove the axis out of the door, see figure 7 a;...
Page 16 The stove won’t be operating effectively if there is no draught of the definite value.  The optimal draught for operation of stoves of «Termofor» trademark equals to 12±2 Pa. Provided the excessive draught the considerable air flow will be entering the fire chamber and this will lead to the stove overheating.
Page 17 Stoves with heat exchange unit help to locate the tank for hot water outside the steam room and install it in wash room. «Termofor» heat exchange units are produced in two variants: 1) heat exchange unit of «samovar» type installed at the outlet nozzle of the stove pipe (do not supplied as part of package);...
Page 18 Heat exchange units are made of heat-resisting high-alloy stainless steel with the content of chromium not less than 13%. «Termofor» company recommends along with «Angara 2012» sauna stove use the heat exchange unit «Kostakan» of «samovar» type of «Termofor» trademark.
Page 19  ATTENTION! During the heat exchange unit shift the gaskets made of non-combustible material shall be located from the inner side of the fire chamber. Figure 10. «Angara 2012» sauna stove heat exchange unit and blind plugs disassembling 8.10. Installation of a water heating system ...
Page 20  ATTENTION! It is prohibited to exceed the operating pressure in the water heating system for more than 0.05 MPA (0,5 kgs/cm²) during the use of «Angara 2012»bath stove with the heat exchange unit.
Page 21 (if any) after stove starting up until the full cooling off of the stove and the tank. Two types of tanks can be used for hot water with the stove ―Angara 2012‖: ―outboard‖ tank and «samovar» type.
Page 22  ATTENTION! It is prohibited to touch the warmed up to high temperatures surfaces of the tank with bare hands or with other parts of body in order to avoid burns and damages. «Termofor» company recommends to use «Angara 2012» sauna stove along with tanks of «Termofor» trademark.
Page 23  ATTENTION! Don’t use constrained air-feeding in the ash drawer. To reduce the amount of pollutant emissions it is necessary to start the ignition from the upper part of the fuel and during the use of the stove add firewood into the fire chamber by small portions. Fire box shall be filled with small and medium firewood for quick achievement of high temperature in a steam room with more economic expense of firewood (regime of temperature increase).
Page 24 8.14. Security measures at the time of the stove operation Before the beginning of heating season the stove shall be tested. In the case of a fault, the stove shall be repaired. A faulty stove is not permitted to operation. See signs of an efficient stove under point 8.2. ...
Page 25: Servicing
Involvement of experts for checking and sweeping a chimney is preferable.  ATTENTION! The company «Termofor» doesn’t have responsibility for consequences of unqualified work to sweeping and checking of the chimney or the stove.
Page 26: Current Repair
 ATTENTION! Read instruction through carefully and follow recommendation of a manufacturer of chemical purifiers. Not recommend using compositions for carbon burning-off are self-made. 9.2. Service maintenance of door translucent screen To prevent soot accumulation at the translucent screen (glass) it is necessary to clean it from time to time.
Page 27 1. Unscrew two nuts fixing the clamp (figure15.I), and disassemble it and distance bushings. 2. Remove the glass from the stop. 3. Take new glass and if it doesn’t have thread sealing tape stick them: tape of 20 mm in width is stuck from the top and from below the glass, in a «П»...
Page 28: Warranty
It has established that a defect is in 12 months from the date of transfer the Products to the Consumer; It has established that a defect is due to the fault of the company «Termofor». Warranty doesn’t apply to the Products and also its units or elements which have been changed by the Consumer.
Page 29: Utilization
Maintenance Package product funnel the firebox with spacer manual 1 pc 1 pc 1 pc 1 pc 1 couple 1 pc 1 pc • • • • • • • Angara 2012 • • • • • Angara 2012 Vitra...
Page 30 CERTIFICATE OF ACCEPTANCE AND GUARANTEE The wood-burning stove with stones section «Angara 2012» of the model ____________ ______________________________________ produced by Kontur, LLC, 43 2ya Shkolnaya st., Novosibirsk, Russia, 630032 in accordance with recquirements of government standards and current technical documentation, correspond to the technical specification 4858-001-0136596940- 2011 and is found fit for operation.
Page 31 Wholesale department: +7 383 353-71-39 Retail department: +7 383 230-00-85 E-mail: termofor@termofor.ru www.termofor.ru © 2001—2014 «Termofor» Company. All rights reserved. Marks and names «Термофор», «Termofor», «M» are registered trademarks of "Termofor" company. The wood-burning sauna stove «Angara 2012». Operation Manual.
