Central Pneumatic 42202 Owner's Manual & Safety Instructions

Central Pneumatic 42202 Owner's Manual & Safety Instructions

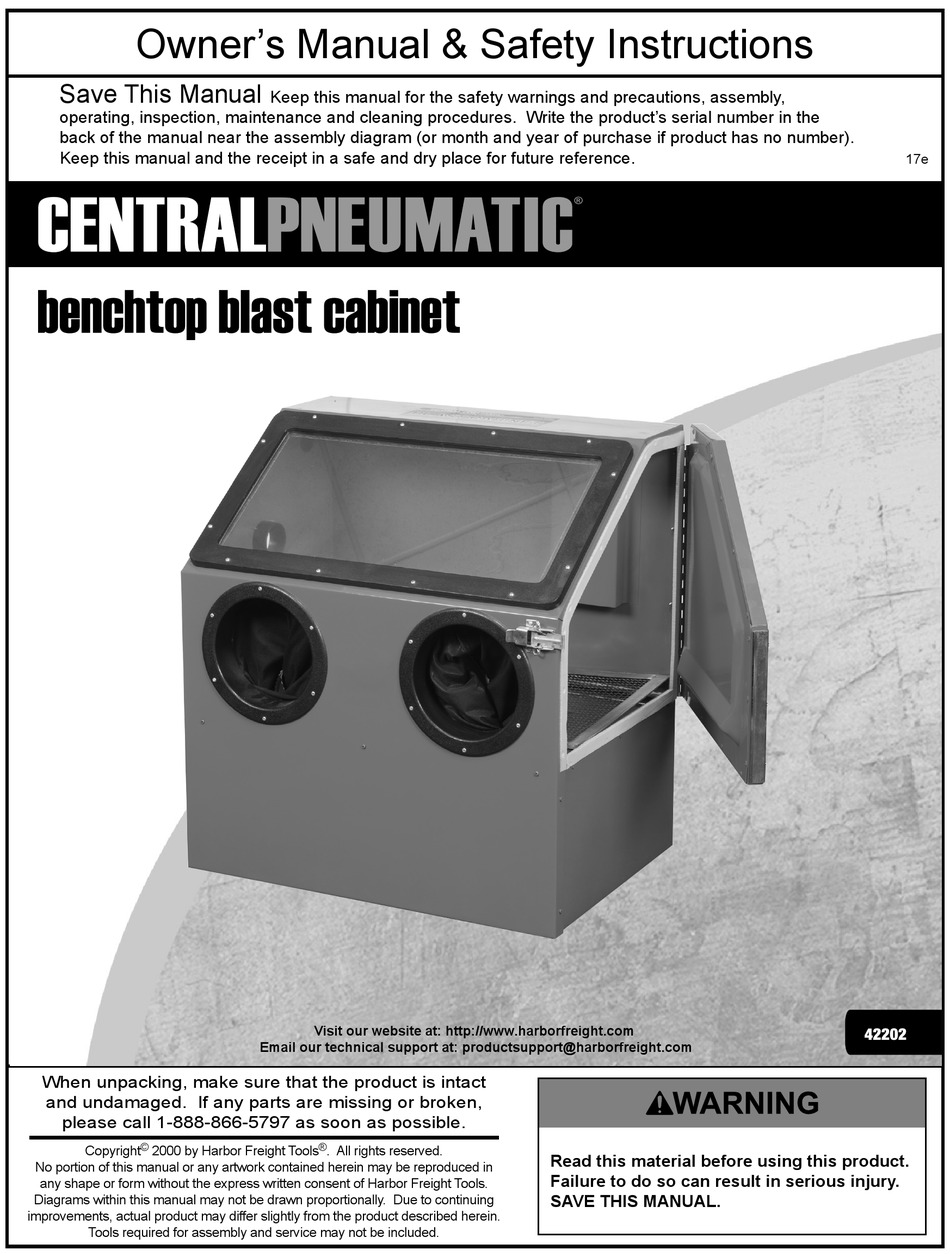

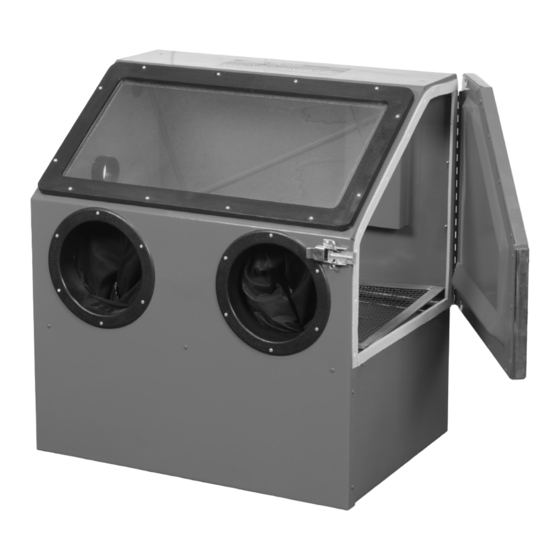

Benchtop blast cabinet

Advertisement

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2000 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
Manual Revised 11h
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
17e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42202 and is the answer not in the manual?

Questions and answers

Howard Weidinge
March 28, 2025

what are the minimal CFM and PSI requirements for Central Pnuematic model 42202

1 comments:
Mr. Anderson
March 28, 2025

The minimum requirements for Central Pneumatic model 42202 are 10 CFM at 100 PSI.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Central Pneumatic 42202

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
  • Page 2: Table Of Contents

    SET UP .......... 11 GENERAL OPERATING INSTRUCTIONS ......12 USER-MAINTENANCE INSTRUCTIONS ......13 CLEANING AND MAINTENANCE ... 13 TROUBLESHOOTING ...... 15 BLAST CABINET PARTS LIST & ASSEMBLY DIAGRAM ..16 Page 2 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 3: Safety Alert Symbol And Signal Words

    Stay alert. Watch what you are hazardous situation which, if doing and use common sense not avoided, could result in when operating a power tool. Do minor or moderate injury. Item 42202 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4: Tool Use And Care

    Many accidents are exposure to high intensity caused by poorly maintained tools. noise is able to cause hearing loss. There is a risk of bursting if the tool is damaged. Page 4 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 5: Service

    Such gases are capable of explosion and serious injury to persons. Attach all accessories properly to the tool before connecting the air supply. SAVE THESE A loose accessory may detach or break during operation. INSTRUCTIONS. Item 42202 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6 Use containment methods such as blast-cleaning machines and cabinets 11. Install an in-line shutoff valve to allow to control the hazard and protect immediate control over the air supply adjacent workers from exposure. Page 6 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 7 SAVE THESE first be examined by a doctor and INSTRUCTIONS. then have regular medical check- ups to ensure medical problems are not being caused or worsened from Item 42202 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8: Functional Description

    Ceramic gas as a power source for this Nozzles tool. (13A - 16A) Window Liners (22) Siphon Hose (8) Blast Gun (7) Air Hose Connector (30) Figure 1 Page 8 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 9 WARNING! TO PREVENT SERIOUS after disconnecting to ensure that the INJURY FROM ACCIDENTAL tool is disconnected and unpowered. OPERATION: Do not install a female quick Item 42202 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10: Operating Instructions

    Slide one end of the Siphon Hose (8) onto the Siphon Tube (12) and the other end onto the Blast Gun (7). Insert the Siphon Tube through the corner opening of the Metal Floor Page 10 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 11: Work Piece And Work Area Set Up

    Place your hands into the Blast clean the filter periodically to maintain Gloves, making sure your fingers are good suction and effectiveness of the in the proper positions and that you Item 42202 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 12 Once the gun is off, open the door and inspect your material. If additional blasting is required, follow steps 1 through 7 as needed. Page 12 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 13: User-Maintenance Instructions

    Hopper when a different blasting medium is to be used or 11. Reassemble the Siphon Hose, when the medium gets worn down. Siphon Tube and Blast Gun and To clean the Hopper: Item 42202 For technical questions, please call 1-888-866-5797. Page 13...
  • Page 14 The moisture filter must be regularly drained. Performing routine maintenance on the air supply will allow the tool to operate more safely and will also reduce wear on the tool. Page 14 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 15: Troubleshooting

    BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Item 42202 For technical questions, please call 1-888-866-5797. Page 15...
  • Page 16: Blast Cabinet Parts List & Assembly Diagram

    Blast Gun Hinge Siphon Hose Bolt Rubber Trim Connector Foam Gasket Rubber Washer Bolt Siphon Tube Spring Washer Hopper Metal Floor Strengthening Piece Glove Port Glove Clamp Blast Glove Rubber Tube Page 16 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 17 Ceramic Nozzle - .22″ Gun Body Ceramic Nozzle - .27″ Seal Washer 17A Connector Connector Note: When ordering replacement parts, add an “A” suffix to part numbers shown in this Assembly Diagram. Item 42202 For technical questions, please call 1-888-866-5797. Page 17...
  • Page 18 Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 18 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 19 This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Item 42202 For technical questions, please call 1-888-866-5797. Page 19...
  • Page 20 3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797...
  • Page 21 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
  • Page 22 SET UP .......... 11 GENERAL OPERATING INSTRUCTIONS ......12 USER-MAINTENANCE INSTRUCTIONS ......13 CLEANING AND MAINTENANCE ... 13 TROUBLESHOOTING ...... 15 BLAST CABINET PARTS LIST & ASSEMBLY DIAGRAM ..16 Page 2 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 23: Safety Alert Symbol And Signal Words

    Stay alert. Watch what you are hazardous situation which, if doing and use common sense not avoided, could result in when operating a power tool. Do minor or moderate injury. Item 42202 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 24: Tool Use And Care

    Many accidents are exposure to high intensity caused by poorly maintained tools. noise is able to cause hearing loss. There is a risk of bursting if the tool is damaged. Page 4 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 25: Service

    Such gases are capable of explosion and serious injury to persons. Attach all accessories properly to the tool before connecting the air supply. SAVE THESE A loose accessory may detach or break during operation. INSTRUCTIONS. Item 42202 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 26 Use containment methods such as blast-cleaning machines and cabinets 11. Install an in-line shutoff valve to allow to control the hazard and protect immediate control over the air supply adjacent workers from exposure. Page 6 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 27 SAVE THESE first be examined by a doctor and INSTRUCTIONS. then have regular medical check- ups to ensure medical problems are not being caused or worsened from Item 42202 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 28: Functional Description

    Ceramic gas as a power source for this Nozzles tool. (13A - 16A) Window Liners (22) Siphon Hose (8) Blast Gun (7) Air Hose Connector (30) Figure 1 Page 8 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 29 WARNING! TO PREVENT SERIOUS after disconnecting to ensure that the INJURY FROM ACCIDENTAL tool is disconnected and unpowered. OPERATION: Do not install a female quick Item 42202 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 30: Operating Instructions

    Slide one end of the Siphon Hose (8) onto the Siphon Tube (12) and the other end onto the Blast Gun (7). Insert the Siphon Tube through the corner opening of the Metal Floor Page 10 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 31: Work Piece And Work Area Set Up

    Place your hands into the Blast clean the filter periodically to maintain Gloves, making sure your fingers are good suction and effectiveness of the in the proper positions and that you Item 42202 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 32 Once the gun is off, open the door and inspect your material. If additional blasting is required, follow steps 1 through 7 as needed. Page 12 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 33: User-Maintenance Instructions

    Hopper when a different blasting medium is to be used or 11. Reassemble the Siphon Hose, when the medium gets worn down. Siphon Tube and Blast Gun and To clean the Hopper: Item 42202 For technical questions, please call 1-888-866-5797. Page 13...
  • Page 34 The moisture filter must be regularly drained. Performing routine maintenance on the air supply will allow the tool to operate more safely and will also reduce wear on the tool. Page 14 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 35: Troubleshooting

    BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Item 42202 For technical questions, please call 1-888-866-5797. Page 15...
  • Page 36: Blast Cabinet Parts List & Assembly Diagram

    Blast Gun Hinge Siphon Hose Bolt Rubber Trim Connector Foam Gasket Rubber Washer Bolt Siphon Tube Spring Washer Hopper Metal Floor Strengthening Piece Glove Port Glove Clamp Blast Glove Rubber Tube Page 16 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 37 Ceramic Nozzle - .22″ Gun Body Ceramic Nozzle - .27″ Seal Washer 17A Connector Connector Note: When ordering replacement parts, add an “A” suffix to part numbers shown in this Assembly Diagram. Item 42202 For technical questions, please call 1-888-866-5797. Page 17...
  • Page 38 Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 18 For technical questions, please call 1-888-866-5797. Item 42202...
  • Page 39 This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Item 42202 For technical questions, please call 1-888-866-5797. Page 19...
  • Page 40 3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797...
