Telegan Anton Sprint V2 User Manual

Telegan Anton Sprint V2 User Manual

Multi-function flue gas analyser

Advertisement

Multi-function flue gas analyser
A
NTON
Tel: +44 (0) 870 428 0075
Fax:
+44 (0)
870 428 0076
sales@anton-group.com
www.anton-group.com
Anton Group
Tel: +44 (0) 870 428 0075
V2.2 i1.05
User Manual
INS 29612
November 2011
Issue 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anton Sprint V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Telegan Anton Sprint V2

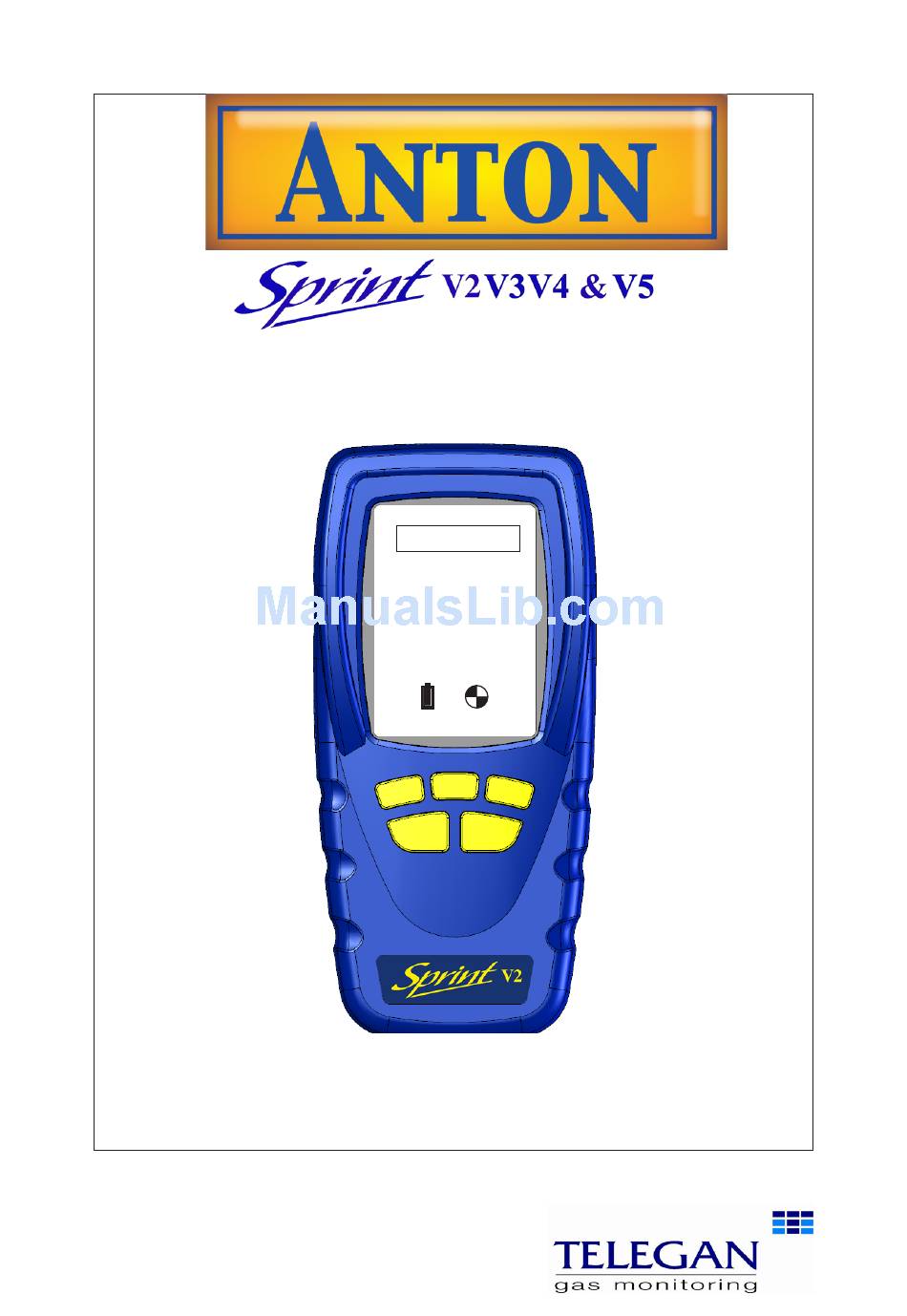

  • Page 1 Multi-function flue gas analyser NTON Tel: +44 (0) 870 428 0075 Fax: +44 (0) 870 428 0076 sales@anton-group.com www.anton-group.com Anton Group Tel: +44 (0) 870 428 0075 V2.2 i1.05 User Manual INS 29612 November 2011 Issue 6...
  • Page 2: Safety Information

    – + used outside this range Edit value Use only charger(s) supplied by Telegan/Anton. Increment value Use only the appropriate Telegan/Anton supplied cables – Decrement value for connection to the sockets on the instrument. Decrement through character list (String edit) ©...
  • Page 3: Table Of Contents

    Contents Sprint V2/V3/V4/V5Multi-function Flue Gas Analyser ....2 Unpacking ....................2 Overview ....................3 Probe connections ..................4 Quickstart Guide ..............5 I. Operation ................14 1.1 Menu and operator button overview ..........14 II. Setting Up ..............16 2.1 Configuration Options ..............16 III. Battery Charging ............19 Charging the batteries ................19 IV.
  • Page 4: Sprint V2/V3/V4/V5Multi-Function Flue Gas Analyser

    Unpacking Sprint V/V3/V4/V5 Sprint V2/V3/V4/V5 Multi-function Flue Gas Analyser Thank you for purchasing the Sprint V/V3/V4/V5 Multi-function Flue Gas Analyser. Sprint has redefined flue gas analysis and will give you years of unpar- alleled service and reliability. There are four versions covered in this manual as follows: Sprint V2 Standard full function flue gas analyser Sprint V3...
  • Page 5: Overview

    Sprint V/V3/V4/V5 Overview Overview Display Showing start-up NTON splash screen Tel: +44 (0) 870 428 0075 Fax: +44 (0) 870 428 0076 sales@anton-group.com www.anton-group.com Battery icon Anton Group Three bars show Tel: +44 (0) 870 428 0075 Soft keys complete charge V2.2 i1.05 Use these unmarked buttons Purge icon to make selections from the...
  • Page 6: Probe Connections

    Probe connections Sprint V/V3/V4/V5 (-) PRESSURE (DRAUGHT) FLUE SAMPLE Tip: see label (+) PRESSURE underneath unit for details of probe FLOW connections (EFFICIENCY) RETURN Probe connections Flue gas analysis Connect the flue probe to the flue sample inlet and the thermocouple to the k-connector marked FLOW (Efficiency).
  • Page 7: Quickstart Guide

    Sprint V/V3/V4/V5 Quickstart guide Quickstart Guide Switch On Important: please connect flue probe first before switching on your Sprint unit, ensure the water trap is empty and is fitted in the right direction. Do not insert probe in flue till after auto zero. Always start in clean air. Press and hold the ON/OFF/ENTER key for two seconds. Sprint will emit a few ris- ing beeps, performs a screen test and starts the pump to purge any residual gas from the unit.
  • Page 8: Using The Menu

    Quickstart guide Sprint V/V3/V4/V5 Using the menu From the Test Menu press the ESC key to display the Main Menu. Use the soft keys to scroll, select and edit menu items (see icon list - inside front cover). Press accept þ to make change or the ESC key to cancel. Press the ESC key to return to the Main Menu.
  • Page 9 Sprint V/V3/V4/V5 Quickstart guide Set date & time: use the soft keys – and + to change units of date and time to select hours, minutes, day, month and year. Press ESC to save. è é Edit report header: use the soft keys to select header text one or two ê...
  • Page 10 Performing tests Sprint V/V3/V4/V5 Performing tests From the Main Menu select Test Menu. Refer to section III Operation for more details. Warning: During testing, ensure the combined filter and water trap is not blocked or full. Failure to do so may result in an error message. 1. Flue gas analysis Before performing the flue gas analysis test, check the water trap is clean and is upright (arrow should point in direction of gas flow).
  • Page 11 Sprint V/V3/V4/V5 Performing tests Note: for personal safety a carbon monoxide alarm will activate at 300ppm CO. This will deactivate when CO levels drop below 150ppm. This is to protect the user from potential hazardous exhaust gas levels. 2. Let-by and Tightness test Let-by test Before carrying out the test, the pressure must be zeroed with the tube con- nected to the instrument but not the pressure source.
  • Page 12 Performing tests Sprint V/V3/V4/V5 Stabilisation Stabilisation Stabilisation 14:44:27 08-Feb-2006 14:44:27 14:44:27 08-Feb-2006 08-Feb-2006 Start P3 Start P3 Start P3 mBar mBar mBar Finish P4 Finish P4 Finish P4 mBar mBar mBar Diff press Diff press Diff press mBar mBar mBar 00:25 00:54 Duration...
  • Page 13 Sprint V/V3/V4/V5 Performing tests Tip: plug in the 2. Connect tube(s) to pressure inlet(s). Thermocouple 3. Zero pressure, use the soft key marked probe to view temperature on 4. Connect tube(s) to pressure source(s) to screen. begin pressure test. 5. There is an option to time this test, Sprint Pressure displays the duration time on the screen.
  • Page 14 Performing tests Sprint V/V3/V4/V5 The screen will display the snapshot temperature, the live probe temperature, and the differential temperature. Use the soft keys to log or print the results. To end test press the ESC key. 5. Room CO safety test Ensure the unit has been zeroed in clean air during switch on before performing this test.
  • Page 15 This will allow the user to verify whether the sensor is working correctly or not. If the gas is not detected contact Telegan or your local distributor to arrange for the probe to be serviced.
  • Page 16: Operation

    Operation Sprint V/V3/V4/V5 I. Operation Before using the Sprint flue gas analyser on any heating appliance installation, ensure you are familiar with the working practices defined in the BS7967 which details how to perform certain tests and safety issues to consider. Auto zero setting Allow the Sprint unit to auto zero during switch on in clean air before per- forming any of the following tests: flue gas analysis and room CO safety test.
  • Page 17 Sprint V/V3/V4/V5 Operation After your Sprint unit has been switched on and performed an auto zero the display will show the Test Menu screen ready for use. To display the Main Menu press the ESC key. é To enter a menu item, use the soft keys below the screen icons to ê...
  • Page 18: Setting Up

    Setting up Sprint V/V3/V4/V5 II. Setting Up 2.1 Configuration Options Fuel Options: Sprint displays the current fuel option on the screen. To change the fuel option press the ESC key to enter the Main Menu and select Fuel Options. Use the soft keys to scroll and select the desired fuel using .
  • Page 19 Sprint V/V3/V4/V5 Setting up Auto off timeout On the auto off timeout screen the number of minutes at which the unit will automatically switch off is shown. Use the soft keys – and + to reduce or increase the number of minutes. Press the key to accept the change or ESC to cancel.
  • Page 20 Setting up Sprint V/V3/V4/V5 the current list in use. Use the keys to scroll through character values in each list and to move on to the next letter in the header text. The char- è acter lists are shown below. Press ON/OFF/ENTER to delete characters to the right.
  • Page 21: Battery Charging

    Sprint V/V3/V4/V5 NTON Battery charging Tel: +44 (0) 870 428 0075 Fax: +44 (0) 870 428 0076 sales@anton-group.com www.anton-group.com Anton Group III. Battery Charging Tel: +44 (0) 870 428 0075 V2.2 i1.05 The Sprint has a lithium-ion rechargeable battery and will operate for up to 9 hours when fully charged, depending on the type of test used.
  • Page 22: Maintenance And Calibration

    Maintenance and calibration Sprint V/V3/V4/V5 IV. Maintenance and calibration General To keep the display panel and operator buttons free from dirt build-up, regularly wipe over your Sprint unit with a slightly damp cloth. Protective boot To protect Sprint from dirt and knocks a rubber boot is supplied. This boot is supplied with concealed magnetics in the rear.
  • Page 23: Specification

    Sprint V/V3/V4/V5 Specification V. Specification Instrument Operating temperature -10°C to 50°C (14°F to 122°F) range Battery Lithium-Ion. Life up to 9 hours dependant on test used. 15% left warning. Recharge time Minimum 6 hours from flat. Charger input voltage 230 V; 50 Hz AC Standard Fuels Natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse...
  • Page 24 Specification Sprint V/V3/V4/V5 Gases Range Display Accuracy Detection Response Recovery Diagnostics Resolution limit time time (t90) Oxygen 0-25% 0.1% ± 0.2% 0.3% v/v 50 sec 30 sec ü Carbon 0-10,000ppm 1ppm <20ppm; 1ppm 90 sec 60 sec ü monoxide (H 2 com- ±3ppm pensated, >20ppm;...
  • Page 25: Accessories And Spare Parts

    Sprint V/V3/V4/V5 Accessories and spare parts VI. Accessories and spare parts Accessory list Telegan part number Description General Spares CAS29002 SPRINT V CARRY CASE SFW29001 SPRINT V CD ROM PRB29002 SPRINT V LEAK PROBE PRB29000 SPRINT V MAIN PROBE INC WATER TRAP WITH FILTER TUB29000 SPRINT V Neoprene Tube - 1/4”ID x 3/8”...
  • Page 26: Logging

    Logging Sprint V/V3/V4/V5 VII. Logging Sprint provides the option to log the results of tests. When a test is complete, < use the soft key to log the results. The display will show the Create log screen detailing the log number, log title, date and time. Press the accept key ü...
  • Page 27: Printing And Data Transfer

    Sprint V/V3/V4/V5 Printing and Data Transfer VIII. Printing and Data Transfer Printing using IR comms Ensure your selected printer is switched on with paper roll installed and ready for use. Ensure that the IR window on Sprint is aligned with the IR window on the printer.
  • Page 28: Troubleshooting Guide

    Troubleshooting guide Sprint V/V3/V4/V5 IX. Troubleshooting guide Sprint will provide on-screen messages which advise clear actions. Contact Anton if unsure on how to proceed. Symptom Cause Recommended User Action: Instrument will not Battery flat Connect charger and retry. turn on when on/off Battery may be flat.
  • Page 29 Sprint V/V3/V4/V5 Troubleshooting guide Symptom Cause Recommended User Action: Auto-zero failed Sensors exposed to Switch off and on, ensuring gas or faulty. you zero in clean air and sen- sors are purged. If unit contin- ues to fail auto-zero, return for service. Alarm activates in CO CO is reading greater Dependant on safety proce-...
  • Page 30: Appendix I: Carbon Monoxide Room Safety Tests

    Appendix I: Carbon Monoxide Room Safety Tests Sprint V/V3/V4/V5 Appendix I: Carbon Monoxide Room Safety Tests Sprint V instruments are designed to assist heating engineers to work to the BS 7967:2005 specification for carbon monoxide room safety testing. You should refer to BS7967, which defines the requirements, details the methods as well as the pass and fail criteria for various types of appliances.
  • Page 31 Sprint V/V3/V4/V5 Appendix I: Carbon Monoxide Room Safety Tests the test completes a short text message associated to this code is displayed in a pop-up prompt dialog screen, to explain the reason for failure. The result codes and associated prompt dialogue messages are as follows: RESULT & CODE POP-UP PROMPT ON-SCREEN “PASSED"...
  • Page 32 Appendix I: Carbon Monoxide Room Safety Tests Sprint V/V3/V4/V5 NB: The alarm should prompt the operator to take appropriate action according to BS and safety procedures. The sensors in the instrument should be purged with clean air and allowed to recover. Unacceptable Levels of CO A peak duration timer records whenever the CO level exceeds the maximum allowed CO level during the test.
  • Page 33 Sprint V/V3/V4/V5 Appendix I: Carbon Monoxide Room Safety Tests Multiple Peaks of CO The overall peak CO reading recorded will be the latest peak CO reading that was higher than any previous. The peak duration recorded will be the total time the CO readings exceeded the maximum allowed CO level.
  • Page 34 Technical helpline: Tel: +44 (0)870 428 0075 Exclusive UK Distributor: Manufactured by: Anton Industrial Services Ltd Telegan Gas Monitoring Unit 6 Greenhill House A division of Crowcon Detection 26 Greenhill Crescent Instruments Ltd Watford Business Park 2 Blacklands Way, Watford. Abingdon Business Park...
