Dakota Micro OverView DMOV-7M-C2 User Manual

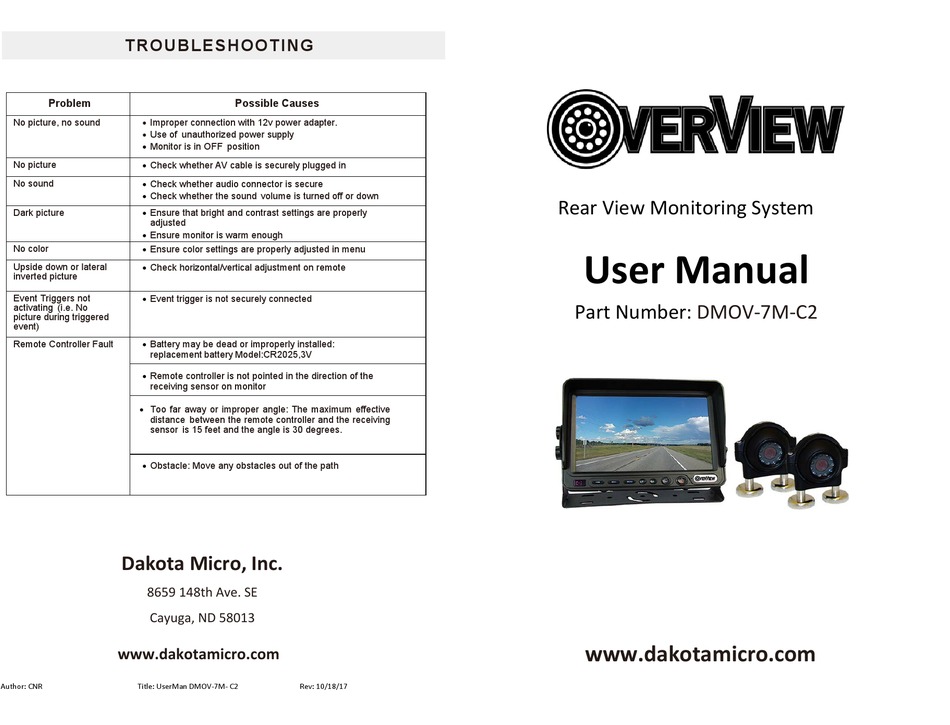

TROUBLESHOOTING

Problem
 Improper connection with 12v power adapter.
No picture, no sound
 Use of unauthorized power supply

Monitor is in OFF position

No picture Check whether AV cable is securely plugged in

No sound Check whether audio connector is secure

Check whether the sound volume is turned off or down
Dark picture  Ensure that bright and contrast settings are properly
adjusted

Ensure monitor is warm enough
No color 
Ensure color settings are properly adjusted in menu

Upside down or lateral Check horizontal/vertical adjustment on remote
inverted picture

Event Triggers not Event trigger is not securely connected
activating (i.e. No
picture during triggered
event)
Remote Controller Fault 
Battery may be dead or improperly installed:
replacement battery Model:CR2025,3V

Remote controller is not pointed in the direction of the
receiving sensor on monitor

Too far away or improper angle: The maximum effective
distance between the remote controller and the receiving
sensor is 15 feet and the angle is 30 degrees.

Obstacle: Move any obstacles out of the path
Dakota Micro, Inc.
8659 148th Ave. SE
Cayuga, ND 58013
www.dakotamicro.com
Author: CNR Title: UserMan DMOV‐7M‐ C2 Rev: 10/18/17
Possible Causes
Rear View Monitoring System
User Manual
Part Number: DMOV‐7M‐C2
www.dakotamicro.com
