Summary of Contents for Studiomaster CLUBXS10

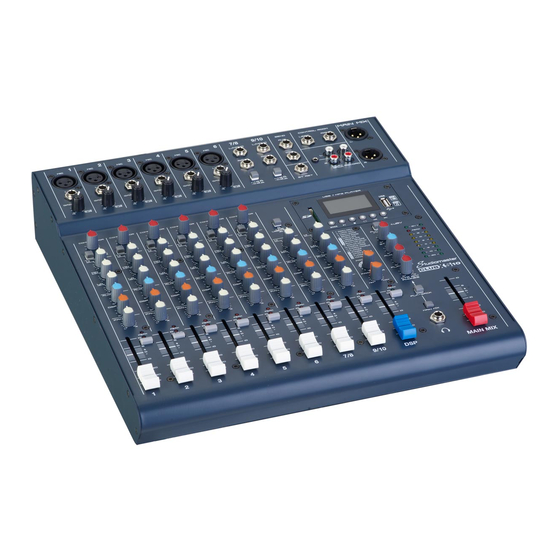

- Page 1 CLUBXS CLUBXS8/10...
- Page 2 Service Information If you have a problem with your Studiomaster product or think it has developed a fault contact your local dealer or distributor for service details. Should it be recommended you return the product to your nearest Studiomaster Service Centre you must first contact them.
- Page 3 1. Introduction Specification Thank you for Studiomaster CLUBXS8/10 compact mixer which features universal voltage Mono input 100-240V, compression function of each mic channel to keep crystal clear sound during Mic input Bal input performance. The mixer can play the music via SD card/USB/bluetooth. The mic sound or...
- Page 4 1. MIC/LINE CHANNEL (CH1-6) Balanced XLR input connector (1 ground 2 hot 3 cold). CLUBXS8 Is designed with 4 low noise mic pre-amp (CLUBXS10 has 6) and phantom power, 45dB gain and >100 dB S/N ratio. The phantom power is used for condenser mic. If you use dynamic mic, please turn off phantom power first.
- Page 5 Bal/unbal mode of TRS/XLR connectors 10. FADER It adjusts the level of channel signal which is sent to main mix out. 1/4 TRS or XLR connector bal/unbal modes; please refer to below: Note: set the unused faders to minimum position. connector Stereo channel 1.
- Page 6 Installation OUTPUT AND REAR PANEL 1. There should be no obstacles before the speaker cabinet. You had better put the speaker cabinet on a speaker stand. 2. Use professional devices to suspend or install the speaker cabinets to avoid hurt. 3.
- Page 7 SD/USB/BLUETOOTH 1. +48V phantom power switch/red when on It is used for condenser mic operation. Please set all faders to minimum before turning on the switch to protect speaker cabinets. 2. Stereo return It adjusts stereo return signal level. 3. AUX send It adjusts aux send level.
Need help?
Do you have a question about the CLUBXS10 and is the answer not in the manual?
Questions and answers
Your manual don't supply much instruction on how to use the different features. The manual for my previous mixer was much more descriptive.
To find more detailed instructions for using the Studiomaster CLUBXS10 mixer features, you should contact your local dealer or distributor for service details. If needed, they may direct you to a Studiomaster Service Centre. Make sure to provide the product type and serial number to get a Returns Authorisation (RA) number if returning the unit.
