BOOSTERS 2G
USER'S GUIDE

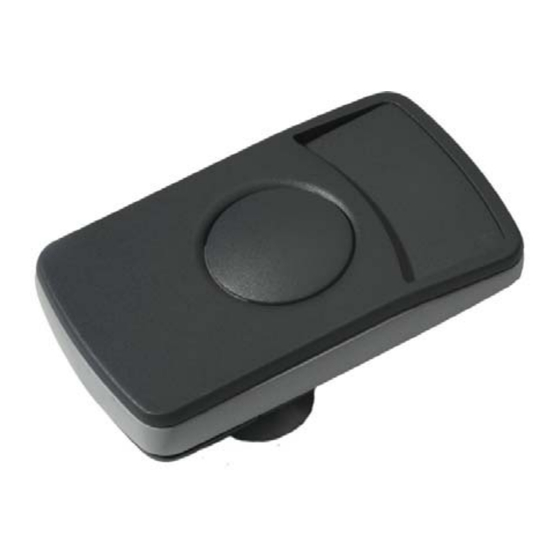

PROX-BOOSTER 2G
SMARTCARD-BOOSTER 2G
TRANSITION-BOOSTER 2G
PROX-BOOSTER TACHO 2G
INCL. CONFIGURATION SOFTWARE
2012-06-05
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys
no license under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifica-
tions and availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in
whole or in part without the written consent of the publisher
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nedap PROX-BOOSTER 2G
Summary of Contents for Nedap PROX-BOOSTER 2G
- Page 1 BOOSTERS 2G USER'S GUIDE PROX-BOOSTER 2G SMARTCARD-BOOSTER 2G TRANSITION-BOOSTER 2G PROX-BOOSTER TACHO 2G INCL. CONFIGURATION SOFTWARE 2012-06-05 This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no license under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifica- tions and availability of goods mentioned in it are subject to change without notice;...
-
Page 2: Table Of Contents
5 B B UZZER INDICATIONS ..................................20 6 B B ATTERY REPLACEMENT ................................... 20 TECHNICAL SPECIFICATIONS ................................21 PART NUMBERS ....................................21 © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 2 of 21... -
Page 3: I Ntroduction
For more details about the NEDAP TRANSIT reader refer to the TRANSIT installation guide. The combined vehicle and driver ID is a unique NEDAP patented feature. Optionally the vehicle-ID can be sacrificed if more information from the personal ID card is required. -
Page 4: I Nstallation
Booster may not be designed to withstand such temperatures and could suffer damage as a result. Nedap recommends to remove the personal identification card when not in use. CAUTION: DO NOT LEAVE CARD IN ACCESS DEVICE WHEN LEAVING THE VEHICLE, AS THIS PRESENTS A SECURITY RISK. -
Page 5: 0 B P Rox-Booster Tacho
Input voltage: 6V to 24V (max. 30V). Polarity reversal tolerant. Input prescaler 1:256. Maximum pulse frequency 850Hz. Maximum vehicle speed 255km/h (at 12 pulses/meter). km / © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 5 of 21... -
Page 6: I Dentifying The Booster With A Transit
If 'Standard-length' is configured, the following message is transmitted to the host. TXD = U00871111111117100944 Event identifier ('Z' or 'U'). Driver-id (20 or 32 digits). See chapter 6 for details about the buzzer indications. © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 6 of 21... -
Page 7: 3 B R Eader Output Tacho Info
Get the actual tacho counter value Calculate travelled distance by using the following formula: Calculate the current mileage by using the following formula: © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 7 of 21... -
Page 8: S Martcard Configuration
P 3 T H OW TO CREATE A CONFIGURATION CARD 1 5 B NEDAP has developed a software application that allows system integrators to create configuration cards. This software can be downloaded from our website w ww.nedapavi.com 1 T U... -
Page 9: 9 B T Arget Device
Please note that when reading low-frequency cards with a Transition-Booster this setting is not used. For NEDAP and EM cards the extended-length is not required and therefore the Booster will automatically use standard-length (even if extended-length is selected in the configuration). - Page 10 NEDAP PM 3 T P 2 F P 3 T 3 T P 3 F Enable or disable the reading of NEDAP PM cards. NEDAP PM cards are always transmitted to the TRANSIT using standard-length. EM4102 (and compatible) Enable or disable the reading of EM4102 and compatible cards.
- Page 11 Data Length: Number of bytes to transmit. The maximum number of bytes is dependant upon the operating-mode and frame-length settings. Data Offset: Number of bytes to skip. © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 11 of 21...
- Page 12 Byte 1 Byte 0 Page 8 skipped skipped skipped skipped Page 7 skipped skipped DATA DATA Page 6 DATA DATA DATA DATA Page 5 DATA DATA DATA DATA © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 12 of 21...
- Page 13 MIFARE Classic sector data Byte order: Reverse Sector Number: Block Number: Data Length: Data Offset: The settings above will read the data below shown in blue. Sector Block © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 13 of 21...
- Page 14 Key number in range from 0 to 13. Security authentication key. Depending upon the selected encryption method and key number. The encryption key is 16 or 24 bytes. © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 14 of 21...
-
Page 15: 1 B D Efault Configuration
Enabled EM4102 (and compatible) Enabled HID PROX Enabled HID iCLASS CSN Enabled ISO15693 / LEGIC Advant CSN Enabled Calypso Enabled Data to read PUPI Byte order Normal © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 15 of 21... -
Page 16: 6 B P Rogram The Configuration Card
‘Programmer’ menu. The HID OMNIKEY programmer sometimes requires to remove and replace the config card before re- accessing the card is possible. © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 16 of 21... -
Page 17: 3 B U Sing Another Programmer
‘Show configuration details’ in the ‘Expert’ menu. Configuration Data Sector 0 is reserved for MAD (Mifare Application Directory). If the MAD is programmed, the Nedap configuration sectors should have application id 517F. 4.3.2.1... -
Page 18: 7 B T Esting The Configuration
Your configuration can be saved into a so-called Smartcard Booster Config File (*.sbcf). These files contain all the configuration settings as you have defined them. Saved Config Files can be easily opened from within the File menu. © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 18 of 21... -
Page 19: M Tr Configuration
The MTR is configured in exactly the same way as the Smartcard Booster. Refer to chapter 4 on page 8 for more information about the configuration procedure. For more details about the TRANSIT Entry reader and the MTR refer to the separate documentation. © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 19 of 21... -
Page 20: B Uzzer Indications
BOOSTERS 2G B UZZER INDICATIONS The Booster's built-in buzzer gives audible feedback upon various conditions. The table below describes the buzzer indications. Buzzer Description 1 beep Card read 1 short low beep Failed to read card (not in configuration) 3 beeps increasing frequency ♪ ♪ ♪ Configuration card accepted 6 beeps increasing frequency Power on (Smartcard-Booster / Transition-Booster / MTR) -
Page 21: Technical Specifications
……… Prox-Booster tacho 2G READER part number: 9990410 TRANSIT PS270 long range reader part number: 9876200 TRANSIT Entry reader ENTRY READER ACCESSORIES part number: 7816650 MTR Module © Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 21 of 21...
