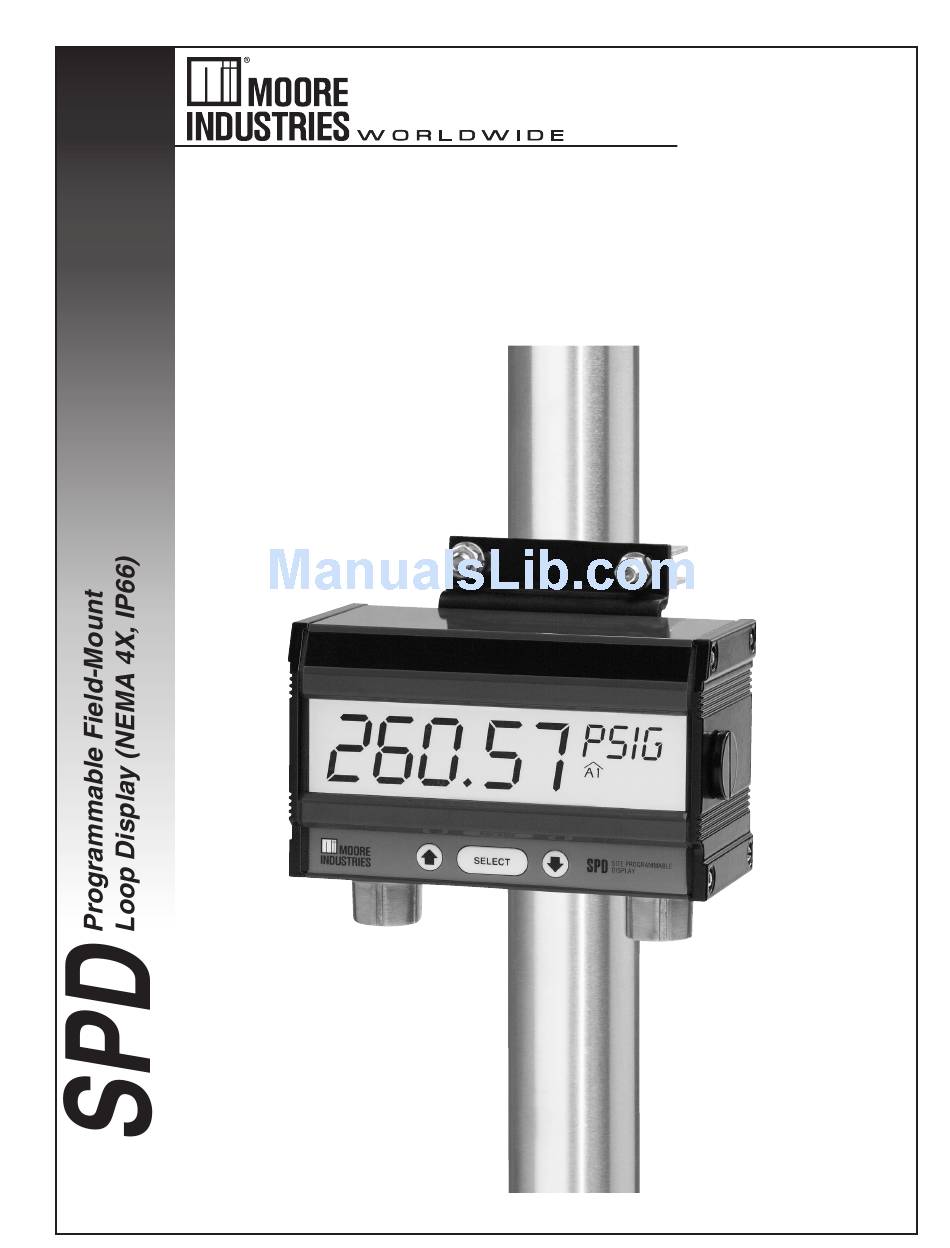

  • Page 1 Programmable Field-Mount May 2016 Loop Display (NEMA 4X, IP66) 178-722-00 D...

  • Page 2: Table Of Contents

    Table of Contents SPD Quickstart Menu ..................4 The SPD ......................5 About this Manual ........................5 Specifications ....................6 Installing the SPD ....................7 Mounting ..............................7 Loop Connections ............................7 Configuration Connections ........................7 PC Configuration Software ................11 Programming the SPD ..................
  • Page 3 Linearization Mode ..........................16 Input Settings ............................16 Display Settings ............................16 Programming the SPD with a Square Root Table ..............17 Option One: Generating a Custom Square Root Curve ................. 17 Option Two: Importing a Pre-made Square Root Curve ................. 17 Importing a Custom Curve Table ..................18...

  • Page 4: Spd Quickstart Menu

    APPLY INPUT monitored sensor's output by capturing the zero and full values. Trimming the Input: Trim the input to cause the SPD zero TRIM and full values to read 4mA and 20mA, INPUT respectively, even if the monitored sensor's actual range is different.

  • Page 5: The Spd

    Housing—The SPD comes in our Field Housing (FH) that is NEMA 4X and IP66 certified. Pipe-mount hardware is optional. Figure 1. Both PC- and Site-Programmable, the SPD accepts a 4-20mA signal and outputs the signal to two alarm relays 803-040-26 FOR NON-ISOLATED CABLE 803-039-26 FOR ISOLATED CABLE...

  • Page 6: Specifications

    Programmable Field-Mount Loop Display (NEMA 4X, IP66) Specifications Display Type: LCD; Top Row, Performance Over-Current Ambient Operating Range: (Continued) Protection: 100mA Conditions 29.21mm (1.15 inch) high -40°C to +85°C black digits on a reflective absolute maximum (-40°F to +185°F) Display Input Overrange: background;...

  • Page 7: Installing The Spd

    To connect to the SPD, you will first need to remove the side panel(s). Use a flathead screwdriver to remove the four screws on the right side of the SPD. If your SPD has the –2PRG option, you will also need to remove the left side panel to give access to the alarm Table 1.
  • Page 8 POWER –IN – SUPPLY – 4-20mA TRANSMITTER Figure 2-B. Loop Connections for the 2.3VLP SPD with Backlight ( -BL option) SPD (2.3VLP Model) CAUTION: When using Optional USB 803-040-26 FOR NON-ISOLATED CABLE Cable Part# 804-030-26 DO NOT CONNECT THE 803-039-26 FOR ISOLATED CABLE...
  • Page 9 Programmable Field-Mount Loop Display (NEMA 4X, IP66) Figure 2-C. Loop Connections for the 2.3VLP SPD with Backlight and Intrinsically Safe option ( -BL and -ISC ) SPD (2.3VLP Model) CAUTION: 803-040-26 FOR NON-ISOLATED CABLE DO NOT CONNECT THE 803-039-26 FOR ISOLATED CABLE...
  • Page 10 Programmable Field-Mount Loop Display (NEMA 4X, IP66) Figure 4. Configuration Connections for the 2.3VLP SPD SPD (2.3VLP Model) CAUTION: When using Optional USB 803-040-26 FOR NON-ISOLATED CABLE Cable Part# 804-030-26 DO NOT CONNECT THE 803-039-26 FOR ISOLATED CABLE please assure that the ground...

  • Page 11: Pc Configuration Software

    Programmable Field-Mount Loop Display (NEMA 4X, IP66) Figure 6. All of the SPD Operating Parameters can be set from the Main Screen of the Configuration Program. PC Configuration Software 3. Input Settings, Display Settings, & Device– Displays the current configuration of the SPD.

  • Page 12: Programming The Spd

    Connect the SPD as shown in Installing custom curve tables) using either the front mounted the SPD, then use the arrow buttons to click through buttons and the SPDs menu, or our Intelligent PC the menu options and the Select button to select your Configuration Software.

  • Page 13: Pc-Programming The Spd

    Once the Configuration Program is installed on the PC, the SPD can be connected to the loop or to equipment to simulate and calibrate input. You can then view and/or change the instrument’s parameters.

  • Page 14: Programming The Input & Output

    Refer to the right side of Figure 6 for The EGU is the engineering unit that will be displayed illustration of the Input & Output page. on the second line of the SPD display. It is limited to 5 characters made up of numbers, selected symbols, Input Settings and capital letters.

  • Page 15: Programming The Alarms Function (Only For Units With The -2Prg Option)

    The Capture Trip Point button permits you to attach Figure 8. The PC Program’s Alarm Parameters Tab the SPD into the loop and read the trip point from the transmitter. Simply press the Capture Trip Point button and a wizard will pop up to guide you through the process.

  • Page 16: Programming With A Custom Curve

    50 into the Display Settings section, then when you received full input into the SPD, it would read 50; when you received 25% of span in the SPD, it would read 12.5. This is helpful if you set up a complex custom curve and then need to change the output values at a later time.

  • Page 17: Programming The Spd With A Square Root Table

    “SquareRoot_0-100PCT.csv” The first option is to run the Square Root Table (it will be in the “C:\My Moore Industries Data\Custom Generator and create a custom square root table that Curves” Directory) and click OPEN. The Universal PC can be easily saved and imported into the Universal Configuration Software will import the file.

  • Page 18: Importing A Custom Curve Table

    Universal PC Configuration an already-created curve in another Moore Industries Software. This can be a file you have created, or a file PC Program.

  • Page 19: Dimensions

    Programmable Field-Mount Loop Display (NEMA 4X, IP66) Figure 10. SPD Dimensions 96mm (3.78 in) 163mm 78mm (6.42 in) (3.07 in) 121mm 96mm (4.76 in) (3.78 in) 116mm (4.57 in) SITE PROGRAMMABLE SELECT DISPLAY FRONT VIEW SIDE VIEW Conduit Conduit Opening for Alarm...

  • Page 20: Spd Security

    Changing the Password Security Setting To change the security setting, turn off the power, remove the right side of the SPD, and change the jumper position as shown. When you are finished, reapply power to the SPD. The SPD password security setting will only change after the SPD power has been turned off and on.
  • Page 21 4. Ship the equipment to the Moore Industries location nearest you. The returned equipment will be inspected and tested at the factory. A Moore Industries rep- resentative will contact the person designated on your documentation if more information is needed.
