Summary of Contents for APart-Audio NETKIT-IR

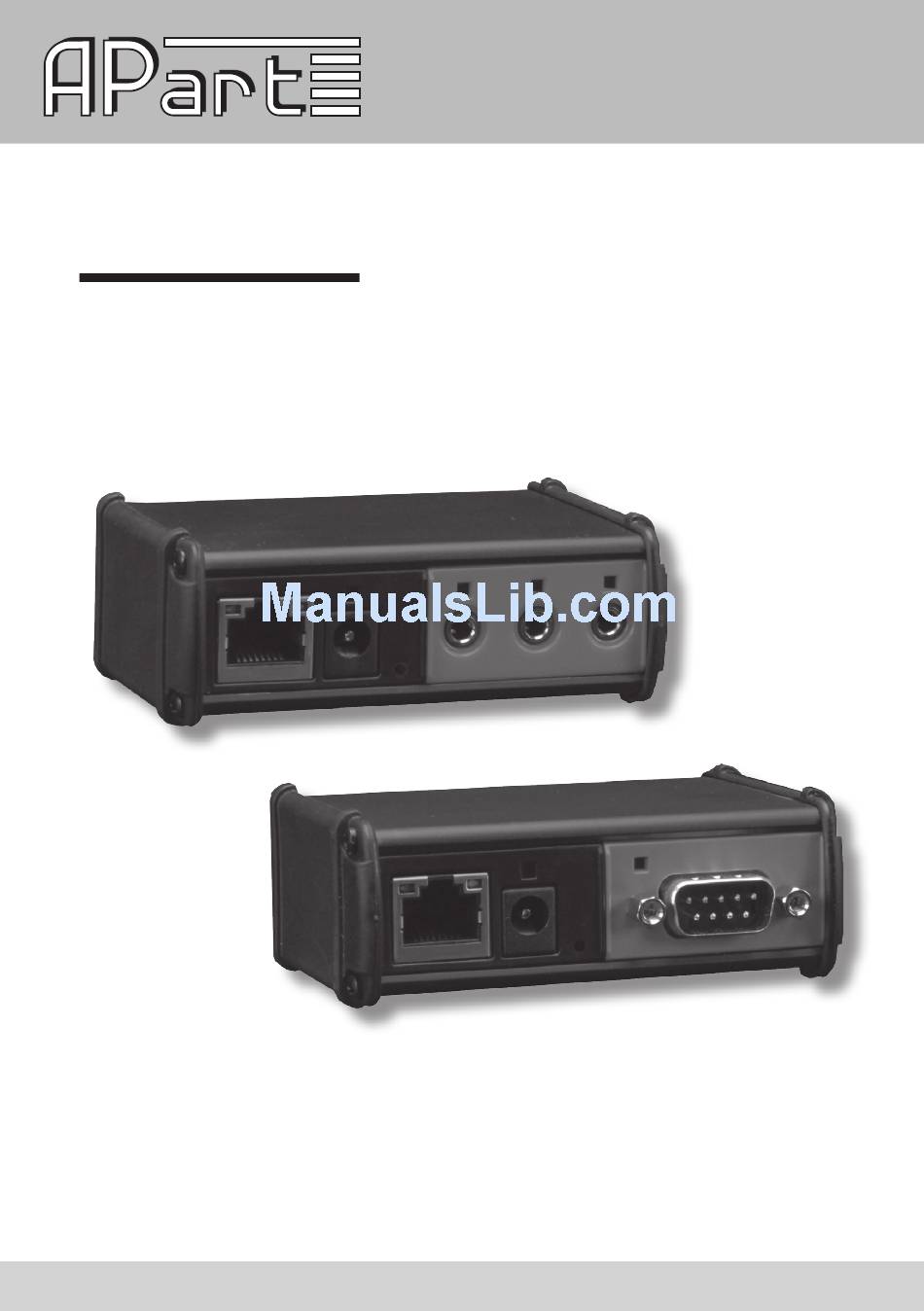

- Page 1 MANUAL NETKIT-IR/-RS INFO@APART-AUDIO.COM...
-
Page 2: How To Get Started
Netkit units’ configuration can be reset to factory defaults by inserting a metal pin (like a paper clip) into the small opening located to the right of the power connector (see figure 1). Do not push the paper clip in deeper than approximately WWW.APART-AUDIO.COM... - Page 3 NETKIT-IR 1. RJ45 connector 2. Power supply connector 3. IR learning eye/reset switch 4. IR module 5. RS232 module NETKIT-RS figure 1 3 mm. The LED’s on the front of the Netkit unit will rapidly blink in unison, indicating a reset. Use a light touch when resetting your Netkit unit, as force may damage your Netkit hardware irreparably.
- Page 4 One IR module is contained in the Netkit-IR (figure 1). The first IR connector on the IR module has an address of 1:1, whereas the third IR connector has an address of 1:3.
- Page 5 Netkit status, IR data, and reading digital input states. All information, with the exception of serial data, is communicated by comma delimited ASCII text strings terminated by a carriage return. Serial data is communicated via Ports 4999 and above. INFO@APART-AUDIO.COM...
-
Page 6: Command Set
<moduletype> is |ETHERNET|3 IR|1 SERIAL| All modules are included in the response followed by endlistdevices(enter) The following are the possible Netkit IR responses to a getdevices command. device,0,0 ETHERNET(enter)device,1,3 IR(enter)endlistdevices(enter) for IP to three infrared device,0,0 ETHERNET(enter)device,1,1 SERIAL(enter)endlistdevices(enter) for IP to one serial WWW.APART-AUDIO.COM... - Page 7 115.2 Kbaud. All serial data is passed through without interpretation or conversion via an assigned, unique IP port. The Netkit serial connector is assigned to IP Port 4999. If a serial connector is not configured correctly, buffer overflows (indicating data INFO@APART-AUDIO.COM...
- Page 8 This command string will set the Netkit serial connector to operate at 38400 baud with hardware flow control and no parity. get_SERIAL This command will retrieve the current Netkit serial settings. get_SERIAL,1:1(enter) SERIAL Sent from Netkit in response to set_SERIAL and get_SERIAL. SERIAL,1:1,<baudrate>,<flowcontrol>,<parity>(enter) WWW.APART-AUDIO.COM...
- Page 9 This command will retrieve the current mode setting for a designated connector. Sent to Netkit: get_IR,1:1(enter) for the 1st IR connector get_IR,1:2(enter) for the 2nd IR connector get_IR,1:3(enter) for the 3rd IR connector Sent from Netkit in response to get_IR query: IR,1:1,<IR|SENSOR|SENSOR_NOTIFY|IR_BLASTER|LED_LIGHTING>(enter) INFO@APART-AUDIO.COM...
- Page 10 (ID is specified in sendir command) Note: The busyIR response is returned to the originator of the unexecuted IR command. A command to stopir will only return the stopir response. At no time will a command of stopir return a response of busyIR. WWW.APART-AUDIO.COM...
- Page 11 1 second, while a ramp of 0 will change the value instantly. Sent from Netkit in response to set_LED_LIGHTING: LED_LIGHTING,<connectoraddress>,<% intensity1>,<% intensity 2>(enter) where: <% intensity1> |0-100| is the current lighting intensity <% intensity2> |0-100| is the target lighting intensity upon completion INFO@APART-AUDIO.COM...
- Page 12 0 percent (%). Connector 2 is the “up” function sensor. When a momentary contact is made, this sensor turns the WWW.APART-AUDIO.COM...
- Page 13 <repeat> is |1|2|….|50| (2) (the IR command is sent <repeat> times) <offset> is |1|3|5|….|383| (3) (used if <repeat> is greater than 1, see below) <on1> is |1|2|…|65635| (4) (number of pulses) <off1> is |1|2|…|65635| (4) (absence of pulse periods of the carrier frequency) INFO@APART-AUDIO.COM...
- Page 14 (i.e. A,B,C, etc.) to represent them. In the event that a pair is used in many places inside an IR command, commands can be written with the capital letter in place of the designated pair without being offset by commas. WWW.APART-AUDIO.COM...
- Page 15 Although the same command is sent four times by both sendir commands, the <ID>s are different, and therefore cannot be considered the same command. The second IR command structure is the recommended method, avoiding long commands and allowing repetition of the command to be halted if requested. INFO@APART-AUDIO.COM...
- Page 16 The command in question will operate functionally the same, but delays between commands may be evident when used in this way. Increasing the <repeat> value will likely eliminate these discrepancies. WWW.APART-AUDIO.COM...
- Page 17 Sent from Netkit in response to get_IRL: IR Learner Enabled(enter) Once enabled, the Netkit sends an uncompressed Apart-Audio format sendir command, terminated by a carriage return, through TCP packets via port 4998. Although the Netkit product family supports up to eight simultaneous connections, the captured command will only be sent to the connection that initiated learner mode.
-
Page 18: Error Codes
ERR_19 Repeated IR transmission failure. ERR_20 Above designated IR <on|off> pair limit. ERR_21 Symbol odd boundary. ERR_22 Undefined symbol. ERR_23 Unknown option. ERR_24 Invalid baud rate setting. ERR_25 Invalid flow control setting. ERR_26 Invalid parity setting. ERR_27 Settings are locked. WWW.APART-AUDIO.COM... - Page 19 Notes INFO@APART-AUDIO.COM...
- Page 20 Send your ideas or suggestions to suggestions@apart-audio.com Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners. © 2012 APart-Audio specifications subject to change without notice. developed by Audioprof nv Industriepark Brechtsebaan 8 bus 1...
