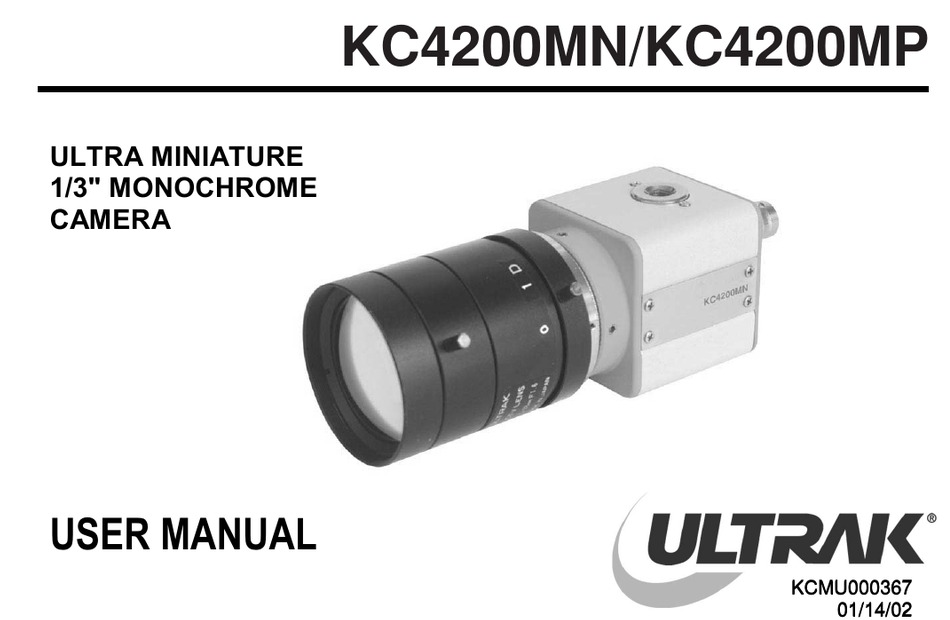

KC4200MX KC4200MN/KC4200MP ULTRA MINIATURE 1/3" MONOCHROME CAMERA USER MANUAL KCMU000367 KCMU000367 01/14/02 01/14/02...
Page 2
Information for USA: This device complies with Part 15 of the FCC rules. Changes or modifications not approved by ULTRAK could void the user’s authority to The exclamation point within an equilateral operate the equipment. triangle is intended to alert the user to the...
Thank you for purchasing the ULTRAK Ultra Miniature black-and-white CCD camera. Before using this camera, please read the manual carefully to obtain the best results and keep the manual for future reference. TABLE OF CONTENTS PRECAUTIONS..........................4 FEATURES ............................5 FEATURES AND FUNCTIONS –...
PRECAUTIONS Handling • Do not disassemble the camera and never touch parts inside the camera. • When attaching or removing the lens, handle with care so that moisture and dust do not enter the camera. Installation and storage • Do not point the camera at the sun. This could damage the camera whether it is operating or not.
FEATURES High Sensitivity • 1/3” 270,000 pixels CCD with on-chip micro lenses and low noise signal processing circuit provide high sensitivity down to 0.25 lux (F1.2). High Quality Image • Horizontal resolution of 380 TV lines. • High quality image is obtained by low noise signal processing with multi-layer PCB. Backlight Compensation •...
FEATURES AND FUNCTIONS - CAMERA SIDE 2. Backfocus screw 1. Lens mount 3. Lens mount KC4200MN 4. C-mount adapter 5. Tripod mounting base ISSUE 2 KCMU000367 01/18/02...
Page 7
FEATURES AND FUNCTIONS – CAMERA SIDE, CONTINUED 1. Lens mount Mount for installing the lens. C-mount lens can be used when C-mount adapter is attached, and CS-mount lens can be used when it is removed. 2. Backfocus screw A screw is provided to fix the lens mount. 3.
FEATURES AND FUNCTIONS - CAMERA BACK 1. Video 5. Lens output Connector connector VIDEO LENS 3. Power Indicator 4. Power 2. Set-up Input switch Terminal 12VDC GAMMA ISSUE 1 KCMU000367 01/14/02...
Page 9
FEATURES AND FUNCTIONS - CAMERA BACK, CONTINUED 1. Video output connector BNC connector that outputs a composite video signal. 2. Set-up switch Switch for camera setup according to the operating circumstances. 3. Power indicator Indicator lights when the camera is powered. 4.
SETUP SWITCH 1. AGC (Automatic Gain Control) When AGC is ON, the camera’s sensitivity is automatically increased when the level of ambient light drops. AGC function automatically controls signal gain in the range of 32dB (max). ESC GAMMA 2. ESC (Electronic Shutter Control) When using the manual lens, the brightness of the picture image will be fixed by setting ESC to ON, as the shutter speed is automatically varied in the range of 1/60 to 1/100,000 sec.
Page 11
SETUP SWITCH, CONTINUED 3. BLC (Backlight Compensation) Strong light, such as a spotlight, entering the scene background causes the lens iris to close, possibly obscuring desired portions of the scene. The Backlight compensation function automatically adjusts the video level to preserve visibility in important sections of the scene.
Page 12
SETUP SWITCH, CONTINUED 5. FL (Flickerless) Flickerless mode can overcome flickering on the screen when the AC power frequency is different from the vertical sync frequency of the camera. If the camera is used with 50Hz fluorescent lighting, there is flicker on the screen, and the FL switch should be set to ON.
LENS INSTALLATION AND ADJUSTMENT When using the VIDEO type Auto-iris lens, install the lens plug as follows. If the plug on the cable is of a different type, replace it with the provided 4-pin iris plug. +12V dc Video Signal •...
LENS INSTALLATION AND ADJUSTMENT, CONTINUED Mounting A Lens Remove the lens mount cap from the camera. Attach or remove the C-mount adapter depending on the lens to be used. • If the adapter is attached so tightly that it is difficult to remove, use long- nosed pliers to remove it.
LENS INSTALLATION AND ADJUSTMENT, CONTINUED Backfocus Adjustment When a lens is mounted, adjustment of the backfocus may be required. Adjust with the lens focus ring when the correct focus cannot be obtained. Backfocus screw After selecting, press SET to return to the MAIN MENU. WITH A FIXED-FOCUS LENS Fully open the aperture and set the focus ring to ∞...
LENS INSTALLATION AND ADJUSTMENT, CONTINUED Lenses that can be used Mounted ” ” The camera can use C-mount lenses when the C-mount Ø Lens Lens Lens adapter (standard accessory) is installed. When removed, CS-mount lenses can also be used. Use a suitable lens for the required area of view. Ø...
SPECIFICATIONS ITEMS SPECIFICATIONS Signal system KC4200MN(EIA) / KC4200MP(CCIR) CCD Pickup element Interline transfer 1/ 3" CCD Effective pixels EIA:510(H) x 492(V) / CCIR:500(H) x 582(V) Scanning area 6.0(H) x 4.96(V) mm Scanning frequency Horizontal: 15. 743kHz / Vertical: 59. 94Hz (EIA) Horizontal: 15.
Page 18
SPECIFICATIONS, CONTINUED ITEMS SPECIFICATIONS GAMMA ON/OFF (0.45/1) selectable Flickerless ON/OFF selectable Auto-iris lens outputs Video-type lens: Luminance signal 1Vp-p, high impedance, power supply 12V dc 50mA Lens mount C/CS mount Camera mount 1/4"-20 UNC (Top/Bottom) Power requireme t Regulated 12V dc (11V dc ~ 13V dc) Power consumption 1.5 watts Max.
SUPPLIED ACCESSORIES DC Jack Plug (MP-121M) For Customer Use : Please record the Model No. and Serial No. in Lens mount cap the spaces provided below. These numbers C-mount adapter are located on the bottom of the camera. Keep this manual for future reference. L wrench User manual Model No.
Page 20
ULTRAK WORLDWIDE OFFICES Ultrak Worldwide Support Center ABM Data Systems – An Ultrak Co. Sales & Technical Support 9020 Capital of Texas Highway North 1301 Waters Ridge Drive • Lewisville, TX 75057 Suite 540 • Austin, TX 78759 (800) 796-2288 • (972) 353-6400 • FAX: (972)353-6670 (512)345-6900 •...
