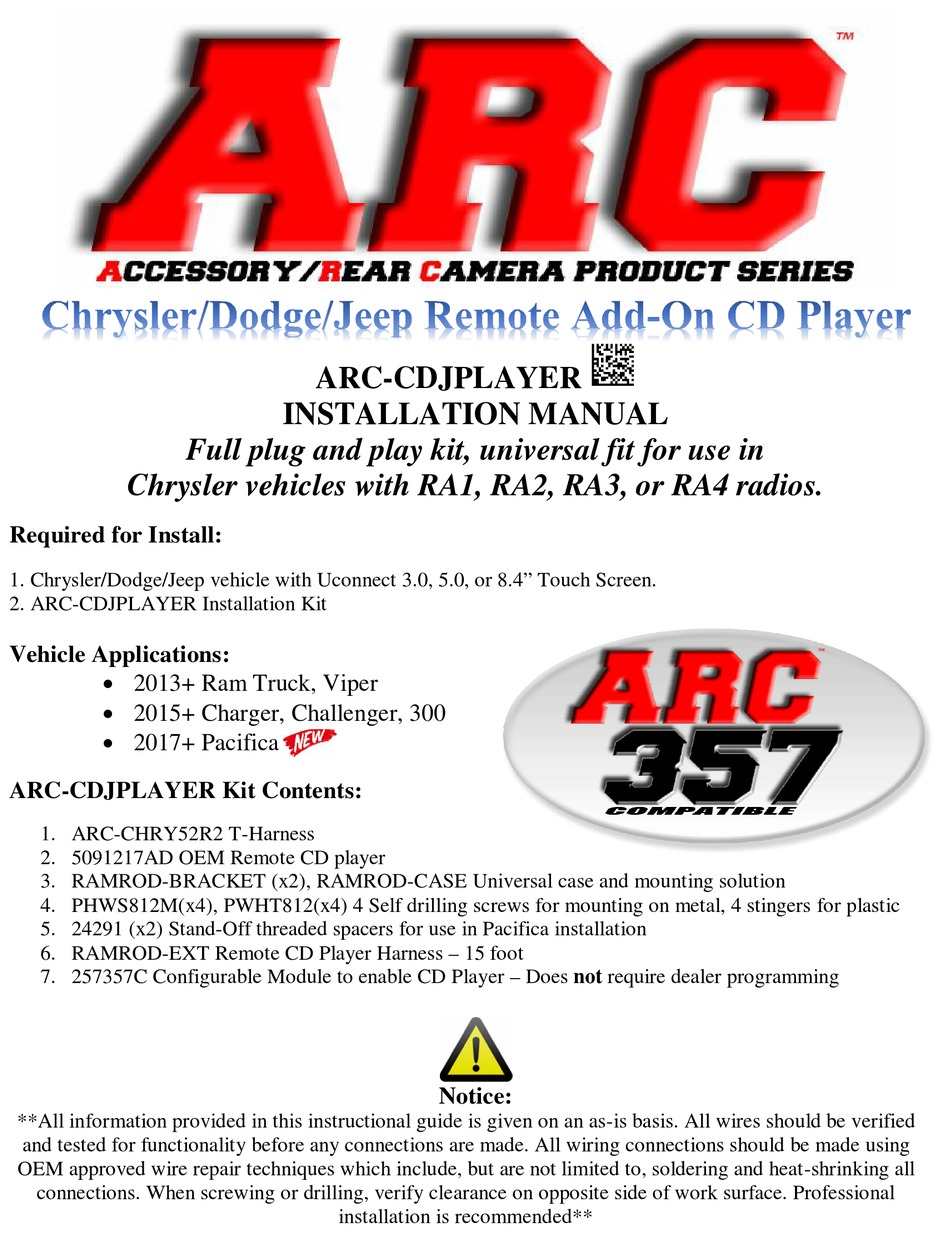

ARC -CDJPLAYER Installation Manual

Chrysler/dodge/jeep remote add-on cd player full plug and play kit, universal fit for use in chrysler vehicles with ra1, ra2, ra3, or ra4 radios
Hide thumbs

Advertisement

Quick Links

Download this manual
Full plug and play kit, universal fit for use in
Chrysler vehicles with RA1, RA2, RA3, or RA4 radios.
Required for Install:
1. Chrysler/Dodge/Jeep vehicle with Uconnect 3.0, 5.0, or 8.4" Touch Screen.
2. ARC-CDJPLAYER Installation Kit
Vehicle Applications:
 2013+ Ram Truck, Viper
 2015+ Charger, Challenger, 300
 2017+ Pacifica
ARC-CDJPLAYER Kit Contents:
1. ARC-CHRY52R2 T-Harness
2. 5091217AD OEM Remote CD player
3. RAMROD-BRACKET (x2), RAMROD-CASE Universal case and mounting solution
4. PHWS812M(x4), PWHT812(x4) 4 Self drilling screws for mounting on metal, 4 stingers for plastic
5. 24291 (x2) Stand-Off threaded spacers for use in Pacifica installation
6. RAMROD-EXT Remote CD Player Harness – 15 foot
7. 257357C Configurable Module to enable CD Player – Does not require dealer programming
**All information provided in this instructional guide is given on an as-is basis. All wires should be verified
and tested for functionality before any connections are made. All wiring connections should be made using
OEM approved wire repair techniques which include, but are not limited to, soldering and heat-shrinking all
connections. When screwing or drilling, verify clearance on opposite side of work surface. Professional
ARC-CDJPLAYER
INSTALLATION MANUAL
Notice:
installation is recommended**

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARC-CDJPLAYER and is the answer not in the manual?

Questions and answers

Summary of Contents for ARC ARC-CDJPLAYER

  • Page 1 Full plug and play kit, universal fit for use in Chrysler vehicles with RA1, RA2, RA3, or RA4 radios. Required for Install: 1. Chrysler/Dodge/Jeep vehicle with Uconnect 3.0, 5.0, or 8.4” Touch Screen. 2. ARC-CDJPLAYER Installation Kit Vehicle Applications:  2013+ Ram Truck, Viper  2015+ Charger, Challenger, 300 ...
  • Page 2 Set DIP switches to match the following diagram. Remove radio and install provided ARC-CHRY52R2 T-Harness. You will need to remove the 6-to-4 pin jumper from the T-Harness and replace it with the provided 257357 module. Connect module and harness before connecting radio.
  • Page 3 For RAM Truck with Center Console only. For all other applications, move to Step 2A For RAM Truck with center console: This kit includes a universal mounting solution For installation in a RAM Truck equipped for the CD Player. The brackets are universal with a center console, use the provided and removable.
  • Page 4 Mount CD Player: Use the (4) PHWS812M Screws provided to affix unit to the plastic console. Pre- drilling is not required. Do not use the self-drilling screws provided, they are only for use on metal surfaces. Make sure to check clearance on opposite side of console.
  • Page 5 For 2017+ Pacifica mounting instructions skip to Step 2B This kit comes with universal brackets for installation. This player may be mounted horizontally or vertically. It is recommended that you discuss mounting options with your customer before performing the installation. The brackets are also reversible for placement under dash, or in a compartment.

  • Page 6: Bin Removal

    Player Preparation: 1. Follow instructions in Step 1 to mount player in custom aluminum enclosure a. Use screws removed in Step 1 to secure enclosure on player in front (4) holes. b. Remaining (2) screws will be used to secure housing assembly in vehicle. 2.

  • Page 7: Player Installation

    Player Installation: Remove the change tray from the bin, this will no longer be used. Cut out supplied template along black lines. Unsnap plastic bin sides to reveal mounting screws, as pictured. Apply templates and tape into place. Follow direction templates to drill (2) 1/8”...
  • Page 8 IMPORTANT NOTE: MAKE SURE WIRING IS SECURED AND CANNOT INTERFERE WITH NORMAL VEHICLE OPERATION Radio Removal and Wiring Installation: 1. With a suitable tool, remove the radio screen trim bezel (1) and remove the electrical connectors. a. For 8.4” RA3/RA4 Radios screen can stay attached to trim bezels.

  • Page 9: Troubleshooting

    Once install is finished, replace all panels and ensure cabling is ran in a way that will not pinch or damage wiring. “Disc” will become a new source on the customer’s radio. Radio Programming: Radio will automatically accept programming within two full power cycles of the vehicle. If vehicle does not accept programming, please see the following section: Troubleshooting Complete this step only if your radio has not accepted programming automatically:...
  • Page 10 Find more great ARC products on our website! V1.1 9.29.16...
