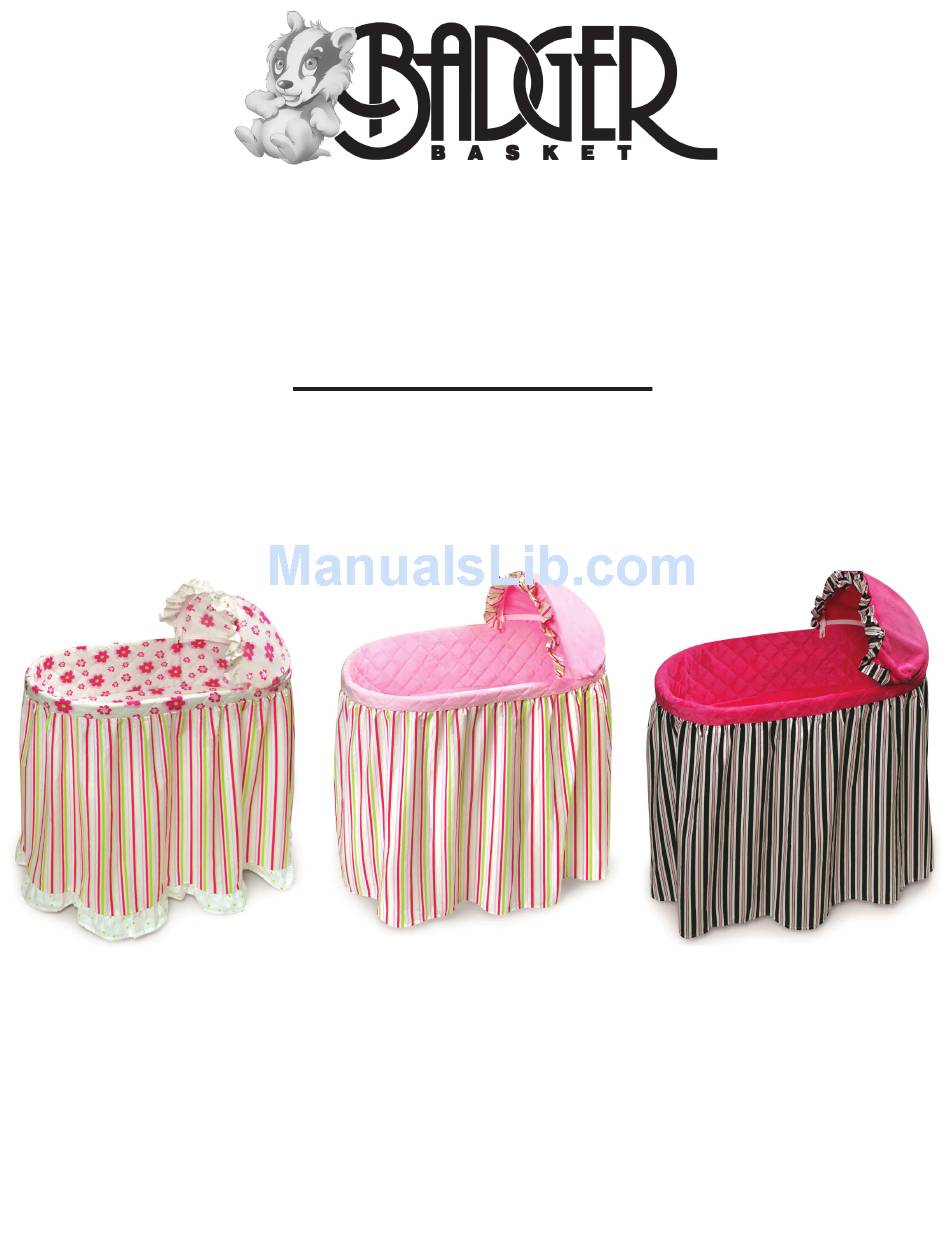

Embrace Baby Bassinet
with Bedding Set
MODEL NUMBERS:
00710 - Stripe/Flower
00712 - Black/Pink
00711 - Stripe/Pink
VERSION CODE: 1.0/0611/LF
Assembly Instructions.
Adult Assembly Required.
Save these instructions for future use.
Visit us online at www.badgerbasket.com
Toll-Free Customer Service: 1-800-236-1310 (Monday to Thursday 7:30 AM-3:30 PM CST)
Web: http://www.badgerbasket.com/parts • E-mail: parts1@badgerbasket.com
MAIL: PO Box 227, Edgar, WI 54426-0227 • Phone: 715-352-2311 • Fax: 715-352-3163
1.0/0611/LF
Advertisement
Table of Contents
Related Manuals for Badger Basket 00710
Summary of Contents for Badger Basket 00710
-
Page 1: Assembly Instructions
Embrace Baby Bassinet with Bedding Set MODEL NUMBERS: 00710 - Stripe/Flower 00712 - Black/Pink 00711 - Stripe/Pink VERSION CODE: 1.0/0611/LF Assembly Instructions. Adult Assembly Required. Save these instructions for future use. Visit us online at www.badgerbasket.com Toll-Free Customer Service: 1-800-236-1310 (Monday to Thursday 7:30 AM-3:30 PM CST) Web: http://www.badgerbasket.com/parts •... - Page 2 Keep instructions for future use. Use only the parts and hardware provided by Badger Basket. Do not use the product if it is damaged, broken, or missing parts. DO NOT allow anyone to climb, sit on, stand on, or play on or inside of this product.
- Page 3 If a sheet is used with the pad, use only the one provided with the bassinet or one that is from Badger Basket Company or one that is specifically designed to fit the dimension of the the mattress provided.
- Page 4 Parts and Hardware TOOLS NEEDED (not included): Phillips Screwdriver Hammer Pliers PARTS INCLUDED: BASSINET PARTS: (A) 4 x Caster Wheels (B) 4 x Caster Sleeves (C) 2 x Bassinet Legs (D) 1 x Bassinet Body (E) 4 x 1-5/8” Screws (F) 8 x Lock Nuts (G) 2 x Leg Rails (H) 4 x 7/8”...
- Page 5 ASSEMBLING THE BASSINET: STEP 1: Insert the FOUR CASTER WHEELS (A) into the FOUR CASTER SLEEVES (B). Make sure the shank of the wheel is firmly seated into the sleeve (tap gently with a hammer if needed). See PICTURE 1. STEP 2: Insert the FOUR CASTER SLEEVES (B) into the caster holes on the bottom of the TWO BAS- SINET LEGS (C).
- Page 6 STEP 5: Insert FOUR LOCK NUTS (F) into the pockets on the inside ends of the RAILS (G). It may help to push the nuts into the pockets with a screwdriver to ensure they are seated and aligned properly. See PICTURE 4. PICTURE 4 Four Lock Nuts inserted into Rails.
- Page 7 STEP 9: Take the FABRIC HOOD COVER (K) and dress it onto the HOOD HOOP FRAME. The elastic loops on the COVER slip over the clips on the FRAME to keep the fabric in place. Snap the clips of the HOOD HOOP FRAME (J) onto the spools that are molded on the top, inside rim of the BASSINET BODY (D).
