3380 N. El Paso St., Colorado Springs, CO 80907
Visit our website at www.LetsGoAero.com
QTY
DESCRIPTION
FABRIC BODY:
1
Arc Cover (tent body)
2
Door Panel w/ mesh
1
Connector Panel w/ buckles
POLES & STRAPS:
2
Saddle Poles, Fiberglass, shock-corded Tent Pole w/connector ferrules - black
5
Spanner Poles, Fiberglass, shock-corded Tent Pole w/ C-clips - black
2
Base U-Tube Poles, Steel, chain-corded base Tent Pole - black
2
Web Strapping w/ quick clips attached
CARRY BAG:
1
Carry bag - green
UNIVERSAL PARTS: (Some attached to fabric)
1
Pole Bag
1
Stake Bag; 10.5in
4
Guy Lines; 2.5M
2
Guy Lines; 5.0M
STAKES:
1
Stake Set of ten, 7 in. steel stakes
1
Stake Set of four, 12 in steel stake
Review your parts list above to make sure all parts have been included in your package.
Call Let's Go Aero: 719-630-3800 or 877-464-2376 Monday-Friday 8:30-5:00 pm MST.

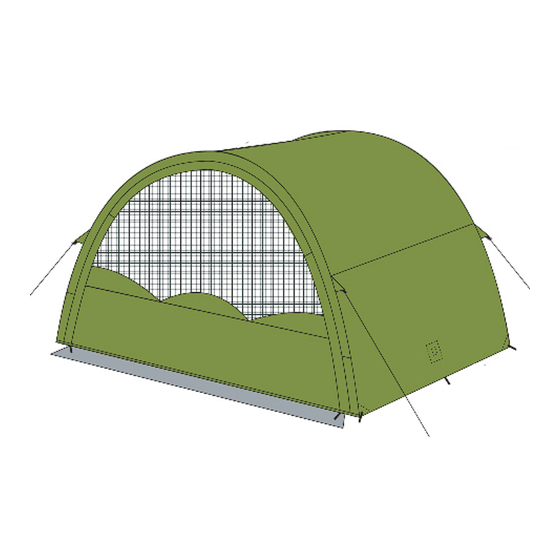

MODEL # ARC-10
10ft x 6ft x 76in / 3.04m x 1.82m x 1.93m
For assistance, do NOT return product to store.
Mention your Model Number so our Representative may assist you.
For additional product information and related accessories, visit our website:
For Assistance, please call 1-877-464-2376 or 719-630-3800
www.LetsGoAero.com
T
A
™
enTris
Owner's Manual
PART NUMBER
N/A
PANL-MESH
PANL-CONNECT
TPOL-529BK
TFPL-174.5BK
BSPL-17.5CR164.5BK
WEB/QCLIP-296CM
CBAG-770OL
PBAG-36IN
SBAG-11IN
GROPE-2.5M
GROPE-5M
SSET-10ST-7IN
SSET-T120G-12IN
H
™
rc
Aus
Advertisement
Table of Contents
Summary of Contents for LetsGoAero Tentris ArcHaus ARC-10
- Page 1 ™ enTris Owner’s Manual 3380 N. El Paso St., Colorado Springs, CO 80907 Visit our website at www.LetsGoAero.com For Assistance, please call 1-877-464-2376 or 719-630-3800 MODEL # ARC-10 10ft x 6ft x 76in / 3.04m x 1.82m x 1.93m DESCRIPTION...
- Page 2 Tentris ArcHaus Manual ™ ™ ASSEMBLY INSTRUCTIONS Step 3: Cover Install Step 1: Frame Layout Proper Frame layout is essential to make to sure Parts the ArcHaus sets up correctly and to prevent (Qty: 5) Spanner Poles, shock-corded (Tent pole damage.
- Page 3 Tentris ArcHaus Manual ™ ™ Step 5: Connect and Engage Tension System - Clip ground fabric wrap to the Arc Cover. - Tension bungee on each end to draw Cover tightly and around the Arc Frame. Step 6: Attach Modular End Panels of Choice Parts (Qty: 2) Door Panels with screens.
- Page 4 As a valued customer, your satisfaction is very important to us. We welcome your feedback and await your responses, suggestions, and recommendations. Email us via our service team: support@letsgoaero.com WE ADVISE YOU TO ASSEMBLE THIS PRODUCT AT LEAST ONCE AT HOME BEFORE GOING ON A TRIP. Obtaining a familiar- ity with the assembly and disassembly processes will help ensure your satisfaction and ease concerns you may have should you find yourself setting up in the dark or adverse weather conditions.
- Page 5 Tentris ArcHaus Manual ™ ™ TROUBLESHOOTING GUIDE PROBLEM SOLUTION THIS IS CAUSED BY LOWER TEMPERATURES ON OUTSIDE OF PRODUCT COMBINED WITH BODY HEAT ON INSIDE OF PRODUCT. WHEN THIS OCCURS, AVOID TOUCHING WALLS TO REDUCE CONTACT LEAKAGE. 1. CONDENSATION LEAVING DOORS AND WINDOWS OPEN WILL REDUCE CONDENSATION. TO AVOID MILDEW, NEVER STORE YOUR PRODUCT WET OR DAMP.
