RAM Mounting Systems RPR-182-CO5-INS Owner's Manual page 2

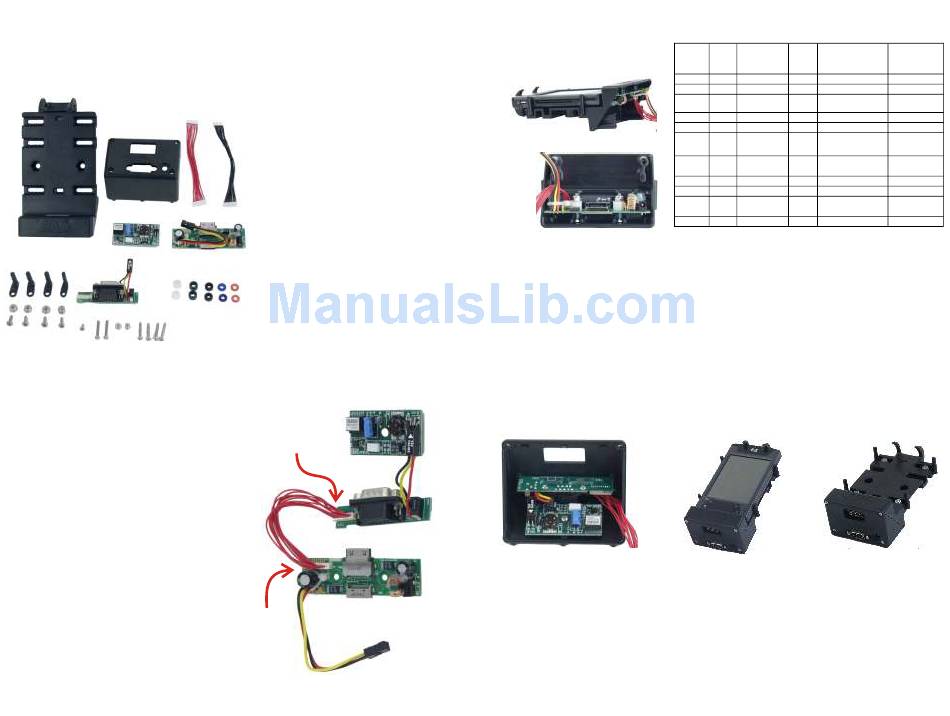

CONTENTS, DESCRIPTION & ASSEMBLY INSTRUCTIONS
Before proceeding with assembly of powered docking cradle, check the contents of
package to make certain all parts are included. If any parts are missing, please
contact NPI for a replacement part at: support@ram-mount.com
A
B
D
G
C
H
J
K
L
First determine what type of connection
you require for the serial port. We offer
2 different wire harnesses, a non-null-
modem (Black) and null modem (Red).
To determine what type you require,
contact the manufacturer of your
electronic device that you are attaching
to the powered docking cradle. Once
determined, select the appropriate
colored wire harness and attach it to
the corresponding PCB's G & H as
shown in the STEP 1 photo. Note, the
ends have different numbers of
connectors so they can't be reversed.
Attach the 10 qty. connector socket to
the G PCB & the 11 qty. connector
housing to the H PCB. Connect the 3
wire socket on the G PCB to the pins on
the F PCB. Make certain that the label
marked "TOP FACING" is toward you
as shown in the STEP 1 photo.
A. 1 qty. RAM Main Plastic Housing
B. 1 qty. RAM PCB Plastic Cover
C. 1 qty. Input / Output Printed Circuit
Board
D. 1 qty. Power Printed Circuit Board
F
E. 1 qty. IPAQ Male Connector Printed
Circuit Board
F. 1 qty. each Null Modem Wire
Harness (RED), Non-Null Modem Wire
Harness (BLACK),
G. 4 qt. Side Adjusting Retaining Arms
H. 4 qty. each #6-32 X 3/8" Machine
E
Screws and Nylock Nuts
J. 1 qty. #4 X 1/4" Screw
K. 2 qty. each #4-40 x 3/4" Hex Head
M
Machine Screw & Nylock Nut
L. 4 qty. #6 X 3/4" Sheet Metal Screw
M. 2 qty. each Spacers: White 1/4",
Green 3/16", Black 1/8", Blue 1/16",
Red 1/32"
Power PCB
10 qty.
Pin
Connector
F
Input / Output PCB
IPAQ Male Connector PCB
11 qty.
Pin
Connector
STEP 1
STEP 2
Step 2 Before the proceeding look at the pictures in Step 2 and specifically how the
E PCB is attached to A housing. Check the E PCB Application Chart to see what M
washers are required for your iPAQ model. Install the K screws in E PCB along with
the nuts & appropriate colored washers M to properly space the E PCB to align with
the iPAQ device. Make certain to have the K screws, nuts & correct M washers on
the correct side of the PCB. The K nut must have a M washer under it or the PCB
may be damaged.
SCREWS IN THE REMAINING STEPS. Insert the iPAQ device into the cradle and
carefully align the E PCB into the mating connector. The 2 qty K hex head screws
will slide into the A housing. Make certain the E PCB is fully engaged into the iPAQ
device and then gently tighten the K nylock nuts.
STEP 3
D
C
Step 3 Install C PCB & D PCB into B cover and secure D PCB with J screw.
E
Make certain that the 3 pins in B cover align with the 3 holes in D PCB. cover with
the 2 screws (C).
Step 4 With iPAQ device still installed in A housing attach B cover with A housing
using L screws. Note; make certain screws are properly aligned and DON'T
OVER TIGHTEN.
Step 5 Attach G side arms with H screws and nuts. With iPAQ device installed in
A housing, G adjust arms and GENTLY tighten screws. Note, insert 4 qty.
business cards between the side arms and the iPAQ device to provide the proper
clearance for easy use.
Your RAM Powered Docking Cradle is now ready for use.
Pass
Model Serial Power
Through
h1900 NO NO NO
h2200 YES YES YES
hx2415 YES YES YES
rx3115 YES NO YES
3650 NO NO NO
DATA YES,
3955 YES YES
POWER NO
h4100 YES YES YES
h4300 YES YES YES
hx4700 YES YES YES
h5555 YES YES YES
h6315 NO YES YES
IMPORTANT: DON'T OVER TIGHTEN ANY NUTS, OR
STEP 4 & 5
Washer For
PCB Washer
Nut
NA NA
WHITE, BLACK BLUE, RED
WHITE, BLUE,
GREEN
RED
WHITE, BLUE GREEN
NA NA
WHITE,
RED
GREEN, BLUE
WHITE, BLACK,
BLUE
RED
GREEN, RED WHITE, BLUE
GREEN WHITE, BLUE
WHITE,
RED
GREEN, BLUE
WHITE GREEN
