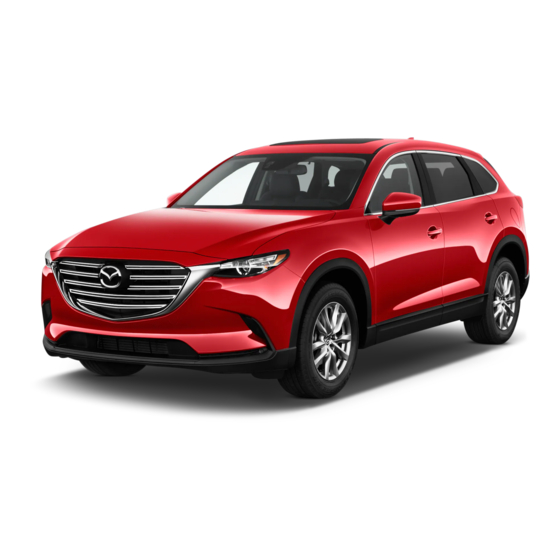

Mazda CX-9 2016 Owner's Manual
Hide thumbs Also See for CX-9 2016:

Advertisement

Quick Links

Genuine Mazda Service
Because you and your Mazda deserve the best
Your new Mazda deserves nothing less than the very best. To keep it running like
new for years to come, trust the experts at your local Authorized Mazda Dealer.
Simply bring your vehicle in for your scheduled maintenance and any needed repairs.*
At participating Mazda Full Circle Service Centers,** our technicians will
automatically perform a complimentary Full Circle inspection on your vehicle
and issue a detailed report card at every visit. This is designed to help you keep
track of your Mazda's critical operating condition. Our factory-trained technicians
know your vehicle inside out and use Genuine Mazda Parts, giving your vehicle
the optimum care and maintenance it requires to run with flawless precision.
Remember to further enhance your driving experience, visit your local Mazda
Service Center for your scheduled maintenance. It's also the place where you can
find a wide variety of tires, parts and accessories that are just right for your vehicle.
*See vehicle's scheduled-maintenance program for details.
** To learn more about Mazda Full Circle Service, visit www.MazdaUSA.com and click on the "Owners" tab,
scroll down and click on "Service & Parts", scroll down to "Mazda FULL CIRCLE SERVICE".
Customer Experience Center: 1-800-222-5500
Roadside Assistance Contact: 1-800-866-1998
You love to drive your Mazda, and we love to service your Mazda. With our Full
Circle Service, we'll give your vehicle a COMPLIMENTARY MULTI-POINT INSPECTION.
Your Mazda will receive a thorough review of its most crucial components.
This easy-to-use Smart Start Guide is intended to help you more fully appreciate some of the
unique features and functions of your new vehicle. However, it is not intended to replace your
Owner's Manual. The Owner's Manual contains more detailed information to help you better
understand the important safety warnings, features, operation, and maintenance of your vehicle.
All information, specifications, photographs and illustrations in this publication are those in effect at
the time of printing. Mazda reserves the right to change specifications or design without obligation.
www.MazdaUSA.com
ZOO}-zoo}

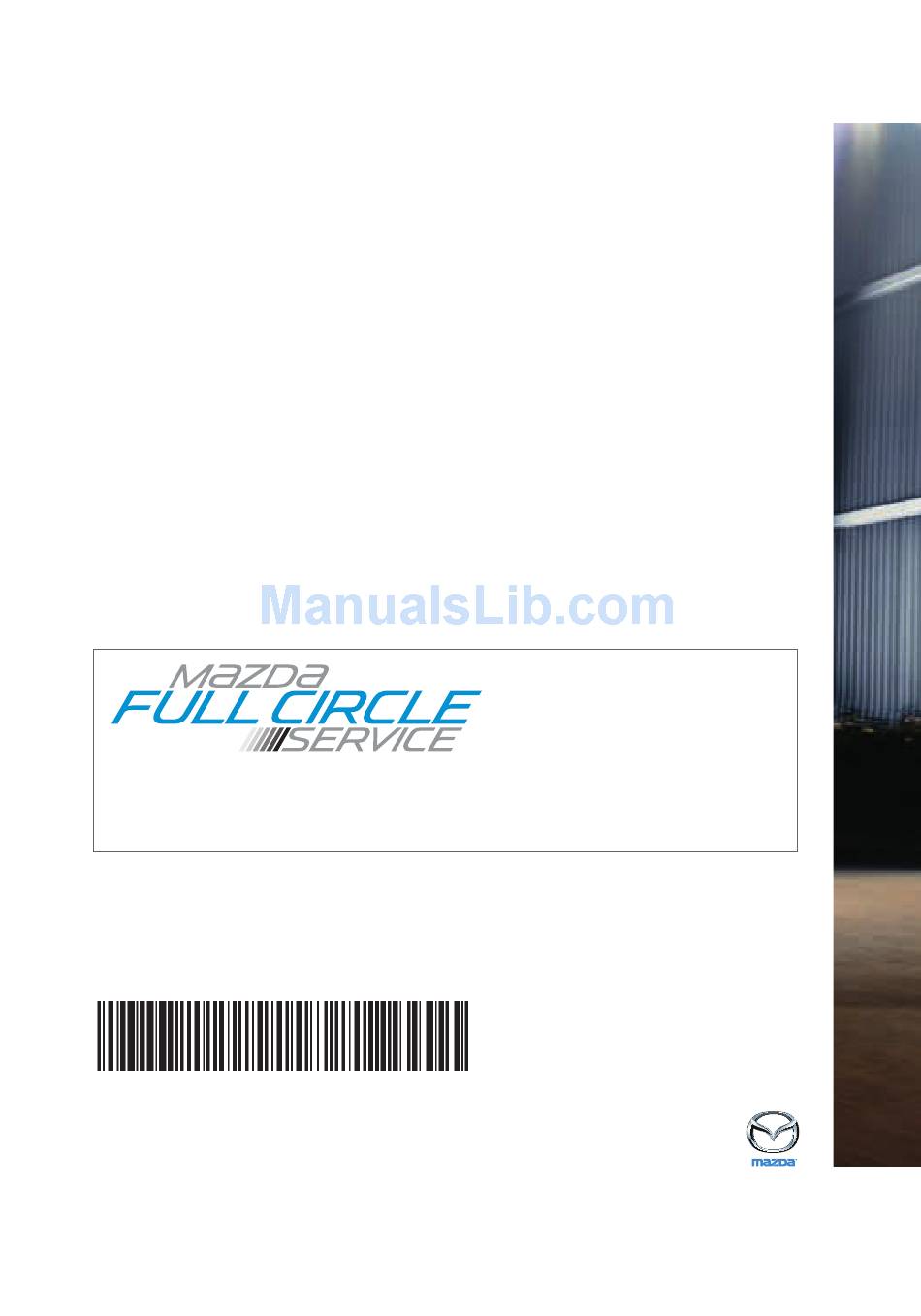

2665926_17a_Mazda_CX-9_SSG_080416.indd 1
COMPLIMENTARY FULL CIRCLE
SERVICE INSPECTION
We're committed to providing
expert Mazda service.
© Mazda North America Operations
Printed in U.S.A 011/16
Print 1
9999 95 011C 17SS
THE M AZ DA CX- 9 | DRIVING MATTERS
8/4/16 11:18 PM
