Summary of Contents for Birko 1003203

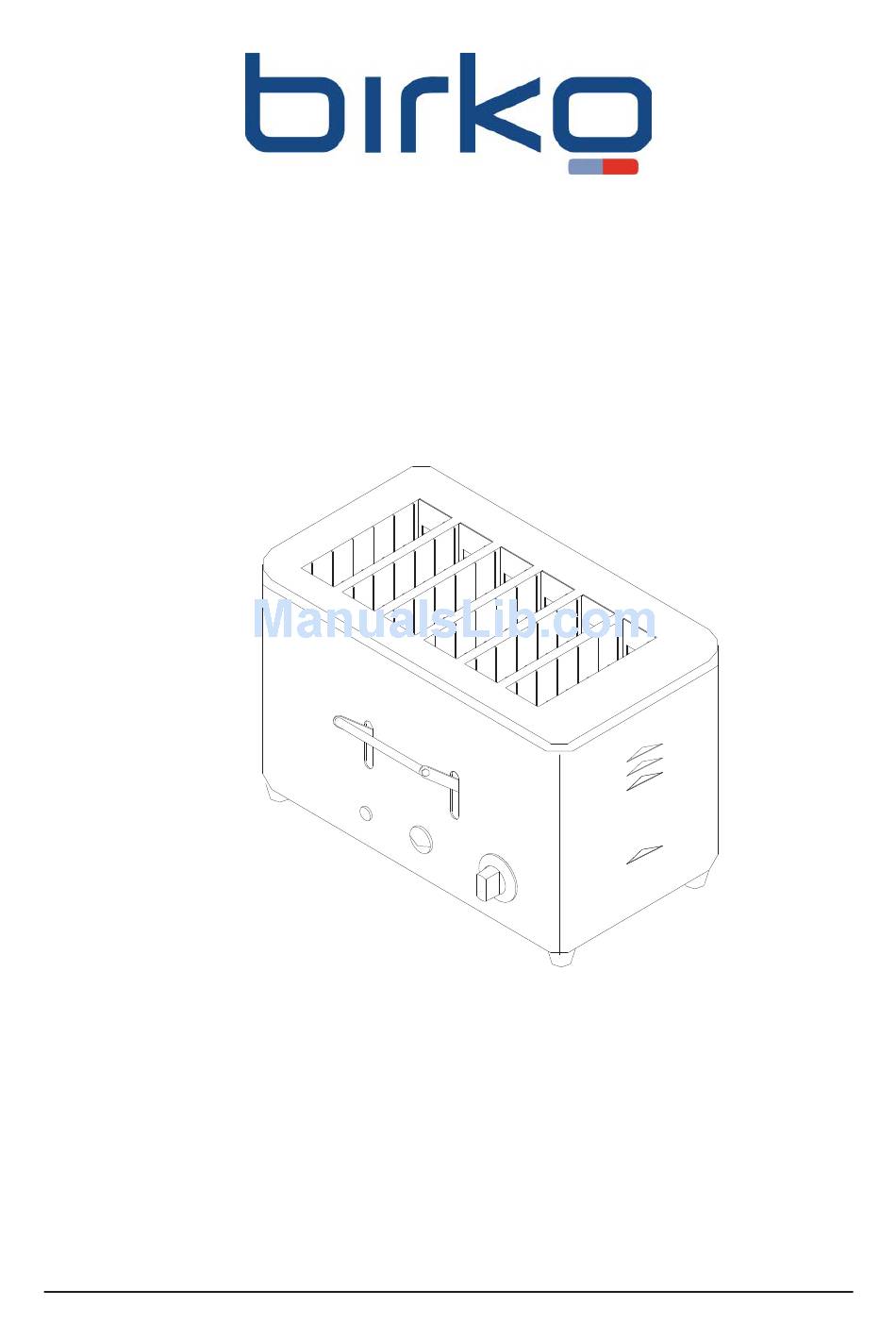

- Page 1 ELECTRIC COUNTER TOP VERTICAL TOASTER OPERATION MANUAL 8005016 - Birko Vertical Toaster - May 2012 v1.00 Page 1 of 12...
-
Page 2: Table Of Contents
Contact Details ..........12 Page 2 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00... -
Page 3: Introduction
• There is any use damage to the unit. Packaging Birko prides itself on quality and service, ensuring that at the time of packing, all products are supplied fully functional and free of damage. Provided in this package are the following: •... -
Page 4: Installation
Installation Remove the Birko Vertical toaster from the packaging; be certain that all protective plastics and residues are thoroughly cleaned from its surface. Locate the Birko Vertical toaster on a firm level surface. International standards and regulations should be consulted in order to abide by standards set in relation to positioning, spacing and ventilation of the product. -
Page 5: Cleaning, Care And Maintenance
Do not locate in an area that may be cleaned by a water jet. Do not use metal utensils to remove bread or crumbs from the toaster. If the power cord is damaged, it must be replaced by a Birko Service agent or Recommended Qualified Technician in order to avoid a hazard. -
Page 6: Trouble Shooting
Trouble Shooting If your Birko Vertical Toaster does not operate, please check the following before placing a service call. Problem Cause Remedy The unit does not work; the 1. Mains power supply 1. Check mains power supply indicator light is not on. -
Page 7: Spare Part List
Spare Parts List DESCRIPTION CODE Feet 1310617 Dial 1315186 Time switch 1315187 Indicator light 1315005 Page 7 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00... -
Page 8: Explosion View
Explosion View Model: 1003203 Page 8 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00... -
Page 9: Specfication
Compliance Birko products have undergone strict product testing in order to comply with regulatory standards and specifi ca- tions set by international independent, commonwealth and federal authorities. As testimony to such compliance Birko products carry the following marks/symbols: Specifi cations... -
Page 10: Circuit Diagram
Circuit Diagram Model: 1003203 The above circuit diagram has been provided to assist qualifi ed technicians. Only Birko agents or Recommended Qualifi ed Technicians should carry out repairs if needed. Do not remove any components or service panels on this product. - Page 11 Notes Page 11 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00...
-
Page 12: Contact Details
Local Fax: 1300 735 259 sales@birkoheaters.com www.birkoheaters.com The term ‘Birko’ is a registered trade mark of Birko Heaters Australia Pty Ltd. Please keep this manual in a safe place for future use! Page 12 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00...
