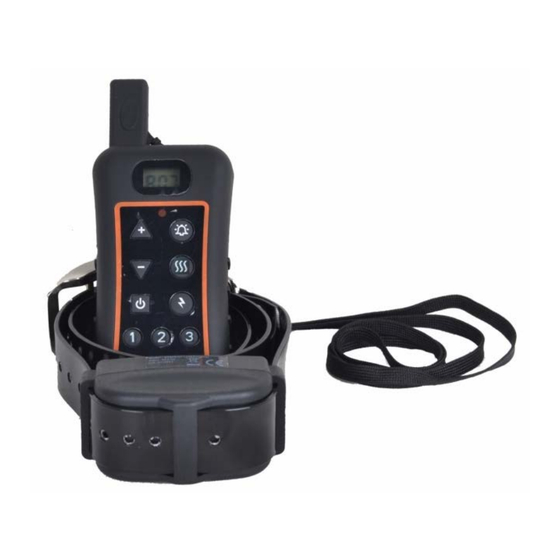

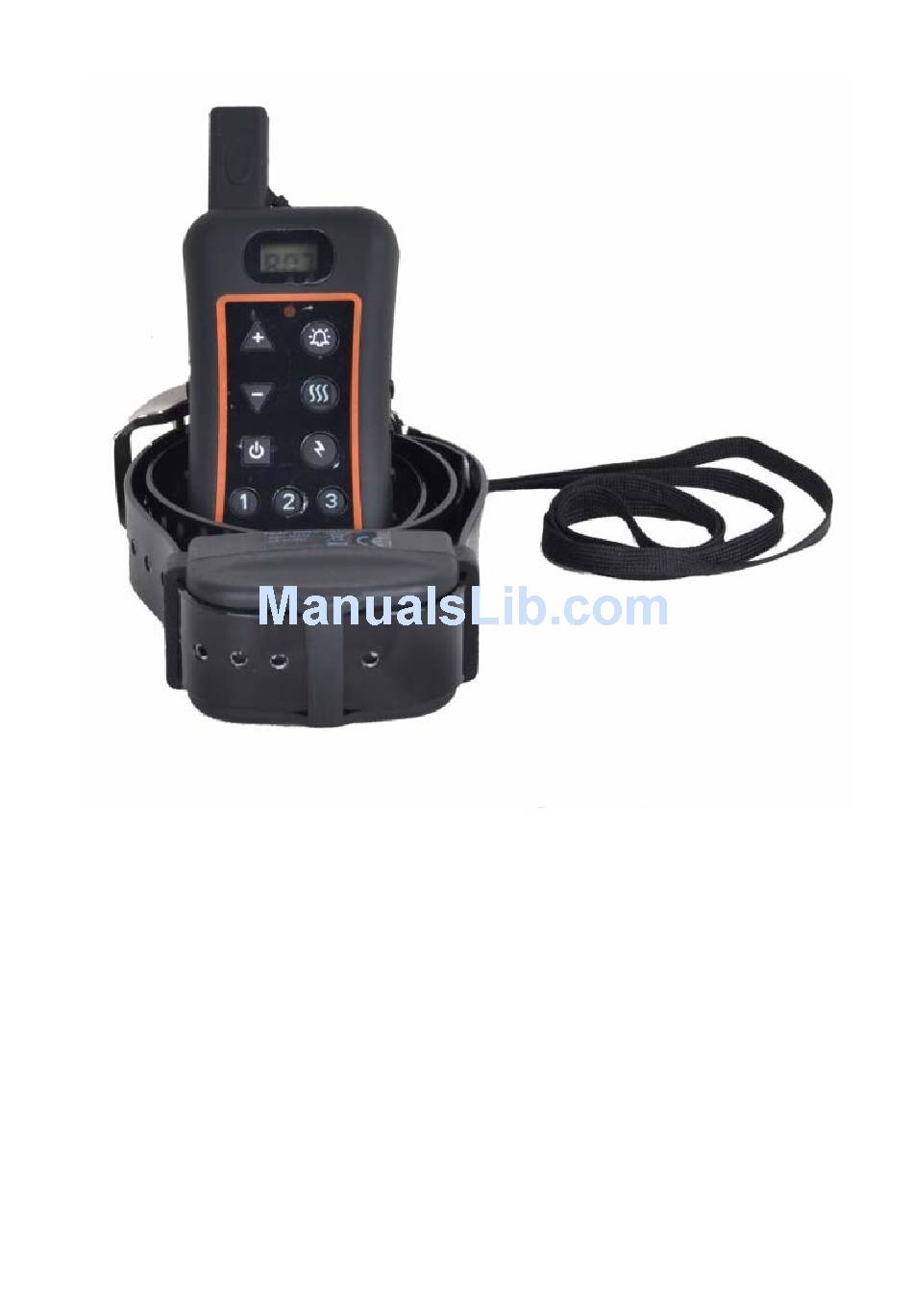

- Page 1 Remote Dog Training Collar Shenzhen Trainertec Electronic Co., Ltd Http://www.trainertec.com...
- Page 2 If you have any questions, please contact us by email sales@trainertec.com visit our website at www.trainertec.com. Please read the operation guide carefully before start to train your pets . This instruction is suitable for Remote dog training collar DT1200V. - 1 -...
-
Page 3: Table Of Contents
Table of Contents Components…………………………….……..3 How the system works…………………………..3 Main Features……………………….…..……….4 Transmitter……………………………...…..6 Receive Collar……………………...………..9 Setting Up Multi-dog System……….………….10 Charging ……………………………..……..14 Training Guide ………………………....…16 Troubleshooting Guide……………...…...…..…17 - 2 -... -
Page 4: Components
Components How the System Works The Remote Dog Trainer has been proven safe, comfortable, and effective for all pets over 10 pounds. This system assists you in controlling your pet without a leash in a long distance range . At the push of a button, the Remote Transmitter sends a signal, - 3 -... -
Page 5: Main Features
activating the Receiver Collar. Using the Remote Trainer consistently and correctly, many misbehaviors that your pet exhibits can be corrected or any basic obedience commands can be taught Important: The Remote Trainer actual distance depending on the way you hold the Remote Transmitter, the range may vary. - Page 6 6. Two buttons “+” and “-” allow you to set your shock and vibration intensity 7. Dog Selection Button allow you to select your dog 8. Lcd digital display for 10 shock & vibration levels and dog ID 9. Memorize shock & vibrate level in transmitter for different dogs 10.
-
Page 7: Transmitter
Transmitter Antenn LCD display Le d Light Stimulation Buzz Button Le vel Button Vibration Button On/Off Static Button Shock Button Selection Button DC Jack Cove r - 6 -... - Page 8 “ ” and “ “ buttons: press these buttons to adjust the shock intensity and Vibration intensity from 1 to 10 level “ ” button: it is the power switch; hold this button for 4 seconds to switch on power, then LCD will display the default “A01”.
- Page 9 shock, and will stop automatically after 8 seconds “1,2,3 ” buttons: Dog Selection Button , default is “1” . Your transmitter is capable of training up to three dogs with optional receive collars. You select 1 dog, LCD display dog ID “A XX”. If you want to train 2 dog, press “2”...
-
Page 10: Receive Collar
Receive Collar NOTE: CHARGE REC EIVER B EFORE FIRST US E LED Light Contact Prong Indicate the working status, Choose short or long prong to match Low battery ,Charging status the dog’s coat type DC Jack Cover Open the Rubber Cover and insert the adaptor plug into DC Jack to On/Of f B utton... -
Page 11: Setting Up Multi-Dog System
Setting Up Multi-dog System You can expand your one-dog Remote Trainer into multi-dog Remote Trainer by yourself. Simply purchase extra receive collar and add them to your system. 1. Match a Receive collar To add a Receive collar to your remote dog training system, following the below steps:. - Page 12 LCD display change automatically ,then release. Enter match receiver mode . The number changes like “08,09,10,11……”, increasing automatically . Step 4 : Take the transmitter to close the unmatched receiver 50~100mm . Step 5 : Press and hold on the Dog selection button .If you match “1”...
- Page 13 Step 6 : Press and hold “ ” button and “ ” button at the same time again ,until the digital number on the LCD display no change ,then release . Step 7 : Test matched Receiver---Chose dog first, then press “...
- Page 14 Step 2 : Press and hold “ ” button until LCD display occur then release , Transmitter is power on . Step 3: Press and hold “ ” button and “ ” button at the same time ,until the digital number on the LCD display change automatically ,then release.
-
Page 15: Charging
Step 6 : Press and hold “ ” button and “ ” button at the same time again ,until the digital number on the LCD display no change ,then release .Exit the cancel matched receiver mode . Charging The transmitter and receiver charge rapidly – about 2 hours are needed. - Page 16 Do not charge batteries in especially hot areas , far away from a fire. 1. Receive Collar Charging The red Led light is on when charging . The green Led light is on and the red Led light is off when the receive collar is full charged The Receiver red Led light will flash when the battery is low power.
-
Page 17: Training Guide
Training Guide 1. Fitting Collar on the Dog Place the collar strap in the middle of the dog’s neck. The receiver should be on the underside of his neck although on some dog’s necks the receiver will naturally seek a slightly off-center position. The Rubber Cover should face backwards( toward the dog’s chest). -
Page 18: Troubleshooting Guide
You may press “+” or “-“ button to select suitable shock level, then press and hold on the “ ” button for around 8 seconds continuous stimulation ; press one time , emit one static shock You may press “+” or “-“ button to select suitable vibration level, then press and hold on the “... - Page 19 before press transmitter buzz control button. The Beeper component is loose , send to service center to repair . Problem#3: The stimulation seems too high, not high enough or no feeling at all The collar strap is not tight enough. Make sure the contacts points connect the dog’s skin well.
- Page 20 the receiver so that the light face toward the dog’s nose. Radio Interference. Wait a short while then try again, or move to another area. Problem#6: The receiver seems can’t receive any signal or can not work at all Check the receiver on/off button, make sure the receiver is turned on.
- Page 21 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio...
- Page 22 Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Shenzhen Trainertec Electronic Co., Ltd Http://www.trainertec.com - 21 -...
