Summary of Contents for POL-AUDIO SLA 112

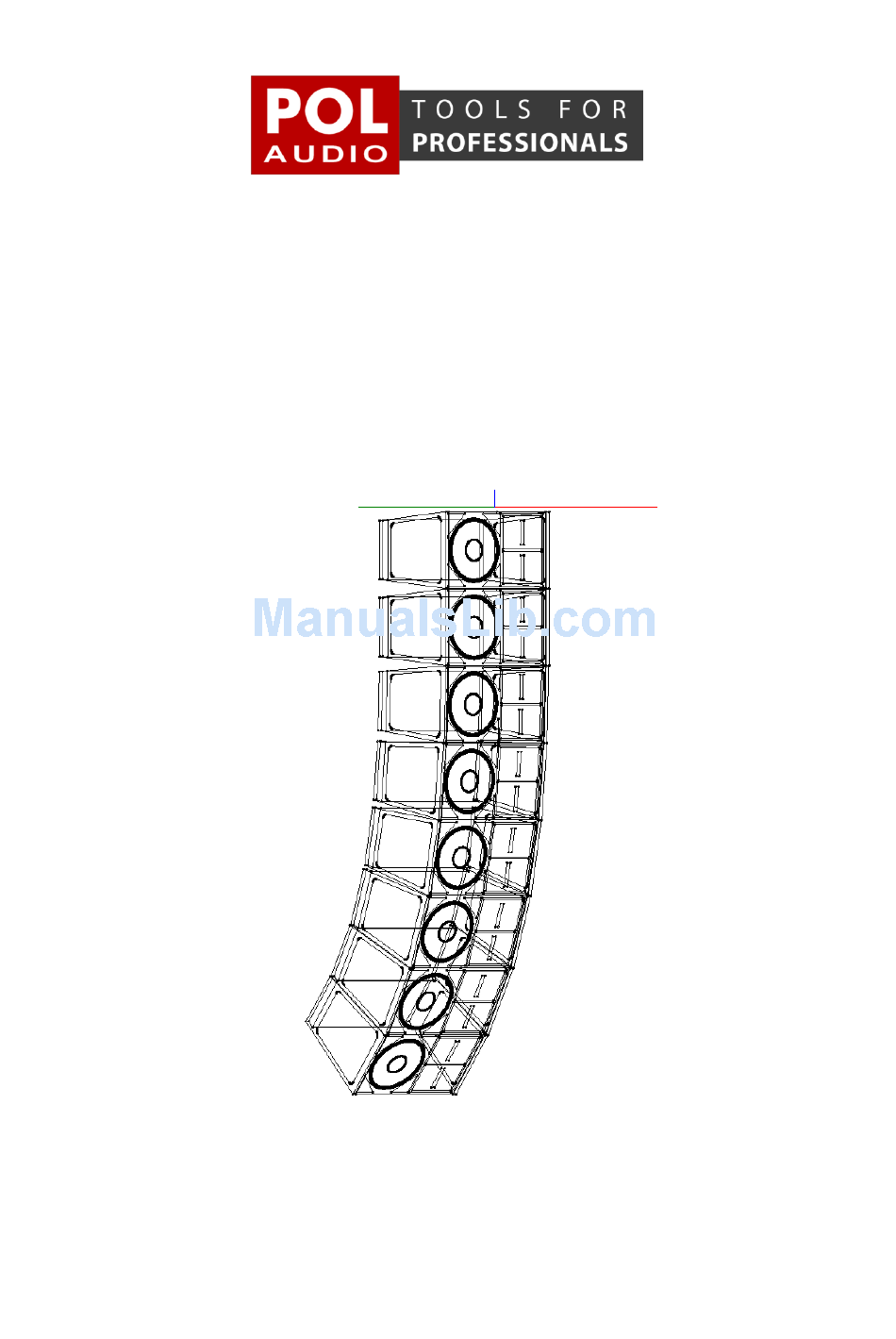

- Page 1 SLA 112 USER MANUAL...
- Page 2 We appreciate your purchase of POL-AUDIO product. Welcome to the users family! If you will have any ideas that you would like to share – please let us know! We are always interested in how the system perform and what is your experience.
- Page 3 POL-AUDIO will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. POL-AUDIO is not responsible for any “direct damage” or “indirect damage” caused by product defectiveness.
-
Page 4: Product Description
Focus 2 application. In case of an event without requirement for high output at low frequencies SLA 112 can be used as a full range system without additional subwoofer section. 12” woofer allows the system to be cut off as low as 50Hz. This way you can save cargo space when providing sound reinforcement for specific kind of events. -
Page 5: General Safety Rules
Do not stand under the array. If the system collapses it can cause permanent health damage or even death. FLYING BAR MARKINGS POL-AUDIO SLA 112 can be used only with flying bar provided by manufacturer. Below you can find frame with angles possible to achieve. Image 1a Angle setup between frame and first module SLA 112... -
Page 6: Product Specification
NL4MP Image 3 SLA 112 with dimensions ADDITIONAL ACCESSORIES Transport case Case can fit 2 modules of connected SLA 112 modules. Wiring Set of cables for connecting SLA 112 system. Rigging Equipment Set of pins and shackles for system rigging. -
Page 7: Sample Configuration
POL-AUDIO SLA 112 Manual SYSTEM MARKING POL-AUDIO SLA 112 system is marked with a back plate containing serial number and primary technical parameters. Image 4 SLA 112 system back plate SAMPLE CONFIGURATION Connection schema Image 5a Sample SLA 112 configuration... -
Page 8: Array Configuration
ARRAY CONFIGURATION Array size At least 4 modules per side for minimum directivity control in full bendwidth. BOX INTERCONNETION SCHEMA Image 6 Interconnection schema for SLA 112 ® Markings: 1+ i 1- and 2+ i 2- correspond to pins of SPEAKON connectors in the box. -
Page 9: Hearing Protection
POL-AUDIO SLA 112 Manual To keep system operational we suggest to undertake periodic inspections at authorised service point. First inspection should be done around 6 months after the buy. Each next inspection can be done with 2 years frequency. In case of enclosure cleaning, use cloth with water. Cleaning substances can effect in enclosure damage. -
Page 10: Ce Declaration Of Conformity
POL-AUDIO Leszek Polanowski ul. M.C. Skłodowskiej 33 05-420 Józefów Poland SYSTEMS LIST: Passive loudspeaker systems: POL-AUDIO SLA 112, POL-AUDIO SLA 208M ND, POL-AUDIO SLA 210CX DIRECTIVES AND NORMS: EMC 89/336/EEC 03.05.1989 with annotations 91/31/EEC and 93/68 EEC 73/23/EC 19.02.1973 with annotations 93/68/EEC ...
