Vision UPS Systems Spirit G XL 1KVAS User Manual

Spirit g xl series 1-3 kva – pf0.9 uninterruptible power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

User manual

Spirit G XL
1-3 KVA – PF0.9
Uninterruptible Power Supply

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spirit G XL 1KVAS and is the answer not in the manual?

Questions and answers

Summary of Contents for Vision UPS Systems Spirit G XL 1KVAS

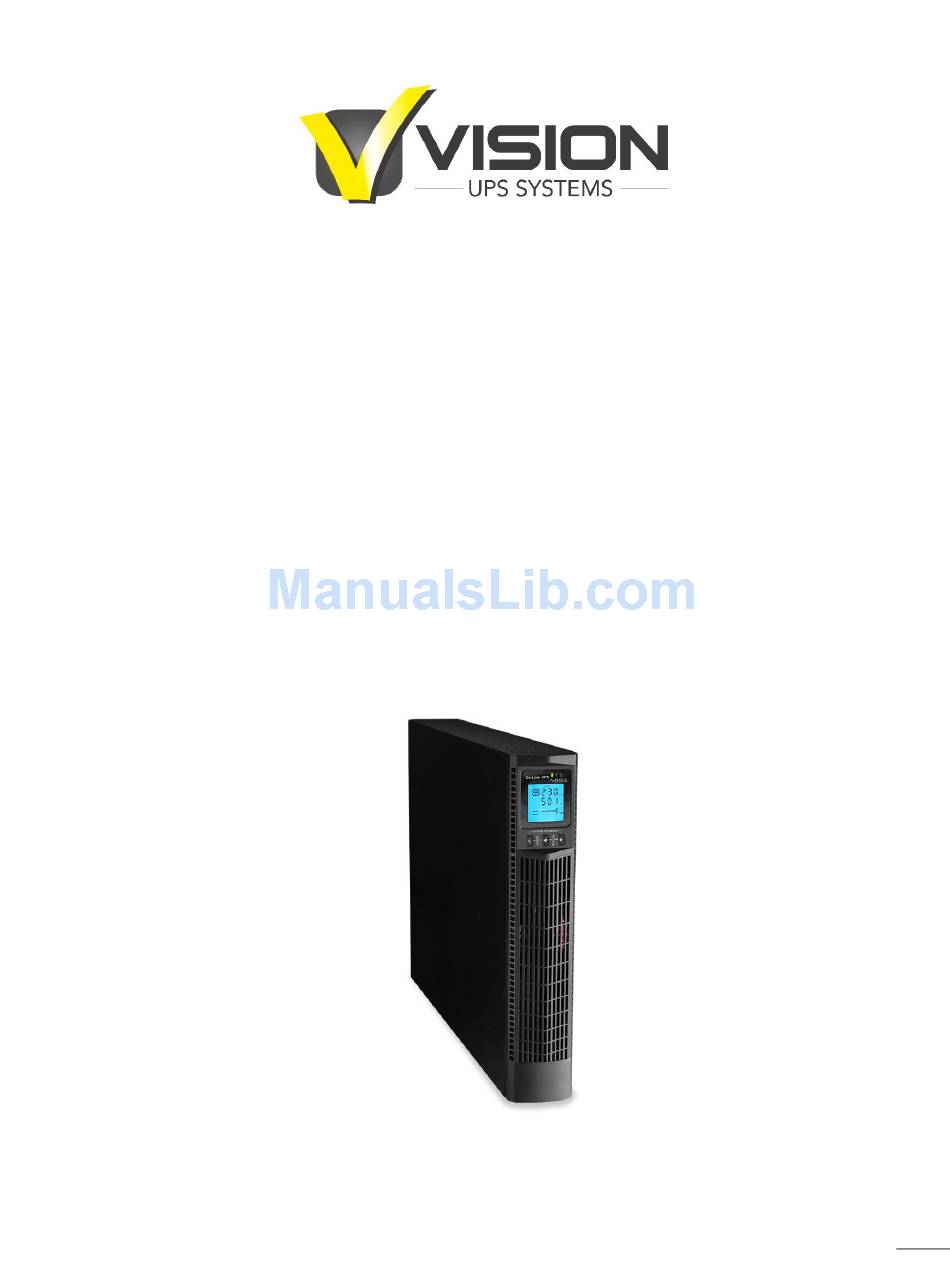

  • Page 1: User Manual

    User manual Spirit G XL 1-3 KVA – PF0.9 Uninterruptible Power Supply...
  • Page 2 All rights reserved. The information in this manual is subject to change without notice. Thank you for purchasing this series UPS. It is secure and reliable and requires only low maintenance. Please read this manual carefully and entirely. It contains instructions about safety, installation and operation. These will help you to reach maximum life time of your UPS.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Introduction……………….…..…………………………….….…………………………………………..….……………………………. 2. Safety Warnings...….……...………………………................... 3. Installation …………………………………………….…………………………............... 3.1. Unpacking and Inspecting the Equipment..………………...……..........3.2. Checking the accessories..….……..….……….………………………............. 3.3. Rack mount Installation..………………………………………………..………….......... 3.4. Rack mount Wiring Installation……...…….……………………………..........3.5. Connecting the Battery Packs (EBPs)…………….……….…………..........3.6. Rack mount converted to Tower Installation…………………………………….…....... 3.7.
  • Page 4 Table 12 UPS models……..…………………………………………………………………………………………………………….. Table 13 Weights and dimensions………..………………………………………………………………………………………. Table 14 Electrical input A. ………………………………………………………………………………………………………….. Table 15 Electrical input B. ………………………………………………………………………………………………………….. Table 16 Electrical input connections…….…………………………………………………………………………………….. Table 17 Electrical output…………………………………………………………………………………………………………….. Table 18 Electrical output connections…………………………………………………………………………………………. Table 19 Environment and safety………………………………………………………………………………………………….. Table 20 Internal charger…….………………………………………………………………………………………………………..

  • Page 5: Introduction

    1. INTRODUCTION This UPS protects your sensitive electronic equipment from most common power problems, including power failures, power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching transients and harmonic distortion. Power outages might occur unexpectedly and power quality can be erratic. These power problems have potential to corrupt critical data, destroy unsaved work sessions and damage hardware –...

  • Page 6: Safety Warnings

    2. SAFETY WARNINGS This chapter contains important instructions that you should follow during installation and maintenance of the UPS and batteries. Please read all instructions before operating the equipment and save this manual for future reference. Following the safety instructions: DANGER The UPS contains lethal voltages.

  • Page 7: Installation

    3. INSTALLATION This section explains: Equipment unpacking and inspection; Checking the accessory kit; Cabinet installation; Wiring installation; Initial start-up. 3.1. Unpacking and inspecting the Equipment 3.1.1. Unpack the UPS and check it for any transport damage. Do not put the unit into operation in case of damage or of missing parts and keep all packing material for the forwarder and/or dealer.

  • Page 8: Rack Mount Installation

    3.3. Rack mount Installation 3.3.1. Rack Installation: The rack mount cabinet is delivered with all accessories, which are required for installation on a standard EIA or JIS seismic rack mount configuration with square and round mounting holes. In 19”-racks, the rail assemblies can be adjusted in depth from front to rear around 50cm until approximately 80cm.

  • Page 9: Rack Mount Wiring Installation

    ⑤ Repeat the steps ③ and ④ to assemble the other rails. ⑥ Tighten the four butterfly nuts in the middle of each rail assembly. ⑦ If installing optional modules, then repeat step ① through step ⑥ for each rail kit. ⑧...
  • Page 10 Follow these steps to install the UPS: ① Remove the front cover of each UPS, hold and extract the right cover part (without LCD) from the panel (see fig. 7). Fig. 7 – Extract the UPS front cover ② Connect the internal battery connector red to red (see fig. 8). Press the connector firmly in to ensure a proper connection.

  • Page 11: Connecting The Battery Packs (Ebps)

    Fig. 10 ⑤ If you are installing a power management software, connect your computer to one of the communication ports or optional connectivity card. For the communication ports, use an appropriate cable. ⑥ If your rack has conductors for grounding or for bonding of ungrounded metal parts, then connect the ground cable (not supplied) to the ground bonding screw.

  • Page 12: Rack Mount Converted To Tower Installation

    CAUTION: A small electric arc may occur when connecting the internal batteries (EBP) to the UPS. This is normal and will not harm personnel. Connect the cables quickly and firmly. ④ Plug the EBP cable(s) into the battery connector(s) (see fig. 13). Up to four EPBs may be connected to the UPS.
  • Page 13 ③ Even when an EBP is needed to be placed in the middle, the assembly of the plastic holder stays similar. The difference is that two extension pieces (1U) are added between the base brackets (see fig. 15). ③ A ③...

  • Page 14: Ups Initial Start-Up

    Fig. 17 – Connection of long backup external battery 3.7. UPS Initial Start-up NOTE: Before starting up, verify that the total equipment ratings do not exceed the UPS capacity in order to prevent an overload alarm. To start-up the UPS: ①...

  • Page 15: Display Monitor, Operation And Control

    4. DISPLAY MONITOR, OPERATION AND CONTROL This chapter contains information for use of the UPS, including front cover operation, operating modes, UPS start-up and shutdown, transferring the UPS between the modes, configuring bypass settings, load segments and battery settings. 4.1. Control functions The UPS has a LCD segmental display with three buttons and backlight.

  • Page 16: Table 3 Operating Status Corresponding To Indications

    TABLE 3 – Operating status corresponding to indications Indication Operating status Warning Remarks LINE mode Voltage normal ● none Over- and undervoltage protection, every 4 ★ ● ● transfer to battery mode seconds Battery mode every 4 ★ Voltage normal ●...

  • Page 17: Display Functions

    4.2. Display Functions In case of a fault or after 5 minutes of inactivity, the LCD display shows the output parameters. The backlit LCD dims automatically its lighting intensity after 5 minutes of inactivity. Press any button to restore the screen. The LCD display comprises a numerical value section and graphical sections for capacity, fan status and charger status.

  • Page 18: Parameters Inquiring

    4.3. Parameters Inquiring Press and hold the scroll key longer than ½ second (but shorter than 2 seconds) to inquire about the items. The inquired items include input, battery, output, load and temperature. Press and hold the key longer than 2 seconds and the LCD begins to display the items circularly and orderly, transferring from one to another, every 2 seconds.

  • Page 19: Parameter Settings

    4.4. Parameter Settings The UPS has different setting functions. These settings can be done under any kind of UPS working mode. The applied settings will take effect immediately if they correspond to standard guidelines. Below table describes how to set the UPS: TABLE 6 –...
  • Page 20 than ½ second (shorter than 2 seconds), select the numerical value in accordance with the «OPU» function. The provided voltages are 208V, 220V, 230V, 240V. You can choose any of them by yourself (default is 220V). ③ Confirm the output voltage setting. After selection of the numerical value, press and hold the function setting key longer than ½...
  • Page 21 ④ Exit the setting interface. Press and hold the function setting key longer than ½ second (shorter than 2 seconds), exit the setting interface and return to main interface. If set as used, the corresponding word is «ON». Check the battery connections monthly.
  • Page 22 ① Enter the setting interface. Press and hold the function setting key longer than 2 seconds to reach the setting interface. Press and hold the scroll key longer than ½ second (shorter than 2 seconds), select the function setting, choose the setting interface of output frequency.

  • Page 23: Start Up And Turn Off The Ups

    When the UPS fails, the red warning LED lights and the buzzer beeps. The UPS turns on fault mode. The UPS stops the output and the LCD display indicates the fault code. When this is the case, you can press the «MUTE» key to stop the beeping temporarily while Fault waiting for repair/maintenance.

  • Page 24: Table 8 Battery Number Configuration

    TABLE 8 – Battery number configuration All UPS and EBP cabinets Number of battery strings UPS only (internal batteries) 1 (by default) UPS + 1EBP UPS + 2EBPs UPS + 3EBPs UPS + 4EBPs NOTE: The UPS contains one battery string. Each EBP contains two battery strings. WARNINGS: ...

  • Page 25: Communication

    5. COMMUNICATION This chapter contains information about the communication ports (RS232 and USB), the connectivity cards, the emergency power off (EPO), the load segments and the Power Management Software UPSilon2000. Refer to page 35 «Rear covers» for the model figures. Fig.

  • Page 26: Rs232 And Usb Communication Ports

    5.2. RS232 and USB Communication Ports To establish communication between the UPS and a computer, connect your computer to one of the UPS communication ports by using an appropriate communication cable (not supplied). See figures 19 and 20 for the location of communications ports.

  • Page 27: Emergency Power Off (Epo)

    WARNING: The EPO circuit is an IEC 60960 safety extra lower voltage (SELV) circuit. This circuit must be separated from any hazardous voltage circuits by reinforced insulation. CAUTION:  The EPO must not be connected to any utility connected circuits. A reinforced insulation to the utility is required.

  • Page 28: Load Segments

    5.5. Load Segments The load segments are sets of receptacles that can be controlled by management software or through the display; they provide an orderly shutdown and start-up of your equipment. For example, during a power outage, you can keep critical equipment running while you turn off other equipment.

  • Page 29: Maintenance

    6. MAINTENANCE This chapter contains information about the maintenance of UPS and batteries, the replacement of extended battery packs (EBPs), the testing of new batteries and the recycling of used batteries or the UPS. 6.1. Maintenance of UPS and Batteries For the best preventive maintenance, keep the area around the UPS clean and dust-free.

  • Page 30: Replacing The Ups (R/T) And Battery Packs (Ebps)

    6.4. Replacing the UPS (Rack/Tower) and Battery Packs (EBPs) If the battery of modular unit fails, then perform the following steps to replace it by a new battery pack: ① Remove the front cover of the battery housing. ② Remove the connection cables between the battery housing and the UPS. Release the screw of the metal sheet of the battery pack as shown on figure 25.

  • Page 31: Recycling The Used Batteries And The Ups

    6.6. Recycling the Used Batteries and the UPS WARNING & CAUTION:  Do not throw the batteries into normal waste or in a fire (risk of explosion).  Do not throw the UPS, the sealed lead-acid batteries and the electrical or electronic material (WEEE) into normal waste.

  • Page 32: Table 13 Weights And Dimensions

    TABLE 13 – Weights and dimensions (all models) Model (Rackmount UPS) Dimensions (WxDxH) Weight 1KVAS/1KVAH – RT 44x43x8.6 cm 15.7 kg / 11.5 kg 1KVAS/1.5KVAS/1.5KVAH – RT 44x43x8.6 cm 18.7 kg / 18.7 kg / 11.5 kg 2KVAS/2KVAH/3KVAH – RT 44x55.2x8.6 cm 26.3 kg / 17.5 kg / 17.5 kg 2KVAS/3KVAS - RT...

  • Page 33: Table 18 Electrical Output Connections

    (Bypass mode) 130%±5% ̶ 150%±5% : load transfers to fault mode after 2min 150%±5% ̶ 200%±5% : load transfers to fault mode after 15sec >200%±5% : load transfers to fault mode after 140ms 108%±5% ̶ 150%±5% : load transfers to fault mode after 30sec Output overload 150%±5% ̶...

  • Page 34: Table 20 Internal Charger

    TABLE 20 – Internal charger UPS type Model Remark 1KVAS Internal charger of 1.4A, 2/3 pieces of 9Ah batteries 1.5KVAS Internal charger of 1.4A, 3 pieces of 9Ah batteries Standard unit 2KVAS Internal charger of 1.4A, 4/6 pieces of 9Ah batteries 3KVAS Internal charger of 1.4A, 6 pieces of 9Ah batteries 1KVAH...

  • Page 35: Rear Covers

    7.2. Rear covers Fig. 28 Fig. 29 SPIRIT G XL 1-3 KVA - PF0.9 www.visionups.com...

  • Page 36: Troubleshooting

    8. TROUBLESHOOTING The following messages appear on the UPS in case of problems. On the basis of this information, user can judge himself, if the fault is caused by external factors and can handle it. 1. The fault indicator lights and shows that the UPS has detected one or several faults. 2.

  • Page 37: Table 24 Warnings Messages And Fault Codes

    The following table describes the typical fault conditions: TABLE 24 – Warning messages and fault codes Operation mode before fault Battery Error type Type of fault Bypass Line Battery test mode mode mode mode mode P Bus high N Bus high P Bus low Bus fault N Bus low...

This manual is also suitable for:

Spirit g xl 2kvasSpirit g xl 3kvasSpirit g xl 1kvahSpirit g xl 1.5kvahSpirit g xl 1.5kvasSpirit g xl 2kvah ... Show all
