Summary of Contents for Suck UK LED Mirror

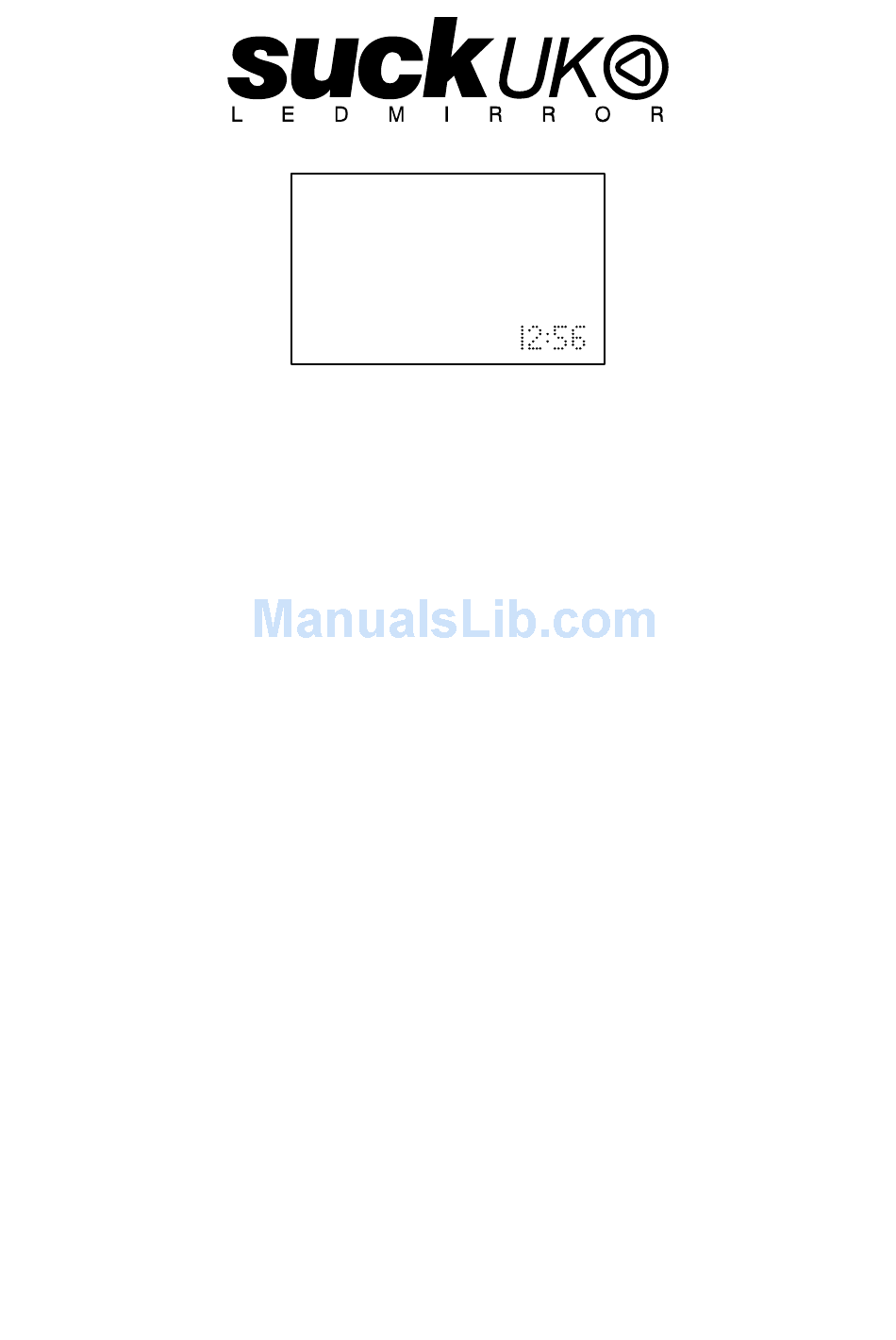

- Page 1 INSTRUCTIONS REMOTE CONTROL OPERATION for convenience PC OPERATION for faster control save and recall unlimited number of messages MADE IN THE UK www.suck.uk.com...
-
Page 2: Remote Control
Hanging Your Mirror Make sure that the cable will reach to a suitable power supply. Fix to the wall using the Screws and Wall Plugs supplied: Hang the unit from the “keyhole” slots on the metal bracket. The wall fixings must be 415mm apart. Turning a sign on and off When you plug in the sign’s power supply, the sign starts up automatically. - Page 3 KEY GUIDE TO REMOTE CONTROL FUNCTIONS Item Description Power On / Off. If there are no messages saved in 01 to 99, it will run file 00. ON/OFF If there are files in 01 to 99 the last saved file will be displayed. Enter the Edit Program Mode.
- Page 4 Generate a pause within the programmed message. (Use PREV and NEXT to select PAUSE 1 to PAUSE 8) Select a programmed animation in the message. (Use PREV and NEXT to select ANIM 1 to ANIM 8) Select beep sound in the message. (Use PREV and NEXT to select BEEP 1 to BEEP BEEP 3) Press to confirm the selected option.
- Page 5 QUICK START REMOTE CONTROL TEXT MESSAGING The sign can store up to 100 messages in numbered data files. These files are numbered from 00 to 99. File 00 is a default message and is not reprogrammable. • In these instructions underlined text denotes words or numbers to type. •...
-
Page 6: A Simple Example
Running a saved message Normally, the sign will display the message which was last modified, but you can choose any message to display at any time. Step Keys to press Explanation Display Run a saved message RUN : ?? 01 ENT Select message file 01 The message is displayed! Editing a saved message... -
Page 7: Advanced Text Messaging
ADVANCED TEXT MESSAGING Adding animation and varying the shape of the letters is easy! It takes a little more time to program more complex messages but they add sparkle and increase readability. There is no single method or pattern that you should start each message with - be creative in your message and experiment with different display methods! Full control is available through the remote control but programming advanced messages is simplified if you use a PC (see the separate PC Operation Instruction booklet) -
Page 8: Password Protection
Password protection Default Password: “000” Password protection is built into the display. By default this is turned off. If the password protection is switched on in order to program a message or turn off the display you must key in the correct password. You must enter edit mode when you want to change, reset, or disable password security. -
Page 9: Alarm Setting
TIMER OPTIONS WITH REMOTE CONTROL You may only set the timer functions while in the EDIT program mode. Select the timer function while in edit mode at the end of a message: Press TIME. Press NEXT and PREV to cycle through the functions and ENT to select. To input times, press the Left and Right Arrow Keys to move through the digits and use the NEXT or PREV keys to increase or decrease the values for the digits. -
Page 10: System Requirement
PC OPERATION Using a computer You will need the special connectors and computer software supplied. Updated software and sample messages can be downloaded from www.suck.uk.com System requirement Your PC will need to have 500kb of free hard disk space and a spare serial port. The connectors supplied are for the serial port found on nearly all PC computers and laptops. - Page 11 Screen layout and overview Item Name Sub-menu Description Menu File Clear Clears all the contents in text edit area Open… Open message files (.sdv files) Save Save the current message file to your PC Save as… Save the current message as a new file to your PC Exit the messaging software Exit Menu...
- Page 12 QUICK START TEXT PC MESSAGING 1. Type a message in the main window 2. Click Send to update the LED Display 3. Input the address (default=0) 4. Select a COM port (the port you attached the cable to, if you are not sure try both!) 5.
- Page 13 Storing messages into different file numbers You can store different messages into different FILE Numbers at the same time. 1 Press CTRL + ENTER to create FILE 02. 2 Press CTRL + ENTER to create FILE 03. You can create files from 01 to 99 3 Click Send to update FILE01, FILE02,FILE03...
- Page 14 Setting the time and date Once set, the sign will remember the time and date. The correct time and date is set from the internal clock on your computer. 1. Select Special Function 2. Select the Set Time tab 3. Choose 12 Hour or 24 Hour clock 4.
- Page 15 Displaying messages by file number / in time order Once you’ve stored messages into the sign as different files you can set the sequence in which messages appear. 1. Select Special Function 2. Select the Special File tab 3. Choose Special File Name (there are ten programs 0 to 9). 4.
- Page 16 ADVANCED TEXT MESSAGING Using fonts, graphics, cartoons, date, time, speeds The different character styles available for your sign are shown in the Appendix. 1. Right click the mouse 2. Select Insert Moving method* 3. Select Immediate 4. Select Font=5*6 Short 5.
- Page 17 CREATING YOUR OWN GRAPHICS & LOGOS (The maximum number of user defined graphics that can be saved in the display memory is 8, graphic A- graphic H) 1. Click Lattice to edit your graphic or logo 2. Note: Colours are not available with this product 3.
-
Page 18: Timer Options
TIMER OPTIONS 1. Select Special Function 2. Select the function tab you want to use The sign will alarm will repeat 10 times. The interval between repeats alarms is 1 minute. Set the hourly alarm on. To power on the sign at 08:00 automatically. - Page 19 APPENDIX APPENDIX OF ADDITIONAL PROGRAMMING TIPS Function Code Definition Possibilities Control Cyclic [CYCLIC] Immediate [IMMED] Open from Right [OPEN←] Open from Left [OPEN→] Open from center [OPEN<>] Open to Center [OPEN><] Cover from Center [COVER<>] Cover from Right [COVER←] Cover to Left [COVER→] Cover to Center [COVER><]...
- Page 20 Function Code Definition Possibilities Control MERRY X`MAS [ANIM 1] HAPPY NEW YEAR [ANIM 2] JULY [ANIM 3] Generate an animated HAPPY EASTER [ANIM 4] PHRASE pre-programmed display HAPPY HALLOWEEN [ANIM 5] DON`T DRINK & DRIVE [ANIM 6] NO SMOKING [ANIM 7] WELCOME [ANIM 8] Pauses for 2 second delay...
