JOYTECH JS109HR2 Instruction Manual

1. SUMMARY

Using 2.4GHz Multi Channel RF module. Compatible with
AC key to change channels. Supporting 16 players simultaneously. Having auto-sleep
function to save battery life.

2. OPERATION INSTRUCTION

2.1 Basic operation instruction

2.1.1 Connecting

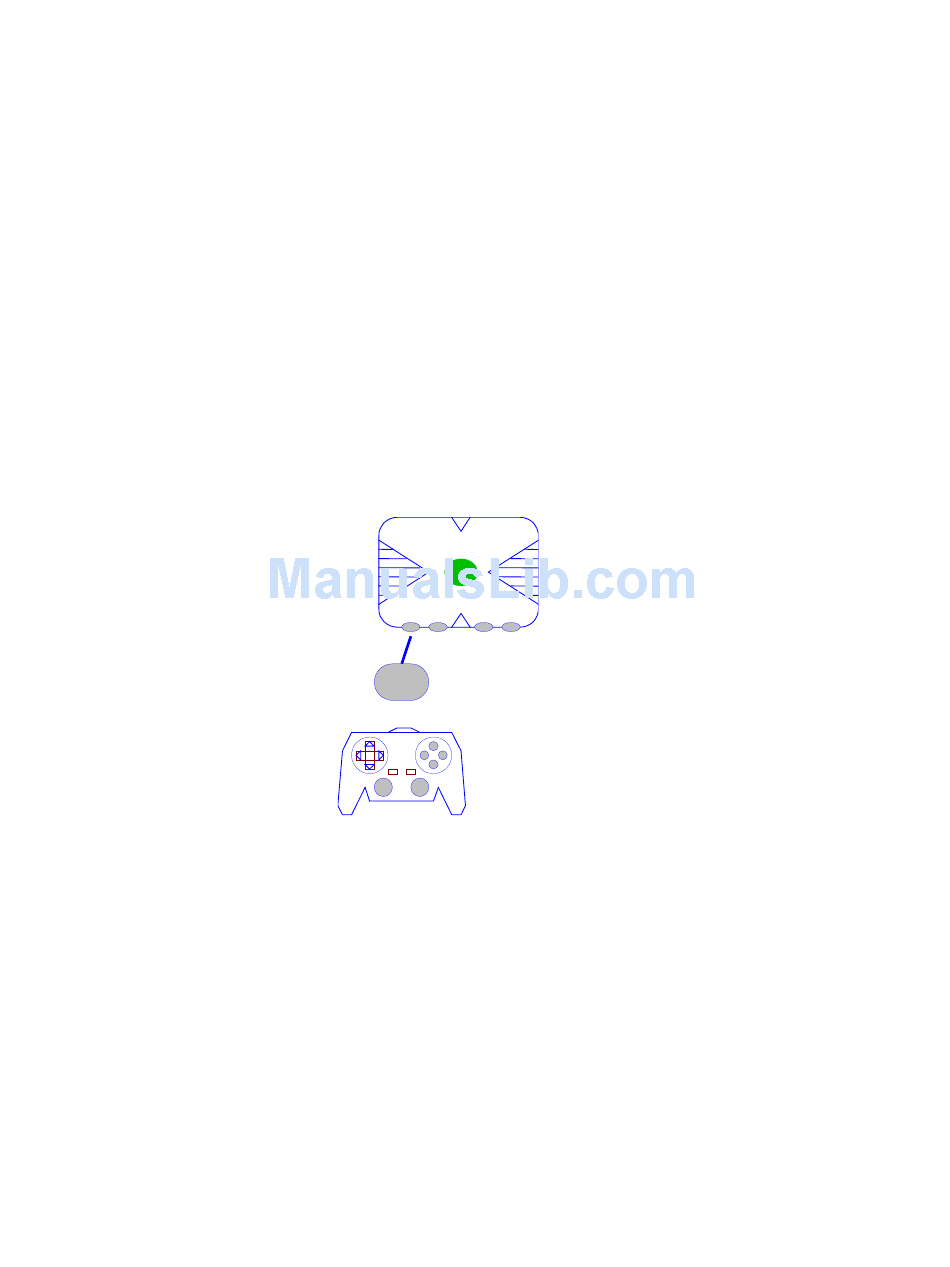

a).Insert receiver into PS2 console, receiver red LED bright, put AAA(LR03)
3PCS batteries into the battery compartment of controller. So receiver has been
connected with controller.
b). When several players (less than 16 players) connect the console
simultaneously, receiver will auto check the controllers, and generate
one-to-one channels. If channels repeat or be interfered, please refer to
DISCONNECT and RESETTING. Player can check the green LED in the
controller to know the connection situation. If green LED is bright, it means
controller works well with receiver. If green LED is twinkle, it means the
controller didn't work well with receiver. If green LED is dark, it means the
controller didn't work with receiver.
Vision Electronics Co., Ltd
2.4GHz PS2 RF CONTROLLER
INSTRUCTION MANUAL
RX
TX
PS2
SONY PLAYSTATION 2
. Using
