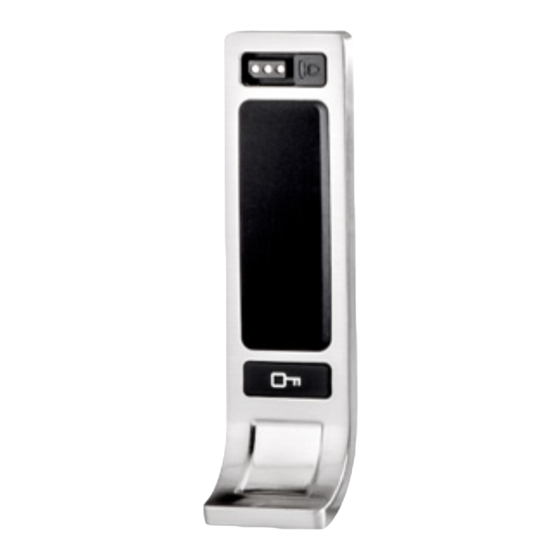

Summary of Contents for Digilock 4G A-series
- Page 1 Installation Guide Keypad & RFID Shared & Assigned Use Standard, Vertical, & Horizontal Body...
-
Page 2: Table Of Contents
Before Lock Installation Surface Mount Installation For door thickness measuring between .01” - .480” (0.01mm - 12mm) Required Components Installation For door thickness measuring between .480” - 1.998” (12.2mm -50.7mm) Required Components Installation Recess Mount Installation For door thickness measuring between .370” - .850” (9.4mm - 21.6mm) Required Components Installation For door thickness measuring between .850”... -
Page 3: Before Lock Installation
Before Lock Installation The door must be prepared for lock installation. A strike plate must be installed. Strike Plate Angled Strike Plate Security Strike Plate Double Door Strike Plate For surface mount installations, the door must have door mounting holes. Door Mounting Holes For Standard &... -
Page 4: Surface Mount Installation
Surface Mount Installation For door thickness measuring between .01” - .480” (0.01mm - 12.0mm) Required Components 1 - Front Unit Standard Body Keypad Standard Body RFID Vertical Body Keypad Vertical Body RFID Horizontal Body Keypad 1 - Rear Unit Springbolt Springlatch Deadbolt Deadlatch... -
Page 5: Installation
Installation For illustration, a standard body, keypad lock with a bolt rear unit is used. Place the plastic ring on the front unit. If required, connect the pin extender to the rear unit. Insert the front unit screw posts through the door Hold the front unit against the front of the door. - Page 6 To test keypad locks: Press = ` To test RFID locks: Press ` Test the locks while the door is open. If locks do not operate, remove and reinstall. Close the door and test again. If 10 rapid beeps are heard and the LED flashes 10 times, the strike plate and/or the door needs to be adjusted as it is preventing the lock from operating.
-
Page 7: For Door Thickness Measuring Between .480" - 1.998" (12.2Mm -50.7Mm)
For door thickness measuring between .480” - 1.998” (12.2mm - 50.7mm) Required Components 1 - Front Unit Standard Body Keypad Standard Body RFID Vertical Body Keypad Vertical Body RFID Horizontal Body Keypad 1 - Rear Unit Springbolt Springlatch Deadbolt Deadlatch 1 - Plastic Ring 2 - Phillips Head Screws 2 - Split Lock Washers... -
Page 8: Installation
Installation For illustration, a standard body, keypad lock with a bolt rear unit is used. Place the plastic ring on the front unit. Connect the pin extender to the rear unit. Place the split lock washers on the phillips head screws Insert the front unit nut posts through the door mounting and insert them through the rear unit mounting holes. - Page 9 Tighten the screws using the phillips head screw driver. To test keypad locks: Press = ` To test RFID locks: Press ` Test the locks while the door is open. If locks do not operate, remove and reinstall. Close the door and test again. If 10 rapid beeps are heard and the LED flashes 10 times, the strike plate and/or the door needs to be adjusted as it is preventing the lock from operating.
-
Page 10: Recess Mount Installation
Recess Mount Installation For door thickness measuring between .370” - .850” (9.4mm - 21.6mm) Required Components 1 - Front Unit Standard Body Keypad Standard Body RFID Vertical Body Keypad Vertical Body RFID Horizontal Body Keypad 1 - Rear Unit Solenoid Spring Bolt Solenoid Spring Latch Motorized Dead Bolt Motorized Dead Latch... -
Page 11: Installation
Installation For illustration, a standard body, keypad lock with a bolt rear unit is used. If required, connect the pin extender to the rear unit. Insert the front unit screw posts through the door mounting holes. Hold the front unit against the front of the door. Use the Make sure the connector pins align properly with the screws of the rear unit as a guide then slide the front connector. - Page 12 To test keypad locks: Press = ` To test RFID locks: Press ` Test the locks while the door is open. If locks do not operate, remove and reinstall. Close the door and test again. If 10 rapid beeps are heard and the LED flashes 10 times, the strike plate and/or the door needs to be adjusted as it is preventing the lock from operating.
-
Page 13: For Door Thickness Measuring Between .850" - 2.368" (21.6Mm - 60.1Mm)
For door thickness measuring between .850” - 2.368” (21.6mm - 60.1mm) Required Components 1 - Front Unit Standard Body Keypad Standard Body RFID Vertical Body Keypad Vertical Body RFID Horizontal Body Keypad 1 - Rear Unit Solenoid Spring Bolt Solenoid Spring Latch Motorized Dead Bolt Motorized Dead Latch 1* - Phillips Head Screwdriver (#2) -
Page 14: Installation
Installation For illustration, a standard body, keypad lock with a bolt rear unit is used. Connect the pin extender to the rear unit. Place the split lock washers on the phillips head screws and insert them through the rear unit mounting holes. Insert the front unit nut posts through the door mounting Hold the front unit against the front of the door. - Page 15 To test keypad locks: Press = ` To test RFID locks: Press ` Test the locks while the door is open. If locks do not operate, remove and reinstall. Close the door and test again. If 10 rapid beeps are heard and the LED flashes 10 times, the strike plate and/or the door needs to be adjusted as it is preventing the lock from operating.
-
Page 16: Door Preparation
Door Preparation Strike Plate Installation Required Components Strike Plate 1. A strike plate must be installed. Angled Strike Plate Security Strike Plate Double Door Strike Plate 1* - Phillips Head Screwdriver (#1) *Not included Do not use an electric screw gun unless it is equipped with a torque adjuster and is set to low. -
Page 17: Installation
Installation 5 in 0 .1 2 (3 .1 Mark Here Position the strike plate on the door frame centering Allow .125” (3.18mm) from door edge and mark the it with the center of the desired location of the door position of the adjustment slot holes. mounting holes. -
Page 18: Door Mounting Holes Drill Instructions And Templates
Plate Center Template Center line Template Mark Door Edge Center line Door Mounting Holes Drill Instructions and Templates Drill Instructions For illustration, the mounting holes template for standard & vertical body locks is used. Edge of Strike Plate Door Edge Mark Template Strike... -
Page 19: Template For Standard & Vertical Body
Template for Standard & Vertical Body Templates may not print to scale. Check all measurements before proceeding. Before printing, turn off auto scaling in printer setup and print at 100%. All measurements in thousandths of an inch and millimeters ALIGN EDGE OF ALIGN EDGE OF STRIKE PLATE HERE STRIKE PLATE HERE... -
Page 20: Template For Horizontal Body
Template for Horizontal Body Templates may not print to scale. Check all measurements before proceeding. Before printing, turn off auto scaling in printer setup and print at 100%. CENTER LINE ALIGN EDGE OF ALIGN EDGE OF STRIKE PLATE HERE STRIKE PLATE HERE CLOSING DRAWER CLOSING DRAWER ALIGN EDGE OF... -
Page 21: Routing Instructions And Template
Routing Instructions and Template Routing Instructions 1. Choose the appropriate routing template (standard, vertical, or horizontal). 2. Drill the appropriate door mounting holes. Refer to the door mounting holes drill instructions and template. 3. Align the mounting holes drawn on the template with the mounting holes drilled on the door. 4. -
Page 22: Routing Template For Standard Body
Routing Template for Standard Body Templates may not print to scale. Check all measurements before proceeding. Before printing, turn off auto scaling in printer setup and print at 100%. 2.01 in ( 51 1.98 in ( 50 .300 ( 8 2.72 in ( 69 2.19 in 2.68 in ( 68... -
Page 23: Routing Template For Horizontal Body
Routing Template for Horizontal Body Templates may not print to scale. Check all measurements before proceeding. Before printing, turn off auto scaling in printer setup and print at 100%. 0.30” 0.75” ( 8mm ) ( 19mm ) .400/.425 DEEP 1.25” ( 32mm ) ( 10/11mm ) 1.23”... -
Page 24: Routing Template For Vertical Body
Routing Template for Vertical Body Templates may not print to scale. Check all measurements before proceeding. Before printing, turn off auto scaling in printer setup and print at 100%. 1.25” ( 32mm ) 1.23” ( 31mm ) R 0.125” ( 3mm ) 0.30”... -
Page 25: Metal Door Preparation
Metal Door Preparation Compatibility Guide Digilock is compatible with a majority of 3-hole configuration, latch, and handle door types. Some doors may require modification to clear obstructions. Single Point Latch Standard Lift Recessed Cup with Multi-point Latch Handle Box Locker Padlock Hasp... -
Page 26: Removal Of 3-Hole Lock Plug
Removal of 3-hole Lock Plug Remove any obstructions to the door mounting holes. Rear View of Front View of Locker Door Locker Door with Lock Plug with Lock Plug Rear View of Front View of Locker Door Locker Door with Lock Plug with Lock Plug... -
Page 27: Removal Of Padlock Hasp
Close the door and mark the area to nothing is protruding above the hasp on the marked cut-line. cut the padlock hasp. surface of the door. Smooth out rough or sharp edges. IG-XXXX-XX-DEN Phone: 707 766 6000 071114 www.digilock.com | support@digilock.com...
