GE Grid Solutions F60 Instruction Manual

Ur series feeder protection system

page of 740

/ 740
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

Grid Solutions

GE Grid Solutions

650 Markland Street

Markham, Ontario

Canada L6C 0M1

Tel: +1 905 927 7070 Fax: +1 905 927 5098

Internet:

http://www.GEGridSolutions.com

*1601-0093-AA5*

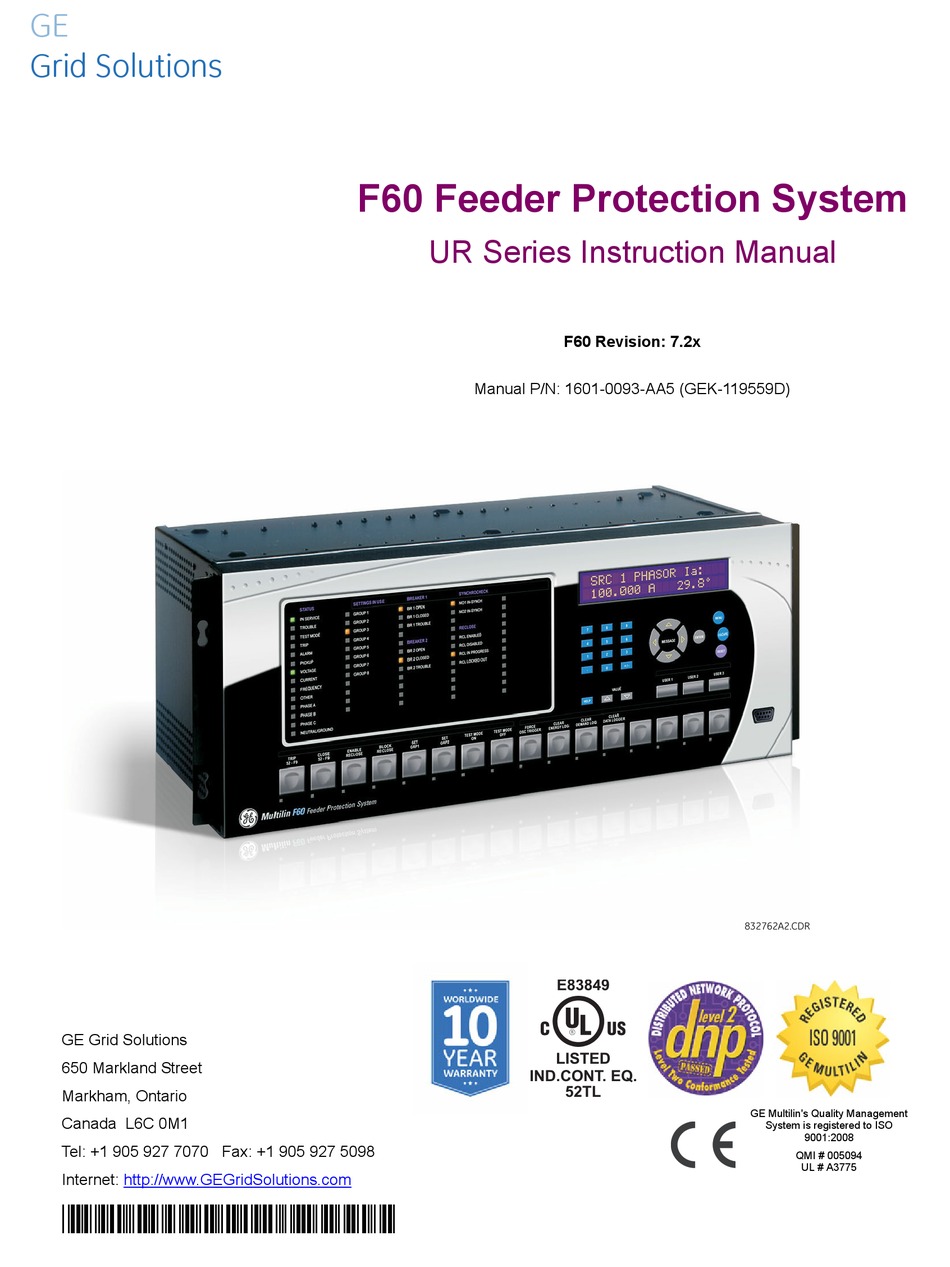

F60 Feeder Protection System

UR Series Instruction Manual

Manual P/N: 1601-0093-AA5 (GEK-119559D)

IND.CONT. EQ.

F60 Revision: 7.2x

E83849

LISTED

52TL

832762A2.CDR

GE Multilin's Quality Management

System is registered to ISO

9001:2008

QMI # 005094

UL # A3775

Table of Contents

Need help?

Do you have a question about the F60 and is the answer not in the manual?

Questions and answers

Summary of Contents for GE Grid Solutions F60

Page 1 Grid Solutions F60 Feeder Protection System UR Series Instruction Manual F60 Revision: 7.2x Manual P/N: 1601-0093-AA5 (GEK-119559D) 832762A2.CDR E83849 GE Grid Solutions LISTED 650 Markland Street IND.CONT. EQ. 52TL Markham, Ontario GE Multilin's Quality Management Canada L6C 0M1 System is registered to ISO...
Page 2 Copyright © 2017 GE Multilin Inc. All rights reserved. F60 Feeder Protection System UR Series Instruction Manual revision 7.2x. FlexLogic, FlexElement, FlexCurve, FlexAnalog, FlexInteger, FlexState, EnerVista, CyberSentry, HardFiber, Multilin, and GE Multilin are trademarks or registered trademarks of GE Multilin Inc.
Page 3: Table Of Contents
1.3 ENERVISTA UR SETUP SOFTWARE 1.3.1 SYSTEM REQUIREMENTS ................1-5 1.3.2 INSTALLATION....................1-5 1.3.3 CONFIGURING THE F60 FOR SOFTWARE ACCESS ........1-6 1.3.4 USING THE QUICK CONNECT FEATURE............1-9 1.3.5 CONNECTING TO THE F60 RELAY ............... 1-14 1.3.6 SETTING UP CYBERSENTRY AND CHANGING DEFAULT PASSWORD ... 1-15 1.4 UR HARDWARE...
Page 4 5.2.7 FAULT REPORTS ....................5-70 5.2.8 OSCILLOGRAPHY ...................5-72 5.2.9 DATA LOGGER ....................5-74 5.2.10 DEMAND ......................5-76 5.2.11 USER-PROGRAMMABLE LEDS ..............5-77 5.2.12 USER-PROGRAMMABLE SELF-TESTS ............5-80 5.2.13 CONTROL PUSHBUTTONS ................5-81 5.2.14 USER-PROGRAMMABLE PUSHBUTTONS............5-83 5.2.15 FLEX STATE PARAMETERS ................5-87 F60 Feeder Protection System GE Multilin...
Page 5 REMOTE DOUBLE-POINT STATUS INPUTS ..........5-295 5.8.8 REMOTE OUTPUTS..................5-295 5.8.9 RESETTING....................5-296 5.8.10 DIRECT INPUTS AND OUTPUTS ..............5-297 5.8.11 TELEPROTECTION INPUTS AND OUTPUTS..........5-300 5.8.12 IEC 61850 GOOSE ANALOGS..............5-302 5.8.13 IEC 61850 GOOSE INTEGERS..............5-303 GE Multilin F60 Feeder Protection System...
Page 6 EVENT RECORDS ...................6-28 6.4.3 OSCILLOGRAPHY ...................6-29 6.4.4 DATA LOGGER ....................6-29 6.4.5 PHASOR MEASUREMENT UNIT RECORDS ..........6-30 6.4.6 BREAKER MAINTENANCE ................6-30 6.4.7 HI-Z RECORDS ....................6-31 6.5 PRODUCT INFORMATION 6.5.1 MODEL INFORMATION ...................6-32 6.5.2 FIRMWARE REVISIONS..................6-32 F60 Feeder Protection System GE Multilin...
Page 7 UNINSTALL AND CLEAR FILES AND DATA..........10-8 10.4 REPAIRS 10.4.1 REPAIRS ......................10-9 10.5 STORAGE 10.5.1 STORAGE...................... 10-10 10.6 DISPOSAL 10.6.1 DISPOSAL ..................... 10-11 A. FLEXANALOG AND A.1 PARAMETER LISTS FLEXINTEGER A.1.1 FLEXANALOG ITEMS ..................A-1 A.1.2 FLEXINTEGER ITEMS ..................A-22 PARAMETERS GE Multilin F60 Feeder Protection System...
Page 8 IMPORTING AN SCD FILE WITH ENERVISTA UR SETUP......C-21 C.6 ACSI CONFORMANCE C.6.1 ACSI BASIC CONFORMANCE STATEMENT ..........C-23 C.6.2 ACSI MODELS CONFORMANCE STATEMENT ..........C-23 C.6.3 ACSI SERVICES CONFORMANCE STATEMENT ......... C-24 viii F60 Feeder Protection System GE Multilin...
Page 9 G.1 RADIUS SERVER CONFIGURATION G.1.1 RADIUS SERVER CONFIGURATION.............. G-1 H. MISCELLANEOUS H.1 CHANGE NOTES H.1.1 REVISION HISTORY ..................H-1 H.1.2 CHANGES TO THE F60 MANUAL ..............H-2 H.2 ABBREVIATIONS H.2.1 STANDARD ABBREVIATIONS .................H-6 H.3 WARRANTY H.3.1 GE MULTILIN WARRANTY ................H-9 INDEX GE Multilin...
Page 10 TABLE OF CONTENTS F60 Feeder Protection System GE Multilin...
Page 11: Getting Started
1.1 IMPORTANT PROCEDURES 1 GETTING STARTED 1.1IMPORTANT PROCEDURES Use this chapter for initial setup of your new F60 Feeder Protection System. 1.1.1 CAUTIONS AND WARNINGS Before attempting to install or use the device, review all safety indicators in this document to help prevent injury, equipment damage, or downtime.
Page 12: Inspection Procedure
• GE EnerVista™ DVD (includes the EnerVista UR Setup software and manuals in PDF format) • Mounting screws If there is any noticeable physical damage, or any of the contents listed are missing, contact GE Grid Solutions as fol- lows.
Page 13: Ur Overview
The remote inputs and outputs provide a means of sharing digital point state information between remote UR-series devices. The remote outputs interface to the remote inputs of other UR-series devices. Remote outputs are FlexLogic oper- ands inserted into IEC 61850 GSSE and GOOSE messages. GE Multilin F60 Feeder Protection System...
Page 14: Software Architecture
Employing OOD/OOP in the software architecture of the F60 achieves the same features as the hardware architecture: modularity, scalability, and flexibility. The application software for any UR-series device (for example, feeder protection, transformer protection, distance protection) is constructed by combining objects from the various functional classes.
Page 15: Enervista Ur Setup Software
Ethernet port of the same type as one of the UR CPU ports or a LAN connection to the UR • Internet access or a DVD drive The following qualified modems have been tested to be compatible with the F60 and the EnerVista UR Setup software: • US Robotics external 56K FaxModem 5686 •...
Page 16: Configuring The F60 For Software Access
To configure the F60 for remote access via the rear Ethernet port, see the Configuring Ethernet Communications sec- tion. • To configure the F60 for local access with a computer through either the front RS232 port or rear Ethernet port, see the Using the Quick Connect Feature section. F60 Feeder Protection System...
Page 17 10. Click the Read Order Code button to connect to the F60 device and upload the order code. If a communications error occurs, ensure that the EnerVista UR Setup serial communications values entered in the previous step correspond to the relay setting values.
Page 18 MODBUS PROTOCOL 21. Click the Read Order Code button to connect to the F60 device and upload the order code. If an communications error occurs, ensure that the three EnerVista UR Setup values entered in the previous steps correspond to the relay setting values.
Page 19: Using The Quick Connect Feature
USING QUICK CONNECT VIA THE REAR ETHERNET PORTS To use the Quick Connect feature to access the F60 from a computer through Ethernet, first assign an IP address to the relay from the front panel keyboard. Press the MENU key until the SETTINGS menu displays.
Page 20 Right-click the Local Area Connection icon and select Properties. Select the Internet Protocol (TCP/IP) item from the list, and click the Properties button. Click the “Use the following IP address” box. 1-10 F60 Feeder Protection System GE Multilin...
Page 21 1 GETTING STARTED 1.3 ENERVISTA UR SETUP SOFTWARE Enter an IP address with the first three numbers the same as the IP address of the F60 relay and the last number dif- ferent (in this example, 1.1.1.2). Enter a subnet mask equal to the one set in the F60 (in this example, 255.0.0.0).
Page 22 Ensure that the “Use a proxy server for your LAN” box is not checked. If this computer is used to connect to the Internet, re-enable any proxy server settings after the computer has been discon- nected from the F60 relay. Start the Internet Explorer software.
Page 23 Click the Quick Connect button to open the Quick Connect dialog box. Select the Ethernet interface and enter the IP address assigned to the F60, then click the Connect button. The EnerV- ista UR Setup software creates a site named “Quick Connect” with a corresponding device also named “Quick Con- nect”...
Page 24: Connecting To The F60 Relay
The EnerVista UR Setup software has several quick action buttons to provide instant access to several functions that are often performed when using F60 relays. From the online window, users can select the relay to interrogate from a pull-down window, then click the button for the action they want to perform. The following quick action functions are available: •...
Page 25: Setting Up Cybersentry And Changing Default Password
If using EnerVista, navigate to Settings > Product Setup > Security. Change the Local Administrator Password, for example. It is strongly recommended that the password for the Administrator be changed from the default. Changing the passwords for the other three roles is optional. GE Multilin F60 Feeder Protection System 1-15...
Page 26: Ur Hardware
This device (catalog number F485) connects to the computer using a straight-through serial cable. A shielded twisted-pair (20, 22, or 24 AWG) connects the F485 converter to the F60 rear communications port. The converter terminals (+, –, GND) are connected to the F60 communication module (+, –, COM) terminals. See the CPU Communica- tion Ports section in chapter 3 for details.
Page 27: Using The Relay
MESSAGE LEFT key from a setting value or actual value display returns to the header display. HIGHEST LEVEL LOWEST LEVEL (SETTING VALUE)  SETTINGS  SECURITY ACCESS LEVEL:  PRODUCT SETUP  Restricted  SETTINGS  SYSTEM SETUP GE Multilin F60 Feeder Protection System 1-17...
Page 28: Relay Activation
For more information, see the CyberSentry content in the Security section of the next chapter. 1.5.6 FLEXLOGIC CUSTOMIZATION FlexLogic equation editing is required for setting user-defined logic for customizing the relay operations. See the FlexLogic section in Chapter 5. 1-18 F60 Feeder Protection System GE Multilin...
Page 29: Commissioning
The F60 performs a number of continual self-tests and takes the necessary action in case of any major errors (see the Relay Self-tests section in chapter 7). However, it is recommended that F60 maintenance be scheduled with other system maintenance.
Page 30 1.5 USING THE RELAY 1 GETTING STARTED 1-20 F60 Feeder Protection System GE Multilin...
Page 31: Product Description
Ethernet port supports IEC 61850, IEC 61850-90-5, Modbus/TCP, and TFTP protocols, PTP (according to IEEE Std. 1588- 2008 or IEC 61588), and allows access to the relay via any standard web browser (F60 web pages). The IEC 60870-5-104 protocol is supported on the Ethernet port. The Ethernet port also supports the Parallel Redundancy Protocol (PRP) of IEC 62439-3 (clause 4, 2012) when purchased as an option.
Page 32: Security
EnerVista software. • CyberSentry security — Advanced security options available as a software option. When purchased, the options are automatically enabled, and the default Password security and EnerVista security are disabled. F60 Feeder Protection System GE Multilin...
Page 33 When entering a settings or command password via EnerVista or any serial interface, the user must enter the correspond- ing connection password. If the connection is to the back of the F60, the remote password must be used. If the connection is to the RS232 port of the faceplate, the local password applies.
Page 34 Clear relay records |--------------- (settings) |--------------- Communications |--------------- Modbus user map |--------------- Real Time Clock |--------------- Oscillography |--------------- Data Logger |--------------- Demand User Programmable |--------------- LEDs User Programmable |--------------- self test |--------------- Control Pushbuttons F60 Feeder Protection System GE Multilin...
Page 35 |------------ Testing |------------ Front Panel Labels Designer |------------ Protection Summary Commands |------------ Virtual Inputs |------------ Clear Records |------------ Set date and time User Displays Targets Actual Values |------------ Front Panel Labels Designer |------------ Status GE Multilin F60 Feeder Protection System...
Page 36 RADIUS server when one is provided. If a RADIUS server is provided, but is unreachable over the network, server authentication requests are denied. In this situ- ation, use local UR accounts to gain access to the UR system. F60 Feeder Protection System GE Multilin...
Page 37: Iec 870-5-103 Protocol
103 communication messages. The UR implementation of IEC 60870-5-103 consists of the following functions: • Report binary inputs • Report analog values (measurands) • Commands • Time synchronization The RS485 port supports IEC 60870-5-103. GE Multilin F60 Feeder Protection System...
Page 38: Order Codes
2.2ORDER CODES 2.2.1 OVERVIEW The F60 is available as a 19-inch rack horizontal mount or reduced-size (¾) vertical unit and consists of the following mod- ules: power supply, CPU, CT/VT, contact input and output, transducer input and output, and inter-relay communications.
Page 39 2 PRODUCT DESCRIPTION 2.2 ORDER CODES Table 2–4: F60 ORDER CODES (HORIZONTAL UNITS) * - F - W/X Full Size Horizontal Mount MOUNT/COATING Horizontal (19” rack) - Standard Horizontal (19” rack) - With harsh environmental coating FACEPLATE/ DISPLAY English display...
Page 40 2.2 ORDER CODES 2 PRODUCT DESCRIPTION The order codes for the reduced size vertical mount units are shown below. Table 2–5: F60 ORDER CODES (REDUCED SIZE VERTICAL UNITS) * - F Reduced Size Vertical Mount (see note regarding P/R slot below)
Page 41: Order Codes With Process Bus Modules
* When an 8Z module is ordered, slot F must have an 8F or 8G module. 2.2.3 ORDER CODES WITH PROCESS BUS MODULES The order codes for the horizontal mount units with the process bus module are shown below. Table 2–6: F60 ORDER CODES (HORIZONTAL UNITS WITH PROCESS BUS) * - F - W/X...
Page 42 2.2 ORDER CODES 2 PRODUCT DESCRIPTION Table 2–6: F60 ORDER CODES (HORIZONTAL UNITS WITH PROCESS BUS) * - F - W/X Full Size Horizontal Mount IEEE 1588, PRP, and IEC 61850 IEEE 1588, PRP, Ethernet Global Data, and IEC 61850...
Page 43 2 PRODUCT DESCRIPTION 2.2 ORDER CODES Table 2–7: F60 ORDER CODES (REDUCED SIZE VERTICAL UNITS WITH PROCESS BUS) * - F Reduced Size Vertical Mount (see note regarding P/R slot below) BASE UNIT Base Unit RS485 and Three Multi-mode fiber 100Base-FX (SFP with LC)
Page 44: Replacement Modules
Replacement modules can be ordered separately. When ordering a replacement CPU module or faceplate, provide the serial number of your existing unit. Not all replacement modules may be applicable to the F60 relay. Only the modules specified in the order codes are available as replacement modules.
Page 45 Standard 8CT with enhanced diagnostics Sensitive Ground 8CT with enhanced diagnostics 8Z * HI-Z 4CT INTER-RELAY COMMUNICATIONS C37.94SM, 1300 nm single-mode, ELED, 1 channel single-mode C37.94SM, 1300 nm single-mode, ELED, 2 channel single-mode GE Multilin F60 Feeder Protection System 2-15...
Page 46 4 RTD inputs, 4 DCmA outputs (only one 5D module is allowed) 4 DCmA inputs, 4 RTD inputs 8 DCmA inputs * When an 8Z module is ordered, slot F must have an 8F or 8G module. 2-16 F60 Feeder Protection System GE Multilin...
Page 47: Signal Processing
The sampling rate is dynamically adjusted to the actual system frequency by an accurate and fast frequency tracking system. The A/D converter has the following ranges of AC signals: Voltages: ± ⋅ 260 V (EQ 2.1) Currents: GE Multilin F60 Feeder Protection System 2-17...
Page 48 Other advanced UR order code options are available to support IEC 61850 Ed2.0 (including fast GOOSE, MMS server, 61850 services, ICD/CID/IID files, and so on), IEEE 1588 (IEEE C37.238 power profile) based time synchronization, Cyber- Sentry (advanced cyber security), the Parallel Redundancy Protocol (PRP), IEC 60870-5-103, and so on. 2-18 F60 Feeder Protection System GE Multilin...
Page 49: Specifications
Reset delay: 0.00 to 600.00 s in steps of 0.01 <20 ms at 3 × pickup at 60 Hz Operate time: Timer accuracy: ±3% of operate time or ±1/4 cycle (whichever is greater) GE Multilin F60 Feeder Protection System 2-19...
Page 50 <0.90 x pickup: ±3.5% of operate time or ±1/2 cycle (whichever is greater) from pickup to operate Operate time: <30 ms at 0.9 pickup at 60 Hz for Defi- nite Time mode 2-20 F60 Feeder Protection System GE Multilin...
Page 51 3.5 cycles at 0.3 Hz/s change typically 3 cycles at 0.5 Hz/s change Typical times are average operate times including variables such as frequency change instance, test method, etc., and may vary by ±0.5 cycles. GE Multilin F60 Feeder Protection System 2-21...
Page 52: User-Programmable Elements
Number of timers: Pickup delay: 0 to 60000 (ms, sec., min.) in steps of 1 Dropout delay: 0 to 60000 (ms, sec., min.) in steps of 1 2-22 F60 Feeder Protection System GE Multilin...
Page 53: Monitoring
01 channel for NN days 16 channels for NN days Triggers: any element pickup, dropout, or operate; contact input change of state; contact output change of state; self-test events Data storage: in non-volatile memory GE Multilin F60 Feeder Protection System 2-23...
Page 54: Metering
< 0.4pu: as above plus %error of f THD: 1. f > 0.4pu: (0.25% + 0.035% / harmonic) of reading or 0.20% of 100%, whichever is greater 2. f < 0.4pu: as above plus %error of f 2-24 F60 Feeder Protection System GE Multilin...
Page 55: Inputs
0.0 to 16.0 ms in steps of 0.5 Input points: 32, configured from 64 incoming bit pairs Continuous current draw:4 mA (when energized) Remote devices: Default states on loss of comms.: On, Off, Latest/Off, Latest/On Remote DPS inputs: GE Multilin F60 Feeder Protection System 2-25...
Page 56: Power Supply
Control mode: operate-dominant or reset-dominant FORM-A VOLTAGE MONITOR Applicable voltage: approx. 15 to 250 V DC Trickle current: approx. 1 to 2.5 mA FORM-A CURRENT MONITOR Threshold current: approx. 80 to 100 mA 2-26 F60 Feeder Protection System GE Multilin...
Page 57 99% Settling time to a step change: 100 ms Isolation: 1.5 kV Driving signal: any FlexAnalog quantity Upper and lower limit for the driving signal: –90 to 90 pu in steps of 0.001 GE Multilin F60 Feeder Protection System 2-27...
Page 58: Communication Protocols
1200 m G.703 100 m RS422 distance is based on transmitter power and does not take into consideration the clock source NOTE provided by the user. LINK POWER BUDGET AND MAXIMUM OPTICAL INPUT POWER 2-28 F60 Feeder Protection System GE Multilin...
Page 59 1300 nm ELED, 9/125 μm 11.4 km 20 km single mode 1300 nm Laser, 9/125 μm 64 km 65 km single mode 1550 nm Laser, 9/125 μm 105 km 125 km single mode GE Multilin F60 Feeder Protection System 2-29...
Page 60: Environmental
– Overvoltage category: 20°C Ingress protection: IP20 front, IP10 back HUMIDITY Noise: 0 dB Humidity: operating up to 95% (non-condensing) at 55°C (as per IEC60068-2-30 variant 1, 6 days). 2-30 F60 Feeder Protection System GE Multilin...
Page 61: Type Tests
NKCR Safety IEC 60255-27 Insulation: class 1, Pollution degree: 2, Over voltage cat II 2.4.12 PRODUCTION TESTS THERMAL Products go through an environmental test based upon an Accepted Quality Level (AQL) sampling process. GE Multilin F60 Feeder Protection System 2-31...
Page 62: Approvals
To avoid deterioration of electrolytic capacitors, power up units that are stored in a de-energized state once per year, for one hour continuously. 2-32 F60 Feeder Protection System GE Multilin...
Page 63: Hardware
HORIZONTAL UNITS The F60 Feeder Protection System is available as a 19-inch rack horizontal mount unit with a removable faceplate. The faceplate can be specified as either standard or enhanced at the time of ordering. The enhanced faceplate contains addi- tional user-programmable pushbuttons and LED indicators.
Page 64 VERTICAL UNITS The F60 Feeder Protection System is available as a reduced size (¾) vertical mount unit, with a removable faceplate. The faceplate can be specified as either standard or enhanced at the time of ordering. The enhanced faceplate contains addi- tional user-programmable pushbuttons and LED indicators.
Page 65 3 HARDWARE 3.1 DESCRIPTION Figure 3–4: F60 VERTICAL DIMENSIONS (ENHANCED PANEL) GE Multilin F60 Feeder Protection System...
Page 66 3.1 DESCRIPTION 3 HARDWARE Figure 3–5: F60 VERTICAL MOUNTING AND DIMENSIONS (STANDARD PANEL) For side mounting F60 devices with the enhanced front panel, see the following documents available on the UR DVD and the GE Grid Solutions website: • GEK-113180: UR-Series UR-V Side-Mounting Front Panel Assembly Instructions •...
Page 67 3 HARDWARE 3.1 DESCRIPTION Figure 3–6: F60 VERTICAL SIDE MOUNTING INSTALLATION (STANDARD PANEL) GE Multilin F60 Feeder Protection System...
Page 68 3.1 DESCRIPTION 3 HARDWARE Figure 3–7: F60 VERTICAL SIDE MOUNTING REAR DIMENSIONS (STANDARD PANEL) F60 Feeder Protection System GE Multilin...
Page 69: Rear Terminal Layout
(nearest to CPU module) which is indicated by an arrow marker on the terminal block. See the following figure for an example of rear terminal assignments. Figure 3–9: EXAMPLE OF MODULES IN F AND H SLOTS GE Multilin F60 Feeder Protection System...
Page 70 (rows 1 to 8), use a minimum of 17 inch-pounds. During manufacturing, the power supply and CPU modules are installed in slots B and D of the chassis with 13 inch-pounds of torque on the screws at the top and bottom of the modules. F60 Feeder Protection System GE Multilin...
Page 71: Wiring
3 HARDWARE 3.2 WIRING 3.2WIRING 3.2.1 TYPICAL WIRING Figure 3–10: TYPICAL WIRING DIAGRAM (T MODULE SHOWN FOR CPU) GE Multilin F60 Feeder Protection System...
Page 72 3.2 WIRING 3 HARDWARE Figure 3–11: TYPICAL WIRING DIAGRAM WITH HIGH-IMPEDANCE DETECTION (T MODULE SHOWN FOR CPU) 3-10 F60 Feeder Protection System GE Multilin...
Page 73: Dielectric Strength
(see the Self-test Errors section in chapter 7) or control power is lost, the relay is de-energize. For high reliability systems, the F60 has a redundant option in which two F60 power supplies are placed in parallel on the bus.
Page 74: Ct And Vt Modules
CT connections for both ABC and ACB phase rotations are identical as shown in the Typical wiring diagram. The exact placement of a zero-sequence core balance CT to detect ground fault current is shown as follows. Twisted-pair cabling on the zero-sequence CT is recommended. 3-12 F60 Feeder Protection System GE Multilin...
Page 75 8F and 8G modules (4 CTs and 4 VTs) Current inputs 8H and 8J modules (8 CTs) Current inputs Not used 8Z module (used for high-impedance fault detection) 842769A1.CDR Figure 3–14: CT/VT MODULE WIRING GE Multilin F60 Feeder Protection System 3-13...
Page 76: Process Bus Modules
3.2.5 PROCESS BUS MODULES The F60 can be ordered with a process bus interface module. This module is designed to interface with the GE Multilin HardFiber system, allowing bidirectional IEC 61850 fiber optic communications with up to eight HardFiber merging units, known as Bricks.
Page 77: Contact Inputs And Outputs
The polarity shown in the figure is required for solid-state contact output connection. Figure 3–16: FORM-A AND SOLID-STATE CONTACT OUTPUTS WITH VOLTAGE AND CURRENT MONITORING GE Multilin F60 Feeder Protection System 3-15...
Page 78 ~6a, ~6c 2 Inputs Form-A ~7a, ~7c 2 Inputs Fast Form-C ~7a, ~7c 2 Inputs ~7a, ~7c 2 Inputs ~8a, ~8c 2 Inputs Fast Form-C ~8a, ~8c 2 Inputs ~8a, ~8c 2 Inputs 3-16 F60 Feeder Protection System GE Multilin...
Page 79 Not Used ~5a, ~5c 2 Inputs 2 Outputs Solid-State Solid-State ~6a, ~6c 2 Inputs 2 Outputs Not Used Not Used ~7a, ~7c 2 Inputs 2 Outputs Solid-State Solid-State ~8a, ~8c 2 Inputs Not Used GE Multilin F60 Feeder Protection System 3-17...
Page 80 3.2 WIRING 3 HARDWARE Figure 3–17: CONTACT INPUT AND OUTPUT MODULE WIRING (1 of 2) 3-18 F60 Feeder Protection System GE Multilin...
Page 81 3 HARDWARE 3.2 WIRING Figure 3–18: CONTACT INPUT AND OUTPUT MODULE WIRING (2 of 2) For proper functionality, observe the polarity shown in the figures for all contact input and output con- nections. GE Multilin F60 Feeder Protection System 3-19...
Page 82 F60 input even when the output is open, if there is a substantial distributed capacitance (represented by C1) present in the wiring between the output and the F60 input and the debounce time setting in the F60 relay is low enough.
Page 83 This operation of contact inputs also can be prevented by using the Auto-Burnish contact inputs or contact inputs with active impedance. Figure 3–21: CONTACT INPUT CONNECTED TO A CONTACT OUTPUT WITH RESISTOR (R2) ACROSS THE INPUT GE Multilin F60 Feeder Protection System 3-21...
Page 84 R = 84 V / 3*(1 / 2 mA) = 14 kΩ PR = 1.57 Watts (EQ 3.4) Calculating the voltage across the contact input with the Burden Resistor, Voltage across the contact Input: 3-22 F60 Feeder Protection System GE Multilin...
Page 85 Vresistor < contact input threshold (84 V) (EQ 3.5) In conclusion, in this example, the contact input does NOT operate falsely with the Burden Resistor across its input AND when a battery ground is present. GE Multilin F60 Feeder Protection System 3-23...
Page 86 CONTACT INPUT 2 AUTO-BURNISH = OFF CONTACT INPUT 1 AUTO-BURNISH = OFF CONTACT INPUT 2 AUTO-BURNISH = ON CONTACT INPUT 1 AUTO-BURNISH = ON CONTACT INPUT 2 AUTO-BURNISH = ON 842751A1.CDR Figure 3–23: AUTO-BURNISH DIP SWITCHES 3-24 F60 Feeder Protection System GE Multilin...
Page 87 (+/-10% tolerance), and the contact input is in the OFF (non-activated) state when input voltage is to the left of the band. A contact input is in LOW state during non-operated system condition, and actively switches to HIGH state upon detection of input voltage above the settable threshold. GE Multilin F60 Feeder Protection System 3-25...
Page 88: Transducer Inputs/Outputs
(5A, 5C, 5D, 5E, and 5F) and channel arrangements that can be ordered for the relay. Wherever a tilde “~” symbol appears, substitute with the slot position of the module. NOTE 3-26 F60 Feeder Protection System GE Multilin...
Page 89 3 HARDWARE 3.2 WIRING Figure 3–25: TRANSDUCER INPUT/OUTPUT MODULE WIRING The following figure show how to connect RTDs. GE Multilin F60 Feeder Protection System 3-27...
Page 90: Rs232 Faceplate Port
3.2.8 RS232 FACEPLATE PORT A 9-pin RS232C serial port is located on the F60 faceplate for programming with a computer. All that is required to use this interface is a computer running the EnerVista UR Setup software provided with the relay. Cabling for the RS232 port is shown in the following figure for both 9-pin and 25-pin connectors.
Page 91: Cpu Communication Ports
This common voltage is implied to be a power supply common. Some systems allow the shield (drain wire) to be used as common wire and to connect directly to the F60 COM terminal (#3); others function cor- rectly only if the common wire is connected to the F60 COM terminal, but insulated from the shield.
Page 92 The fiber optic communication ports allow for fast and efficient communications between relays at 100 Mbps. Optical fiber can be connected to the relay supporting a wavelength of 1310 nm in multi-mode. 3-30 F60 Feeder Protection System GE Multilin...
Page 93: Irig-B
IRIG-B is a standard time code format that allows stamping of events to be synchronized among connected devices. The IRIG-B code allows time accuracies of up to 100 ns. Using the IRIG-B input, the F60 operates an internal oscillator with 1 µs resolution and accuracy.
Page 94: Direct Input/Output Communications
Loop Timing Mode. If there is no MUX, then UR1 and UR3 can be in Internal Timing Mode and UR2 and UR4 can be in Loop Timing Mode. That is, connected channels must have opposite timing modes. Figure 3–32: RING CONFIGURATION FOR C37.94 MODULE (CONCEPT ALSO APPLIES TO G.703) 3-32 F60 Feeder Protection System GE Multilin...
Page 95 Those that apply depend on options purchased. The options are outlined in the Inter-Relay Communications section of the Order Code tables in Chapter 2. All of the fiber modules use ST type connectors. GE Multilin F60 Feeder Protection System 3-33...
Page 96: Fiber: Led And Eled Transmitters
The following figure shows the configuration for the 7A, 7B, 7C, 7H, 7I, and 7J fiber-only modules. Figure 3–35: LED AND ELED FIBER MODULES 3.3.3 FIBER-LASER TRANSMITTERS The following figure shows the configuration for the 72, 73, 7D, and 7K fiber-laser modules. Figure 3–36: 7X LASER FIBER MODULES 3-34 F60 Feeder Protection System GE Multilin...
Page 97 Observing any fiber transmitter output can injure the eye. When using a laser Interface, attenuators can be necessary to ensure that you do not exceed the maximum optical input power to the receiver. GE Multilin F60 Feeder Protection System 3-35...
Page 98: Interface
Remove the module cover screw. Remove the top cover by sliding it towards the rear and then lift it upwards. Set the timing selection switches (channel 1, channel 2) to the desired timing modes. 3-36 F60 Feeder Protection System GE Multilin...
Page 99 Loop Timing Mode: The system clock is derived from the received line signal. Therefore, the G.703 timing selection should be in loop timing mode for connections to higher order systems. For connection to a higher order system (UR- GE Multilin F60 Feeder Protection System 3-37...
Page 100 G.703 line side of the interface while the other lies on the differential Manchester side of the interface. DMR = Differential Manchester Receiver DMX = Differential Manchester Transmitter G7X = G.703 Transmitter G7R = G.703 Receiver 842775A1.CDR Figure 3–42: G.703 DUAL LOOPBACK MODE 3-38 F60 Feeder Protection System GE Multilin...
Page 101: Rs422 Interface
UR–RS422 channels is synchronized via the send timing leads on data module 1 as shown below. If the terminal timing feature is not available or this type of connection is not desired, the G.703 interface is a viable option that does not impose timing restrictions. GE Multilin F60 Feeder Protection System 3-39...
Page 102 Figure 3–45: TIMING CONFIGURATION FOR RS422 TWO-CHANNEL, THREE-TERMINAL APPLICATION Data module 1 provides timing to the F60 RS422 interface via the ST(A) and ST(B) outputs. Data module 1 also provides timing to data module 2 TT(A) and TT(B) inputs via the ST(A) and AT(B) outputs. The data module pin numbers have been omitted in the figure above since they vary by manufacturer.
Page 103: Rs422 And Fiber Interface
G.703 and fiber interfaces. When using a laser Interface, attenuators can be necessary to ensure that you do not exceed the maximum optical input power to the receiver. Figure 3–48: G.703 AND FIBER INTERFACE CONNECTION GE Multilin F60 Feeder Protection System 3-41...
Page 104: Ieee C37.94 Interface
5.60. For customers using firmware release 5.60 and higher, the module can be identified with "Rev D" printed on the module and is to be used on all ends of F60 communication for two and three terminal applications.
Page 105 Once the clips have cleared the raised edge of the chassis, engage the clips simultaneously. When the clips have locked into position, the module is fully inserted. GE Multilin F60 Feeder Protection System 3-43...
Page 106 Modules shipped since January 2012 have status LEDs that indicate the status of the DIP switches, as shown in the follow- ing figure. Figure 3–50: STATUS LEDS The clock configuration LED status is as follows: • Flashing green — loop timing mode while receiving a valid data packet 3-44 F60 Feeder Protection System GE Multilin...
Page 107: C37.94Sm Interface
It can also can be connected directly to any other UR-series relay with a C37.94SM module as shown below. In 2008, GE Grid Solutions released revised modules 2A and 2B for C37.94SM communication to enable multi-ended fault location functionality with firmware 5.60 release and higher. All modules 2A and 2B shipped since the change support this feature and are fully backward compatible with firmware releases below 5.60.
Page 108 3 HARDWARE and higher, the module can be identified with "Rev D" printed on the module and is to be used on all ends of F60 communi- cation for two and three terminal applications. Failure to use it at all ends results in intermittent communication alarms. For customers using firmware revisions below 5.60, it is not required to match the revision of the modules installed.
Page 109 Modules shipped since January 2012 have status LEDs that indicate the status of the DIP switches, as shown in the follow- ing figure. Figure 3–52: STATUS LEDS The clock configuration LED status is as follows: • Flashing green — loop timing mode while receiving a valid data packet GE Multilin F60 Feeder Protection System 3-47...
Page 110 Solid yellow — FPGA is receiving a "yellow bit" and remains yellow for each "yellow bit" • Solid red — FPGA is not receiving a valid packet or the packet received is invalid 3-48 F60 Feeder Protection System GE Multilin...
Page 111: Human Interfaces
The EnerVista UR Setup software is provided with every F60 relay and runs on Microsoft Windows XP, 7, and Server 2008. This chapter provides a summary of the basic EnerVista UR Setup software interface features. The EnerVista UR Setup Help File provides details for getting started and using the EnerVista UR Setup software interface.
Page 112 Site List window are automatically sent to the online communicating device. g) FIRMWARE UPGRADES The firmware of a F60 device can be upgraded, locally or remotely, via the EnerVista UR Setup software. The correspond- ing instructions are provided by the EnerVista UR Setup Help file under the topic “Upgrading Firmware”.
Page 113: Enervista Ur Setup Main Window
Settings file data view windows, with common tool bar Workspace area with data view tabs Status bar 10. Quick action hot links 842786A2.CDR Figure 4–1: ENERVISTA UR SETUP SOFTWARE MAIN WINDOW Extended EnerVista UR Setup Features GE Multilin F60 Feeder Protection System...
Page 114: Settings Templates
Setting file templates simplify the configuration and commissioning of multiple relays that protect similar assets. An exam- ple of this is a substation that has 10 similar feeders protected by 10 UR-series F60 relays. In these situations, typically 90% or greater of the settings are identical between all devices. The templates feature allows engineers to configure and test these common settings, then lock them so that they are not available to users.
Page 115 NOTE To add password protection to a settings file template: In the Offline Window area, right-click the device and select the Template Mode > Password Protect Template option. GE Multilin F60 Feeder Protection System...
Page 116 Template Mode > View In Template Mode command. The template specifies that only the Pickup Curve Phase time overcurrent settings window without template applied. settings be available. 842858A1.CDR Figure 4–4: APPLYING TEMPLATES VIA THE VIEW IN TEMPLATE MODE COMMAND F60 Feeder Protection System GE Multilin...
Page 117 Once a settings template is removed, it cannot be reapplied and a new settings template needs to be defined before use. Right-click the device in the Online or Offline Window area and select the Template Mode > Remove Template option. Enter the template password and click OK to continue. GE Multilin F60 Feeder Protection System...
Page 118: Securing And Locking Flexlogic Equations
Select the Template Mode > View In Template Mode option to view the template. Optionally apply a password to the template by right-clicking the device and selecting the Template Mode > Pass- word Protect Template option. F60 Feeder Protection System GE Multilin...
Page 119 A serial number is viewable under Actual Values > Product Info > Model Information, the inside front panel, and the rear of the device. GE Multilin F60 Feeder Protection System...
Page 120: Settings File Traceability
When a settings file is transferred to a F60 device, the date, time, and serial number of the F60 are sent back to EnerVista UR Setup and added to the settings file on the local PC. This infor- mation can be compared with the F60 actual values at any later date to determine if security has been compromised.
Page 121 With respect to the above diagram, the traceability feature is used as follows. The transfer date of a setting file written to a F60 is logged in the relay and can be viewed via EnerVista UR Setup or the front panel display. Likewise, the transfer date of a setting file saved to a local PC is logged in EnerVista UR Setup.
Page 122 ONLINE DEVICE TRACEABILITY INFORMATION The F60 serial number and file transfer date are available for an online device through the actual values. Select the Actual Values > Product Info > Model Information menu item within the EnerVista UR Setup online window as shown in the example below.
Page 123: Faceplate Interface
The faceplate is hinged to allow easy access to the removable modules. There is also a removable dust cover that fits over the faceplate that must be removed in order to access the keypad panel. The following figure shows the horizontal arrange- ment of the faceplate panels. Figure 4–16: UR-SERIES STANDARD HORIZONTAL FACEPLATE PANELS GE Multilin F60 Feeder Protection System 4-13...
Page 124: Led Indicators
The status indicators in the first column are described below. • IN SERVICE: This LED indicates that control power is applied, all monitored inputs, outputs, and internal systems are OK, and that the device has been programmed. 4-14 F60 Feeder Protection System GE Multilin...
Page 125 Support for applying a customized label beside every LED is provided. Default labels are shipped in the label pack- age of every F60, together with custom templates. The default labels can be replaced by user-printed labels. User customization of LED operation is of maximum benefit in installations where languages other than English are used to communicate with operators.
Page 126 User customization of LED operation is of maximum benefit in installations where languages other than English are used to communicate with operators. Refer to the User-programmable LEDs section in chapter 5 for the settings used to program the operation of the LEDs on these panels. 4-16 F60 Feeder Protection System GE Multilin...
Page 127: Custom Labeling Of Leds
4.2.3 CUSTOM LABELING OF LEDS a) ENHANCED FACEPLATE The following procedure requires these pre-requisites: • EnerVista UR Setup software is installed and operational • The F60 settings have been saved to a settings file GE Multilin F60 Feeder Protection System 4-17...
Page 128 Enter the text to appear next to each LED and above each user-programmable pushbuttons in the fields provided. Feed the F60 front panel label cutout sheet into a printer and press the Print button in the front panel report window.
Page 129 Bend the tabs at the left end of the tool upwards as shown below. Bend the tab at the center of the tool tail as shown below. The following procedure describes how to remove the LED labels from the F60 enhanced front panel and insert the custom labels.
Page 130 Slide the new LED label inside the pocket until the text is properly aligned with the LEDs, as shown below. The following procedure describes how to remove the user-programmable pushbutton labels from the F60 enhanced front panel and insert the custom labels.
Page 131 Slide the label tool under the user-programmable pushbutton label until the tabs snap out as shown below. This attaches the label tool to the user-programmable pushbutton label. Remove the tool and attached user-programmable pushbutton label as shown below. GE Multilin F60 Feeder Protection System 4-21...
Page 132: Display
INTRODUCTION The F60 can interface with associated circuit breakers. In many cases the application monitors the state of the breaker, that can be presented on faceplate LEDs, along with a breaker trouble indication. Breaker operations can be manually initiated from faceplate keypad or automatically initiated from a FlexLogic operand.
Page 133: Keypad
Press the MENU key to select a header display page (top-level menu). The header title appears momentarily followed by a header display page menu item. Each press of the MENU key advances through the following main heading pages: • Actual values • Settings GE Multilin F60 Feeder Protection System 4-23...
Page 134 Pressing the MESSAGE DOWN key displays the second setting sub-header associ-  PROPERTIES ated with the Product Setup header.  Press the MESSAGE RIGHT key once more to display the first setting for Display FLASH MESSAGE Properties. TIME: 1.0 s 4-24 F60 Feeder Protection System GE Multilin...
Page 135: Changing Settings
ENTERING ALPHANUMERIC TEXT Text settings have data values which are fixed in length, but user-defined in character. They can be upper case letters, lower case letters, numerals, and a selection of special characters. GE Multilin F60 Feeder Protection System 4-25...
Page 136: Settings
The information in this section refers to password security. For information on how to set or change CyberSentry pass- words, see the Settings > Product Setup > Security > CyberSentry section in the next chapter. 4-26 F60 Feeder Protection System GE Multilin...
Page 137 By default, when an incorrect Command or Setting password has been entered via the faceplate interface three times within three minutes, the FlexLogic operand is set to “On” and the F60 does not allow settings or LOCAL ACCESS DENIED command level access via the faceplate interface for the next five minutes.
Page 138 4.2 FACEPLATE INTERFACE 4 HUMAN INTERFACES 4-28 F60 Feeder Protection System GE Multilin...
Page 139: Overview
See page 5-90.   TELEPROTECTION See page 5-98.   INSTALLATION See page 5-99.   SETTINGS  AC INPUTS See page 5-101.  SYSTEM SETUP   POWER SYSTEM See page 5-102.  GE Multilin F60 Feeder Protection System...
Page 140: Signal Sources
  UNDERFREQUENCY See page 5-238.   OVERFREQUENCY See page 5-239.   FREQUENCY RATE See page 5-240.  OF CHANGE  SYNCHROCHECK See page 5-242.   AUTORECLOSE See page 5-246.  F60 Feeder Protection System GE Multilin...
Page 141 See page 5-302.  GOOSE ANALOGS  IEC 61850 See page 5-303.  GOOSE UINTEGERS  SETTINGS  DCMA INPUTS See page 5-305.  TRANSDUCER I/O   RTD INPUTS See page 5-306.  GE Multilin F60 Feeder Protection System...
Page 142: Introduction To Elements
For example, on a system with a 13.8 kV nominal primary voltage, the base quantity is 13800 V. With 14400:120 V delta- connected VTs, the secondary base quantity and secondary voltage setting is: 13800 --------------- - × 115 V (EQ 5.1) 14400 F60 Feeder Protection System GE Multilin...
Page 143: Introduction To Ac Sources
UR products.) In this application, the current flows as shown by the arrows. Some current flows through the upper bus bar to some other location or power GE Multilin F60 Feeder Protection System...
Page 144 “bank,” and all four are either current or voltage, as are channels 5, 6, 7, and 8. Channels 1, 2, 3 and 5, 6, 7 are arranged as phase A, B and C respectively. Channels 4 and 8 are either another current or voltage. F60 Feeder Protection System GE Multilin...
Page 145 Upon startup, the CPU configures the settings required to characterize the current and voltage inputs, and will display them in the appropriate section in the sequence of the banks (as described above) as follows for a maximum configuration: F1, F5, M1, M5, U1, and U5. GE Multilin F60 Feeder Protection System...
Page 146: Product Setup
See page 5–10.  SUPERVISION  DUAL PERMISSION MESSAGE See page 5–11.  SECURITY ACCESS Range: Disabled, Enabled PASSWORD ACCESS MESSAGE EVENTS: Disabled The F60 supports password entry from a local or remote connection. F60 Feeder Protection System GE Multilin...
Page 147 When entering a settings or command password via EnerVista or any serial interface, the user must enter the correspond- ing connection password. If the connection is to the back of the F60, the remote password must be used. If the connection is to the RS232 port of the faceplate, the local password must be used.
Page 148 INVALID ATTEMPTS BEFORE LOCKOUT The F60 provides a means to raise an alarm upon failed password entry. Should password verification fail while accessing a password-protected level of the relay (either settings or commands), the FlexLogic operand is UNAUTHORIZED ACCESS asserted.
Page 149 When this occurs, local access is permitted and the timer pro- grammed with the setting value is started. When this timer expires, local setting access is ACCESS AUTH TIMEOUT GE Multilin F60 Feeder Protection System 5-11...
Page 150 It is disabled by default to allow the administrator direct access to the EnerVista software immediately after installation. When security is disabled, all users have administrator access. GE recommends enabling the EnerVista security before placing the device in service. To enable the security system and require password use: 5-12 F60 Feeder Protection System GE Multilin...
Page 151 Enter a username in the User field. The username must be 4 to 20 characters in length. Select the user access rights by enabling the check box of one or more of the fields. GE Multilin F60 Feeder Protection System 5-13...
Page 152 Deletes the user account when exiting the user management window Actual Values Allows the user to read actual values Settings Allows the user to read setting values Commands Allows the user to execute commands 5-14 F60 Feeder Protection System GE Multilin...
Page 153 Note that other protocols (DNP, 101, 103, 104, EGD) are not encrypted, and they are good communications options for SCADA systems when CyberSentry is enabled. CYBERSENTRY SETTINGS THROUGH ENERVISTA CyberSentry security settings are configured under Device > Settings > Product Setup > Security. GE Multilin F60 Feeder Protection System 5-15...
Page 154 Authentication method used by RADIUS EAP-TTLS EAP-TTLS EAP-TTLS Administrator Authentication server. Currently fixed to EAP-TTLS. Method Timeout Timeout in seconds between re- 9999 Administrator transmission requests Retries Number of retries before giving up 9999 Administrator 5-16 F60 Feeder Protection System GE Multilin...
Page 155 See the Change Text The specified role password-protected. All RADIUS users are Password following Me1# and Administrator, password-protected. Requirement password except for s section section for Supervisor, where requireme it is only itself GE Multilin F60 Feeder Protection System 5-17...
Page 156: Security
This role can also be disabled, but only through a Supervisor authentication. When this role is disabled its permissions are assigned to the Administrator role. 5-18 F60 Feeder Protection System GE Multilin...
Page 157 LOAD FACTORY DEFAULTS: This setting is used to reset all the settings, communication and security passwords. An Administrator role is used to change this setting and a Supervisor role (if not disabled) approves it. GE Multilin F60 Feeder Protection System 5-19...
Page 158 Administrator if the Supervisor role is disabled. The Supervisor role enables this setting for the relay to start accepting setting changes or command changes or firmware upgrade. After all the setting changes are applied or com- mands executed, the Supervisor disables to lock setting changes. 5-20 F60 Feeder Protection System GE Multilin...
Page 159 Observer). When using a serial connection, only device authentication is supported. When server authentication is required, characteristics for communication with a RADIUS server must be configured. This is possible only in the EnerV- GE Multilin F60 Feeder Protection System 5-21...
Page 160 Event Number — Event identification number (index) Date & Timestamp — UTC date and time Username — 255 chars maximum, but in the security log it is truncated to 20 characters IP address — Device IP address 5-22 F60 Feeder Protection System GE Multilin...
Page 161 Notice (5) Clear energy command was issued RESET_UNAUTH_ACCESS Warning (4) Reset Unauthorized access command was issued CLEAR_TELEPROTECTION_CNT Notice (5) Clear teleprotection counters command was issued CLEAR_ALL_RECS Warning (4) Clear all records command was issued GE Multilin F60 Feeder Protection System 5-23...
Page 162: Display Properties
Some customers prefer very low currents to display as zero, while others prefer the current be displayed even when the value reflects noise rather than the actual signal. The F60 applies a cut- off value to the magnitudes and angles of the measured currents.
Page 163: Clear Relay Records
CLEAR EVENT RECORDS: MESSAGE Range: FlexLogic operand CLEAR OSCILLOGRAPHY? MESSAGE Range: FlexLogic operand CLEAR DATA LOGGER: MESSAGE Range: FlexLogic operand CLEAR ARC AMPS 1: MESSAGE Range: FlexLogic operand CLEAR ARC AMPS 2: MESSAGE GE Multilin F60 Feeder Protection System 5-25...
Page 164 Selected records can be cleared from user-programmable conditions with FlexLogic operands. Assigning user-programma- ble pushbuttons to clear specific records are typical applications for these commands. Since the F60 responds to rising edges of the configured FlexLogic operands, they must be asserted for at least 50 ms to take effect.
Page 165: Communications
MESSAGE MIN TIME: 0 ms : The F60 is equipped with two independent serial communication ports. The faceplate RS485 COM2 BAUD RATE PARITY RS232 port is intended for local use and is fixed at 19200 bit/s baud and even parity. The rear COM2 port is RS485 and has settings for baud rate and parity.
Page 166 ETHERNET NETWORK TOPOLOGY The F60 has three Ethernet ports. Each Ethernet port must belong to a different network or subnetwork. Configure the IP address and subnet to ensure that each port meets this requirement. Two subnets are different when the bitwise AND oper- ation performed between their respective IP address and mask produces a different result.
Page 167 LAN3, to which port 3 (P3) is connected. There is no redundancy. Figure 5–6: MULTIPLE LANS, NO REDUNDANCY Public Network SCADA EnerVista Software LAN1 LAN2 LAN3 ML3000 ML3000 ML3000 IP1/ IP2/ IP3/ MAC2 MAC3 MAC1 859710A2.vsd GE Multilin F60 Feeder Protection System 5-29...
Page 168 Failover, the operation of ports 2 and 3 is as follows: REDUNDANCY • Ports 2 and 3 use the port 2 MAC address, IP address, and mask • The configuration fields for IP address and mask on port 3 are hidden 5-30 F60 Feeder Protection System GE Multilin...
Page 169 2 is performed. The delay in switching back ensures that rebooted switching devices connected to the F60, which signal their ports as active prior to being completely functional, have time to completely initialize themselves and become active. Once port 2 is active again, port 3 returns to standby mode.
Page 170 The default route is used as the last choice when no other route towards a given destination is found. Range: Standard IPV4 unicast address format  IPV4 DEFAULT ROUTE GATEWAY ADDRESS  127.0.0.1 5-32 F60 Feeder Protection System GE Multilin...
Page 171 (RtGwy & Prt1Mask) == (Prt1IP & Prt1Mask) || (RtGwy & Prt2Mask) == (Prt2IP & Prt2Mask) || (RtGwy & Prt3Mask) == (Prt3IP & Prt3Mask) where & is the bitwise-AND operator == is the equality operator || is the logical OR operator GE Multilin F60 Feeder Protection System 5-33...
Page 172 PRT2 IP ADDRESS = 10.1.2.2 PRT2 SUBNET IP MASK = 255.255.255.0 IPV4 DEFAULT ROUTE: GATEWAY ADDRESS = 10.1.1.1 STATIC NETWORK ROUTE 1: RT1 DESTINATION = 10.1.3.0/24; RT1 NET MASK = 255.255.255.0; and RT1 GATE- WAY = 10.1.2.1 5-34 F60 Feeder Protection System GE Multilin...
Page 173 This allows the EnerVista UR Setup software to be used on the port. The UR operates as a Modbus slave device only. When using Modbus protocol on the RS232 port, the F60 responds regardless of the pro- MODBUS SLAVE ADDRESS grammed.
Page 174 Modbus, IEC 61850 Channel 2: RS485 Channel 1: RS485 Modbus Modbus, IEC 61850 Channel 2: none IEC 104 Modbus Modbus IEC 104, Modbus, IEC 61850 IEC 103 Modbus IEC 103 Modbus, IEC 61850 5-36 F60 Feeder Protection System GE Multilin...
Page 175 DEADBAND: 30000 Range: 0 to 100000000 in steps of 1 DNP OTHER DEFAULT MESSAGE DEADBAND: 30000 Range: 1 to 10080 min. in steps of 1 DNP TIME SYNC IIN MESSAGE PERIOD: 1440 min GE Multilin F60 Feeder Protection System 5-37...
Page 176 PROTOCOL nected to multiple DNP masters (usually an RTU or a SCADA master station). Since the F60 maintains two sets of DNP data change buffers and connection information, two DNP masters can actively communicate with the F60 at one time.
Page 177 DNP analog input points that are voltages will be returned with values 1000 times smaller (for example, a value of 72000 V on the F60 will be returned as 72). These settings are useful when analog input values must be adjusted to fit within cer- tain ranges in DNP masters.
Page 178 (for circuit breakers) or raise/lower (for tap changers) using a single control point. That is, the DNP master can operate a single point for both trip and close, or raise and lower, operations. The F60 can be configured to sup- port paired control points, with each paired control point operating two virtual inputs.
Page 179 The F60 supports the Manufacturing Message Specification (MMS) protocol as specified by IEC 61850. MMS is supported over two protocol stacks: TCP/IP over Ethernet. The F60 operates as an IEC 61850 server. The Remote Inputs and Out- puts section in this chapter describe the peer-to-peer GSSE/GOOSE message scheme.
Page 180 IEC 61850 GSSE application ID name string sent as part of each GSSE message. This GSSE ID string identifies the GSSE message to the receiving device. In F60 releases previous to 5.0x, this name string was repre- sented by the setting.
Page 181 DESTINATION MAC address; the least significant bit of the first byte must be set. In F60 releases previous to 5.0x, the destination Ethernet MAC address was determined automatically by taking the sending MAC address (that is, the unique, local MAC address of the F60) and setting the multicast bit.
Page 182 The F60 has the ability of detecting if a data item in one of the GOOSE datasets is erroneously oscillating. This can be caused by events such as errors in logic programming, inputs improperly being asserted and de-asserted, or failed station components.
Page 183 Configure the transmission dataset. Configure the GOOSE service settings. Configure the data. The general steps required for reception configuration are: Configure the reception dataset. Configure the GOOSE service settings. Configure the data. GE Multilin F60 Feeder Protection System 5-45...
Page 184 MMXU1 HZ DEADBAND change greater than 45 mHz, from the previous MMXU1.MX.mag.f value, in the source frequency. The F60 must be rebooted (control power removed and re-applied) before these settings take effect. The following procedure illustrates the reception configuration. Configure the reception dataset by making the following changes in the ...
Page 185 IEC61850 GOOSE ANALOG INPUT 1 UNITS The GOOSE analog input 1 can now be used as a FlexAnalog value in a FlexElement or in other settings. The F60 must be rebooted (control power removed and re-applied) before these settings take effect.
Page 186 DNA and UserSt bit pairs that are included in GSSE messages. To set up a F60 to receive a configurable GOOSE dataset that contains two IEC 61850 single point status indications, the following dataset items can be selected (for example, for configurable GOOSE dataset 1): “GGIO3.ST.Ind1.stVal” and “GGIO3.ST.Ind2.stVal”.
Page 187 CPU resources. When server scanning is disabled, there is no updating of the IEC 61850 logical node status values in the F60. Clients are still able to connect to the server (F60 relay), but most data values are not updated. This set- ting does not affect GOOSE/GSSE operation.
Page 188 (_) character, and the first character in the prefix must be a letter. This conforms to the IEC 61850 standard. Changes to the logical node prefixes will not take effect until the F60 is restarted. The main menu for the IEC 61850 MMXU deadbands is shown below.
Page 189 The GGIO2 control configuration settings are used to set the control model for each input. The available choices are “0” (status only), “1” (direct control), and “2” (SBO with normal security). The GGIO2 control points are used to control the F60 virtual inputs.
Page 190 GGIO1 (binary status values). The settings allow the selection of FlexInteger values for each GGIO5 integer value point. It is intended that clients use GGIO5 to access generic integer values from the F60. Additional settings are provided to allow the selection of the number of integer values available in GGIO5 (1 to 16), and to assign FlexInteger values to the GGIO5 integer inputs.
Page 191 ITEM 64 attributes supported by the F60. Changes to the dataset will only take effect when the F60 is restarted. It is recommended to use reporting service from logical node LLN0 if a user needs some (but not all) data from already existing GGIO1, GGIO4, and MMXU4 points and their quantity is not greater than 64 minus the number items in this dataset.
Page 192 XCBR operating counter status attribute (OpCnt) increments with every operation. Frequent breaker operation can result in very large OpCnt values over time. This setting allows the OpCnt to be reset to “0” for XCBR1. 5-54 F60 Feeder Protection System GE Multilin...
Page 193 Since GSSE/GOOSE messages are multicast Ethernet by specification, they are not usually be forwarded by net- work routers. However, GOOSE messages may be forwarded by routers if the router has been configured for VLAN functionality. NOTE GE Multilin F60 Feeder Protection System 5-55...
Page 194 Menu”. Web pages are available showing DNP and IEC 60870-5-104 points lists, Modbus registers, event records, fault reports, and so on. First connect the UR and a computer to an Ethernet network, then enter the IP address of the F60 Ethernet port employed into the “Address”...
Page 195 PROTOCOL connected to a maximum of two masters (usually either an RTU or a SCADA master station). Since the F60 maintains two sets of IEC 60870-5-104 data change buffers, no more than two masters should actively communicate with the F60 at one time.
Page 196 MESSAGE 0.0.0.0 The F60 can specify a maximum of five clients for its IEC 104 connections. These are IP addresses for the controllers to which the F60 can connect. A maximum of two simultaneous connections are supported at any given time.
Page 197 MESSAGE (Modbus register address range) Fast exchanges (50 to 1000 ms) are generally used in control schemes. The F60 has one fast exchange (exchange 1) and two slow exchanges (exchange 2 and 3). The settings menu for the slow EGD exchanges is shown below: ...
Page 198 SNTP, its time is overwritten by these three sources, if any of them is active. If the synchronization timeout occurs and none of IRIG-B, PTP, or SNTP is active, the F60 sets the invalid bit in the time stamp of a time-tagged message.
Page 199 Spontaneous transmission occurs as a response to cyclic Class 2 requests. If the F60 wants to transmit Class 1 data at that time, it demands access for Class 1 data transmission (ACD=1 in the con- trol field of the response).
Page 200 ASDU 4 ANALOG 9 MESSAGE Range: 0.000 to 65.535 in steps of 0.001 ASDU 4 ANALOG 9 MESSAGE FACTOR: 1.000 Range: -32768 to 32767 in steps of 1 ASDU 4 ANALOG 9 MESSAGE OFFSET: 0 5-62 F60 Feeder Protection System GE Multilin...
Page 201 FlexAnalog operands. The measurands sent are voltage, current, power, power fac- tor, and frequency. If any other FlexAnalog is chosen, the F60 sends 0 instead of its value. Note that the power is transmit- ted in KW, not W.
Page 202 ASDU command comes. A list of available mappings is provided on the F60. This includes 64 virtual inputs (see the following table). The ON and OFF for the same ASDU command can be mapped to different virtual inputs.
Page 203: Modbus User Map
±1 minute per month (~23 ppm). Once the RTC is synchronized with the Precision Time Protocol (PTP), IRIG-B, or SNTP, its accuracy approaches that of the synchroniz- GE Multilin F60 Feeder Protection System 5-65...
Page 204  PROTOCOL (1588) Disabled Range: 0 to 255 PTP DOMAIN NUMBER MESSAGE Range: 0 to 7 PTP VLAN PRIORITY MESSAGE Range: 0 to 4095 PTP VLAN ID MESSAGE  PTP PORT 1 MESSAGE  5-66 F60 Feeder Protection System GE Multilin...
Page 205 Should a clock on starting up discover it is “better” that the present grandmaster, it assumes the grandmaster role and the previous grandmaster reverts to slave. The F60 qualification mechanism accepts a potential mas- ter clock as a new grandmaster, when in a four-second interval it has received three announce messages from it, all better than the present grandmaster clock and better than any other announce in this interval.
Page 206 Ethernet switch it is connected to is 9 000 ns and the that the delay from the switch to the relay is 11 000 ns, then the mean delay is 10 000 ns, and the path delay asymmetry is 11000 - 10000 = +1000 ns. 5-68 F60 Feeder Protection System GE Multilin...
Page 207 F60 clock is closely synchronized with the SNTP/NTP server. It takes up to two minutes for the F60 to signal an SNTP self-test error if the server is offline.
Page 208: Fault Reports
MESSAGE Z0 ANGLE: 75° The F60 relay supports one fault report and an associated fault locator. The signal source and trigger condition, as well as the characteristics of the line or feeder, are entered in this menu. The fault report stores data, in non-volatile memory, pertinent to an event when triggered. The captured data contained in the FaultReport.txt file includes:...
Page 209 “I0”. The magnitude is to be entered in secondary ohms. This impedance is an average system equivalent behind the relay. It can be calculated as zero-sequence Thevenin impedance at the local bus with the protected line/feeder GE Multilin F60 Feeder Protection System 5-71...
Page 210: Oscillography
25% consists of 25% pre- and 75% post-trigger data. The is always captured in oscillography and TRIGGER SOURCE can be any FlexLogic parameter (element state, contact input, virtual output, and so on). The relay sampling rate is 64 sam- ples per cycle. 5-72 F60 Feeder Protection System GE Multilin...
Page 211 All eight CT/VT module channels are stored in the oscillography file. The CT/VT module channels are named as follows: <slot_letter><terminal_number>—<I or V><phase A, B, or C, or 4th input> GE Multilin F60 Feeder Protection System 5-73...
Page 212 The relay automatically partitions the available memory between the channels in use. Exam- ple storage capacities for a system frequency of 60 Hz are shown in the following table. 5-74 F60 Feeder Protection System GE Multilin...
Page 213 – entering this number via the relay keypad will cause the corresponding parameter to be displayed. • DATA LOGGER CONFIG: This display presents the total amount of time the Data Logger can record the channels not selected to “Off” without over-writing old data. GE Multilin F60 Feeder Protection System 5-75...
Page 214 Start Demand Interval logic input pulses. Each new value of demand becomes available at the end of each pulse. Assign a FlexLogic operand to the setting to program the input for the new DEMAND TRIGGER demand interval pulses. 5-76 F60 Feeder Protection System GE Multilin...
Page 215 LEDs. This test checks for hardware failures that lead to more than one LED being turned off from a single logic point. This stage can be interrupted at any time. GE Multilin F60 Feeder Protection System 5-77...
Page 216 LEDs are being visually inspected. When finished, the pushbutton should be released. The relay will then automatically start stage 2. At this point forward, test may be aborted by pressing the pushbutton. 5-78 F60 Feeder Protection System GE Multilin...
Page 217 “Latched”, the LED, once lit, remains so until reset by the faceplate RESET button, from a remote device via a communica- tions channel, or from any programmed operand, even if the LED operand state de-asserts. GE Multilin F60 Feeder Protection System 5-79...
Page 218 Range: Disabled, Enabled. SFP MODULE FAIL MESSAGE FUNCTION: Disabled All major self-test alarms are reported automatically with their corresponding FlexLogic operands, events, and targets. Most of the minor alarms can be disabled if desired. 5-80 F60 Feeder Protection System GE Multilin...
Page 219 The location of the control pushbuttons are shown in the following figures. Control pushbuttons 842813A1.CDR Figure 5–11: CONTROL PUSHBUTTONS (ENHANCED FACEPLATE) An additional four control pushbuttons are included on the standard faceplate when the F60 is ordered with the 12 user-pro- grammable pushbutton option. STATUS EVENT CAUSE...
Page 220 SYSTEM SETUP/ BREAKERS/BREAKER 1/ BREAKER 1 PUSHBUTTON CONTROL Enabled=1 TIMER FLEXLOGIC OPERAND SYSTEM SETUP/ BREAKERS/BREAKER 2/ CONTROL PUSHBTN 1 ON 100 msec BREAKER 2 PUSHBUTTON CONTROL 842010A2.CDR Enabled=1 Figure 5–13: CONTROL PUSHBUTTON LOGIC 5-82 F60 Feeder Protection System GE Multilin...
Page 221 MESSAGE EVENTS: Disabled The F60 is provided with this optional feature, specified as an option at the time of ordering. Using the order code for your device, see the order codes in chapter 2 for details. User-programmable pushbuttons provide an easy and error-free method of entering digital state (on, off) information. The number depends on the front panel ordered.
Page 222 FlexLogic, the pulse duration is specified by the only. The time the operand remains PUSHBTN 1 DROP-OUT TIME assigned to the setting remains On has no effect on the pulse duration. PUSHBTN 1 SET 5-84 F60 Feeder Protection System GE Multilin...
Page 223 PUSHBTN 1 LED CTL: This setting assigns the FlexLogic operand serving to drive the front panel pushbutton LED. If this setting is “Off”, then LED operation is directly linked to the operand. PUSHBUTTON 1 ON GE Multilin F60 Feeder Protection System 5-85...
Page 224 PUSHBUTTON 1 EVENTS: If this setting is enabled, each user-programmable pushbutton state change is logged as an event into the event recorder. The figures show the user-programmable pushbutton logic. Figure 5–16: USER-PROGRAMMABLE PUSHBUTTON LOGIC (Sheet 1 of 2) 5-86 F60 Feeder Protection System GE Multilin...
Page 225 PATH: SETTINGS PRODUCT SETUP FLEX STATE PARAMETERS Range: FlexLogic operand  FLEX STATE PARAMETER  PARAMETERS Range: FlexLogic operand PARAMETER MESSAGE Range: FlexLogic operand PARAMETER MESSAGE ↓ Range: FlexLogic operand PARAMETER 256: MESSAGE GE Multilin F60 Feeder Protection System 5-87...
Page 226 INVOKE AND SCROLL play, not at the first user-defined display. The pulses must last for at least 250 ms to take effect. INVOKE AND SCROLL 5-88 F60 Feeder Protection System GE Multilin...
Page 227 While viewing a user display, press the ENTER key and then select the ‘Yes” option to remove the display from the user display list. Use the MENU key again to exit the user displays menu. GE Multilin F60 Feeder Protection System 5-89...
Page 228 See page 5–96.   CRC ALARM CH2 MESSAGE See page 5–96.   UNRETURNED MESSAGE See page 5–97.  MESSAGES ALARM CH1  UNRETURNED MESSAGE See page 5–97.  MESSAGES ALARM CH2 5-90 F60 Feeder Protection System GE Multilin...
Page 229 Delivery time for direct input and output messages is approximately 0.2 of a power system cycle at 128 kbps and 0.4 of a power system cycle at 64 kbps, per each ‘bridge’. GE Multilin F60 Feeder Protection System 5-91...
Page 230 The following application examples illustrate the basic concepts for direct input and output configuration. See the Inputs and Outputs section in this chapter for information on configuring FlexLogic operands (flags, bits) to be exchanged. 5-92 F60 Feeder Protection System GE Multilin...
Page 231 UR IED 1 BLOCK UR IED 4 UR IED 2 UR IED 3 842712A1.CDR Figure 5–19: SAMPLE INTERLOCKING BUSBAR PROTECTION SCHEME For increased reliability, a dual-ring configuration (shown below) is recommended for this application. GE Multilin F60 Feeder Protection System 5-93...
Page 232 The complete application requires addressing a number of issues such as failure of both the communications rings, failure or out-of-service conditions of one of the relays, etc. Self-monitoring flags of the direct inputs and outputs feature would be primarily used to address these concerns. 5-94 F60 Feeder Protection System GE Multilin...
Page 233 Inputs and Outputs section. A blocking pilot-aided scheme should be implemented with more security and, ideally, faster message delivery time. This is accomplished using a dual-ring configuration as shown here. GE Multilin F60 Feeder Protection System 5-95...
Page 234 EVENTS: Disabled The F60 checks integrity of the incoming direct input and output messages using a 32-bit CRC. The CRC alarm function is available for monitoring the communication medium noise by tracking the rate of messages failing the CRC check. The monitoring function counts all incoming messages, including messages that failed the CRC check.
Page 235 MESSAGE EVENTS: Disabled The F60 checks integrity of the direct input and output communication ring by counting unreturned messages. In the ring configuration, all messages originating at a given device should return within a pre-defined period of time. The unreturned messages alarm function is available for monitoring the integrity of the communication ring by tracking the rate of unre- turned messages.
Page 236 On two- terminals two-channel systems, the same is transmitted over LOCAL RELAY ID NUMBER both channels; as such, only the has to be programmed on the receiving end. TERMINAL 1 ID NUMBER 5-98 F60 Feeder Protection System GE Multilin...
Page 237 "Programmed" state. UNIT NOT PROGRAMMED setting allows the user to uniquely identify a relay. This name will appear on generated reports. RELAY NAME GE Multilin F60 Feeder Protection System 5-99...
Page 238 Bricks. Remote resources settings configure the point-to-point connection between specific fiber optic ports on the F60 process card and specific Brick. The relay is then configured to measure spe- cific currents, voltages and contact inputs from those Bricks, and to control specific outputs.
Page 239 1000:1 CT before summation. If a protection element is set up to act on SRC 1 currents, then a pickup level of 1 pu will operate on 1000 A primary. The same rule applies for current sums from CTs with different secondary taps (5 A and 1 A). GE Multilin F60 Feeder Protection System 5-101...
Page 240 NOMINAL FREQUENCY:  60 Hz Range: ABC, ACB PHASE ROTATION: MESSAGE Range: SRC 1, SRC 2, SRC 3, SRC 4 FREQUENCY AND PHASE MESSAGE REFERENCE: SRC 1 Range: Disabled, Enabled FREQUENCY TRACKING: MESSAGE Enabled 5-102 F60 Feeder Protection System GE Multilin...
Page 241 FREQUENCY TRACKING frequency applications. NOTE The frequency tracking feature functions only when the F60 is in the “Programmed” mode. If the F60 is “Not Pro- grammed”, then metering values are available but can exhibit significant errors. NOTE 5.4.3 SIGNAL SOURCES ...
Page 242 CTs are summed together. When the F60 is equipped with a type 8Z CT/VT module for high impedance fault detection, the CT bank of this module should not be assigned to a source which will be used by any conventional protection element. The type 8Z module CT bank is used solely by the high impedance fault detection algorithm.
Page 243 This configuration could be used on a two-winding transformer, with one winding connected into a breaker-and-a-half sys- tem. The following figure shows the arrangement of sources used to provide the functions required in this application, and the CT/VT inputs that are used to provide the data. GE Multilin F60 Feeder Protection System 5-105...
Page 244 5 SETTINGS Figure 5–26: EXAMPLE USE OF SOURCES Y LV D HV SRC 1 SRC 2 SRC 3 Phase CT F1+F5 None Ground CT None None Phase VT None None Aux VT None None 5-106 F60 Feeder Protection System GE Multilin...
Page 245: Breakers
Range: 0.000 to 65.535 s in steps of 0.001 MANUAL CLOSE RECAL1 MESSAGE TIME: 0.000 s Range: FlexLogic operand BREAKER 1 OUT OF SV: MESSAGE Range: Disabled, Enabled BREAKER 1 EVENTS: MESSAGE Disabled GE Multilin F60 Feeder Protection System 5-107...
Page 246 1. The number of breaker control elements is dependent on the number of CT/VT modules specified with the F60. The follow- ing settings are available for each breaker control element.
Page 247 5 SETTINGS 5.4 SYSTEM SETUP Figure 5–27: DUAL BREAKER CONTROL SCHEME LOGIC (Sheet 1 of 2) IEC 61850 functionality is permitted when the F60 is in “Programmed” mode and not in the local control mode. NOTE GE Multilin F60 Feeder Protection System...
Page 248 Note that IEC 61850 commands are event-driven and dwell time for these is one protection pass only. If you want to main- tain the close/open command for a certain time, do so either on the contact outputs using the "Seal-in" setting or in Flex- Logic. 5-110 F60 Feeder Protection System GE Multilin...
Page 249: Disconnect Switches
SWITCH 1 FUNCTION: This setting enables and disables the operation of the disconnect switch element. • SWITCH 1 NAME: Assign a user-defined name (up to six characters) to the disconnect switch. This name will be used in flash messages related to disconnect switch 1. GE Multilin F60 Feeder Protection System 5-111...
Page 250 SWITCH 1 ALARM DELAY: This setting specifies the delay interval during which a disagreement of status among the pole position tracking operands will not declare a pole disagreement. This allows for non-simultaneous operation of the poles. IEC 61850 functionality is permitted when the F60 is in “Programmed” mode and not in the local control mode. NOTE 5-112...
Page 251 5 SETTINGS 5.4 SYSTEM SETUP Figure 5–29: DISCONNECT SWITCH SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-113...
Page 252: Flexcurves
0.86 15.0 0.48 0.88 15.5 0.50 0.90 16.0 0.52 0.91 16.5 0.54 0.92 17.0 0.56 0.93 17.5 0.58 0.94 18.0 0.60 0.95 18.5 0.62 0.96 19.0 0.64 0.97 19.5 0.66 0.98 10.0 20.0 5-114 F60 Feeder Protection System GE Multilin...
Page 253 The multiplier and adder settings only affect the curve portion of the characteristic and not the MRT and HCT set- tings. The HCT settings override the MRT settings for multiples of pickup greater than the HCT ratio. NOTE GE Multilin F60 Feeder Protection System 5-115...
Page 254 EnerVista UR Setup software generates an error message and discards the proposed changes. NOTE e) STANDARD RECLOSER CURVES The standard recloser curves available for the F60 are displayed in the following graphs. 5-116 F60 Feeder Protection System...
Page 255 CURRENT (multiple of pickup) 842723A1.CDR Figure 5–33: RECLOSER CURVES GE101 TO GE106 GE142 GE138 GE120 GE113 0.05 7 8 9 10 12 CURRENT (multiple of pickup) 842725A1.CDR Figure 5–34: RECLOSER CURVES GE113, GE120, GE138 AND GE142 GE Multilin F60 Feeder Protection System 5-117...
Page 256 Figure 5–35: RECLOSER CURVES GE134, GE137, GE140, GE151 AND GE201 GE152 GE141 GE131 GE200 7 8 9 10 12 CURRENT (multiple of pickup) 842728A1.CDR Figure 5–36: RECLOSER CURVES GE131, GE141, GE152, AND GE200 5-118 F60 Feeder Protection System GE Multilin...
Page 257 Figure 5–37: RECLOSER CURVES GE133, GE161, GE162, GE163, GE164 AND GE165 GE132 GE139 GE136 GE116 0.05 GE117 GE118 0.02 0.01 7 8 9 10 12 CURRENT (multiple of pickup) 842726A1.CDR Figure 5–38: RECLOSER CURVES GE116, GE117, GE118, GE132, GE136, AND GE139 GE Multilin F60 Feeder Protection System 5-119...
Page 258 Figure 5–39: RECLOSER CURVES GE107, GE111, GE112, GE114, GE115, GE121, AND GE122 GE202 GE135 GE119 7 8 9 10 12 CURRENT (multiple of pickup) 842727A1.CDR Figure 5–40: RECLOSER CURVES GE119, GE135, AND GE202 5-120 F60 Feeder Protection System GE Multilin...
Page 259: Phasor Measurement Unit
See page 5–142.  CONFIGURATION The F60 is provided with an optional phasor measurement unit feature. This feature is specified as a soft- ware option at the time of ordering. The number of phasor measurement units available can also depend on this option.
Page 260 AGGREGATORS INPUTS 1, 2, 4, or 6 PMUs can be used D60, F60, G60, L30, L90, T60 The figure shows an example of an N60 using four Logical Device PMUs (Logical Device 2 through 5) and four aggrega- tors. The control blocks for the aggregators are located in LD1. A 64 char LDName setting is provided.
Page 261 16 character name field provided within the Basic Configuration menu. Additionally, the names of the 16 binary points are implemented as numbered descriptions — d1, d2, d3, and so on. The number of descriptions are equal to the number of bits configured in the 16 bit digital status word. GE Multilin F60 Feeder Protection System 5-123...
Page 262 From each PMU, the user selects the phasor information of interest that is mapped into the selected aggregator datset(s). For version 7.0 and later only FCDA data is supported. Figure 5–44: DATA SET CREATED FROM USER SELECTED INTERNAL ITEMS 5-124 F60 Feeder Protection System GE Multilin...
Page 263 CONFIGURATION EXAMPLE: CFG-2 BASED CONFIGURATION (USING IEC 61850-90-5) The F60 is expected to send the CFG-2 file (IEEE C37.118 config. file) upon request from the upstream synchrophasor devices (for example, P30) without stopping R-SV multicasting, as shown in the figure below. The primary domain control- ler (PDC) does not need to use a stop/start data stream command if the UR protocol is set to IEC 61850-90-5 prior to requesting the configuration via CFG-2 (IEEE C37.118 config.
Page 264 See page 5-127.  UNIT 1  CONFIGURATION  PMU 1 MESSAGE See page 5-131.  CALIBRATION  PMU 1 MESSAGE See page 5-132.  TRIGGERING  PMU 1 MESSAGE See page 5-140.  RECORDING 5-126 F60 Feeder Protection System GE Multilin...
Page 265 PMU 1 A-CH-1: MESSAGE NAME: AnalogChannel1 ↓ Range: 16 -character ASCII string PMU 1 A-CH-16 (16): MESSAGE NAME: AnalogChannel16 Range: Available FlexLogic operands PMU 1 D-CH-1: MESSAGE ↓ Range: FlexLogic operand PMU 1 D-CH-16: MESSAGE GE Multilin F60 Feeder Protection System 5-127...
Page 266 For a system frequency of 60 Hz (50 Hz), the F60 generates a reporting mismatch message if the selected rate is not set as 10 Hz, 12 Hz, 15 Hz, 20 Hz, 30 Hz, 60 Hz, or 120 Hz (or 10 Hz, 25 Hz, 50 Hz or 100 Hz when the system frequency is 50 Hz) when entered via the keypad or software;...
Page 267 This setting complies with bit-1 of the FORMAT field of the IEEE C37.118 configuration frame. This setting applies to synchrophasors only; the user-selectable FlexAnalog channels are always transmitted as 16-bit integer values. GE Multilin F60 Feeder Protection System 5-129...
Page 268 As per IEC 61850-6 standard specification, the PMU LD Name is the concatenated combination (to total 64 charac- ters) of IED Name (specified in IEC 61850 Server Settings) appended with PMU X LDINST string. NOTE 5-130 F60 Feeder Protection System GE Multilin...
Page 269 VTs, CTs, and cabling. The setting values are effectively added to the measured angles. Therefore, enter a positive correction of the secondary signal lags the true signal; and negative value if the secondary signal leads the true signal. GE Multilin F60 Feeder Protection System 5-131...
Page 270 When receiving synchrophasor data at multiple locations, with possibly different reference nodes, it can be more beneficial to allow the central locations to perform the compensation of sequence voltages. This setting applies to PMU data only. The F60 calculates symmetrical voltages independently for protection and control purposes without applying this correction.
Page 271 DPO TIME: 1.00 s Range: FlexLogic operand PMU 1 FREQ TRIG BLK: MESSAGE Range: Self-Reset, Latched, Disabled PMU 1 FREQ TRIGGER MESSAGE TARGET: Self-Reset Range: Enabled, Disabled PMU 1 FREQ TRIGGER MESSAGE EVENTS: Disabled GE Multilin F60 Feeder Protection System 5-133...
Page 272 F60 standards. This element requires that the frequency be above the minimum measurable value. If the frequency is below this value, such as when the circuit is de-energized, the trigger drops out.
Page 273 This element responds to elevated current. The trigger responds to the phase current signal of the phasor measurement unit (PMU) source. All current channel (A, B, and C) are processed independently and could trigger the recorder. GE Multilin F60 Feeder Protection System 5-135...
Page 274 1 pu is a product of 1 pu voltage and 1 pu current, or the product of nominal secondary voltage, the VT ratio and the nominal primary current. For the three-phase power, 1 pu is three times that for a single-phase power. The comparator applies a 3% hysteresis. 5-136 F60 Feeder Protection System GE Multilin...
Page 275 DPO TIME: 1.00 s Range: FlexLogic operand PMU 1 df/dt TRG BLK: MESSAGE Range: Self-Reset, Latched, Disabled PMU 1 df/dt TRIGGER MESSAGE TARGET: Self-Reset Range: Enabled, Disabled PMU 1 df/dt TRIGGER MESSAGE EVENTS: Disabled GE Multilin F60 Feeder Protection System 5-137...
Page 276 PMU 1 df/dt TRIGGER DPO TIME: This setting can be used to extend the trigger after the situation returned to nor- mal. This setting is of particular importance when using the recorder in the forced mode (recording as long as the trig- gering condition is asserted). 5-138 F60 Feeder Protection System GE Multilin...
Page 277 5 SETTINGS 5.4 SYSTEM SETUP Figure 5–52: RATE OF CHANGE OF FREQUENCY TRIGGER SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-139...
Page 278  37.118 AGGR 1 PMU AGGREGATOR 1  CONFIGURATION TCP PORT: 4712 Range: 1 to 65534 PMU AGGREGATOR 1 MESSAGE UDP PORT: 4713 Range: Disabled, Enabled PMU AGGREGATOR 1 MESSAGE PDC CONTROL: Disabled 5-140 F60 Feeder Protection System GE Multilin...
Page 279 AGTR1 PDC CNTRL 3 Phasor data concentrator asserts control bit 3 as received via the network. ↓ as above AGTR1 PDC CNTRL 16 Phasor data concentrator asserts control bit 16, as received via the network. GE Multilin F60 Feeder Protection System 5-141...
Page 280 Range: 0 to 7 MSVCB 1 PRIORITY: MESSAGE Range: 0 to 252 MSVCB 1 IP CLASS: MESSAGE Range: 0 to 4095 MSVCB 1 VID: MESSAGE Range: 0 to 16383 MSVCB 1 APPID: MESSAGE 5-142 F60 Feeder Protection System GE Multilin...
Page 281 MSVCB 1 Security: This setting selects the level of security and authentication used, as outlined in the following table, and is in the form of an enumeration as per standard. The range is 0 to 2. Shaded settings in the table are not supported in firmware 7.0. ENUMERATION AUTHENTICATION ENCRYPTION NOTE GE Multilin F60 Feeder Protection System 5-143...
Page 282 5.4 SYSTEM SETUP 5 SETTINGS ENUMERATION AUTHENTICATION ENCRYPTION 5-144 F60 Feeder Protection System GE Multilin...
Page 283: Flexlogic
Figure 5–54: UR ARCHITECTURE OVERVIEW The states of all digital signals used in the F60 are represented by flags (or FlexLogic operands, which are described later in this section). A digital “1” is represented by a 'set' flag. Any external contact change-of-state can be used to block an ele- ment from operating, as an input to a control feature in a FlexLogic equation, or to operate a contact output.
Page 284 Some types of operands are present in the relay in multiple instances; e.g. contact and remote inputs. These types of oper- ands are grouped together (for presentation purposes only) on the faceplate display. The characteristics of the different types of operands are listed in the table below. Table 5–17: F60 FLEXLOGIC OPERAND TYPES OPERAND TYPE STATE...
Page 285 5 SETTINGS 5.5 FLEXLOGIC The operands available for this relay are listed alphabetically by types in the following table. Table 5–18: F60 FLEXLOGIC OPERANDS (Sheet 1 of 8) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION CONTROL CONTROL PUSHBTN 1 ON Control pushbutton 1 is being pressed...
Page 286 5.5 FLEXLOGIC 5 SETTINGS Table 5–18: F60 FLEXLOGIC OPERANDS (Sheet 2 of 8) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION ELEMENT BKR FAIL 1 RETRIPA Breaker failure 1 re-trip phase A (only for 1-pole schemes) Breaker failure BKR FAIL 1 RETRIPB...
Page 287 5 SETTINGS 5.5 FLEXLOGIC Table 5–18: F60 FLEXLOGIC OPERANDS (Sheet 3 of 8) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION ELEMENT FREQ RATE 1 PKP The frequency rate of change 1 element has picked up Frequency rate of FREQ RATE 1 DPO...
Page 288 5.5 FLEXLOGIC 5 SETTINGS Table 5–18: F60 FLEXLOGIC OPERANDS (Sheet 4 of 8) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION ELEMENT: NEG SEQ OV1 PKP Negative-sequence overvoltage element has picked up Negative-sequence NEG SEQ OV1 DPO Negative-sequence overvoltage element has dropped out...
Page 289 5 SETTINGS 5.5 FLEXLOGIC Table 5–18: F60 FLEXLOGIC OPERANDS (Sheet 5 of 8) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION ELEMENT: PHASE TOC1 PKP At least one phase of phase time overcurrent 1 has picked up Phase time PHASE TOC1 OP...
Page 290 5.5 FLEXLOGIC 5 SETTINGS Table 5–18: F60 FLEXLOGIC OPERANDS (Sheet 6 of 8) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION ELEMENT: SRC1 VT FF OP Source 1 VT fuse failure detector has operated VTFF (Voltage SRC1 VT FF DPO Source 1 VT fuse failure detector has dropped out...
Page 291 5 SETTINGS 5.5 FLEXLOGIC Table 5–18: F60 FLEXLOGIC OPERANDS (Sheet 7 of 8) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION ELEMENT: UNDERFREQ 1 PKP Underfrequency 1 has picked up Underfrequency UNDERFREQ 1 OP Underfrequency 1 has operated UNDERFREQ 1 DPO Underfrequency 1 has dropped out...
Page 292 5.5 FLEXLOGIC 5 SETTINGS Table 5–18: F60 FLEXLOGIC OPERANDS (Sheet 8 of 8) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION LED INDICATORS: LED USER 1 Asserted when user-programmable LED 1 is on User-programmable LED USER 2 to 48 The operand above is available for user-programmable LEDs 2 through 48...
Page 293: Flexlogic Rules
A timer operator (for example, "TIMER 1") or virtual output assignment (for example, " = Virt Op 1") may only be used once. If this rule is broken, a syntax error will be declared. GE Multilin F60 Feeder Protection System 5-155...
Page 294: Flexlogic Evaluation
(i.e. Virtual Output 3). The final output must also be assigned to a virtual output as virtual output 4, which will be programmed in the contact output section to oper- ate relay H1 (that is, contact output H1). 5-156 F60 Feeder Protection System GE Multilin...
Page 295 Until accustomed to using FlexLogic, it is suggested that a worksheet with a series of cells marked with the arbitrary parameter numbers be prepared, as shown below. GE Multilin F60 Feeder Protection System 5-157...
Page 296 99: The final output of the equation is virtual output 4 which is parameter “= Virt Op 4". 98: The operator preceding the output is timer 2, which is operand “TIMER 2". Note that the settings required for the timer are established in the timer programming section. 5-158 F60 Feeder Protection System GE Multilin...
Page 297 It is now possible to check that the selection of parameters will produce the required logic by converting the set of parame- ters into a logic diagram. The result of this process is shown below, which is compared to the logic for virtual output 4 dia- gram as a check. GE Multilin F60 Feeder Protection System 5-159...
Page 298 In the expression above, the virtual output 4 input to the four-input OR is listed before it is created. This is typical of a form of feedback, in this case, used to create a seal-in effect with the latch, and is correct. 5-160 F60 Feeder Protection System GE Multilin...
Page 299: Flexlogic Equation Editor
TIMER 1 PICKUP DELAY: Sets the time delay to pickup. If a pickup delay is not required, set this function to "0". • TIMER 1 DROPOUT DELAY: Sets the time delay to dropout. If a dropout delay is not required, set this function to "0". GE Multilin F60 Feeder Protection System 5-161...
Page 300: Flexelements
The element can be programmed to respond either to a signal level or to a rate-of-change (delta) over a pre-defined period of time. The output operand is asserted when the operating signal is higher than a threshold or lower than a threshold as per user's choice. 5-162 F60 Feeder Protection System GE Multilin...
Page 301 The FLEXELEMENT 1 DIRECTION following figure explains the application of the FLEXELEMENT 1 DIRECTION FLEXELEMENT 1 PICKUP FLEXELEMENT 1 HYS- settings. TERESIS GE Multilin F60 Feeder Protection System 5-163...
Page 302 Figure 5–63: FLEXELEMENT DIRECTION, PICKUP, AND HYSTERESIS In conjunction with the setting the element could be programmed to provide two extra charac- FLEXELEMENT 1 INPUT MODE teristics as shown in the figure below. 5-164 F60 Feeder Protection System GE Multilin...
Page 303 +IN and –IN inputs. DELTA TIME BASE = 1 µs FAULT LOCATION BASE = Line Length as specified in Fault Report FREQUENCY = 1 Hz BASE FREQUENCY RATE OF CHANGE df/dt = 1 Hz/s BASE GE Multilin F60 Feeder Protection System 5-165...
Page 304 “Delta”. FLEXELEMENT 1 COMP MODE This setting specifies the pickup delay of the element. The setting FLEXELEMENT 1 PKP DELAY FLEXELEMENT 1 RST DELAY specifies the reset delay of the element. 5-166 F60 Feeder Protection System GE Multilin...
Page 305: Non-Volatile Latches
LATCH N LATCH N LATCH N LATCH N TYPE RESET Reset Dominant Previous Previous State State Dominant Previous Previous State State Figure 5–65: NON-VOLATILE LATCH OPERATION TABLE (N = 1 to 16) AND LOGIC GE Multilin F60 Feeder Protection System 5-167...
Page 306: Grouped Elements
(see the Control elements section for additional details). If the device incorrectly switches to group 1 after power cycling, upgrade the firmware to version 7.25, 7.31, or later to cor- rect this issue. 5-168 F60 Feeder Protection System GE Multilin...
Page 307 The element operates if the positive-sequence voltage is above a settable level and asserts its output signal that can be used to block selected protection elements such as distance or phase overcurrent. The following figure shows an effect of the load encroachment characteristics used to block the quadrilateral distance element. GE Multilin F60 Feeder Protection System 5-169...
Page 308 If the voltage is below this threshold a blocking signal will not be asserted by the element. When selecting this setting one must remember that the F60 measures the phase-to-ground sequence voltages regardless of the VT connection.
Page 309 IEEE CURVES: The IEEE time overcurrent curve shapes conform to industry standards and the IEEE C37.112-1996 curve classifications for extremely, very, and moderately inverse. The IEEE curves are derived from the formulae: GE Multilin F60 Feeder Protection System 5-171...
Page 310 5.041 4.827 38.634 22.819 14.593 11.675 10.130 9.153 8.470 7.960 7.562 7.241 51.512 30.426 19.458 15.567 13.507 12.204 11.294 10.614 10.083 9.654 10.0 64.390 38.032 24.322 19.458 16.883 15.255 14.117 13.267 12.604 12.068 5-172 F60 Feeder Protection System GE Multilin...
Page 311 0.60 1.835 1.067 0.668 0.526 0.451 0.404 0.371 0.346 0.327 0.311 0.80 2.446 1.423 0.890 0.702 0.602 0.538 0.494 0.461 0.435 0.415 1.00 3.058 1.778 1.113 0.877 0.752 0.673 0.618 0.576 0.544 0.518 GE Multilin F60 Feeder Protection System 5-173...
Page 312 0.200 0.197 0.859 0.569 0.419 0.368 0.341 0.325 0.314 0.307 0.301 0.296 1.145 0.759 0.559 0.490 0.455 0.434 0.419 0.409 0.401 0.394 10.0 1.431 0.948 0.699 0.613 0.569 0.542 0.524 0.511 0.501 0.493 5-174 F60 Feeder Protection System GE Multilin...
Page 313 = Reset Time in seconds (assuming energy capacity is 100% and RESET: Timed) RESET RECLOSER CURVES: The F60 uses the FlexCurve feature to facilitate programming of 41 recloser curves. See the FlexCurve section in this chapter for details. GE Multilin...
Page 314 (Mvr) corresponding to the phase-phase voltages of the voltage restraint characteristic curve (see the figure below); the pickup level is calculated as ‘Mvr’ times the setting. If the voltage restraint feature PHASE TOC1 PICKUP is disabled, the pickup level always remains at the setting value. 5-176 F60 Feeder Protection System GE Multilin...
Page 315 5 SETTINGS 5.6 GROUPED ELEMENTS Phase-Phase Voltage ÷ VT Nominal Phase-phase Voltage 818784A4.CDR Figure 5–69: PHASE TIME OVERCURRENT VOLTAGE RESTRAINT CHARACTERISTIC Figure 5–70: PHASE TIME OVERCURRENT 1 SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-177...
Page 316 The input current is the fundamental phasor magnitude. For timing curves, see the publication Instan- taneous Overcurrent Element Response to Saturated Waveforms in UR-Series Relays (GET-8400A). Figure 5–71: PHASE INSTANTANEOUS OVERCURRENT 1 SCHEME LOGIC 5-178 F60 Feeder Protection System GE Multilin...
Page 317 30° +90° Phasors for Phase A Polarization: × VPol = VBC (1/_ECA) = polarizing voltage IA = operating current ECA = Element Characteristic Angle at 30° 827800A2.CDR Figure 5–72: PHASE A DIRECTIONAL POLARIZATION GE Multilin F60 Feeder Protection System 5-179...
Page 318 When set to "Yes", the directional element blocks the operation of any phase overcurrent element under directional control, when voltage memory expires; when set to "No", the directional element allows tripping of phase overcurrent elements under directional control. 5-180 F60 Feeder Protection System GE Multilin...
Page 319: Neutral Current
 NEUTRAL TOC2 MESSAGE See page 5–182.   NEUTRAL TOC3 MESSAGE See page 5–182.   NEUTRAL TOC4 MESSAGE See page 5–182.   NEUTRAL IOC1 MESSAGE See page 5–183.  ↓ GE Multilin F60 Feeder Protection System 5-181...
Page 320 The neutral current input value is a quantity calculated as 3Io from the phase currents and may be programmed as fundamental phasor magnitude or total waveform RMS magnitude as required by the application. 5-182 F60 Feeder Protection System GE Multilin...
Page 321 × Kx I_1 where K 1 16 ⁄ (EQ 5.16) – The positive-sequence restraint allows for more sensitive settings by counterbalancing spurious zero-sequence currents resulting from GE Multilin F60 Feeder Protection System 5-183...
Page 322 Range: 0.006 to 30.000 pu in steps of 0.001 NEUTRAL DIR OC1 FWD MESSAGE PICKUP: 0.050 pu Range: 40 to 90° in steps of 1 NEUTRAL DIR OC1 REV MESSAGE LIMIT ANGLE: 90° 5-184 F60 Feeder Protection System GE Multilin...
Page 323 | > 0.8 pu –V_0 + Z_offset × I_0 I_0 × 1∠ECA = 3 × (|I_0|) if |I | ≤ 0.8 pu Forward Dual, Dual-V, Dual-I –V_0 + Z_offset × I_0 –I_0 × 1∠ECA Reverse –I_0 GE Multilin F60 Feeder Protection System 5-185...
Page 324 This allows for better protection coordination. The above bias should be taken into account when using the neutral directional overcurrent element to directionalize other protection elements. 5-186 F60 Feeder Protection System GE Multilin...
Page 325 If “Dual” polarizing is selected, the element performs both directional comparisons as described. A given direction is confirmed if either voltage or current comparators indicate so. If a conflicting (simultaneous forward and reverse) indication occurs, the forward direction overrides the reverse direction. GE Multilin F60 Feeder Protection System 5-187...
Page 326 NEUTRAL DIR OC1 REV PICKUP: This setting defines the pickup level for the overcurrent unit of the element in the reverse direction. When selecting this setting it must be kept in mind that the design uses a positive-sequence restraint technique for the “Calculated 3I0” mode of operation. 5-188 F60 Feeder Protection System GE Multilin...
Page 327 5 SETTINGS 5.6 GROUPED ELEMENTS Figure 5–77: NEUTRAL DIRECTIONAL OVERCURRENT LOGIC GE Multilin F60 Feeder Protection System 5-189...
Page 328: Wattmetric Ground Fault
VT connected to the auxiliary channel bank of the relay). When the latter selection is made, the auxiliary channel must be identified by the user as a neutral voltage under the VT bank settings. This element operates when the auxil- iary voltage is configured as neutral. 5-190 F60 Feeder Protection System GE Multilin...
Page 329   FlexCurve --------- - (EQ 5.21)   Again, the FlexCurve timer starts after the definite time timer expires. GE Multilin F60 Feeder Protection System 5-191...
Page 330 Figure 5–78: WATTMETRIC CHARACTERISTIC ANGLE RESPONSE • WATTMETRIC GND FLT 1 MULTIPLIER: This setting is applicable if above is selected WATTMETRIC GND FLT 1 CURVE to Inverse and defines the multiplier factor for the inverse time delay. 5-192 F60 Feeder Protection System GE Multilin...
Page 331 5 SETTINGS 5.6 GROUPED ELEMENTS Figure 5–79: WATTMETRIC ZERO-SEQUENCE DIRECTIONAL LOGIC GE Multilin F60 Feeder Protection System 5-193...
Page 332: Ground Current
 RESTRICTED GROUND MESSAGE See page 5–197.  FAULT 1 ↓  RESTRICTED GROUND MESSAGE  FAULT 6 For information on the Ground Time Overcurrent curves, see Inverse Time Overcurrent Characteristics on page 5–171. 5-194 F60 Feeder Protection System GE Multilin...
Page 333 0.02 to 46 times the CT rating. NOTE This channel may be also equipped with a sensitive input. The conversion range of a sensitive channel is from 0.002 to 4.6 times the CT rating. NOTE GE Multilin F60 Feeder Protection System 5-195...
Page 334 0.02 to 46 times the CT rating. NOTE This channel may be equipped with a standard or sensitive input. The conversion range of a sensitive channel is from 0.002 to 4.6 times the CT rating. NOTE 5-196 F60 Feeder Protection System GE Multilin...
Page 335 Application of the restricted ground fault pro- tection extends the coverage towards the neutral point (see the RGF and Percent Differential Zones of Protection diagram). GE Multilin F60 Feeder Protection System 5-197...
Page 336 Even with the improved definition of the restraining signal, the breaker-and-a-half application of the restricted ground fault must be approached with care, and is not recommended unless the settings are carefully selected to avoid maloperation due to CT saturation. 5-198 F60 Feeder Protection System GE Multilin...
Page 337 50% each 15.5 power system cycles. Having the differential and restraining signals developed, the element applies a single slope differential characteristic with a minimum pickup as shown in the logic diagram below. GE Multilin F60 Feeder Protection System 5-199...
Page 338 Igd = abs(3 × 0.0333 + 0.05) = 0.15 pu, IR0 = abs(3 × 0.033 – (0.05)) = 0.05 pu, IR2 = 3 × 0.033 = 0.10 pu, IR1 = 1.033 / 8 = 0.1292 pu, and Igr = 0.1292 pu Despite very low fault current level the differential current is above 100% of the restraining current. 5-200 F60 Feeder Protection System GE Multilin...
Page 339: Negative-Sequence Current
See page 5–204.   NEG SEQ DIR OC2 MESSAGE See page 5–204.  For additional information on the negative sequence time overcurrent curves, refer to the Inverse Time Overcurrent Curves section earlier. GE Multilin F60 Feeder Protection System 5-201...
Page 340 For example, if the element reset characteristic is set to “Instanta- neous” and the element is blocked, the time accumulator is cleared immediately. Figure 5–85: NEGATIVE SEQUENCE TOC1 SCHEME LOGIC 5-202 F60 Feeder Protection System GE Multilin...
Page 341 The operating quantity depends on the way the test currents are injected into the relay (single-phase injection: ⋅ 0.2917 I ; three-phase injection, opposite rotation: injected injected Figure 5–86: NEGATIVE SEQUENCE IOC1 SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-203...
Page 342 The positive-sequence restraint allows for more sensitive settings by counterbalancing spurious negative-sequence and zero-sequence currents resulting from: • System unbalances under heavy load conditions. • Transformation errors of current transformers (CTs). • Fault inception and switch-off transients. 5-204 F60 Feeder Protection System GE Multilin...
Page 343 CT errors, since the current is low. The operating quantity depends on the way the test currents are injected into the F60. For single phase injection: = ⅓ × (1 – K) × I •...
Page 344 The element characteristic angle in the reverse direction is the angle set for the forward direction shifted by 180°. • NEG SEQ DIR OC1 FWD LIMIT ANGLE: This setting defines a symmetrical (in both directions from the ECA) limit angle for the forward direction. 5-206 F60 Feeder Protection System GE Multilin...
Page 345 When NEG SEQ DIR OC1 TYPE selecting this setting it must be kept in mind that the design uses a positive-sequence restraint technique. Figure 5–88: NEGATIVE SEQUENCE DIRECTIONAL OC1 SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-207...
Page 346: Breaker Failure (Ansi 50Bf/50Nbf)
Range: 0.001 to 30.000 pu in steps of 0.001 BF1 N AMP HISET MESSAGE PICKUP: 1.050 pu Range: 0.001 to 30.000 pu in steps of 0.001 BF1 PH AMP LOSET MESSAGE PICKUP: 1.050 pu 5-208 F60 Feeder Protection System GE Multilin...
Page 347 This can also occur in breaker-and-a-half or ring bus configurations where the first breaker closes into a fault; the protection trips and attempts to initiate breaker failure for the second breaker, which is in the process of closing, but does not yet have current flowing through it. GE Multilin F60 Feeder Protection System 5-209...
Page 348 BREAKER FAILURE TIMER No. 2 (±1/8 cycle) INITIATE (1/8 cycle) BREAKER FAILURE CURRENT DETECTOR PICKUP (1/8 cycle) BREAKER FAILURE OUTPUT RELAY PICKUP (1/4 cycle) FAULT cycles OCCURS 827083A6.CDR Figure 5–89: BREAKER FAILURE MAIN PATH SEQUENCE 5-210 F60 Feeder Protection System GE Multilin...
Page 349 In microprocessor relays this time is not significant. In F60 relays, which use a Fourier transform, the calculated current magnitude will ramp-down to zero one power frequency cycle after the current is interrupted, and this lag should be included in the overall margin duration, as it occurs after current interruption.
Page 350 Upon operation of the breaker failure element for a single pole trip command, a three-pole trip command should be given via output operand BKR FAIL 1 TRIP OP 5-212 F60 Feeder Protection System GE Multilin...
Page 351 5 SETTINGS 5.6 GROUPED ELEMENTS Figure 5–91: SINGLE-POLE BREAKER FAILURE, INITIATE GE Multilin F60 Feeder Protection System 5-213...
Page 352 5.6 GROUPED ELEMENTS 5 SETTINGS Figure 5–92: SINGLE-POLE BREAKER FAILURE, TIMERS 5-214 F60 Feeder Protection System GE Multilin...
Page 353 5 SETTINGS 5.6 GROUPED ELEMENTS Figure 5–93: THREE-POLE BREAKER FAILURE, INITIATE GE Multilin F60 Feeder Protection System 5-215...
Page 354 5.6 GROUPED ELEMENTS 5 SETTINGS Figure 5–94: THREE-POLE BREAKER FAILURE, TIMERS 5-216 F60 Feeder Protection System GE Multilin...
Page 355: Voltage Elements
• Source Transfer Schemes: In the event of an undervoltage, a transfer signal may be generated to transfer a load from its normal source to a standby or emergency power source. GE Multilin F60 Feeder Protection System 5-217...
Page 356 V = secondary voltage applied to the relay = pickup level pickup % of voltage pickup 842788A1.CDR Figure 5–95: INVERSE TIME UNDERVOLTAGE CURVES At 0% of pickup, the operating time equals the UNDERVOLTAGE DELAY setting. NOTE 5-218 F60 Feeder Protection System GE Multilin...
Page 357 The minimum voltage setting selects the operating voltage below which the element is blocked (a setting of “0” will allow a dead source to be considered a fault condition). Figure 5–96: PHASE UNDERVOLTAGE1 SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-219...
Page 358 Figure 5–97: PHASE OVERVOLTAGE SCHEME LOGIC > × If the source VT is wye-connected, then the phase overvoltage pickup condition is Pickup for V and V NOTE 5-220 F60 Feeder Protection System GE Multilin...
Page 359 “Definite time”. The source assigned to this element must be configured for a phase VT. NEUTRAL OV1 CURVE VT errors and normal voltage unbalance must be considered when setting this element. This function requires the VTs to be wye-connected. Figure 5–98: NEUTRAL OVERVOLTAGE1 SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-221...
Page 360 The negative-sequence overvoltage element may be used to detect loss of one or two phases of the source, a reversed phase sequence of voltage, or a non-symmetrical system voltage condition. Figure 5–99: NEGATIVE-SEQUENCE OVERVOLTAGE SCHEME LOGIC 5-222 F60 Feeder Protection System GE Multilin...
Page 361 AUX UV1 EVENTS: MESSAGE Disabled The F60 contains one auxiliary undervoltage element for each VT bank. This element is intended for monitoring undervolt- age conditions of the auxiliary voltage. The selects the voltage level at which the time undervoltage ele- AUX UV1 PICKUP ment starts timing.
Page 362 AUX OV1 EVENTS: MESSAGE Disabled The F60 contains one auxiliary overvoltage element for each VT bank. This element is intended for monitoring overvoltage conditions of the auxiliary voltage. The nominal secondary voltage of the auxiliary voltage channel entered under SYSTEM ...
Page 363: Sensitive Directional Power (Ansi 32)
The operating quantity is displayed in the   actual ACTUAL VALUES METERING SENSITIVE DIRECTIONAL POWER 1(2) value. The element has two independent (as to the pickup and delay settings) stages for alarm and trip, respectively. GE Multilin F60 Feeder Protection System 5-225...
Page 364 RCA = 0 SMIN < 0 SMIN > 0 OPERATE RESTRAIN RESTRAIN OPERATE RCA = 90 RCA = 270 SMIN > 0 SMIN < 0 842702A1.CDR Figure 5–103: DIRECTIONAL POWER ELEMENT SAMPLE APPLICATIONS 5-226 F60 Feeder Protection System GE Multilin...
Page 365 DIR POWER 1 OP Three-phase reactive power (Q) DIR POWER 1 STG2 DPO DIR POWER 1 STG2 OP SETTING DIR POWER 1 STG2 DELAY: 100 ms 842003A3.CDR Figure 5–104: SENSITIVE DIRECTIONAL POWER SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-227...
Page 366: Control Elements
If more than one operate-type operand is required, it may be assigned directly from the trip bus menu. 5-228 F60 Feeder Protection System GE Multilin...
Page 367 TRIP BUS 1 RESET: The trip bus output is reset when the operand assigned to this setting is asserted. Note that the operand is pre-wired to the reset gate of the latch, As such, a reset command the front panel interface or via RESET OP communications will reset the trip bus output. GE Multilin F60 Feeder Protection System 5-229...
Page 368: Setting Groups
GROUP 1 NAME: MESSAGE Range: up to 16 alphanumeric characters GROUP 2 NAME: MESSAGE ↓ Range: up to 16 alphanumeric characters GROUP 6 NAME: MESSAGE Range: Disabled, Enabled SETTING GROUP MESSAGE EVENTS: Disabled 5-230 F60 Feeder Protection System GE Multilin...
Page 369 The assigned operand is used to control the “On” state of a particular settings group. VIRTUAL OUTPUT 1 GE Multilin F60 Feeder Protection System 5-231...
Page 370: Selector Switch
Range: FlexLogic operand SELECTOR 1 3BIT ACK: MESSAGE Range: Restore, Synchronize, Sync/Restore SELECTOR 1 POWER-UP MESSAGE MODE: Restore Range: Self-reset, Latched, Disabled SELECTOR 1 TARGETS: MESSAGE Self-reset Range: Disabled, Enabled SELECTOR 1 EVENTS: MESSAGE Disabled 5-232 F60 Feeder Protection System GE Multilin...
Page 371 • SELECTOR 1 3BIT A0, A1, and A2: These settings specify a three-bit control input of the selector. The three-bit con- trol word pre-selects the position using the following encoding convention: POSITION rest GE Multilin F60 Feeder Protection System 5-233...
Page 372 The selector position pre-selected via the stepping up control input has not been confirmed before the time out. SELECTOR 1 BIT ALARM The selector position pre-selected via the three-bit control input has not been confirmed before the time out. 5-234 F60 Feeder Protection System GE Multilin...
Page 373 3BIT A1 3BIT A2 POS 1 POS 2 POS 3 POS 4 POS 5 POS 6 POS 7 BIT 0 BIT 1 BIT 2 STP ALARM BIT ALARM ALARM 842737A1.CDR Figure 5–108: TIME-OUT MODE GE Multilin F60 Feeder Protection System 5-235...
Page 374 Make the following changes to selector switch element in the    SETTINGS CONTROL ELEMENTS SELECTOR SWITCH menu to assign control to user programmable pushbutton 1 and contact inputs 1 through 3: SELECTOR SWITCH 1 5-236 F60 Feeder Protection System GE Multilin...
Page 375 3-bit acknowledge SELECTOR 1 BIT ALARM 3-bit position out SELECTOR 1 ALARM SELECTOR 1 PWR ALARM SELECTOR 1 BIT 0 SELECTOR 1 BIT 1 SELECTOR 1 BIT 2 842012A2.CDR Figure 5–110: SELECTOR SWITCH LOGIC GE Multilin F60 Feeder Protection System 5-237...
Page 376: Underfrequency (Ansi 81U)
For example, UNDERFREQ 1 PICKUP if the system frequency is 60 Hz and the load shedding is required at 59.5 Hz, the setting will be 59.50 Hz. Figure 5–111: UNDERFREQUENCY SCHEME LOGIC 5-238 F60 Feeder Protection System GE Multilin...
Page 377: Overfrequency (Ansi 81O)
The setting selects OVERFREQ 1 SOURCE OVERFREQ 1 PICKUP the level at which the overfrequency element is to pickup. Figure 5–112: OVERFREQUENCY SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-239...
Page 378: Frequency Rate Of Change (Ansi 81R)
FREQ RATE 1 OC SUPV PICKUP: This setting defines minimum current level required for operation of the element. The supervising function responds to the positive-sequence current. Typical application includes load shedding. Set the pickup threshold to zero if no overcurrent supervision is required. 5-240 F60 Feeder Protection System GE Multilin...
Page 379 SETTINGS FREQ RATE 1 PKP FREQ RATE 1 MIN FREQUENCY: FREQ RATE 1 MAX FREQUENCY: F > MIN & F < MAX Calculate df/dt 832023A2.CDR Figure 5–113: FREQUENCY RATE OF CHANGE SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-241...
Page 380: Synchrocheck (Ansi 25)
ΔF. This time can be calculated by: ------------------------------- - (EQ 5.31) 360° ----------------- - × ΔF 2 ΔΦ × where: ΔΦ = phase angle difference in degrees; ΔF = frequency difference in Hz. 5-242 F60 Feeder Protection System GE Multilin...
Page 381 (SOURCE Z) COMBINATION SOURCE Y SOURCE Z Phase VTs and Phase VTs and Phase Phase Auxiliary VT Auxiliary VT Phase VTs and Phase VT Phase Phase Auxiliary VT Phase VT Phase VT Phase Phase GE Multilin F60 Feeder Protection System 5-243...
Page 382 The relay will use the phase channel of a three-phase set of voltages if pro- grammed as part of that source. The relay will use the auxiliary voltage channel only if that channel is programmed as part of the Source and a three-phase set is not. 5-244 F60 Feeder Protection System GE Multilin...
Page 383 5 SETTINGS 5.7 CONTROL ELEMENTS Figure 5–114: SYNCHROCHECK SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-245...
Page 384: Autoreclose (Ansi 79)
4.000 s Range: FlexLogic operand AR1 ADD DELAY 1: MESSAGE Range: 0.00 to 655.35 s in steps of 0.01 AR1 DELAY 1: MESSAGE 0.000 s Range: FlexLogic operand AR1 ADD DELAY 2: MESSAGE 5-246 F60 Feeder Protection System GE Multilin...
Page 385 Scheme lockout blocks all phases of the reclosing cycle, preventing automatic reclosure, if any of the following occurs: • The maximum shot number was reached. • A ‘Block’ input is in effect (for instance; Breaker Failure, bus differential protection operated, etc.). GE Multilin F60 Feeder Protection System 5-247...
Page 386 ‘reclose-in-progress’ state. If all condi- tions allowing a breaker closure are not satisfied when this time expires, the scheme goes to “Lockout”. This timer must be set to a delay less than the reset timer. NOTE 5-248 F60 Feeder Protection System GE Multilin...
Page 387 5 SETTINGS 5.7 CONTROL ELEMENTS Figure 5–115: AUTORECLOSURE SCHEME LOGIC (Sheet 1 of 2) GE Multilin F60 Feeder Protection System 5-249...
Page 388 5.7 CONTROL ELEMENTS 5 SETTINGS Figure 5–116: AUTORECLOSURE SCHEME LOGIC (Sheet 2 of 2) 5-250 F60 Feeder Protection System GE Multilin...
Page 389 5 SETTINGS 5.7 CONTROL ELEMENTS Figure 5–117: SINGLE SHOT AUTORECLOSING SEQUENCE - PERMANENT FAULT GE Multilin F60 Feeder Protection System 5-251...
Page 390: Digital Elements
DIGITAL ELEMENT 1 RESET DELAY: Sets the time delay to reset. If a reset delay is not required, set to “0”. • DIGITAL ELEMENT 1 PICKUP LED: This setting enables or disabled the digital element pickup LED. When set to “Disabled”, the operation of the pickup LED is blocked. 5-252 F60 Feeder Protection System GE Multilin...
Page 391 Using the contact input settings, this input will be given an ID name, for example, “Cont Ip 1", and will be set “On” when the breaker is closed. The settings to use digital element 1 to monitor the breaker trip circuit are indicated below (EnerVista UR GE Multilin F60 Feeder Protection System 5-253...
Page 392 “Off”. In this case, the settings are as follows (EnerVista UR Setup example shown). Figure 5–120: TRIP CIRCUIT EXAMPLE 2 The wiring connection for two examples above is applicable to both form-A contacts with voltage monitoring and solid-state contact with voltage monitoring. NOTE 5-254 F60 Feeder Protection System GE Multilin...
Page 393: Digital Counters
–2,147,483,648 counts, the counter will rollover to +2,147,483,647. • COUNTER 1 BLOCK: Selects the FlexLogic operand for blocking the counting operation. All counter operands are blocked. GE Multilin F60 Feeder Protection System 5-255...
Page 394 COUNTER 1 RESET: COUNTER 1 FROZEN: Off = 0 STORE DATE & TIME Date & Time SETTING COUNT1 FREEZE/RESET: Off = 0 827065A2.VSD SETTING COUNT1 FREEZE/COUNT: Off = 0 Figure 5–121: DIGITAL COUNTER SCHEME LOGIC 5-256 F60 Feeder Protection System GE Multilin...
Page 395: Monitoring Elements
   PATH: SETTINGS CONTROL ELEMENTS MONITORING ELEMENTS HI-Z Range: Disabled, Enabled  HI-Z HI-Z FUNCTION:  Disabled Range: SRC 1, SRC 2, SRC 3, SRC 4 HI-Z SOURCE: MESSAGE SRC 1 GE Multilin F60 Feeder Protection System 5-257...
Page 396 High impedance, downed conductor fault: a high impedance fault for which the primary conductor is no longer intact on pole top insulators, but instead is in contact with earth or a grounded object • Arcing fault: any high impedance fault which exhibits arcing 5-258 F60 Feeder Protection System GE Multilin...
Page 397 Flag indicating that a high arc confidence occurred on this phase ArcBurst Flag indicating that an arc burst was identified on this phase VDisturbanceCc Cycle-to-cycle voltage disturbance VDisturbanceAbs Absolute voltage disturbance HarmonicRestraint Harmonic Restraint GE Multilin F60 Feeder Protection System 5-259...
Page 398 The range is 1 to 10, where 10 is the most sensitive and 1 is the least sensitive setting. 5-260 F60 Feeder Protection System GE Multilin...
Page 399 The RMS currents in the Hi-Z algorithms are calculated over a two-cycle time window. The rate-of-change is calculated as the difference between two consecutive two-cycle RMS readings. The recommended setting is 150 A per two-cycle interval. The setting is given in primary amperes. GE Multilin F60 Feeder Protection System 5-261...
Page 400 “noise” on circuits with a moderate to high level of transient activ- ity. For the first three to five days after installation (or after being out-of-service for a significant period), the F60 may NOTE identify some of this noise as arcing.
Page 401 5 SETTINGS 5.7 CONTROL ELEMENTS Figure 5–122: HI-Z SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-263...
Page 402 • BKR 1 ARC AMP LIMIT: Selects the threshold value above which the output operand is set. 5-264 F60 Feeder Protection System GE Multilin...
Page 403 5 SETTINGS 5.7 CONTROL ELEMENTS Breaker Contacts Initiate Extinguished Part Total Area = Breaker Arcing Current (kA·cycle) Programmable 100 ms Start Delay Start Stop Integration Integration Figure 5–123: ARCING CURRENT MEASUREMENT GE Multilin F60 Feeder Protection System 5-265...
Page 404 5.7 CONTROL ELEMENTS 5 SETTINGS Figure 5–124: BREAKER ARCING CURRENT SCHEME LOGIC 5-266 F60 Feeder Protection System GE Multilin...
Page 405 Breaker open, Voltage difference drop, and Measured flashover current through the breaker. Furthermore, the scheme is applicable for cases where either one or two sets of three-phase voltages are available across the breaker. GE Multilin F60 Feeder Protection System 5-267...
Page 406 This application does not require detection of breaker status via a 52a contact, as it uses a voltage difference larger than setting. However, monitoring the breaker contact will ensure scheme stability. BRK 1 FLSHOVR DIFF V PKP 5-268 F60 Feeder Protection System GE Multilin...
Page 407 Depending on the flashover protection application, the flashover current can vary from levels of the charging current when the line is de-energized (all line breakers open), to well above the maximum line (feeder) load (line/feeder con- nected to load). GE Multilin F60 Feeder Protection System 5-269...
Page 408 A six-cycle time delay applies after the selected FlexLogic operand resets. • BRK FLSHOVR PKP DELAY: This setting specifies the time delay to operate after a pickup condition is detected. 5-270 F60 Feeder Protection System GE Multilin...
Page 409 5 SETTINGS 5.7 CONTROL ELEMENTS Figure 5–125: BREAKER FLASHOVER SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-271...
Page 410 MESSAGE EVENTS: Disabled One breaker restrike element is provided in the F60. According to IEEE standard C37.100: IEEE Standard Definitions for Power Switchgear, restrike is defined as “a resumption of current between the contacts of a switching device during an opening operation after an interval of zero current of ¼...
Page 411 BREAKER RESTRIKE 1 RESET DELAY: This setting specifies the reset delay for this element. When set to “0 ms”, then FlexLogic operand will be picked up for only 1/8th of the power cycle. GE Multilin F60 Feeder Protection System 5-273...
Page 412 “1” when breaker is opened, either manually or from protection logic. • BRK RSTR 1 CLS CMD: This setting assigns a FlexLogic operand indicating a breaker close command. It must be logic “1” when breaker is closed. Figure 5–128: BREAKER RESTRIKE SCHEME LOGIC 5-274 F60 Feeder Protection System GE Multilin...
Page 413 B current (red). The superimposed current shows two fault current blips as the data slides through the two-cycle memory window. During the actual fault, the neutral current and the superimposed phase B currents closely correspond, confirming the incipient fault hypothesis and identifying the affected phase. GE Multilin F60 Feeder Protection System 5-275...
Page 414 INCIPNT FLT 1 DETECT WINDOW: This setting specifies a time window for “Counts per window” mode of operation. • INCIPIENT FAULT 1 RESET DELAY: This setting specifies a reset time for the output after the trip is initiated. 5-276 F60 Feeder Protection System GE Multilin...
Page 415 VT neutral wire open detection function. When the VT NEU WIRE OPEN 1 FUNCTION VT is connected in Delta, do not enabled this function because there is no neutral wire for Delta connected VT. GE Multilin F60 Feeder Protection System 5-277...
Page 416 827093AQ.CDR Figure 5–131: VT FUSE FAIL SCHEME LOGIC Base voltage for this element is PHASE VT SECONDARY setting in the case of WYE VTs and (PHASE VT SECONDARY)/ in case of DELTA VTs. 5-278 F60 Feeder Protection System GE Multilin...
Page 417 • BROKEN CONDUCTOR 1 PKP DELAY: This setting specifies the pickup time delay for this function to operate after assertion of the broken conductor pickup FlexLogic operand. GE Multilin F60 Feeder Protection System 5-279...
Page 418 5.7 CONTROL ELEMENTS 5 SETTINGS Figure 5–132: BROKEN CONDUCTOR DETECTION LOGIC 5-280 F60 Feeder Protection System GE Multilin...
Page 419 = thermal protection trip time constant • I = measured overload RMS current • = measured load RMS current before overload occurs • k= IEC 255-8 k-factor applied to I , defining maximum permissible current above nominal current GE Multilin F60 Feeder Protection System 5-281...
Page 420 The thermal overload protection element estimates accumulated thermal energy E using the following equations calculated each power cycle. When current is greater than the pickup level, I > k × I , element starts increasing the thermal energy: 5-282 F60 Feeder Protection System GE Multilin...
Page 421 30 minutes Busbar 60 minutes 20 minutes Underground cable 20 to 60 minutes 60 minutes The logic for the thermal overload protection element is shown below. Figure 5–134: THERMAL OVERLOAD PROTECTION SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-283...
Page 422: Cold Load Pickup
The reset delay interval is intended to be set to a period until the ON-LOAD TIME BEFORE RESET feeder load has decayed to normal levels, after which other features may be used to switch setting groups. 5-284 F60 Feeder Protection System GE Multilin...
Page 423 5 SETTINGS 5.7 CONTROL ELEMENTS Figure 5–136: COLD LOAD PICKUP SCHEME LOGIC GE Multilin F60 Feeder Protection System 5-285...
Page 424: Inputs/Outputs
The DC input voltage is compared to a user-settable threshold. A new contact input state must be maintained for a user- settable debounce time in order for the F60 to validate the new contact state. In the figure below, the debounce time is set at 2.5 ms;...
Page 425 Event Records menu, make the following settings changes: "Breaker Closed (52b)" CONTACT INPUT H5A ID: "Enabled" CONTACT INPUT H5A EVENTS: Note that the 52b contact is closed when the breaker is open and open when the breaker is closed. GE Multilin F60 Feeder Protection System 5-287...
Page 426: Virtual Inputs
FlexLogic equation, it will likely have to be lengthened NOTE in time. A FlexLogic timer with a delayed reset can perform this function. Figure 5–138: VIRTUAL INPUTS SCHEME LOGIC 5-288 F60 Feeder Protection System GE Multilin...
Page 427: Contact Outputs
 PATH: SETTINGS INPUTS/OUTPUTS CONTACT OUTPUTS CONTACT OUTPUT H1a Range: Up to 12 alphanumeric characters  CONTACT OUTPUT H1a OUTPUT H1a ID  L-Cont Op 1 Range: FlexLogic operand OUTPUT H1a OPERATE: MESSAGE GE Multilin F60 Feeder Protection System 5-289...
Page 428 PRODUCT SETUP USER-PROGRAMMABLE PUSHBUT-  menus: TONS USER PUSHBUTTON 1 USER PUSHBUTTON 2 “Self-reset” “Self-reset” PUSHBUTTON 1 FUNCTION: PUSHBUTTON 2 FUNCTION: “0.00 s” “0.00 s” PUSHBTN 1 DROP-OUT TIME: PUSHBTN 2 DROP-OUT TIME: 5-290 F60 Feeder Protection System GE Multilin...
Page 429 Write the following FlexLogic equation (EnerVista UR Setup example shown): Program the Latching Outputs by making the following changes in the   SETTINGS INPUTS/OUTPUTS CONTACT OUT-  menu (assuming an H4L module): PUTS CONTACT OUTPUT H1a GE Multilin F60 Feeder Protection System 5-291...
Page 430: Virtual Outputs
32 “DNA” bit pairs that represent the state of two pre-defined events and 30 user-defined events. All remaining bit pairs are “UserSt” bit pairs, which are status bits representing user-definable events. The F60 implementation provides 32 of the 96 available UserSt bit pairs.
Page 431 5.8 INPUTS/OUTPUTS b) LOCAL DEVICES: ID OF DEVICE FOR TRANSMITTING GSSE MESSAGES In a F60 relay, the device ID that represents the IEC 61850 GOOSE application ID (GoID) name string sent as part of each GOOSE message is programmed in the ...
Page 432: Remote Inputs
This setting identifies the Ethernet application identification in the GOOSE message. It should match the corre- sponding settings on the sending device. setting provides for the choice of the F60 fixed (DNA/UserSt) dataset (that is, containing REMOTE DEVICE 1 DATASET DNA and UserSt bit pairs), or one of the configurable datasets.
Page 433: Remote Double-Point Status Inputs
REMOTE OUTPUTS DNA BIT PAIRS REMOTE OUTPUTS DNA- 1(32) BIT PAIR Range: FlexLogic operand  REMOTE OUTPUTS DNA- 1 OPERAND:  DNA- 1 BIT PAIR Range: Disabled, Enabled DNA- 1 EVENTS: MESSAGE Disabled GE Multilin F60 Feeder Protection System 5-295...
Page 434: Resetting
Each of these three operands generates an event in the event record when AND) activated. The setting shown above selects the operand that activates the operand. RESET OP (OPERAND) 5-296 F60 Feeder Protection System GE Multilin...
Page 435: Direct Inputs And Outputs
FlexLogic operand that determines the state of this direct output. c) APPLICATION EXAMPLES The examples introduced in the earlier Direct Inputs and Outputs section (part of the Product Setup section) are continued below to illustrate usage of the direct inputs and outputs. GE Multilin F60 Feeder Protection System 5-297...
Page 436 5.8 INPUTS/OUTPUTS 5 SETTINGS EXAMPLE 1: EXTENDING INPUT/OUTPUT CAPABILITIES OF A F60 RELAY Consider an application that requires additional quantities of contact inputs or output contacts or lines of programmable logic that exceed the capabilities of a single UR-series chassis. The problem is solved by adding an extra UR-series IED, such as the C30, to satisfy the additional inputs/outputs and programmable logic requirements.
Page 437 "3" (effectively, this is a message from IED 1) DIRECT INPUT 6 BIT NUMBER: UR IED 2: "1" DIRECT INPUT 5 DEVICE ID: "2" DIRECT INPUT 5 BIT NUMBER: "3" DIRECT INPUT 6 DEVICE ID: "2" DIRECT INPUT 6 BIT NUMBER: GE Multilin F60 Feeder Protection System 5-299...
Page 438: Teleprotection Inputs And Outputs
Range: Off, On, Latest/Off, Latest/On TELEPROT INPUT 2-1 MESSAGE DEFAULT: Off Range: Off, On, Latest/Off, Latest/On TELEPROT INPUT 2-2 MESSAGE DEFAULT: Off ↓ Range: Off, On, Latest/Off, Latest/On TELEPROT INPUT 2-16 MESSAGE DEFAULT: Off 5-300 F60 Feeder Protection System GE Multilin...
Page 439 (teleprotection outputs at the sending end or corresponding teleprotection inputs at the receiving end). On three-terminal two-channel systems, redundancy is achieved by programming signal re-transmittal in the case of channel failure between any pair of relays. GE Multilin F60 Feeder Protection System 5-301...
Page 440: Iec 61850 Goose Analogs
GOOSE analog input value. GOOSE Analogs are floating-point values, with no units. The GOOSE UNIT and PU base settings allow the user to configure GOOSE Analog, so that it can be used in a FlexElement. 5-302 F60 Feeder Protection System GE Multilin...
Page 441: Iec 61850 Goose Integers
GOOSE ANALOG 1 PU: This setting specifies the per-unit base factor when using the GOOSE analog input FlexAna- log values in other F60 features, such as FlexElements. The base factor is applied to the GOOSE analog input FlexAn- alog quantity to normalize it to a per-unit quantity. The base units are described in the following table.
Page 442 “Default Value”, then the value of the GOOSE uinteger input is defined by the setting. UINTEGER 1 DEFAULT The GOOSE integer input FlexInteger values are available for use in other F60 functions that use FlexInteger values. 5-304 F60 Feeder Protection System...
Page 443: Dcma Inputs
–20 to +180 MW; in this case the value would be “–20” and the DCMA INPUT H1 MIN VALUE DCMA INPUT H1 MAX value “180”. Intermediate values between the min and max values are scaled linearly. VALUE GE Multilin F60 Feeder Protection System 5-305...
Page 444: Rtd Inputs
1.5 pu. FlexElement operands are available to FlexLogic for further interlocking or to operate an output contact directly. Refer to the following table for reference temperature values for each RTD type. 5-306 F60 Feeder Protection System GE Multilin...
Page 445 15.61 168.47 280.77 233.97 16.00 172.46 291.96 243.30 16.39 175.84 303.46 252.88 16.78 179.51 315.31 262.76 17.17 183.17 327.54 272.94 17.56 186.82 340.14 283.45 17.95 190.45 353.14 294.28 18.34 194.08 366.53 305.44 18.73 GE Multilin F60 Feeder Protection System 5-307...
Page 446: Dcma Outputs
– MAX VAL MIN VAL MAX VAL < 0.1 pu. The resulting characteristic is illustrated in the following figure. DRIVING SIGNAL MIN VAL MAX VAL 842739A1.CDR Figure 5–147: DCMA OUTPUT CHARACTERISTIC 5-308 F60 Feeder Protection System GE Multilin...
Page 447 The CT ratio is 5000:5 and the maximum load current is 4200 A. The current should be monitored from 0 A upwards, allow- ing for 50% overload. The phase current with the 50% overload margin is: GE Multilin F60 Feeder Protection System 5-309...
Page 448 254.03 kV 1.27 kV – • ±0.5% of reading For example, under nominal conditions, the positive-sequence reads 230.94 kV and the worst-case error is 0.005 x 230.94 kV + 1.27 kV = 2.42 kV. 5-310 F60 Feeder Protection System GE Multilin...
Page 449: Test Mode
TEST MODE FORCING: MESSAGE The F60 provides a test facility to verify the functionality of contact inputs and outputs, some communication functions and the phasor measurement unit (where applicable), using simulated conditions. The test mode is indicated on the relay face- plate by a Test Mode LED indicator.
Page 450: Force Contact Inputs
Following a restart, power up, settings TEST MODE FUNCTION upload, or firmware upgrade, the test mode will remain at the last programmed value. This allows a F60 that has been placed in isolated mode to remain isolated during testing and maintenance activities. On restart, the TEST MODE FORCING setting and the force contact input and force contact output settings all revert to their default states.
Page 451: Force Contact Outputs
PUSHBUTTON 1 FUNCTION input 1 to initiate the Test mode, make the following changes in the menu:   SETTINGS TESTING TEST MODE “Enabled” and “ ” TEST MODE FUNCTION: TEST MODE INITIATE: GE Multilin F60 Feeder Protection System 5-313...
Page 452: Phasor Measurement Unit Test Values
The relay must be in test mode to use the PMU test mode. That is, the  setting must be TESTING TEST MODE FUNCTION “Enabled” and the  initiating signal must be “On”. TESTING TEST MODE INITIATE 5-314 F60 Feeder Protection System GE Multilin...
Page 453 In test mode, the following actions take place: a. The Data Invalid / Test Mode bit (bit 15 in the STAT word) is set. b. The Sim bit in all output datasets is set. GE Multilin F60 Feeder Protection System 5-315...
Page 454 5.10 TESTING 5 SETTINGS 5-316 F60 Feeder Protection System GE Multilin...
Page 455: Real Time Clock
  DIRECT DEVICES See page 6-10.  STATUS  IEC 61850 See page 6-10.  GOOSE UINTEGERS  EGD PROTOCOL See page 6-10.  STATUS  TELEPROT CH TESTS See page 6-11.  GE Multilin F60 Feeder Protection System...
Page 456 See page 6–26.  FAULT CURRENTS  TRANSDUCER I/O See page 6-27.  DCMA INPUTS  TRANSDUCER I/O See page 6-27.  RTD INPUTS  ACTUAL VALUES  FAULT REPORTS See page 6-28.  RECORDS  F60 Feeder Protection System GE Multilin...
Page 457  RECORDS  MAINTENANCE See page 6-30.   HIZ RECORDS See page 6-31.   ACTUAL VALUES  MODEL INFORMATION See page 6-32.  PRODUCT INFO   FIRMWARE REVISIONS See page 6-32.  GE Multilin F60 Feeder Protection System...
Page 458: Contact Inputs
The state displayed will be that of the remote point unless the remote device has been established to be “Offline” in which case the value shown is the programmed default state for the remote input. F60 Feeder Protection System GE Multilin...
Page 459: Remote Double-Point Status Inputs
The present state of the contact outputs is shown here. The first line of a message display indicates the ID of the contact output. For example, ‘Cont Op 1’ refers to the contact output in terms of the default name-array index. The second line of the display indicates the logic state of the contact output. GE Multilin F60 Feeder Protection System...
Page 460: Virtual Outputs
The present state of the programmed remote devices is shown here. The message indicates ALL REMOTE DEVICES ONLINE whether or not all programmed remote devices are online. If the corresponding state is "No", then at least one required remote device is not online. F60 Feeder Protection System GE Multilin...
Page 461: Digital Counters
Range: Current Position / 7 SELECTOR SWITCH 2 MESSAGE POSITION: 0/7 The display shows both the current position and the full range. The current position only (an integer from 0 through 7) is the actual value. GE Multilin F60 Feeder Protection System...
Page 462: Flex States
PTP grandmaster, this actual value is zero. The grandmasterIdentity code is specified by PTP to be globally unique, so one can always know which clock is grandmaster in a system with multiple grandmaster-capable clocks. F60 Feeder Protection System GE Multilin...
Page 463: Hiz Status
MESSAGE CH1: 0 AVG MSG RETURN MESSAGE TIME CH2: 0 ms UNRETURNED MSG MESSAGE COUNT CH2: 0 CRC FAIL COUNT MESSAGE CH2: 0 DIRECT INPUT MESSAGE DIRECT INPUT MESSAGE ↓ DIRECT INPUT 32: MESSAGE GE Multilin F60 Feeder Protection System...
Page 464: Direct Devices Status
UINT INPUT 16 MESSAGE The F60 Feeder Protection System is provided with optional IEC 61850 communications capability. This feature is specified as a software option at the time of ordering. See the Order Codes section in chapter 2 for details.
Page 465: Teleprotection Channel Tests
“FAIL” message will be displayed. The “N/A” value appears if the local relay ID is set to a default value of “0”, the chan- nel is failed, or if the teleprotection inputs/outputs are not enabled. GE Multilin F60 Feeder Protection System 6-11...
Page 466: Incipient Fault Detector
N60 is 4. The maximum number for the C60 is 2. The maximum number is 1 for other products with a PMU. The remaining number of aggregators displays here. 6.2.23 PARALLEL REDUNDANCY PROTOCOL (PRP) The Parallel Redundancy Protocol (PRP) defines a redundancy protocol for high availability in substation automation net- works. 6-12 F60 Feeder Protection System GE Multilin...
Page 467 Mismatches Port B: MESSAGE The F60 Feeder Protection System is provided with optional PRP capability. This feature is specified as a software option at the time of ordering. See the Order Codes section in chapter 2 for details. is a counter for total messages received (either from DANPs or from SANs) on Port A.
Page 468: Metering Conventions
PF = Lag WATTS = Negative VARS = Positive PF = Lead PF = Lag PF = Lead Current UR RELAY 827239AC.CDR S=VI Generator Figure 6–1: FLOW DIRECTION OF SIGNED VALUES FOR WATTS AND VARS 6-14 F60 Feeder Protection System GE Multilin...
Page 469 ABC phase rotation: • ACB phase rotation: -- - V -- - V -- - V -- - V -- - V -- - V The above equations apply to currents as well. GE Multilin F60 Feeder Protection System 6-15...
Page 470 The power system voltages are phase-referenced – for simplicity – to VAG and VAB, respectively. This, however, is a relative matter. It is important to remember that the F60 displays are always referenced as specified under SETTINGS ...
Page 471: Sources
0.000 SRC 1 RMS Ib: MESSAGE 0.000 SRC 1 RMS Ic: MESSAGE 0.000 SRC 1 RMS In: MESSAGE 0.000 SRC 1 PHASOR Ia: MESSAGE 0.000 0.0° SRC 1 PHASOR Ib: MESSAGE 0.000 0.0° GE Multilin F60 Feeder Protection System 6-17...
Page 472 0.0° SRC 1 PHASOR Vbg: MESSAGE 0.000 0.0° SRC 1 PHASOR Vcg: MESSAGE 0.000 0.0° SRC 1 RMS Vab: MESSAGE 0.00 SRC 1 RMS Vbc: MESSAGE 0.00 SRC 1 RMS Vca: MESSAGE 0.00 6-18 F60 Feeder Protection System GE Multilin...
Page 473 REACTIVE PWR MESSAGE 3φ: 0.000 SRC 1 REACTIVE PWR MESSAGE φa: 0.000 SRC 1 REACTIVE PWR MESSAGE φb: 0.000 SRC 1 REACTIVE PWR MESSAGE φc: 0.000 SRC 1 APPARENT PWR MESSAGE 3φ: 0.000 GE Multilin F60 Feeder Protection System 6-19...
Page 474 S = V x Î x Î x Î (EQ 6.1) When VTs are configured in delta, the F60 does not calculate power in each phase and three-phase power is measured as S = V x Î x Î (EQ 6.2)
Page 475 These parameters can be monitored to reduce supplier demand penalties or for statistical metering purposes. Demand calculations are based on the measurement type selected in the  SETTINGS PRODUCT SETUP GE Multilin F60 Feeder Protection System 6-21...
Page 476 The metered voltage harmonics values are displayed in this menu. The “SRC 1” text will be replaced by the programmed name for the associated source (see the   menu). SETTINGS SYSTEM SETUP SIGNAL SOURCES To extract the 2nd to 25th voltage harmonics, each harmonic is computed on a per-phase basis, where: 6-22 F60 Feeder Protection System GE Multilin...
Page 477: Sensitive Directional Power
100%. The total harmonic distortion (THD) is the ratio of the total harmonic content to the fundamental: … (EQ 6.4) Voltage harmonics are not available on F60 relays configured with the high-impedance fault detection (Hi-Z) fea- ture. NOTE Voltage harmonics are calculated only for Wye connected phase VTs.
Page 478: Tracking Frequency
= 10000 MWh or MVAh, respectively BASE (Positive and Negative Watthours, Positive and Negative Varhours) SOURCE POWER = maximum value of V × I for the +IN and –IN inputs BASE BASE BASE 6-24 F60 Feeder Protection System GE Multilin...
Page 479: Iec 61580 Goose Analog Values
ANALOG INPUT 32 MESSAGE 0.000 The F60 Feeder Protection System is provided with optional IEC 61850 communications capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details.
Page 480: Pmu Aggregator
 RESTRICTED RGF 1 DIFF Igd:  GROUND FAULT 1 0.000 RGF 1 RESTR Igr: MESSAGE 0.000 The differential and restraint current values for the restricted ground fault element are displayed in this menu. 6-26 F60 Feeder Protection System GE Multilin...
Page 481: Transducer Inputs And Outputs
RTD INPUT xx  -50 °C Actual values for each RTD input channel that is enabled are displayed with the top line as the programmed channel ID and the bottom line as the value. GE Multilin F60 Feeder Protection System 6-27...
Page 482: Fault Reports
 COMMANDS CLEAR RECORDS Only major output operands generate events, not every operand. Elements that assert output per phase, for example, log operating phase output only without asserting the common three-phase operand event. 6-28 F60 Feeder Protection System GE Multilin...
Page 483: Oscillography
It counts up at the defined sampling rate. If the data logger channels are defined, then both values are static. Refer to the  menu for clearing data logger records. COMMANDS CLEAR RECORDS GE Multilin F60 Feeder Protection System 6-29...
Page 484: Phasor Measurement Unit Records
BKR 1 ARCING AMP  menu for clearing breaker arcing current records. The COMMANDS CLEAR RECORDS BREAKER OPERATING TIME defined as the slowest operating time of breaker poles that were initiated to open. 6-30 F60 Feeder Protection System GE Multilin...
Page 485: Hiz Records
If the element is triggered by high impedance fault detection arcing algorithm, then the records are dis- RMS 4 played in the actual values. Refer to High impedance fault detection section in chapter 5 for more information. HIZ 1 HIZ 4 GE Multilin F60 Feeder Protection System 6-31...
Page 486: Product Information
BOOT DATE: MESSAGE Date and time when the boot program was built. 2012/09/15 16:41:32 The shown data is illustrative only. A modification file number of 0 indicates that, currently, no modifications have been installed. 6-32 F60 Feeder Protection System GE Multilin...
Page 487: Commands And
The states of up to 64 virtual inputs are changed here. The first line of the display indicates the ID of the virtual input. The second line indicates the current or selected status of the virtual input. This status will be a state off (logic 0) or on (logic 1). GE Multilin F60 Feeder Protection System...
Page 488: Clear Records
The date and time can be entered on the faceplate keypad. The time setting is based on the 24-hour clock. The complete date, as a minimum, must be entered to allow execution of this command. The new time and date take effect when the ENTER key is pressed. F60 Feeder Protection System GE Multilin...
Page 489: Relay Maintenance
Various self-checking diagnostics are performed in the background while the F60 is running, and diagnostic information is stored on the non-volatile memory from time to time based on the self-checking result. Although the diagnostic information is cleared before the F60 is shipped from the factory, the user may want to clear the diagnostic information for themselves under certain circumstances.
Page 490: Phasor Measurement Unit One-Shot
The high-accuracy high-sampling rate record of the two signals captured by the scope can be processed using digital tools to verify the magnitude and phase angle with respect to the time reference signal. As both the time reference and the mea- F60 Feeder Protection System GE Multilin...
Page 491: Security
Operator Logoff: Selecting ‘Yes’ allows the Supervisor to forcefully logoff an operator session. • Clear Security Data: Selecting ‘Yes’ allows the Supervisor to forcefully clear all the security logs and clears all the operands associated with the self-tests. Targets GE Multilin F60 Feeder Protection System...
Page 492: Targets Menu
 MESSAGE Each F60 element with a TARGET setting has a target message that when activated by its element is displayed in sequence with any other currently active target messages in the menu. In the example shown, the Phase TOC4 TARGETS and Digital Element 48 target settings are active and so have their targets displayed.
Page 493 Contact Factory (xxx) • Latched target message: Yes. • Description of problem: One or more installed hardware modules is not compatible with the F60 order code. • How often the test is performed: Module dependent. • What to do: Contact the factory and supply the failure code noted in the display. The “xxx” text identifies the failed mod- ule (for example, F8L).
Page 494 • What to do: Verify that all the items in the GOOSE data set are supported by the F60. The EnerVista UR Setup soft- ware will list the valid items. An IEC61850 client will also show which nodes are available for the F60.
Page 495 What to do: Check that Ethernet cable(s) are properly connected. Check that configuration for the SNTP server corre- sponds to the actual server settings. Check connectivity to the server (ping the server IP address. GE Multilin F60 Feeder Protection System...
Page 496 TEMP MONITOR: OVER TEMPERATURE • Latched target message: Yes. • Description of problem: The ambient temperature is greater than the maximum operating temperature (+80°C). • How often the test is performed: Every hour. 7-10 F60 Feeder Protection System GE Multilin...
Page 497 7 COMMANDS AND TARGETS 7.1 COMMANDS • What to do: Remove the F60 from service and install in a location that meets operating temperature standards. UNEXPECTED RESTART: Press “RESET” key • Latched target message: Yes. • Description of problem: Abnormal restart from modules being removed or inserted while the F60 is powered-up, when there is an abnormal DC supply, or as a result of internal relay failure.
Page 498 If this message appears, contact the factory and supply the failure code noted in the display. Text in the message identifies the failed module (for example, H81). If operated on a Process Card failure, the Module Fail self-test seals-in (latches) till the UR-series device is restarted. 7-12 F60 Feeder Protection System GE Multilin...
Page 499 Brick output failing to respond to an output command can only be detected while the command is active, and so in this case the target is latched. A latched target can be unlatched by pressing the faceplate reset key if the command has ended, however the output may still be non-functional. GE Multilin F60 Feeder Protection System 7-13...
Page 500 7.1 COMMANDS 7 COMMANDS AND TARGETS 7-14 F60 Feeder Protection System GE Multilin...
Page 501: Theory Of Operation
50 Hz system, it consists of a sum of the 25, 75, 125,..., 625 Hz components. If the Energy Algorithm detects a sudden, sustained increase in one of these component energies, it reports this to the Expert Arc Detector algorithm, resets itself, and continues to monitor for another sudden increase. GE Multilin F60 Feeder Protection System...
Page 502: Randomness Algorithm
F60 Feeder Protection System GE Multilin...
Page 503: Load Analysis Algorithm
The duration over which the algorithm inhibits the setting of the overcurrent flag(s) is from the time the even-harmonic level (as a percentage of RMS) increases above the threshold until one second after it falls back below the threshold. GE Multilin F60 Feeder Protection System...
Page 504: Hi-Z Voltage Supervision Algorithm
If one phase voltage shows a dip, the block is applied for all phases. Also the High Impedance Oscillography will record that a voltage dip was experienced. The Oscillography record is phase specific. F60 Feeder Protection System GE Multilin...
Page 505 Depending on the fault type, appropriate voltage and current signals are selected from the phase quantities before applying the two equations above (the superscripts denote phases, the subscripts denote stations). For AG faults: ⋅ (EQ 8.7) – Apre GE Multilin F60 Feeder Protection System...
Page 506 SYS0 -- - V (EQ 8.14) – – SYS0 -- - V – – SYS0 where Z is the equivalent zero-sequence impedance behind the relay as entered under the fault report setting menu. SYS0 F60 Feeder Protection System GE Multilin...
Page 507: Fault Locator
FAULT TYPE FAULT FAULT LOCATION 3I_0 LOCATOR 1 FAULT# RECLOSE SHOT VA or VAB VB or VBC VC or VCA Vn or V_0 SHOT # FROM 827094A5.CDR AUTO RECLOSURE Figure 8–2: FAULT LOCATOR SCHEME GE Multilin F60 Feeder Protection System...
Page 508 8.2 FAULT LOCATOR 8 THEORY OF OPERATION F60 Feeder Protection System GE Multilin...
Page 509: Commissioning
Injection to a particular F60 frequency element must be to its configured source and to the channels the source uses for fre- quency measurement.
Page 510 1 second from test set time reading of ramp start to relay operation. Note that the F60 event records only show the “pickup delay” component, a definite time timer. This is exclusive of the time taken by the frequency responding component to pickup.
Page 511: Maintenance
The enhanced faceplate can be opened to the left, once the thumb screw has been removed, as shown below. This allows for easy accessibility of the modules for withdrawal. The new wide-angle hinge assembly in the enhanced front panel opens completely and allows easy access to all modules in the F60. 842812A1.CDR Figure 10–1: UR MODULE WITHDRAWAL AND INSERTION (ENHANCED FACEPLATE)
Page 512 The new CT/VT modules can only be used with new CPUs; similarly, old CT/VT modules can only be used with old CPUs. In the event that there is a mismatch between the CPU and CT/VT module, the relay does not function and error displays. NOTE DSP ERROR HARDWARE MISMATCH 10-2 F60 Feeder Protection System GE Multilin...
Page 513: Batteries
10. Reinstall the battery clip and the metal cover, and reinsert the power supply module into the unit. 11. Power on the unit. 12. Dispose of the old battery as outlined in the next section. GE Multilin F60 Feeder Protection System 10-3...
Page 514 22. Reinstall the battery holder and the metal cover, and reinsert the power supply module into the unit. 23. Power on the unit. 24. Dispose of the old battery as outlined in the next section. 10-4 F60 Feeder Protection System GE Multilin...
Page 515: Dispose Of Battery
La batterie est marqué de ce symbole, qui comprennent les indications cadmium (Cd), plomb (Pb), ou mercure (Hg). Pour le recyclage, retourner la batterie à votre fournisseur ou à un point de collecte. Pour plus d'informations, voir: www.recyclethis.info. GE Multilin F60 Feeder Protection System 10-5...
Page 516 Baterija je označena s tem simbolom, ki lahko vključuje napise, ki označujejo kadmij (Cd), svinec (Pb) ali živo srebro (Hg). Za ustrezno recikliranje baterijo vrnite dobavitelju ali jo odstranite na določenem zbirališču. Za več informacij obiščite spletno stran: www.recyclethis.info. 10-6 F60 Feeder Protection System GE Multilin...
Page 517 North America 905-294-6222 Latin America +55 11 3614 1700 Europe, Middle East, Africa +(34) 94 485 88 00 Asia +86-21-2401-3208 India +91 80 41314617 From GE Part Number 1604-0021-A1, GE Publication Number GEK-113574 GE Multilin F60 Feeder Protection System 10-7...
Page 518: Uninstall And Clear Files And Data
Other files can be in standard formats, such as COMTRADE or .csv. You cannot erase directly the flash memory, but all records and settings in that memory can be deleted. Do this using the   command. SETTINGS PRODUCT SETUP CLEAR RELAY RECORDS 10-8 F60 Feeder Protection System GE Multilin...
Page 519: Repairs
Customers are responsible for shipping costs to the factory, regardless of whether the unit is under warranty. • Fax a copy of the shipping information to the GE Grid Solutions service department in Canada at +1 905 927 5098. Use the detailed return procedure outlined at https://www.gegridsolutions.com/multilin/support/ret_proc.htm...
Page 520: Storage
Store the unit indoors in a cool, dry place. If possible, store in the original packaging. Follow the storage temperature range outlined in the Specifications. To avoid deterioration of electrolytic capacitors, power up units that are stored in a de-energized state once per year, for one hour continuously. 10-10 F60 Feeder Protection System GE Multilin...
Page 521: Disposal
European Union, dispose of the battery as outlined earlier. To prevent non-intended use of the unit, remove the modules as outlined earlier, dismantle the unit, and recycle the metal when possible. GE Multilin F60 Feeder Protection System 10-11...
Page 522 10.6 DISPOSAL 10 MAINTENANCE 10-12 F60 Feeder Protection System GE Multilin...
Page 523: Parameter Lists
SRC 1 Ia Mag Amps Source 1 phase A current magnitude 6154 SRC 1 Ia Angle Degrees Source 1 phase A current angle 6155 SRC 1 Ib Mag Amps Source 1 phase B current magnitude GE Multilin F60 Feeder Protection System...
Page 524 SRC 3 Ia Angle Degrees Source 3 phase A current angle 6283 SRC 3 Ib Mag Amps Source 3 phase B current magnitude 6285 SRC 3 Ib Angle Degrees Source 3 phase B current angle F60 Feeder Protection System GE Multilin...
Page 525 SRC 1 Vbg Angle Degrees Source 1 phase BG voltage angle 6668 SRC 1 Vcg Mag Volts Source 1 phase CG voltage magnitude 6670 SRC 1 Vcg Angle Degrees Source 1 phase CG voltage angle GE Multilin F60 Feeder Protection System...
Page 526 SRC 2 V_2 Angle Degrees Source 2 negative-sequence voltage angle 6784 SRC 3 Vag RMS Volts Source 3 phase AG voltage RMS 6786 SRC 3 Vbg RMS Volts Source 3 phase BG voltage RMS F60 Feeder Protection System GE Multilin...
Page 527 Source 4 auxiliary voltage RMS 6880 SRC 4 Vx Mag Volts Source 4 auxiliary voltage magnitude 6882 SRC 4 Vx Angle Degrees Source 4 auxiliary voltage angle 6883 SRC 4 V_0 Mag Volts Source 4 zero-sequence voltage magnitude GE Multilin F60 Feeder Protection System...
Page 528 Source 3 phase B reactive power 7246 SRC 3 Qc Vars Source 3 phase C reactive power 7248 SRC 3 S Source 3 three-phase apparent power 7250 SRC 3 Sa Source 3 phase A apparent power F60 Feeder Protection System GE Multilin...
Page 529 SRC 1 Va Harm[6] Source 1 phase A voltage sixth harmonic 8070 SRC 1 Va Harm[7] Source 1 phase A voltage seventh harmonic 8071 SRC 1 Va Harm[8] Source 1 phase A voltage eighth harmonic GE Multilin F60 Feeder Protection System...
Page 530 SRC 1 Vc Harm[3] Source 1 phase C voltage third harmonic 8117 SRC 1 Vc Harm[4] Source 1 phase C voltage fourth harmonic 8118 SRC 1 Vc Harm[5] Source 1 phase C voltage fifth harmonic F60 Feeder Protection System GE Multilin...
Page 531 SRC 2 Va Harm[25] Source 2 phase A voltage twenty-fifth harmonic 8164 SRC 2 Vb THD Source 2 phase B voltage total harmonic distortion (THD) 8165 SRC 2 Vb Harm2] Source 2 phase B voltage second harmonic GE Multilin F60 Feeder Protection System...
Page 532 SRC 2 Vc Harm[22] Source 2 phase C voltage twenty-second harmonic 8211 SRC 2 Vc Harm[23] Source 2 phase C voltage twenty-third harmonic 8212 SRC 2 Vc Harm[24] Source 2 phase C voltage twenty-fourth harmonic A-10 F60 Feeder Protection System GE Multilin...
Page 533 Volts Fault 1 phase C voltage magnitude 9059 Fault Vc Ang [1] Degrees Fault 1 phase C voltage angle 9060 Fault Type [1] Fault 1 type 9061 Fault Location [1] Fault 1 location GE Multilin F60 Feeder Protection System A-11...
Page 534 SRC 1 Ia Harm[2] Source 1 phase A current second harmonic 10242 SRC 1 Ia Harm[3] Source 1 phase A current third harmonic 10243 SRC 1 Ia Harm[4] Source 1 phase A current fourth harmonic A-12 F60 Feeder Protection System GE Multilin...
Page 535 SRC 1 Ib Harm[24] Source 1 phase B current twenty-fourth harmonic 10297 SRC 1 Ib Harm[25] Source 1 phase B current twenty-fifth harmonic 10306 SRC 1 Ic THD Source 1 phase C current total harmonic distortion GE Multilin F60 Feeder Protection System A-13...
Page 536 SRC 2 Ia Harm[21] Source 2 phase A current twenty-first harmonic 10360 SRC 2 Ia Harm[22] Source 2 phase A current twenty-second harmonic 10361 SRC 2 Ia Harm[23] Source 2 phase A current twenty-third harmonic A-14 F60 Feeder Protection System GE Multilin...
Page 537 SRC 2 Ic Harm[18] Source 2 phase C current eighteenth harmonic 10423 SRC 2 Ic Harm[19] Source 2 phase C current nineteenth harmonic 10424 SRC 2 Ic Harm[20] Source 2 phase C current twentieth harmonic GE Multilin F60 Feeder Protection System A-15...
Page 538 SRC 3 Ib Harm[15] Source 3 phase B current fifteenth harmonic 10486 SRC 3 Ib Harm[16] Source 3 phase B current sixteenth harmonic 10487 SRC 3 Ib Harm[17] Source 3 phase B current seventeenth harmonic A-16 F60 Feeder Protection System GE Multilin...
Page 539 DCmA Ip 10 DCmA input 10 actual value 13524 DCmA Ip 11 DCmA input 11 actual value 13526 DCmA Ip 12 DCmA input 12 actual value 13528 DCmA Ip 13 DCmA input 13 actual value GE Multilin F60 Feeder Protection System A-17...
Page 540 RTD Ip 33 RTD input 33 actual value 13585 RTD Ip 34 RTD input 34 actual value 13586 RTD Ip 35 RTD input 35 actual value 13587 RTD Ip 36 RTD input 36 actual value A-18 F60 Feeder Protection System GE Multilin...
Page 541 45614 GOOSE Analog In 16 IEC 61850 GOOSE analog input 16 45616 GOOSE Analog In 17 IEC 61850 GOOSE analog input 17 45618 GOOSE Analog In 18 IEC 61850 GOOSE analog input 18 GE Multilin F60 Feeder Protection System A-19...
Page 542 HZ Ig Harmonics[13] Volts HIZ Ig harmonics 13 63281 HZ Ig Harmonics[14] Volts HIZ Ig harmonics 14 63282 HZ Ig Harmonics[15] Volts HIZ Ig harmonics 15 63283 HZ Ig Harmonics[16] Volts HIZ Ig harmonics 16 A-20 F60 Feeder Protection System GE Multilin...
Page 543 HZ Ig Harmonics[60] Volts HIZ Ig harmonics 60 63328 HZ Ig Harmonics[61] Volts HIZ Ig harmonics 61 63329 HZ Ig Harmonics[62] Volts HIZ Ig harmonics 62 63330 HZ Ig Harmonics[63] Volts HIZ Ig harmonics 63 GE Multilin F60 Feeder Protection System A-21...
Page 544: Flexinteger Items
IEC61850 GOOSE UInteger input 13 9994 GOOSE UInt Input 14 IEC61850 GOOSE UInteger input 14 9996 GOOSE UInt Input 15 IEC61850 GOOSE UInteger input 15 9998 GOOSE UInt Input 16 IEC61850 GOOSE UInteger input 16 A-22 F60 Feeder Protection System GE Multilin...
Page 545: Modbus Rtu Protocol
(CRC-16) with every packet which is an industry standard method used for error detection. If a Modbus slave device receives a packet in which an error is indicated by the CRC, the slave device does not act upon or respond to the GE Multilin F60 Feeder Protection System...
Page 546: Modbus Rtu Crc-16 Algorithm
This algorithm requires the characteristic polynomial to be reverse bit ordered. The most significant bit of the characteristic polynomial is dropped, since it does not affect the value of the remainder. A C programming language implementation of the CRC algorithm will be provided upon request. F60 Feeder Protection System GE Multilin...
Page 547 No: go to 8; Yes: G (+) A --> A and continue. Is j = 8? No: go to 5; Yes: continue i + 1 --> i Is i = N? No: go to 3; Yes: continue A --> CRC GE Multilin F60 Feeder Protection System...
Page 548: Modbus Function Codes
DATA #1 - low NUMBER OF REGISTERS - low DATA #2 - high CRC - low DATA #2 - low CRC - high DATA #3 - high DATA #3 - low CRC - low CRC - high F60 Feeder Protection System GE Multilin...
Page 549: Execute Operation (Function Code 05H
DATA STARTING ADDRESS - low DATA STARTING ADDRESS - low DATA - high DATA - high DATA - low DATA - low CRC - low CRC - low CRC - high CRC - high GE Multilin F60 Feeder Protection System...
Page 550: Store Multiple Settings (Function Code 10H
PACKET FORMAT EXAMPLE (HEX) SLAVE ADDRESS SLAVE ADDRESS FUNCTION CODE FUNCTION CODE CRC - low order byte ERROR CODE CRC - high order byte CRC - low order byte CRC - high order byte F60 Feeder Protection System GE Multilin...
Page 551: B.3.1 Obtaining Relay Files Via Modbus
Last Cleared Date" to the present date and time. To read binary COMTRADE oscillography files, read the following filenames: OSCnnnn.CFG and OSCnnn.DAT Replace “nnn” with the desired oscillography trigger number. For ASCII format, use the following file names OSCAnnnn.CFG and OSCAnnn.DAT GE Multilin F60 Feeder Protection System...
Page 552: File Transfers
READING FAULT REPORT FILES Fault report data has been available via the F60 file retrieval mechanism since UR firmware version 2.00. The file name is faultReport#####.htm. The ##### refers to the fault report record number. The fault report number is a counter that indicates how many fault reports have ever occurred.
Page 553: Memory Mapping
0 (Off) 040C Virtual Input 13 State 0 to 1 F108 0 (Off) 040D Virtual Input 14 State 0 to 1 F108 0 (Off) 040E Virtual Input 15 State 0 to 1 F108 0 (Off) GE Multilin F60 Feeder Protection System...
Page 554 IEC103 Common ASDU Address 0 to 254 F001 0583 IEC103 Sync Timeout 1 to 1440 F001 IEC 103 Binary Inputs (Read/Write Setting) (96 modules) 0584 IEC103 Binary Input 1 FUN 0 to 255 F001 B-10 F60 Feeder Protection System GE Multilin...
Page 555 ...Repeated for Binary Input 48 0644 ...Repeated for Binary Input 49 0648 ...Repeated for Binary Input 50 064C ...Repeated for Binary Input 51 0650 ...Repeated for Binary Input 52 0654 ...Repeated for Binary Input 53 GE Multilin F60 Feeder Protection System B-11...
Page 556 IEC103 ASDU 1 Analog Param 2 0 to 65535 F600 070C IEC103 ASDU 1 Analog Factor 2 0 to 65.535 0.001 F001 1000 070D IEC103 ASDU 1 Analog Offset 2 -32768 to 32767 F002 B-12 F60 Feeder Protection System GE Multilin...
Page 557 ...Repeated for IEC103 Command 21 07D4 ...Repeated for IEC103 Command 22 07D8 ...Repeated for IEC103 Command 23 07DC ...Repeated for IEC103 Command 24 07E0 ...Repeated for IEC103 Command 25 07E4 ...Repeated for IEC103 Command 26 GE Multilin F60 Feeder Protection System B-13...
Page 558 0 to 3 F605 3 (Bad) 1555 Remote Double-Point Status Input 5 State 0 to 3 F605 3 (Bad) Platform Direct Input/Output States (Read Only) 15C0 Direct Input States (6 items) 0 to 65535 F500 B-14 F60 Feeder Protection System GE Multilin...
Page 559 ...Repeated for Field RTD 2 16C2 ...Repeated for Field RTD 3 16C3 ...Repeated for Field RTD 4 16C4 ...Repeated for Field RTD 5 16C5 ...Repeated for Field RTD 6 16C6 ...Repeated for Field RTD 7 GE Multilin F60 Feeder Protection System B-15...
Page 560 Source 1 Phase BG Voltage Angle -359.9 to 0 degrees F002 1A0C Source 1 Phase CG Voltage Magnitude 0 to 999999.999 0.001 F060 1A0E Source 1 Phase CG Voltage Angle -359.9 to 0 degrees F002 B-16 F60 Feeder Protection System GE Multilin...
Page 561 1C60 ...Repeated for Source 4 Source Energy Metering (Read Only Non-Volatile) (4 modules) 1D00 Source 1 Positive Watthour 0 to 1000000000000 0.001 F060 1D02 Source 1 Negative Watthour 0 to 1000000000000 0.001 F060 GE Multilin F60 Feeder Protection System B-17...
Page 562 ...Repeated for Source 4 Breaker Flashover (Read/Write Setting) (2 modules) 2196 Breaker Flashover 1 Function 0 to 1 F102 0 (Disabled) 2197 Breaker Flashover 1 Side 1 Source 0 to 5 F167 0 (SRC 1) B-18 F60 Feeder Protection System GE Multilin...
Page 563 Hi-Z (High Impedance Fault Detection) Records (Read Only) (4 modules) 2260 Hi-Z Capture 1 Trigger Type 0 to 6 F188 0 (NONE) 2261 Hi-Z Capture 1 Time 0 to 1 F050 2263 ...Repeated for Hi-Z Capture 2 GE Multilin F60 Feeder Protection System B-19...
Page 564 0 to 65535 F001 Field Unit Raw Data Settings (Read/Write Setting) 2460 Field Raw Data Port 0 to 7 F244 6 (H1a) 2461 Field Raw Data Freeze 0 to 1 F102 0 (Disabled) B-20 F60 Feeder Protection System GE Multilin...
Page 565 IEC 61850 GGIO5 uinteger Input 2 Operand F612 26D2 IEC 61850 GGIO5 uinteger Input 3 Operand F612 26D3 IEC 61850 GGIO5 uinteger Input 4 Operand F612 26D4 IEC 61850 GGIO5 uinteger Input 5 Operand F612 GE Multilin F60 Feeder Protection System B-21...
Page 566 Oscillography Number of Triggers 0 to 65535 F001 3001 Oscillography Available Records 0 to 65535 F001 3002 Oscillography Last Cleared Date 0 to 400000000 F050 3004 Oscillography Number Of Cycles Per Record 0 to 65535 F001 B-22 F60 Feeder Protection System GE Multilin...
Page 567 Security (Read/Write Setting) 32BF Operator Alphanumeric Password Setting F202 (none) Security (Read Only) 32C9 Operator Alphanumeric Password Status 0 to 1 F102 0 (Disabled) Security (Read/Write) 32CA Operator Alphanumeric Password Entry F202 (none) GE Multilin F60 Feeder Protection System B-23...
Page 568 -9999.999 to 9999.999 0.001 F004 34D2 DCmA Inputs 10 Value -9999.999 to 9999.999 0.001 F004 34D4 DCmA Inputs 11 Value -9999.999 to 9999.999 0.001 F004 34D6 DCmA Inputs 12 Value -9999.999 to 9999.999 0.001 F004 B-24 F60 Feeder Protection System GE Multilin...
Page 569 -32768 to 32767 °C F002 3516 RTD Input 39 Value -32768 to 32767 °C F002 3517 RTD Input 40 Value -32768 to 32767 °C F002 3518 RTD Input 41 Value -32768 to 32767 °C F002 GE Multilin F60 Feeder Protection System B-25...
Page 570 0 (CC-05) 3808 Field Unit 1 Serial Number 1 to1 F205 "000000000000" 380E Field Unit 1 Port 1 to 4 F001 380F ...Repeated for Field Unit 2 381E ...Repeated for Filed Unit 3 B-26 F60 Feeder Protection System GE Multilin...
Page 571 ...Repeated for Field Contact Input 8 3958 ...Repeated for Field Contact Input9 3963 ...Repeated for Field Contact Input 10 396E ...Repeated for Field Contact Input 11 3979 ...Repeated for Field Contact Input 12 GE Multilin F60 Feeder Protection System B-27...
Page 572 F300 3BC0 Field Output 1 Seal In (6 items) 0 to 4294967295 F300 3BCC Field Output 1 Events (6 items) 0 to 1 F102 1 (Enabled) 3BD2 ...Repeated for Field Contact Output 2 B-28 F60 Feeder Protection System GE Multilin...
Page 573 ...Repeated for Field Unit RTD 4 3F20 ...Repeated for Field Unit RTD 5 3F28 ...Repeated for Field Unit RTD 6 3F30 ...Repeated for Field Unit RTD 7 3F38 ...Repeated for Field Unit RTD 8 GE Multilin F60 Feeder Protection System B-29...
Page 574 LED Test (Read/Write Setting) 4048 LED Test Function 0 to 1 F102 0 (Disabled) 4049 LED Test Control 0 to 4294967295 F300 Preferences (Read/Write Setting) 404F Language 0 to 5 F531 0 (English) B-30 F60 Feeder Protection System GE Multilin...
Page 575 DNP IIN Time Synchronization Bit Period 1 to 10080 F001 1440 40C1 DNP Message Fragment Size 30 to 2048 F001 40C2 DNP Client Address 3 0 to 4294967295 F003 40C4 DNP Client Address 4 0 to 4294967295 F003 GE Multilin F60 Feeder Protection System B-31...
Page 576 Simple Network Time Protocol (SNTP) Server IP Address 0 to 4294967295 F003 416B Simple Network Time Protocol (SNTP) UDP Port Number 1 to 65535 F001 Data Logger Commands (Read/Write Command) 4170 Data Logger Clear 0 to 1 F126 0 (No) B-32 F60 Feeder Protection System GE Multilin...
Page 577 ...Repeated for User-Programmable LED 9 42DB ...Repeated for User-Programmable LED 10 42DE ...Repeated for User-Programmable LED 11 42E1 ...Repeated for User-Programmable LED 12 42E4 ...Repeated for User-Programmable LED 13 42E7 ...Repeated for User-Programmable LED 14 GE Multilin F60 Feeder Protection System B-33...
Page 578 ...Repeated for Route 4 4388 ...Repeated for Route 5 438E ...Repeated for Route 6 Installation (Read/Write Setting) 43E0 Relay Programmed State 0 to 1 F133 0 (Not Programmed) 43E1 Relay Name F202 “Relay-1” B-34 F60 Feeder Protection System GE Multilin...
Page 579 Incipient Cable Fault Detector 1 Function 0 to 1 F102 0 (Disabled) 46B3 Incipient Cable Fault Detector 1 Block 0 to 4294967295 F300 46B5 Incipient Cable Fault Detector 1 Source 0 to 5 F167 0 (SRC 1) GE Multilin F60 Feeder Protection System B-35...
Page 580: Demand
0 to 65535 F001 4C19 Reserved (7 items) F001 4C20 ...Repeated for User-Definable Display 2 4C40 ...Repeated for User-Definable Display 3 4C60 ...Repeated for User-Definable Display 4 4C80 ...Repeated for User-Definable Display 5 B-36 F60 Feeder Protection System GE Multilin...
Page 581 Repeated for Field Unit 3 4E84 Repeated for Field Unit 4 4E80 Repeated for Field Unit 5 4EDC Repeated for Field Unit 6 4F08 Repeated for Field Unit 7 4F34 Repeated for Field Unit 8 GE Multilin F60 Feeder Protection System B-37...
Page 582 ...Repeated for RTD Input 43 575C ...Repeated for RTD Input 44 5770 ...Repeated for RTD Input 45 5784 ...Repeated for RTD Input 46 5798 ...Repeated for RTD Input 47 57AC ...Repeated for RTD Input 48 B-38 F60 Feeder Protection System GE Multilin...
Page 583 ...Repeated for Phase Time Overcurrent 3 593C ...Repeated for Phase Time Overcurrent 4 Phase Instantaneous Overcurrent (Read/Write Grouped Setting) (8 modules) 5A00 Phase Instantaneous Overcurrent 1 Function 0 to 1 F102 0 (Disabled) GE Multilin F60 Feeder Protection System B-39...
Page 584 Ground Time Overcurrent 1 Pickup 0 to 30 0.001 F001 1000 5D04 Ground Time Overcurrent 1 Curve 0 to 16 F103 0 (IEEE Mod Inv) 5D05 Ground Time Overcurrent 1 Multiplier 0 to 600 0.01 F001 B-40 F60 Feeder Protection System GE Multilin...
Page 585 0 to 1 F102 0 (Disabled) 6201 Autoreclose 1 Initiate 0 to 4294967295 F300 6203 Autoreclose 1 Block 0 to 4294967295 F300 6205 Autoreclose 1 Max Number of Shots 1 to 4 F001 GE Multilin F60 Feeder Protection System B-41...
Page 586 Negative Sequence Overvoltage 1 Pickup Delay 0 to 600 0.01 F001 6444 Negative Sequence Overvoltage 1 Reset Delay 0 to 600 0.01 F001 6445 Negative Sequence Overvoltage 1 Block 0 to 4294967295 F300 B-42 F60 Feeder Protection System GE Multilin...
Page 587 0.001 F001 7006 Phase Undervoltage 1 Block 0 to 4294967295 F300 7008 Phase Undervoltage 1 Target 0 to 2 F109 0 (Self-reset) 7009 Phase Undervoltage 1 Events 0 to 1 F102 0 (Disabled) GE Multilin F60 Feeder Protection System B-43...
Page 588 Neg Seq Directional Overcurrent 1 Forward Limit Angle 40 to 90 degrees F001 7265 Neg Sequence Directional Overcurrent 1 Forward Pickup 0.015 to 30 0.005 F001 7266 Neg Seq Directional Overcurrent 1 Reverse Limit Angle 40 to 90 degrees F001 B-44 F60 Feeder Protection System GE Multilin...
Page 589 ...Repeated for Disconnect Switch 10 75D6 ...Repeated for Disconnect Switch 11 75F5 ...Repeated for Disconnect Switch 12 7614 ...Repeated for Disconnect Switch 13 7633 ...Repeated for Disconnect Switch 14 7652 ...Repeated for Disconnect Switch 15 GE Multilin F60 Feeder Protection System B-45...
Page 590 0 to 700 0.01 F003 50000 78BA PMU 1 Auxiliary Voltage Test Angle -180 to 180 ° 0.05 F002 78BB PMU 1 Phase A Current Test Magnitude 0 to 9.999 0.001 F004 1000 B-46 F60 Feeder Protection System GE Multilin...
Page 591 ...Repeated for User Programmable Pushbutton 9 7D10 ...Repeated for User Programmable Pushbutton 10 7D40 ...Repeated for User Programmable Pushbutton 11 7D70 ...Repeated for User Programmable Pushbutton 12 7DA0 ...Repeated for User Programmable Pushbutton 13 GE Multilin F60 Feeder Protection System B-47...
Page 592 0 (SRC 1) 7FA2 Auxiliary Overvoltage 1 Pickup 0 to 3 0.001 F001 7FA3 Auxiliary Overvoltage 1 Pickup Delay 0 to 600 0.01 F001 7FA4 Auxiliary Overvoltage 1 Reset Delay 0 to 600 0.01 F001 B-48 F60 Feeder Protection System GE Multilin...
Page 593 Breaker Failure 1 Use Timer 2 0 to 1 F126 1 (Yes) 860E Breaker Failure 1 Timer 2 Pickup 0 to 65.535 0.001 F001 860F Breaker Failure 1 Use Timer 3 0 to 1 F126 1 (Yes) GE Multilin F60 Feeder Protection System B-49...
Page 594 ...Repeated for Digital Element 17 8B76 ...Repeated for Digital Element 18 8B8C ...Repeated for Digital Element 19 8BA2 ...Repeated for Digital Element 20 8BB8 ...Repeated for Digital Element 21 8BCE ...Repeated for Digital Element 22 B-50 F60 Feeder Protection System GE Multilin...
Page 595 0.1 to 50 F001 900A FlexElement 1 Pickup -90 to 90 0.001 F004 1000 900C FlexElement 1 DeltaT Units 0 to 2 F518 0 (Milliseconds) 900D FlexElement 1 DeltaT 20 to 86400 F003 GE Multilin F60 Feeder Protection System B-51...
Page 596 ...Repeated for DCmA Output 15 93BA ...Repeated for DCmA Output 16 93C0 ...Repeated for DCmA Output 17 93C6 ...Repeated for DCmA Output 18 93CC ...Repeated for DCmA Output 19 93D2 ...Repeated for DCmA Output 20 B-52 F60 Feeder Protection System GE Multilin...
Page 597 ...Repeated for IEC61850 GOOSE uinteger 9 98BB ...Repeated for IEC61850 GOOSE uinteger 10 98BE ...Repeated for IEC61850 GOOSE uinteger 11 98C1 ...Repeated for IEC61850 GOOSE uinteger 12 98C4 ...Repeated for IEC61850 GOOSE uinteger 13 GE Multilin F60 Feeder Protection System B-53...
Page 598 A001 Cold Load Pickup 1 Initiate 0 to 4294967295 F300 A003 Cold Load Pickup 1 Block 0 to 4294967295 F300 A005 Outage Time Before Cold Load Pickup 1 0 to 1000 F001 1000 B-54 F60 Feeder Protection System GE Multilin...
Page 599 Digital Counter 1 Set To Preset 0 to 4294967295 F300 A31D Reserved (11 items) F001 A328 ...Repeated for Digital Counter 2 A350 ...Repeated for Digital Counter 3 A378 ...Repeated for Digital Counter 4 GE Multilin F60 Feeder Protection System B-55...
Page 600 Restricted Ground Fault 1 Source 0 to 5 F167 0 (SRC 1) A962 Restricted Ground Fault 1 Pickup 0.005 to 30 0.001 F001 A963 Restricted Ground Fault 1 Slope 0 to 100 F001 B-56 F60 Feeder Protection System GE Multilin...
Page 601 Operand for IEC 61850 XCBR Close Interlock 0 to 4294967295 F300 AB09 Operand for IEC 61850 XCBR Pos ct1Model 0 to 4 F001 AB0A Operand for IEC 61850 XCBR Pos sboTimeout 2 to 60 F001 GE Multilin F60 Feeder Protection System B-57...
Page 602 ...Repeated for IEC 61850 GGIO4 Analog Input 19 AF95 ...Repeated for IEC 61850 GGIO4 Analog Input 20 AF9C ...Repeated for IEC 61850 GGIO4 Analog Input 21 AFA3 ...Repeated for IEC 61850 GGIO4 Analog Input 22 B-58 F60 Feeder Protection System GE Multilin...
Page 603 IEC 61850 MMXU W.phsC Deadband 1 0.001 to 100 0.001 F003 10000 B0E4 IEC 61850 MMXU VAr.phsA Deadband 1 0.001 to 100 0.001 F003 10000 B0E6 IEC 61850 MMXU VAr.phsB Deadband 1 0.001 to 100 0.001 F003 10000 GE Multilin F60 Feeder Protection System B-59...
Page 604 Wattmetric Ground Fault 1 Voltage 0 to 1 F234 0 (Calculated VN) B303 Wattmetric Ground Fault 1 Overvoltage Pickup 0.02 to 3.00 0.01 F001 B304 Wattmetric Ground Fault 1 Current 0 to 1 F235 0 (Calculated IN) B-60 F60 Feeder Protection System GE Multilin...
Page 605 IEC 61850 Configurable GOOSE VLAN Transmit Priority 0 to 7 F001 B5C6 IEC 61850 Configurable GOOSE VLAN ID 0 to 4095 F001 B5C7 IEC 61850 Configurable GOOSE ETYPE APPID 0 to 16383 F001 GE Multilin F60 Feeder Protection System B-61...
Page 606 ...Repeated for Contact Input 17 BB88 ...Repeated for Contact Input 18 BB90 ...Repeated for Contact Input 19 BB98 ...Repeated for Contact Input 20 BBA0 ...Repeated for Contact Input 21 BBA8 ...Repeated for Contact Input 22 B-62 F60 Feeder Protection System GE Multilin...
Page 607 ...Repeated for Contact Input 71 BD38 ...Repeated for Contact Input 72 BD40 ...Repeated for Contact Input 73 BD48 ...Repeated for Contact Input 74 BD50 ...Repeated for Contact Input 75 BD58 ...Repeated for Contact Input 76 GE Multilin F60 Feeder Protection System B-63...
Page 608 ...Repeated for Virtual Input 22 BF38 ...Repeated for Virtual Input 23 BF44 ...Repeated for Virtual Input 24 BF50 ...Repeated for Virtual Input 25 BF5C ...Repeated for Virtual Input 26 BF68 ...Repeated for Virtual Input 27 B-64 F60 Feeder Protection System GE Multilin...
Page 609 ...Repeated for Virtual Output 9 C178 ...Repeated for Virtual Output 10 C180 ...Repeated for Virtual Output 11 C188 ...Repeated for Virtual Output 12 C190 ...Repeated for Virtual Output 13 C198 ...Repeated for Virtual Output 14 GE Multilin F60 Feeder Protection System B-65...
Page 610 ...Repeated for Virtual Output 63 C328 ...Repeated for Virtual Output 64 C330 ...Repeated for Virtual Output 65 C338 ...Repeated for Virtual Output 66 C340 ...Repeated for Virtual Output 67 C348 ...Repeated for Virtual Output 68 B-66 F60 Feeder Protection System GE Multilin...
Page 611 Clear Hi-Z Records Operand 0 to 4294967295 F300 C46C Clear Unauthorized Access Operand 0 to 4294967295 F300 C470 Clear Platform Direct Input/Output Statistics Operand 0 to 4294967295 F300 C472 Reserved (13 items) F001 GE Multilin F60 Feeder Protection System B-67...
Page 612 Platform Direct I/O Data Rate 64 to 128 kbps F001 C883 Direct I/O Channel 2 Ring Configuration Function 0 to 1 F126 0 (No) C884 Platform Direct I/O Crossover Function 0 to 1 F102 0 (Disabled) B-68 F60 Feeder Protection System GE Multilin...
Page 613 0 to 1 F102 0 (Disabled) Function CAE1 Direct Input/Output Ch 1 Unreturned Messages Alarm Msg 100 to 10000 F001 Count CAE2 Direct Input/Output Ch 1 Unreturned Messages Alarm 1 to 1000 F001 Threshold GE Multilin F60 Feeder Protection System B-69...
Page 614 ...Repeated for Remote Input 12 D018 ...Repeated for Remote Input 13 D022 ...Repeated for Remote Input 14 D02C ...Repeated for Remote Input 15 D036 ...Repeated for Remote Input 16 D040 ...Repeated for Remote Input 17 B-70 F60 Feeder Protection System GE Multilin...
Page 615 Remote Output UserSt Pairs (Read/Write Setting) (32 modules) D2A0 Remote Output UserSt 1 Operand 0 to 4294967295 F300 D2A2 Remote Output UserSt 1 Events 0 to 1 F102 0 (Disabled) D2A3 Reserved 0 to 1 F001 GE Multilin F60 Feeder Protection System B-71...
Page 616 IEC 61850 GGIO2.CF.SPCSO19.ctlModel Value 0 to 2 F001 D333 IEC 61850 GGIO2.CF.SPCSO20.ctlModel Value 0 to 2 F001 D334 IEC 61850 GGIO2.CF.SPCSO21.ctlModel Value 0 to 2 F001 D335 IEC 61850 GGIO2.CF.SPCSO22.ctlModel Value 0 to 2 F001 B-72 F60 Feeder Protection System GE Multilin...
Page 617 ...Repeated for Remote Device 5 D374 ...Repeated for Remote Device 6 D378 ...Repeated for Remote Device 7 D37C ...Repeated for Remote Device 8 D380 ...Repeated for Remote Device 9 D384 ...Repeated for Remote Device 10 GE Multilin F60 Feeder Protection System B-73...
Page 618 ...Repeated for Contact Output 35 D5ED ...Repeated for Contact Output 36 D5FC ...Repeated for Contact Output 37 D60B ...Repeated for Contact Output 38 D61A ...Repeated for Contact Output 39 D629 ...Repeated for Contact Output 40 B-74 F60 Feeder Protection System GE Multilin...
Page 619 ...Repeated for DCmA Inputs 18 D8F6 ...Repeated for DCmA Inputs 19 D909 ...Repeated for DCmA Inputs 20 D91C ...Repeated for DCmA Inputs 21 D92F ...Repeated for DCmA Inputs 22 D942 ...Repeated for DCmA Inputs 23 GE Multilin F60 Feeder Protection System B-75...
Page 620 E8D0 Aggregator 1 Include PMU2 0 to 1 F126 0 (No) E8D1 Aggregator 1 Include PMU3 0 to 1 F126 0 (No) E8D2 Aggregator 1 Include PMU4 0 to 1 F126 0 (No) B-76 F60 Feeder Protection System GE Multilin...
Page 621 PMU 1 Frequency Trigger Block (3 items) 0 to 4294967295 F300 EAF7 PMU 1 Frequency Trigger Target 0 to 2 F109 0 (Self-reset) EAF8 PMU 1 Frequency Trigger Events 0 to 1 F102 0 (Disabled) GE Multilin F60 Feeder Protection System B-77...
Page 622 0 to 4294967295 F050 Settings File Template (Read/Write Setting) ED09 Template Bitmask (750 items) 0 to 65535 F001 Phasor Measurement Unit Records (Read Only) EFFF PMU Recording Number of Triggers 0 to 65535 F001 B-78 F60 Feeder Protection System GE Multilin...
Page 623: Data Formats
F052 0 = Disabled, 1 = Enabled UR_UINT32 TIME in SR format (alternate format for F050) First 16 bits are Hours/Minutes (HH:MM:xx.xxx). Hours: 0=12am, 1=1am,...,12=12pm,...23=11pm. Minutes: 0 to 59 in steps of 1. GE Multilin F60 Feeder Protection System B-79...
Page 624 Neutral Instantaneous Overcurrent 7 0 = None, 1 = Odd, 2 = Even Neutral Instantaneous Overcurrent 8 Neutral Time Overcurrent 1 Neutral Time Overcurrent 2 Neutral Time Overcurrent 3 Neutral Time Overcurrent 4 B-80 F60 Feeder Protection System GE Multilin...
Page 625 FlexElement 6 Power Swing Detect FlexElement 7 Sensitive Directional Power 1 FlexElement 8 Sensitive Directional Power 2 Non-volatile Latch 1 SRC1 VT Fuse Failure Non-volatile Latch 2 SRC2 VT Fuse Failure Non-volatile Latch 3 GE Multilin F60 Feeder Protection System B-81...
Page 626 RTD Input 16 Digital Element 24 RTD Input 17 Digital Element 25 RTD Input 18 Digital Element 26 RTD Input 19 Digital Element 27 RTD Input 20 Digital Element 28 RTD Input 21 B-82 F60 Feeder Protection System GE Multilin...
Page 627 0 = 5 min, 1 = 10 min, 2 = 15 min, 3 = 20 min, 4 = 30 min, Disconnect switch 5 5 = 60 min Disconnect switch 6 Disconnect switch 7 F133 Disconnect switch 8 ENUMERATION: PROGRAM STATE Disconnect switch 9 0 = Not Programmed, 1 = Programmed GE Multilin F60 Feeder Protection System B-83...
Page 628 A bit value of 0 = no error, 1 = error Field RTD Trouble Field TDR Trouble Remote Device Offline F144 Direct Device Offline ENUMERATION: FORCED CONTACT INPUT STATE Maintenance Alert 0 = Disabled, 1 = Open, 2 = Closed Any Minor Error B-84 F60 Feeder Protection System GE Multilin...
Page 629 ENUMERATION: LINE LENGTH UNITS DNA-17 UserSt-20 0 = km, 1 = miles DNA-18 UserSt-21 DNA-19 UserSt-22 DNA-20 UserSt-23 DNA-21 UserSt-24 DNA-22 UserSt-25 DNA-23 UserSt-26 DNA-24 UserSt-27 DNA-25 UserSt-28 DNA-26 UserSt-29 DNA-27 UserSt-30 DNA-28 UserSt-31 GE Multilin F60 Feeder Protection System B-85...
Page 630 GooseIn 10 0 = 100 Ohm Platinum, 1 = 120 Ohm Nickel, GooseIn 11 2 = 100 Ohm Nickel, 3 = 10 Ohm Copper GooseIn 12 GooseIn 13 GooseIn 14 GooseIn 15 GooseIn 16 B-86 F60 Feeder Protection System GE Multilin...
Page 631 User-programmable key 13 0 = None, 1 = SRC 1, 2 = SRC 2, 3 = SRC 3, 4 = SRC 4, Help User-programmable key 14 5 = SRC 5, 6 = SRC 6 GE Multilin F60 Feeder Protection System B-87...
Page 632 MMXU2.MX.PhV.phsB.cVal.ang.f GGIO1.ST.Ind128.stVal MMXU2.MX.PhV.phsC.cVal.mag.f MMXU1.MX.TotW.mag.f MMXU2.MX.PhV.phsC.cVal.ang.f MMXU2.MX.A.phsA.cVal.mag.f MMXU1.MX.TotVAr.mag.f MMXU1.MX.TotVA.mag.f MMXU2.MX.A.phsA.cVal.ang.f MMXU1.MX.TotPF.mag.f MMXU2.MX.A.phsB.cVal.mag.f MMXU1.MX.Hz.mag.f MMXU2.MX.A.phsB.cVal.ang.f MMXU1.MX.PPV.phsAB.cVal.mag.f MMXU2.MX.A.phsC.cVal.mag.f MMXU1.MX.PPV.phsAB.cVal.ang.f MMXU2.MX.A.phsC.cVal.ang.f MMXU1.MX.PPV.phsBC.cVal.mag.f MMXU2.MX.A.neut.cVal.mag.f MMXU1.MX.PPV.phsBC.cVal.ang.f MMXU2.MX.A.neut.cVal.ang.f MMXU1.MX.PPV.phsCA.cVal.mag.f MMXU2.MX.W.phsA.cVal.mag.f MMXU1.MX.PPV.phsCA.cVal.ang.f MMXU2.MX.W.phsB.cVal.mag.f MMXU1.MX.PhV.phsA.cVal.mag.f MMXU2.MX.W.phsC.cVal.mag.f MMXU1.MX.PhV.phsA.cVal.ang.f MMXU2.MX.VAr.phsA.cVal.mag.f MMXU1.MX.PhV.phsB.cVal.mag.f MMXU2.MX.VAr.phsB.cVal.mag.f MMXU1.MX.PhV.phsB.cVal.ang.f MMXU2.MX.VAr.phsC.cVal.mag.f B-88 F60 Feeder Protection System GE Multilin...
Page 633 MMXU5.MX.PPV.phsCA.cVal.mag.f MMXU3.MX.VA.phsA.cVal.mag.f MMXU5.MX.PPV.phsCA.cVal.ang.f MMXU3.MX.VA.phsB.cVal.mag.f MMXU5.MX.PhV.phsA.cVal.mag.f MMXU3.MX.VA.phsC.cVal.mag.f MMXU5.MX.PhV.phsA.cVal.ang.f MMXU3.MX.PF.phsA.cVal.mag.f MMXU5.MX.PhV.phsB.cVal.mag.f MMXU3.MX.PF.phsB.cVal.mag.f MMXU5.MX.PhV.phsB.cVal.ang.f MMXU3.MX.PF.phsC.cVal.mag.f MMXU5.MX.PhV.phsC.cVal.mag.f MMXU4.MX.TotW.mag.f MMXU5.MX.PhV.phsC.cVal.ang.f MMXU4.MX.TotVAr.mag.f MMXU5.MX.A.phsA.cVal.mag.f MMXU4.MX.TotVA.mag.f MMXU5.MX.A.phsA.cVal.ang.f MMXU4.MX.TotPF.mag.f MMXU5.MX.A.phsB.cVal.mag.f MMXU4.MX.Hz.mag.f MMXU5.MX.A.phsB.cVal.ang.f MMXU4.MX.PPV.phsAB.cVal.mag.f MMXU5.MX.A.phsC.cVal.mag.f MMXU4.MX.PPV.phsAB.cVal.ang.f MMXU5.MX.A.phsC.cVal.ang.f MMXU4.MX.PPV.phsBC.cVal.mag.f MMXU5.MX.A.neut.cVal.mag.f MMXU4.MX.PPV.phsBC.cVal.ang.f MMXU5.MX.A.neut.cVal.ang.f MMXU4.MX.PPV.phsCA.cVal.mag.f MMXU5.MX.W.phsA.cVal.mag.f GE Multilin F60 Feeder Protection System B-89...
Page 634 GGIO5.ST.UIntIn5.stVal MMXU6.MX.W.phsB.cVal.mag.f GGIO5.ST.UIntIn6.q MMXU6.MX.W.phsC.cVal.mag.f GGIO5.ST.UIntIn6.stVal MMXU6.MX.VAr.phsA.cVal.mag.f GGIO5.ST.UIntIn7.q MMXU6.MX.VAr.phsB.cVal.mag.f GGIO5.ST.UIntIn7.stVal MMXU6.MX.VAr.phsC.cVal.mag.f GGIO5.ST.UIntIn8.q MMXU6.MX.VA.phsA.cVal.mag.f GGIO5.ST.UIntIn8.stVal MMXU6.MX.VA.phsB.cVal.mag.f GGIO5.ST.UIntIn9.q MMXU6.MX.VA.phsC.cVal.mag.f GGIO5.ST.UIntIn9.stVal MMXU6.MX.PF.phsA.cVal.mag.f GGIO5.ST.UIntIn10.q MMXU6.MX.PF.phsB.cVal.mag.f GGIO5.ST.UIntIn10.stVal MMXU6.MX.PF.phsC.cVal.mag.f GGIO5.ST.UIntIn11.q GGIO4.MX.AnIn1.mag.f GGIO5.ST.UIntIn11.stVal GGIO4.MX.AnIn2.mag.f GGIO5.ST.UIntIn12.q GGIO4.MX.AnIn3.mag.f GGIO5.ST.UIntIn12.stVal GGIO4.MX.AnIn4.mag.f GGIO5.ST.UIntIn13.q GGIO4.MX.AnIn5.mag.f GGIO5.ST.UIntIn13.stVal B-90 F60 Feeder Protection System GE Multilin...
Page 635 ENUMERATION: WATTMETRIC GROUND FAULT VOLTAGE GGIO3.MX.AnIn21.mag.f GGIO3.MX.AnIn22.mag.f Value Voltage GGIO3.MX.AnIn23.mag.f Calculated VN GGIO3.MX.AnIn24.mag.f Measured VX GGIO3.MX.AnIn25.mag.f GGIO3.MX.AnIn26.mag.f F235 GGIO3.MX.AnIn27.mag.f ENUMERATION: WATTMETRIC GROUND FAULT CURRENT GGIO3.MX.AnIn28.mag.f GGIO3.MX.AnIn29.mag.f Value Current GGIO3.MX.AnIn30.mag.f Calculated IN GGIO3.MX.AnIn31.mag.f Measured IG GGIO3.MX.AnIn32.mag.f GE Multilin F60 Feeder Protection System B-91...
Page 636 U1/AC5..7 Saturday U2/AC1..3 U2/AC5..7 U3/AC1..3 F239 ENUMERATION: REAL TIME CLOCK DAYLIGHT SAVINGS U3/AC5..7 TIME START DAY INSTANCE U4/AC1..3 U4/AC5..7 Value Instance U5/AC1..3 First U5/AC5..7 Second U6/AC1..3 Third U6/AC5..7 Fourth U7/AC1..3 Last U7/AC5..7 U8/AC1..3 B-92 F60 Feeder Protection System GE Multilin...
Page 637 [1] On (1) – This is boolean TRUE value [2] CONTACT INPUTS (1 to 96) [3] CONTACT INPUTS OFF (1 to 96) [4] VIRTUAL INPUTS (1 to 32) [6] VIRTUAL OUTPUTS (1 to 64) [8] CONTACT OUTPUTS GE Multilin F60 Feeder Protection System B-93...
Page 638 0 to 15 corresponding to input/output state 33 to 48 (if required). The fourth register indicates input/out- put state with bits 0 to 15 corresponding to input/output state 49 to 64 (if required). B-94 F60 Feeder Protection System GE Multilin...
Page 639 0 = English, 1 = French, 2 = Chinese, 3 = Russian, 4 = Turkish, 5 = F563 German ENUMERATION: DSCP TYPE Enumeration DSCP type F542 None ENUMERATION: PMU TRIGGERING MODE Expedited Forwarding 0 = Automatic Overwrite, 1 = Protected GE Multilin F60 Feeder Protection System B-95...
Page 640 This 16-bit value corresponds to the Modbus address of the PIOC8.ST.Op.general selected FlexInteger parameter. Only certain values can be used as FlexIntegers. There is no operation executed even though they PIOC9.ST.Str.general are called FlexIntegers. PIOC9.ST.Op.general PIOC10.ST.Str.general PIOC10.ST.Op.general B-96 F60 Feeder Protection System GE Multilin...
Page 641 PIOC55.ST.Op.general PIOC29.ST.Op.general PIOC56.ST.Str.general PIOC30.ST.Str.general PIOC56.ST.Op.general PIOC30.ST.Op.general PIOC57.ST.Str.general PIOC31.ST.Str.general PIOC57.ST.Op.general PIOC31.ST.Op.general PIOC58.ST.Str.general PIOC32.ST.Str.general PIOC58.ST.Op.general PIOC32.ST.Op.general PIOC59.ST.Str.general PIOC33.ST.Str.general PIOC59.ST.Op.general PIOC33.ST.Op.general PIOC60.ST.Str.general PIOC34.ST.Str.general PIOC60.ST.Op.general PIOC34.ST.Op.general PIOC61.ST.Str.general PIOC35.ST.Str.general PIOC61.ST.Op.general PIOC35.ST.Op.general PIOC62.ST.Str.general PIOC36.ST.Str.general PIOC62.ST.Op.general PIOC36.ST.Op.general PIOC63.ST.Str.general PIOC37.ST.Str.general PIOC63.ST.Op.general GE Multilin F60 Feeder Protection System B-97...
Page 642 PTRC2.ST.Op.general PTOC10.ST.Op.general PTRC3.ST.Tr.general PTOC11.ST.Str.general PTRC3.ST.Op.general PTOC11.ST.Op.general PTRC4.ST.Tr.general PTOC12.ST.Str.general PTRC4.ST.Op.general PTOC12.ST.Op.general PTRC5.ST.Tr.general PTOC13.ST.Str.general PTRC5.ST.Op.general PTOC13.ST.Op.general PTRC6.ST.Tr.general PTOC14.ST.Str.general PTRC6.ST.Op.general PTOC14.ST.Op.general PTUV1.ST.Str.general PTOC15.ST.Str.general PTUV1.ST.Op.general PTOC15.ST.Op.general PTUV2.ST.Str.general PTOC16.ST.Str.general PTUV2.ST.Op.general PTOC16.ST.Op.general PTUV3.ST.Str.general PTOC17.ST.Str.general PTUV3.ST.Op.general PTOC17.ST.Op.general PTUV4.ST.Str.general PTOC18.ST.Str.general PTUV4.ST.Op.general B-98 F60 Feeder Protection System GE Multilin...
Page 643 CSWI2.ST.Pos.stVal RBRF10.ST.OpIn.general CSWI3.ST.Loc.stVal RBRF11.ST.OpEx.general CSWI3.ST.Pos.stVal RBRF11.ST.OpIn.general CSWI4.ST.Loc.stVal RBRF12.ST.OpEx.general CSWI4.ST.Pos.stVal RBRF12.ST.OpIn.general CSWI5.ST.Loc.stVal RBRF13.ST.OpEx.general CSWI5.ST.Pos.stVal RBRF13.ST.OpIn.general CSWI6.ST.Loc.stVal RBRF14.ST.OpEx.general CSWI6.ST.Pos.stVal RBRF14.ST.OpIn.general CSWI7.ST.Loc.stVal RBRF15.ST.OpEx.general CSWI7.ST.Pos.stVal RBRF15.ST.OpIn.general CSWI8.ST.Loc.stVal RBRF16.ST.OpEx.general CSWI8.ST.Pos.stVal RBRF16.ST.OpIn.general CSWI9.ST.Loc.stVal RBRF17.ST.OpEx.general CSWI9.ST.Pos.stVal RBRF17.ST.OpIn.general CSWI10.ST.Loc.stVal RBRF18.ST.OpEx.general CSWI10.ST.Pos.stVal GE Multilin F60 Feeder Protection System B-99...
Page 644 GGIO1.ST.Ind50.stVal CSWI29.ST.Pos.stVal GGIO1.ST.Ind51.stVal CSWI30.ST.Loc.stVal GGIO1.ST.Ind52.stVal CSWI30.ST.Pos.stVal GGIO1.ST.Ind53.stVal GGIO1.ST.Ind1.stVal GGIO1.ST.Ind54.stVal GGIO1.ST.Ind2.stVal GGIO1.ST.Ind55.stVal GGIO1.ST.Ind3.stVal GGIO1.ST.Ind56.stVal GGIO1.ST.Ind4.stVal GGIO1.ST.Ind57.stVal GGIO1.ST.Ind5.stVal GGIO1.ST.Ind58.stVal GGIO1.ST.Ind6.stVal GGIO1.ST.Ind59.stVal GGIO1.ST.Ind7.stVal GGIO1.ST.Ind60.stVal GGIO1.ST.Ind8.stVal GGIO1.ST.Ind61.stVal GGIO1.ST.Ind9.stVal GGIO1.ST.Ind62.stVal GGIO1.ST.Ind10.stVal GGIO1.ST.Ind63.stVal GGIO1.ST.Ind11.stVal GGIO1.ST.Ind64.stVal GGIO1.ST.Ind12.stVal GGIO1.ST.Ind65.stVal GGIO1.ST.Ind13.stVal GGIO1.ST.Ind66.stVal B-100 F60 Feeder Protection System GE Multilin...
Page 645 MMXU1.MX.W.phsC.cVal.mag.f GGIO1.ST.Ind104.stVal MMXU1.MX.VAr.phsA.cVal.mag.f GGIO1.ST.Ind105.stVal MMXU1.MX.VAr.phsB.cVal.mag.f GGIO1.ST.Ind106.stVal MMXU1.MX.VAr.phsC.cVal.mag.f GGIO1.ST.Ind107.stVal MMXU1.MX.VA.phsA.cVal.mag.f GGIO1.ST.Ind108.stVal MMXU1.MX.VA.phsB.cVal.mag.f GGIO1.ST.Ind109.stVal MMXU1.MX.VA.phsC.cVal.mag.f GGIO1.ST.Ind110.stVal MMXU1.MX.PF.phsA.cVal.mag.f GGIO1.ST.Ind111.stVal MMXU1.MX.PF.phsB.cVal.mag.f GGIO1.ST.Ind112.stVal MMXU1.MX.PF.phsC.cVal.mag.f GGIO1.ST.Ind113.stVal MMXU2.MX.TotW.mag.f GGIO1.ST.Ind114.stVal MMXU2.MX.TotVAr.mag.f GGIO1.ST.Ind115.stVal MMXU2.MX.TotVA.mag.f GGIO1.ST.Ind116.stVal MMXU2.MX.TotPF.mag.f GGIO1.ST.Ind117.stVal MMXU2.MX.Hz.mag.f GGIO1.ST.Ind118.stVal MMXU2.MX.PPV.phsAB.cVal.mag.f GGIO1.ST.Ind119.stVal MMXU2.MX.PPV.phsAB.cVal.ang.f GE Multilin F60 Feeder Protection System B-101...
Page 646 MMXU4.MX.A.phsC.cVal.ang.f MMXU3.MX.PPV.phsBC.cVal.mag.f MMXU4.MX.A.neut.cVal.mag.f MMXU3.MX.PPV.phsBC.cVal.ang.f MMXU4.MX.A.neut.cVal.ang.f MMXU3.MX.PPV.phsCA.cVal.mag.f MMXU4.MX.W.phsA.cVal.mag.f MMXU3.MX.PPV.phsCA.cVal.ang.f MMXU4.MX.W.phsB.cVal.mag.f MMXU3.MX.PhV.phsA.cVal.mag.f MMXU4.MX.W.phsC.cVal.mag.f MMXU3.MX.PhV.phsA.cVal.ang.f MMXU4.MX.VAr.phsA.cVal.mag.f MMXU3.MX.PhV.phsB.cVal.mag.f MMXU4.MX.VAr.phsB.cVal.mag.f MMXU3.MX.PhV.phsB.cVal.ang.f MMXU4.MX.VAr.phsC.cVal.mag.f MMXU3.MX.PhV.phsC.cVal.mag.f MMXU4.MX.VA.phsA.cVal.mag.f MMXU3.MX.PhV.phsC.cVal.ang.f MMXU4.MX.VA.phsB.cVal.mag.f MMXU3.MX.A.phsA.cVal.mag.f MMXU4.MX.VA.phsC.cVal.mag.f MMXU3.MX.A.phsA.cVal.ang.f MMXU4.MX.PF.phsA.cVal.mag.f MMXU3.MX.A.phsB.cVal.mag.f MMXU4.MX.PF.phsB.cVal.mag.f MMXU3.MX.A.phsB.cVal.ang.f MMXU4.MX.PF.phsC.cVal.mag.f MMXU3.MX.A.phsC.cVal.mag.f MMXU5.MX.TotW.mag.f MMXU3.MX.A.phsC.cVal.ang.f MMXU5.MX.TotVAr.mag.f B-102 F60 Feeder Protection System GE Multilin...
Page 647 GGIO4.MX.AnIn18.mag.f MMXU6.MX.TotVA.mag.f GGIO4.MX.AnIn19.mag.f MMXU6.MX.TotPF.mag.f GGIO4.MX.AnIn20.mag.f MMXU6.MX.Hz.mag.f GGIO4.MX.AnIn21.mag.f MMXU6.MX.PPV.phsAB.cVal.mag.f GGIO4.MX.AnIn22.mag.f MMXU6.MX.PPV.phsAB.cVal.ang.f GGIO4.MX.AnIn23.mag.f MMXU6.MX.PPV.phsBC.cVal.mag.f GGIO4.MX.AnIn24.mag.f MMXU6.MX.PPV.phsBC.cVal.ang.f GGIO4.MX.AnIn25.mag.f MMXU6.MX.PPV.phsCA.cVal.mag.f GGIO4.MX.AnIn26.mag.f MMXU6.MX.PPV.phsCA.cVal.ang.f GGIO4.MX.AnIn27.mag.f MMXU6.MX.PhV.phsA.cVal.mag.f GGIO4.MX.AnIn28.mag.f MMXU6.MX.PhV.phsA.cVal.ang.f GGIO4.MX.AnIn29.mag.f MMXU6.MX.PhV.phsB.cVal.mag.f GGIO4.MX.AnIn30.mag.f MMXU6.MX.PhV.phsB.cVal.ang.f GGIO4.MX.AnIn31.mag.f MMXU6.MX.PhV.phsC.cVal.mag.f GGIO4.MX.AnIn32.mag.f MMXU6.MX.PhV.phsC.cVal.ang.f XSWI1.ST.Loc.stVal MMXU6.MX.A.phsA.cVal.mag.f XSWI1.ST.Pos.stVal GE Multilin F60 Feeder Protection System B-103...
Page 648 XSWI20.ST.Loc.stVal GGIO1.ST.Ind14.q XSWI20.ST.Pos.stVal GGIO1.ST.Ind14.stVal XSWI21.ST.Loc.stVal GGIO1.ST.Ind15.q XSWI21.ST.Pos.stVal GGIO1.ST.Ind15.stVal XSWI22.ST.Loc.stVal GGIO1.ST.Ind16.q XSWI22.ST.Pos.stVal GGIO1.ST.Ind16.stVal XSWI23.ST.Loc.stVal GGIO1.ST.Ind17.q XSWI23.ST.Pos.stVal GGIO1.ST.Ind17.stVal XSWI24.ST.Loc.stVal GGIO1.ST.Ind18.q XSWI24.ST.Pos.stVal GGIO1.ST.Ind18.stVal XCBR1.ST.Loc.stVal GGIO1.ST.Ind19.q XCBR1.ST.Pos.stVal GGIO1.ST.Ind19.stVal XCBR2.ST.Loc.stVal GGIO1.ST.Ind20.q XCBR2.ST.Pos.stVal GGIO1.ST.Ind20.stVal XCBR3.ST.Loc.stVal GGIO1.ST.Ind21.q XCBR3.ST.Pos.stVal GGIO1.ST.Ind21.stVal XCBR4.ST.Loc.stVal B-104 F60 Feeder Protection System GE Multilin...
Page 649 GGIO1.ST.Ind66.stVal GGIO1.ST.Ind40.stVal GGIO1.ST.Ind67.q GGIO1.ST.Ind41.q GGIO1.ST.Ind67.stVal GGIO1.ST.Ind41.stVal GGIO1.ST.Ind68.q GGIO1.ST.Ind42.q GGIO1.ST.Ind68.stVal GGIO1.ST.Ind42.stVal GGIO1.ST.Ind69.q GGIO1.ST.Ind43.q GGIO1.ST.Ind69.stVal GGIO1.ST.Ind43.stVal GGIO1.ST.Ind70.q GGIO1.ST.Ind44.q GGIO1.ST.Ind70.stVal GGIO1.ST.Ind44.stVal GGIO1.ST.Ind71.q GGIO1.ST.Ind45.q GGIO1.ST.Ind71.stVal GGIO1.ST.Ind45.stVal GGIO1.ST.Ind72.q GGIO1.ST.Ind46.q GGIO1.ST.Ind72.stVal GGIO1.ST.Ind46.stVal GGIO1.ST.Ind73.q GGIO1.ST.Ind47.q GGIO1.ST.Ind73.stVal GGIO1.ST.Ind47.stVal GGIO1.ST.Ind74.q GGIO1.ST.Ind48.q GGIO1.ST.Ind74.stVal GE Multilin F60 Feeder Protection System B-105...
Page 650 GGIO1.ST.Ind119.stVal GGIO1.ST.Ind93.stVal GGIO1.ST.Ind120.q GGIO1.ST.Ind94.q GGIO1.ST.Ind120.stVal GGIO1.ST.Ind94.stVal GGIO1.ST.Ind121.q GGIO1.ST.Ind95.q GGIO1.ST.Ind121.stVal GGIO1.ST.Ind95.stVal GGIO1.ST.Ind122.q GGIO1.ST.Ind96.q GGIO1.ST.Ind122.stVal GGIO1.ST.Ind96.stVal GGIO1.ST.Ind123.q GGIO1.ST.Ind97.q GGIO1.ST.Ind123.stVal GGIO1.ST.Ind97.stVal GGIO1.ST.Ind124.q GGIO1.ST.Ind98.q GGIO1.ST.Ind124.stVal GGIO1.ST.Ind98.stVal GGIO1.ST.Ind125.q GGIO1.ST.Ind99.q GGIO1.ST.Ind125.stVal GGIO1.ST.Ind99.stVal GGIO1.ST.Ind126.q GGIO1.ST.Ind100.q GGIO1.ST.Ind126.stVal GGIO1.ST.Ind100.stVal GGIO1.ST.Ind127.q GGIO1.ST.Ind101.q GGIO1.ST.Ind127.stVal B-106 F60 Feeder Protection System GE Multilin...
Page 651 MMXU3.MX.PhV.phsB.cVal.mag.f MMXU1.MX.PF.phsB.cVal.mag.f MMXU3.MX.PhV.phsB.cVal.ang.f MMXU1.MX.PF.phsC.cVal.mag.f MMXU3.MX.PhV.phsC.cVal.mag.f MMXU2.MX.TotW.mag.f MMXU3.MX.PhV.phsC.cVal.ang.f MMXU2.MX.TotVAr.mag.f MMXU3.MX.A.phsA.cVal.mag.f MMXU2.MX.TotVA.mag.f MMXU3.MX.A.phsA.cVal.ang.f MMXU2.MX.TotPF.mag.f MMXU3.MX.A.phsB.cVal.mag.f MMXU2.MX.Hz.mag.f MMXU3.MX.A.phsB.cVal.ang.f MMXU2.MX.PPV.phsAB.cVal.mag.f MMXU3.MX.A.phsC.cVal.mag.f MMXU2.MX.PPV.phsAB.cVal.ang.f MMXU3.MX.A.phsC.cVal.ang.f MMXU2.MX.PPV.phsBC.cVal.mag.f MMXU3.MX.A.neut.cVal.mag.f MMXU2.MX.PPV.phsBC.cVal.ang.f MMXU3.MX.A.neut.cVal.ang.f MMXU2.MX.PPV.phsCA.cVal.mag.f MMXU3.MX.W.phsA.cVal.mag.f MMXU2.MX.PPV.phsCA.cVal.ang.f MMXU3.MX.W.phsB.cVal.mag.f MMXU2.MX.PhV.phsA.cVal.mag.f MMXU3.MX.W.phsC.cVal.mag.f MMXU2.MX.PhV.phsA.cVal.ang.f MMXU3.MX.VAr.phsA.cVal.mag.f MMXU2.MX.PhV.phsB.cVal.mag.f MMXU3.MX.VAr.phsB.cVal.mag.f GE Multilin F60 Feeder Protection System B-107...
Page 652 MMXU6.MX.PPV.phsBC.cVal.ang.f MMXU4.MX.VAr.phsC.cVal.mag.f MMXU6.MX.PPV.phsCA.cVal.mag.f MMXU4.MX.VA.phsA.cVal.mag.f MMXU6.MX.PPV.phsCA.cVal.ang.f MMXU4.MX.VA.phsB.cVal.mag.f MMXU6.MX.PhV.phsA.cVal.mag.f MMXU4.MX.VA.phsC.cVal.mag.f MMXU6.MX.PhV.phsA.cVal.ang.f MMXU4.MX.PF.phsA.cVal.mag.f MMXU6.MX.PhV.phsB.cVal.mag.f MMXU4.MX.PF.phsB.cVal.mag.f MMXU6.MX.PhV.phsB.cVal.ang.f MMXU4.MX.PF.phsC.cVal.mag.f MMXU6.MX.PhV.phsC.cVal.mag.f MMXU5.MX.TotW.mag.f MMXU6.MX.PhV.phsC.cVal.ang.f MMXU5.MX.TotVAr.mag.f MMXU6.MX.A.phsA.cVal.mag.f MMXU5.MX.TotVA.mag.f MMXU6.MX.A.phsA.cVal.ang.f MMXU5.MX.TotPF.mag.f MMXU6.MX.A.phsB.cVal.mag.f MMXU5.MX.Hz.mag.f MMXU6.MX.A.phsB.cVal.ang.f MMXU5.MX.PPV.phsAB.cVal.mag.f MMXU6.MX.A.phsC.cVal.mag.f MMXU5.MX.PPV.phsAB.cVal.ang.f MMXU6.MX.A.phsC.cVal.ang.f MMXU5.MX.PPV.phsBC.cVal.mag.f MMXU6.MX.A.neut.cVal.mag.f MMXU5.MX.PPV.phsBC.cVal.ang.f MMXU6.MX.A.neut.cVal.ang.f B-108 F60 Feeder Protection System GE Multilin...
Page 653 PDIS3.ST.Op.general GGIO4.MX.AnIn26.mag.f PDIS4.ST.Str.general GGIO4.MX.AnIn27.mag.f PDIS4.ST.Op.general GGIO4.MX.AnIn28.mag.f PDIS5.ST.Str.general GGIO4.MX.AnIn29.mag.f PDIS5.ST.Op.general GGIO4.MX.AnIn30.mag.f PDIS6.ST.Str.general GGIO4.MX.AnIn31.mag.f PDIS6.ST.Op.general GGIO4.MX.AnIn32.mag.f PDIS7.ST.Str.general GGIO5.ST.UIntIn1.q PDIS7.ST.Op.general GGIO5.ST.UIntIn1.stVal PDIS8.ST.Str.general GGIO5.ST.UIntIn2.q PDIS8.ST.Op.general GGIO5.ST.UIntIn2.stVal PDIS9.ST.Str.general GGIO5.ST.UIntIn3.q PDIS9.ST.Op.general GGIO5.ST.UIntIn3.stVal PDIS10.ST.Str.general GGIO5.ST.UIntIn4.q PDIS10.ST.Op.general GGIO5.ST.UIntIn4.stVal PIOC1.ST.Str.general GGIO5.ST.UIntIn5.q PIOC1.ST.Op.general GE Multilin F60 Feeder Protection System B-109...
Page 654 PIOC46.ST.Op.general PIOC20.ST.Op.general PIOC47.ST.Str.general PIOC21.ST.Str.general PIOC47.ST.Op.general PIOC21.ST.Op.general PIOC48.ST.Str.general PIOC22.ST.Str.general PIOC48.ST.Op.general PIOC22.ST.Op.general PIOC49.ST.Str.general PIOC23.ST.Str.general PIOC49.ST.Op.general PIOC23.ST.Op.general PIOC50.ST.Str.general PIOC24.ST.Str.general PIOC50.ST.Op.general PIOC24.ST.Op.general PIOC51.ST.Str.general PIOC25.ST.Str.general PIOC51.ST.Op.general PIOC25.ST.Op.general PIOC52.ST.Str.general PIOC26.ST.Str.general PIOC52.ST.Op.general PIOC26.ST.Op.general PIOC53.ST.Str.general PIOC27.ST.Str.general PIOC53.ST.Op.general PIOC27.ST.Op.general PIOC54.ST.Str.general PIOC28.ST.Str.general PIOC54.ST.Op.general B-110 F60 Feeder Protection System GE Multilin...
Page 655 PTOV3.ST.Op.general PTOC1.ST.Op.general PTOV4.ST.Str.general PTOC2.ST.Str.general PTOV4.ST.Op.general PTOC2.ST.Op.general PTOV5.ST.Str.general PTOC3.ST.Str.general PTOV5.ST.Op.general PTOC3.ST.Op.general PTOV6.ST.Str.general PTOC4.ST.Str.general PTOV6.ST.Op.general PTOC4.ST.Op.general PTOV7.ST.Str.general PTOC5.ST.Str.general PTOV7.ST.Op.general PTOC5.ST.Op.general PTOV8.ST.Str.general PTOC6.ST.Str.general PTOV8.ST.Op.general PTOC6.ST.Op.general PTOV9.ST.Str.general PTOC7.ST.Str.general PTOV9.ST.Op.general PTOC7.ST.Op.general PTOV10.ST.Str.general PTOC8.ST.Str.general PTOV10.ST.Op.general PTOC8.ST.Op.general PTRC1.ST.Tr.general PTOC9.ST.Str.general PTRC1.ST.Op.general GE Multilin F60 Feeder Protection System B-111...
Page 656 RPSB1.ST.Str.general RBRF1.ST.OpIn.general RPSB1.ST.Op.general RBRF2.ST.OpEx.general RPSB1.ST.BlkZn.stVal RBRF2.ST.OpIn.general RREC1.ST.Op.general RBRF3.ST.OpEx.general RREC1.ST.AutoRecSt.stVal RBRF3.ST.OpIn.general RREC2.ST.Op.general RBRF4.ST.OpEx.general RREC2.ST.AutoRecSt.stVal RBRF4.ST.OpIn.general RREC3.ST.Op.general RBRF5.ST.OpEx.general RREC3.ST.AutoRecSt.stVal RBRF5.ST.OpIn.general RREC4.ST.Op.general RBRF6.ST.OpEx.general RREC4.ST.AutoRecSt.stVal RBRF6.ST.OpIn.general RREC5.ST.Op.general RBRF7.ST.OpEx.general RREC5.ST.AutoRecSt.stVal RBRF7.ST.OpIn.general RREC6.ST.Op.general RBRF8.ST.OpEx.general RREC6.ST.AutoRecSt.stVal RBRF8.ST.OpIn.general CSWI1.ST.Loc.stVal RBRF9.ST.OpEx.general CSWI1.ST.Pos.stVal B-112 F60 Feeder Protection System GE Multilin...
Page 657 XSWI16.ST.Pos.stVal CSWI20.ST.Pos.stVal XSWI17.ST.Loc.stVal CSWI21.ST.Loc.stVal XSWI17.ST.Pos.stVal CSWI21.ST.Pos.stVal XSWI18.ST.Loc.stVal CSWI22.ST.Loc.stVal XSWI18.ST.Pos.stVal CSWI22.ST.Pos.stVal XSWI19.ST.Loc.stVal CSWI23.ST.Loc.stVal XSWI19.ST.Pos.stVal CSWI23.ST.Pos.stVal XSWI20.ST.Loc.stVal CSWI24.ST.Loc.stVal XSWI20.ST.Pos.stVal CSWI24.ST.Pos.stVal XSWI21.ST.Loc.stVal CSWI25.ST.Loc.stVal XSWI21.ST.Pos.stVal CSWI25.ST.Pos.stVal XSWI22.ST.Loc.stVal CSWI26.ST.Loc.stVal XSWI22.ST.Pos.stVal CSWI26.ST.Pos.stVal XSWI23.ST.Loc.stVal CSWI27.ST.Loc.stVal XSWI23.ST.Pos.stVal CSWI27.ST.Pos.stVal XSWI24.ST.Loc.stVal CSWI28.ST.Loc.stVal XSWI24.ST.Pos.stVal GE Multilin F60 Feeder Protection System B-113...
Page 658 Network Port 3 Enumeration Role None F627 ENUMERATION: REDUNDANCY MODE Administrator Supervisor Enumeration Item Engineer None Operator Failover Observer F628 ENUMERATION: SECURITY BYPASS ACCESS Disables security on local access, remote access, or both. B-114 F60 Feeder Protection System GE Multilin...
Page 659 Virtual Input 3 ENUMERATION: SCADA PROTOCOL ↓ ↓ 0 = DNP 3.0, 1 = IEC 60870-5-104, 2 = IEC 60870-5-103 Virtual Input 64 F630 ENUMERATION: IEC 103 ASDU TYPE 0 = 3, 1 = 9 GE Multilin F60 Feeder Protection System B-115...
Page 660 B.4 MEMORY MAPPING APPENDIX B B-116 F60 Feeder Protection System GE Multilin...
Page 661: Iec 61850
LAN environment. Actual MMS protocol services are mapped to IEC 61850 abstract ser- vices in IEC 61850-8-1. The F60 relay supports IEC 61850 server services over TCP/IP. The TCP/IP profile requires the F60 to have an IP address to establish communications. These addresses are located in the ...
Page 662: File Transfer By Iec 61850
APPENDIX C C.1.3 FILE TRANSFER BY IEC 61850 The F60 supports file transfer by IEC 61850. The approach is as follows, using the SISCO AX-S4 61850 client software as an example. In the AX-S4 61850 Explorer window, click the Tools menu and access the SISCO File Transfer Utility.
Page 663: Server Data Organization
C.2.2 GGIO1: DIGITAL STATUS VALUES The GGIO1 logical node is available in the F60 to provide access to as many 128 digital status points and associated time- stamps and quality flags. The data content must be configured before the data can be used. GGIO1 provides digital status points for access by clients.
Page 664: Mmxu: Analog Measured Values
A limited number of measured analog values are available through the MMXU logical nodes. Each MMXU logical node provides data from a F60 current and voltage source. There is one MMXU available for each con- figurable source (programmed in the ...
Page 665 The protection elements listed above contain start (pickup) and operate flags. For example, the start flag for PIOC1 is PIOC1.ST.Str.general. The operate flag for PIOC1 is PIOC1.ST.Op.general. For the F60 protection elements, these flags take their values from the pickup and operate FlexLogic operands for the corresponding element.
Page 666: Server Features And Configuration
C.3.4 LOGICAL DEVICE NAME The logical device name is used to identify the IEC 61850 logical device that exists within the F60. This name is composed of two parts: the IED name setting and the logical device instance. The complete logical device name is the combination of the two character strings programmed in the settings.
Page 667: Logical Node Name Prefixes
A built-in TCP/IP connection timeout of two minutes is employed by the F60 to detect ‘dead’ connections. If there is no data traffic on a TCP connection for greater than two minutes, the connection will be aborted by the F60. This frees up the con- nection to be used by other clients.
Page 668: Generic Substation Event Services: Gsse And Goose
MAC address for GSSE messages. If GSSE DESTINATION MAC ADDRESS a valid multicast Ethernet MAC address is not entered (for example, 00 00 00 00 00 00), the F60 will use the source Ether- net MAC address as the destination, with the multicast bit set.
Page 669 The F60 has the ability of detecting if a data item in one of the GOOSE datasets is erroneously oscillating. This can be caused by events such as errors in logic programming, inputs improperly being asserted and de-asserted, or failed station components.
Page 670 REMOTE IN 1 ITEM item to remote input 1. Remote input 1 can now be used in FlexLogic equations or other settings. The F60 must be rebooted (control power removed and re-applied) before these settings take effect. The value of remote input 1 (Boolean on or off) in the receiving device will be determined by the GGIO1.ST.Ind1.stVal value in the sending device.
Page 671: C.4.5 Ethernet Mac Address For Gsse/Goose
GSSE and GOOSE messages must have multicast destination MAC addresses. By default, the F60 is configured to use an automated multicast MAC scheme. If the F60 destination MAC address setting is not a valid multicast address (that is, the least significant bit of the first byte is not set), the address used as the destina- tion MAC will be the same as the local MAC address, but with the multicast bit set.
Page 672: C.5.1 Overview
The F60 can be configured for IEC 61850 via the EnerVista UR Setup software as follows. An ICD file is generated for the F60 by the EnerVista UR Setup software that describe the capabilities of the IED. The ICD file is then imported into a system configurator along with other ICD files for other IEDs (from GE or other ven- dors) for system configuration.
Page 673: C.5.2 Configuring Iec 61850 Settings
Transmission GOOSE dataset may be added or deleted, or prefixes of some logical nodes may be changed. While all new configurations will be mapped to the F60 settings file when importing an SCD file, all unchanged settings will preserve the same values in the new settings file.
Page 674: C.5.3 About Icd Files
The SCL language is based on XML, and its syntax definition is described as a W3C XML Schema. ICD is one type of SCL file (which also includes SSD, CID and SCD files). The ICD file describes the capabilities of an IED and consists of four major sections: • Header • Communication • IEDs • DataTypeTemplates C-14 F60 Feeder Protection System GE Multilin...
Page 675 Furthermore, it defines the capabilities of an IED in terms of communication services offered and, together with its LNType, instantiated data (DO) and its default or configuration values. There should be only one IED section in an ICD since it only describes one IED. GE Multilin F60 Feeder Protection System C-15...
Page 676 RptEnabled Other ReportControl elements DOI (name) SDI (name) DAI (name) Text Other DOI elements SDI (name) DAI (name) Text Other LN elements Other LDevice elements 842797A1.CDR Figure C–4: ICD FILE STRUCTURE, IED NODE C-16 F60 Feeder Protection System GE Multilin...
Page 677 BDA (name, bType, type) Other BDA elements Other BDA elements Other DAType elements Other DAType elements EnumType (id) Text EnumVal (ord) Other EnumVal elements Other EnumType elements 842798A1.CDR Figure C–5: ICD FILE STRUCTURE, DATATYPETEMPLATES NODE GE Multilin F60 Feeder Protection System C-17...
Page 678: C.5.4 Creating An Icd File With Enervista Ur Setup
The EnerVista UR Setup will prompt to save the file. Select the file path and enter the name for the ICD file, then click OK to generate the file. The time to create an ICD file from the offline F60 settings file is typically much quicker than create an ICD file directly from the relay.
Page 679 Like ICD files, the Header node identifies the SCD file and its version, and specifies options for the mapping of names to signals. The Substation node describes the substation parameters: Substation PowerSystemResource EquipmentContainer Power Transformer GeneralEquipment EquipmentContainer VoltageLevel Voltage PowerSystemResource Function SubFunction GeneralEquipment 842792A1.CDR Figure C–7: SCD FILE STRUCTURE, SUBSTATION NODE GE Multilin F60 Feeder Protection System C-19...
Page 680 IdInst is the instance identification of the logical device within the IED on which the control block is located, and cbName is the name of the control block. C-20 F60 Feeder Protection System GE Multilin...
Page 681: C.5.6 Importing An Scd File With Enervista Ur Setup
Figure C–9: SCD FILE STRUCTURE, IED NODE C.5.6 IMPORTING AN SCD FILE WITH ENERVISTA UR SETUP The following procedure describes how to update the F60 with the new configuration from an SCD file with the EnerVista UR Setup software. Right-click anywhere in the files panel and select the Import Contents From SCD File item.
Page 682 File to Device item. The software will prompt for the target device. Select the target device from the list provided and click Send. The new settings will be updated to the selected device. C-22 F60 Feeder Protection System GE Multilin...
Page 683: C.6.1 Acsi Basic Conformance Statement
Setting group control REPORTING Buffered report control M7-1 sequence-number M7-2 report-time-stamp M7-3 reason-for-inclusion M7-4 data-set-name M7-5 data-reference M7-6 buffer-overflow M7-7 entryID M7-8 BufTm M7-9 IntgPd M7-10 Unbuffered report control M8-1 sequence-number M8-2 report-time-stamp M8-3 reason-for-inclusion GE Multilin F60 Feeder Protection System C-23...
Page 684: C.6.3 Acsi Services Conformance Statement
SERVER/ UR FAMILY PUBLISHER SERVER (CLAUSE 7) ServerDirectory APPLICATION ASSOCIATION (CLAUSE 8) Associate Abort Release LOGICAL DEVICE (CLAUSE 9) LogicalDeviceDirectory LOGICAL NODE (CLAUSE 10) LogicalNodeDirectory GetAllDataValues DATA (CLAUSE 11) GetDataValues SetDataValues GetDataDirectory GetDataDefinition C-24 F60 Feeder Protection System GE Multilin...
Page 685 LOGGING (CLAUSE 17) LOG CONTROL BLOCK GetLCBValues SetLCBValues QueryLogByTime QueryLogByEntry GetLogStatusValues GENERIC SUBSTATION EVENT MODEL (GSE) (CLAUSE 18, ANNEX C) GOOSE-CONTROL-BLOCK (CLAUSE 18) SendGOOSEMessage GetReference GetGOOSEElementNumber GetGoCBValues SetGoCBValues GSSE-CONTROL-BLOCK (ANNEX C) SendGSSEMessage GetReference GetGSSEElementNumber GetGsCBValues GE Multilin F60 Feeder Protection System C-25...
Page 686 (QueryLogByTime or QueryLogAfter) c8: shall declare support for at least one (SendGOOSEMessage or SendGSSEMessage) NOTE c9: shall declare support if TP association is available c10: shall declare support for at least one (SendMSVMessage or SendUSVMessage) C-26 F60 Feeder Protection System GE Multilin...
Page 687: C.7.1 Logical Nodes Table
GGIO: Generic process I/O GLOG: Generic log GSAL: Generic security application I: LOGICAL NODES FOR INTERFACING AND ARCHIVING IARC: Archiving IHMI: Human machine interface ISAF: Safety alarm function ITCI: Telecontrol interface ITMI: Telemonitoring interface GE Multilin F60 Feeder Protection System C-27...
Page 688 PRTR: Rotor protection PSCH: Protection scheme PSDE: Sensitive directional earth fault PTEF: Transient earth fault PTOC: Time overcurrent PTOF: Overfrequency PTOV: Overvoltage PTRC: Protection trip conditioning PTTR: Thermal overload PTUC: Undercurrent PTUF: Underfrequency PTUV: Undervoltage C-28 F60 Feeder Protection System GE Multilin...
Page 689 T: LOGICAL NODES FOR INSTRUMENT TRANSFORMERS TANG: Angle TAXD: Axial displacement TCTR: Current transformer TDST: Distance TFLW: Liquid flow TFRQ: Frequency TGSN: Generic sensor THUM: Humidity TLVL: Media level TMGF: Magnetic field TMVM: Movement sensor GE Multilin F60 Feeder Protection System C-29...
Page 690 ZLIN: Power overhead line ZMOT: Motor ZREA: Reactor ZRES: Resistor ZRRC: Rotating reactive component ZSAR: Surge arrestor ZSCR: Semi-conductor controlled rectifier ZSMC: Synchronous machine ZTCF: Thyristor controlled frequency converter ZTRC: Thyristor controlled reactive component C-30 F60 Feeder Protection System GE Multilin...
Page 691: Factor And Offset Calculation To Transmit Measurand
Xt = (8191/Xmax) * X - 4096 a = 2 * 4096/Xmax b = -4096 To calculate Xmax, one needs to know the rated value for the specific type of measurand. Xmax = 2.4 * Xrated GE Multilin F60 Feeder Protection System...
Page 692: Interoperability Document
 <5> Power on Status indications in monitor direction INF Semantics  <16> Auto-recloser active  <17> Teleprotection active  <18> Protection active  <19> LED reset  <20> Monitor direction blocked  <21> Test mode F60 Feeder Protection System GE Multilin...
Page 693  <67> Start/pick-up N  <68> General trip  <69> Trip L  <70> Trip L  <71> Trip L  <72> Trip I>> (back-up operation)  <73> Fault location X in ohms  <74> Fault forward/line GE Multilin F60 Feeder Protection System...
Page 694  <243> Read directory of a single entry  <244> Read value or attribute of a single entry  <245> End of general interrogation of generic data  <249> Write entry with confirmation  <250> Write entry with execution F60 Feeder Protection System GE Multilin...
Page 695  Generic services  Private data Miscellaneous MEASURAND MAX MVAL = TIMES RATED VALUE Current L   Current L   Current L   Voltage L   Voltage L   GE Multilin F60 Feeder Protection System...
Page 696 D.1 IEC 60870-5-103 APPENDIX D MEASURAND MAX MVAL = TIMES RATED VALUE Voltage L   Active power P   Reactive power Q   Frequency f   Voltage L   F60 Feeder Protection System GE Multilin...
Page 697: Interoperability Document
Balanced Transmission Not Present (Balanced Transmission Only)   Unbalanced Transmission One Octet  Two Octets  Structured  Unstructured Frame Length (maximum length, number of octets): Not selectable in companion IEC 60870-5-104 standard GE Multilin F60 Feeder Protection System...
Page 698  <18> := Packed start events of protection equipment with time tag M_EP_TB_1  <19> := Packed output circuit information of protection equipment with time tag M_EP_TC_1  <20> := Packed single-point information with status change detection M_SP_NA_1 F60 Feeder Protection System GE Multilin...
Page 699  <103> := Clock synchronization command (see Clause 7.6 in standard) C_CS_NA_1  <104> := Test command C_TS_NA_1  <105> := Reset process command C_RP_NA_1  <106> := Delay acquisition command C_CD_NA_1  <107> := Test command with time tag CP56Time2a C_TS_TA_1 GE Multilin F60 Feeder Protection System...
Page 700 •Blank boxes indicate functions or ASDU not used. •‘X’ if only used in the standard direction TYPE IDENTIFICATION CAUSE OF TRANSMISSION MNEMONIC <1> M_SP_NA_1 <2> M_SP_TA_1 <3> M_DP_NA_1 <4> M_DP_TA_1 <5> M_ST_NA_1 <6> M_ST_TA_1 <7> M_BO_NA_1 <8> M_BO_TA_1 <9> M_ME_NA_1 F60 Feeder Protection System GE Multilin...
Page 701 <34> M_ME_TD_1 <35> M_ME_TE_1 <36> M_ME_TF_1 <37> M_IT_TB_1 <38> M_EP_TD_1 <39> M_EP_TE_1 <40> M_EP_TF_1 <45> C_SC_NA_1 <46> C_DC_NA_1 <47> C_RC_NA_1 <48> C_SE_NA_1 <49> C_SE_NB_1 <50> C_SE_NC_1 <51> C_BO_NA_1 <58> C_SC_TA_1 <59> C_DC_TA_1 <60> C_RC_TA_1 GE Multilin F60 Feeder Protection System...
Page 702 <120> F_FR_NA_1 <121> F_SR_NA_1 <122> F_SC_NA_1 <123> F_LS_NA_1 <124> F_AF_NA_1 <125> F_SG_NA_1 <126> F_DR_TA_1*) BASIC APPLICATION FUNCTIONS Station Initialization:  Remote initialization Cyclic Data Transmission:  Cyclic data transmission Read Procedure:  Read procedure F60 Feeder Protection System GE Multilin...
Page 703  Mode B: Local freeze with counter interrogation  Mode C: Freeze and transmit by counter-interrogation commands  Mode D: Freeze by counter-interrogation command, frozen values reported simultaneously  Counter read  Counter freeze without reset GE Multilin F60 Feeder Protection System...
Page 704 Maximum number of outstanding I-format APDUs k and latest acknowledge APDUs (w): PARAMETER DEFAULT REMARKS SELECTED VALUE VALUE 12 APDUs Maximum difference receive sequence number to send state variable 12 APDUs 8 APDUs 8 APDUs Latest acknowledge after receiving I-format APDUs F60 Feeder Protection System GE Multilin...
Page 705: Iec 60870-5-104 Point List
E.1.2 IEC 60870-5-104 POINT LIST The IEC 60870-5-104 data points are configured through the    SETTINGS PRODUCT SETUP COMMUNICATIONS DNP / menu. See the Communications section of chapter 5 for details. IEC104 POINT LISTS GE Multilin F60 Feeder Protection System...
Page 706 E.1 IEC 60870-5-104 APPENDIX E E-10 F60 Feeder Protection System GE Multilin...
Page 707: Device Profile Document
2048 Maximum Data Link Re-tries: Maximum Application Layer Re-tries:  None  None  Fixed at 3  Configurable  Configurable Requires Data Link Layer Confirmation:  Never  Always  Sometimes  Configurable GE Multilin F60 Feeder Protection System...
Page 708 FlexLogic. The On/Off times and Count value are ignored. “Pulse Off” and “Latch Off” operations put the appropriate Virtual Input into the “Off” state. “Trip” and “Close” operations both put the appropriate Virtual Input into the “On” state. F60 Feeder Protection System GE Multilin...
Page 709  16 Bits (Counter 8) Default Variation: 1  32 Bits (Counters 0 to 7, 9)  Point-by-point list attached  Other Value: _____  Point-by-point list attached Sends Multi-Fragment Responses:  Yes  No GE Multilin F60 Feeder Protection System...
Page 710: F.1.2 Implementation Table
Otherwise, static object requests sent with qualifiers 00, 01, 06, 07, or 08, will be responded with qualifiers 00 or 01 (for change- event objects, qualifiers 17 or 28 are always responded.) Note 3: Cold restarts are implemented the same as warm restarts – the F60 is not restarted, but the DNP process is restarted. F60 Feeder Protection System GE Multilin...
Page 711 Otherwise, static object requests sent with qualifiers 00, 01, 06, 07, or 08, will be responded with qualifiers 00 or 01 (for change- event objects, qualifiers 17 or 28 are always responded.) Note 3: Cold restarts are implemented the same as warm restarts – the F60 is not restarted, but the DNP process is restarted. GE Multilin F60 Feeder Protection System...
Page 712 Otherwise, static object requests sent with qualifiers 00, 01, 06, 07, or 08, will be responded with qualifiers 00 or 01 (for change- event objects, qualifiers 17 or 28 are always responded.) Note 3: Cold restarts are implemented the same as warm restarts – the F60 is not restarted, but the DNP process is restarted. F60 Feeder Protection System GE Multilin...
Page 713 Otherwise, static object requests sent with qualifiers 00, 01, 06, 07, or 08, will be responded with qualifiers 00 or 01 (for change- event objects, qualifiers 17 or 28 are always responded.) Note 3: Cold restarts are implemented the same as warm restarts – the F60 is not restarted, but the DNP process is restarted. GE Multilin F60 Feeder Protection System...
Page 714: Dnp Point Lists
Change Event Variation reported when variation 0 requested: 2 (Binary Input Change with Time), Configurable Change Event Scan Rate: 8 times per power system cycle Change Event Buffer Size: 500 Default Class for All Points: 1 F60 Feeder Protection System GE Multilin...
Page 715: Binary And Control Relay Output
Virtual Input 27 Virtual Input 59 Virtual Input 28 Virtual Input 60 Virtual Input 29 Virtual Input 61 Virtual Input 30 Virtual Input 62 Virtual Input 31 Virtual Input 63 Virtual Input 32 Virtual Input 64 GE Multilin F60 Feeder Protection System...
Page 716: Counters
Events Since Last Clear A counter freeze command has no meaning for counters 8 and 9. F60 Digital Counter values are represented as 32-bit inte- gers. The DNP 3.0 protocol defines counters to be unsigned integers. Care should be taken when interpreting negative counter values.
Page 717: F.2.4 Analog Inputs
Change Event Variation reported when variation 0 requested: 1 (Analog Change Event without Time) Change Event Scan Rate: defaults to 500 ms Change Event Buffer Size: 256 Default Class for all Points: 2 GE Multilin F60 Feeder Protection System F-11...
Page 718 F.2 DNP POINT LISTS APPENDIX F F-12 F60 Feeder Protection System GE Multilin...
Page 719: Radius Server Configuration
$INCLUDE dictionary.ge For example, the file can look like the following: $INCLUDE ../shareéfreeradius/dictionary $INCLUDE dictionary.ge For the first start, run the RADIUS server in debug mode to ensure that there are no compiling errors. GE Multilin F60 Feeder Protection System...
Page 720 (for example user name Tester and password "testpw"). Check that the RADIUS server log file shows the access with an "Access-Accept" entry. Recall that if you tried another third-party tool and it did not work, you can use the FreeRADIUS software from freera- dius.net. F60 Feeder Protection System GE Multilin...
Page 721: Change Notes
31 August 2007 URX-246 1601-0093-R3 5.4x 17 October 2007 URX-251 1601-0093-S1 5.5x 7 December 2007 URX-253 1601-0093-S2 5.5x 22 February 2008 URX-258 1601-0093-S3 5.5x 12 March 2008 URX-260 1601-0093-T1 5.6x 27 June 2008 08-0390 GE Multilin F60 Feeder Protection System...
Page 722: Changes To The F60 Manual
DESCRIPTION (AA3) (AA4) Update General revision, including updated branding from GE Digital Energy to GE Grid Solutions Delete Deleted EAC logo from title page and deleted EAC certification from Approvals specifications because document not translated into Russian Table H–3: MAJOR UPDATES FOR F60 MANUAL REVISION AA3...
Page 723 APPENDIX H H.1 CHANGE NOTES Table H–4: MAJOR UPDATES FOR F60 MANUAL REVISION AA2 PAGE PAGE CHANGE DESCRIPTION (AA1) (AA2) Update General revision throughout document Added 87G restricted ground fault functionality throughout document, including feature table, specifications, settings, FlexLogic table, and Modbus memory map. Not added to single line diagram.
Page 724 Updated Table 2-8 Order Codes for vertical unit replacement modules to indicate that modules 8L and 8N cannot be ordered with module 8Z Update Updated Figure 3-10 Rear Terminal View Table H–9: MAJOR UPDATES FOR F60 MANUAL REVISION Y1 (Sheet 1 of 2) PAGE PAGE CHANGE...
Page 725 APPENDIX H H.1 CHANGE NOTES Table H–9: MAJOR UPDATES FOR F60 MANUAL REVISION Y1 (Sheet 2 of 2) PAGE PAGE CHANGE DESCRIPTION (X2) (Y1) 5-96 Added UR Synchrophasor Implementation of IEC61850-90-5 to the PMU software option description 5-96 5-96 Update...
Page 726: Abbreviations
F ..... Field MTA....Maximum Torque Angle FAIL....Failure MTR ....Motor FD ....Fault Detector MVA ....MegaVolt-Ampere (total 3-phase) FDH....Fault Detector high-set MVA_A ... MegaVolt-Ampere (phase A) FDL ....Fault Detector low-set F60 Feeder Protection System GE Multilin...
Page 727 ROD ....Remote Open Detector w/ opt ....With Option RST ....Reset WRT....With Respect To RSTR ..... Restrained RTD....Resistance Temperature Detector X .....Reactance RTU....Remote Terminal Unit XDUCER..Transducer RX (Rx) ..Receive, Receiver XFMR....Transformer GE Multilin F60 Feeder Protection System...
Page 728 H.2 ABBREVIATIONS APPENDIX H Z ..... Impedance, Zone F60 Feeder Protection System GE Multilin...
Page 729: H.3.1 Ge Multilin Warranty
H.3.1 GE MULTILIN WARRANTY For products shipped as of 1 October 2013, GE Grid Solutions warrants most of its GE manufactured products for 10 years. For warranty details including any limitations and disclaimers, see the GE Grid Solutions Terms and Conditions at https://www.gegridsolutions.com/multilin/warranty.htm...
Page 730 H.3 WARRANTY APPENDIX H H-10 F60 Feeder Protection System GE Multilin...
Page 731 Modbus registers ............B-48 CAUTIONS ................. 1-1 settings ............... 5-223 CE APPROVALS .............. 2-32 specifications ..............2-20 CHANGES TO F60 MANUAL..........H-2 AUXILIARY VOLTAGE CHANNEL ........3-13 CHANNEL TESTS ............6-11 AUXILIARY VOLTAGE METERING ........6-19 CHANNELS AWG WIRE SIZE ........3-12, 3-36, 3-39, 3-41 banks ...............
Page 732 ..............6-7 specifications ..............2-23 FlexLogic operands ............5-148 COUNTERS logic ................5-256 actual values ..............6-7 Modbus registers ....... B-10, B-12, B-13, B-14, B-55 settings ............... 5-255 settings ................ 5-255 CRC ALARM ..............5-96 F60 Feeder Protection System GE Multilin...
Page 733 DOWNED CONDUCTOR ........... 2-24, 6-9 FACEPLATE ............... 3-1, 3-2 DOWNED CONDUCTOR FACEPLATE PANELS ............4-13 HI-Z FACTORY DEFAULT RESET ..........5-8 FAR-END FAULT INDICATION ......... 5-31 FAST FORM-C RELAY ............. 2-27 FAST TRANSIENT TESTING ..........2-31 GE Multilin F60 Feeder Protection System...
Page 734 ................5-155 security ................4-8 specifications ..............2-22 HARMONIC CONTENT .............6-22 timers ................5-161 HARMONICS worksheet ..............5-157 actual values ..............6-22 FLEXLOGIC EQUATION EDITOR ........5-161 HARMONICS METERING specifications ..............2-24 HELP ................1-2 F60 Feeder Protection System GE Multilin...
Page 735 ............... 5-275 LOAD EVENT DETECTOR ALGORITHM ......8-2 INCOMPATIBLE HARDWARE ERROR ........ 7-7 LOCAL SETTING AUTHORIZATION ........4-2 LOGIC GATES ............... 5-155 LOGOUT USERS FORCEFULLY ......... 7-3 LOGS, SYSTEM ............... 5-22 LOST PASSWORD ............. 5-8 GE Multilin F60 Feeder Protection System...
Page 736 OPERATING TEMPERATURE ...........2-30 NAMEPLATE ..............1-2 OPERATING TIMES ............2-19 NEGATIVE SEQUENCE DIRECTIONAL OC ORDER CODES ....... 2-8, 2-10, 2-11, 2-13, 6-32, 7-3 Modbus registers ............B-44 ORDER CODES, UPDATING ..........7-3 ORDERING ..........2-8, 2-10, 2-11, 2-13 F60 Feeder Protection System GE Multilin...
Page 737 Modbus registers ..........B-19, B-30 PRODUCT INFORMATION ........6-32, B-9 overview ............... 1-18 PRODUCT SETUP ............ 5-8, 5-18 reset to factory defaults ........... 5-8 PRODUCTION TESTS ............2-31 security ................2-3 PROTECTION ELEMENTS ..........5-4 settings ................2-3 GE Multilin F60 Feeder Protection System...
Page 738 ....2-3, 5-8 REVISION HISTORY ............H-1 SETTINGS FILE ..............4-1 RF IMMUNITY ..............2-31 takes relay out of service when loaded ......4-2 RFI, CONDUCTED ............2-31 viii F60 Feeder Protection System GE Multilin...
Page 739 TRIP LEDs ............... 5-79 PMU Modbus registers ........... B-76 TROUBLE INDICATOR ..........1-18, 7-6 test values ..............5-314 TROUBLESHOOTING SYSLOG ................5-22 breaker not working ............. 5-252 SYSTEM FREQUENCY ..........5-103 setting not working ............5-252 GE Multilin F60 Feeder Protection System...
Page 740 G.703 interface ..............3-36 Modbus registers ............B-35 RS422 and fiber interface ..........3-41 settings ................. 5-80 RS422 interface .............3-39 USERST-1 BIT PAIR ............5-296 WITHDRAWAL FROM OPERATION ........10-8 VAR-HOURS ............2-24, 6-20 ZERO SEQUENCE CORE BALANCE .........3-13 F60 Feeder Protection System GE Multilin...

GE Grid Solutions F60 Instruction Manual

1 Getting Started

2 Product Description

3 Hardware

4 Human Interfaces

5 Settings

7 Commands and

8 Theory of Operation

9 Commissioning

10 Maintenance

Parameter Lists

Modbus Rtu Protocol

Modbus Function Codes

File Transfers

Memory Mapping

Iec 61850

Overview

Quick Links

Need help?

Questions and answers

Summary of Contents for GE Grid Solutions F60
