KAWNEER 1686 Installation Instructions Manual

Concealed exit device
Hide thumbs Also See for 1686:
Table of Contents

Advertisement

Quick Links

FEBRUARY, 2015
EC 95424-057
Device
Cylinder
C L
Bottom of door
Do Not Over
Tighten Screws

TOP GUIDE INSTALLATION:

1) Install top guide over top bolt and slide into door stile.
2) Attach guide with (2) #10 x 1/2" FH undercut fasteners.
kawneer.com

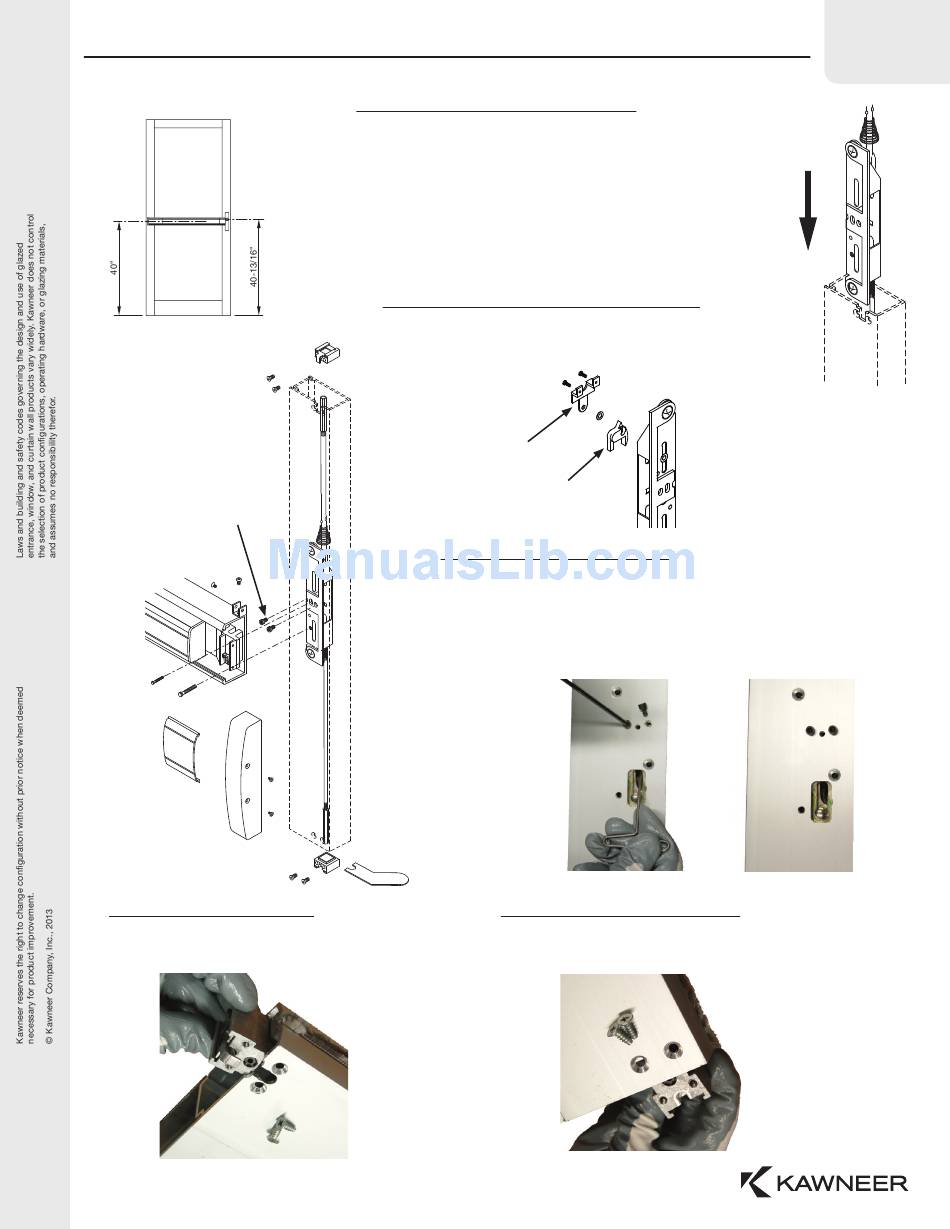

KAWNEER 1686 CONCEALED EXIT DEVICE

ROD AND CENTER CASE ASSEMBLY:

1) For inactive doors or doors without exterior cylinder, or doors without the
need for exterior cylinder dogging, the removal of the cylinder dogging
pawl is required. (See removal of Dogging Pawl below)
All active doors with cylinder locking will require the cylinder dogging
mechanism to be activated before rod and center case assembly is inserted
into the active door stile.
C L
Slide rod and center case assembly into active door stile.
The 190 active pair door will require the weld nut plate fasteners to be cut
flush with nut plate to allow center case assembly to insert into a 190 door
stile extrusion.

REMOVAL OF CYLINDER DOGGING PAWL:

1) Loosen two bracket retaining fasteners.
2) Discard dogging pawl.
3) Reinstall the bracket and retaining fasteners within the exit device housing.
Cylinder dogging pawl

CENTER CASE INSTALLATION:

1) Using a hook tool, align center case with holes provided.
2) Attach center case with (2) #8 x 1/4" cap screws (don't over tighten).
3) Adjust top and bottom bolts with wrench provided allowing bolt to extend
INSTALLATION INSTRUCTIONS
Bracket
beyond stile. Turn top and bottom bolts counterclockwise to lengthen and
clockwise to shorten.
BOTTOM GUIDE INSTALLATION:
1) Install bottom guide over bottom bolt and slide into door stile.
2) Attach guide with (2) #10 x 1/2" FH undercut fasteners.
038310
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1686 and is the answer not in the manual?

Questions and answers

Gary Harney
May 28, 2025

i am trying to change the lock on this style bar non sure how to remove to get to outside set screws never done this style before thanks

0
1 comments:
Mr. Anderson
May 28, 2025

To remove the lock on a KAWNEER 1686 style bar to access the outside set screws:

1. Remove the end caps from the device.
2. Remove the latch mechanism.
3. Disconnect the rollers and the rod pin from the paddle.
4. Push the paddle back and drop the connecting rods down to clear the dogging unit area.

This process gives access to the internal components, including the outside set screws.

This answer is automatically generated

0

Summary of Contents for KAWNEER 1686

  • Page 1 KAWNEER 1686 CONCEALED EXIT DEVICE FEBRUARY, 2015 EC 95424-057 INSTALLATION INSTRUCTIONS ROD AND CENTER CASE ASSEMBLY: 1) For inactive doors or doors without exterior cylinder, or doors without the need for exterior cylinder dogging, the removal of the cylinder dogging pawl is required.
  • Page 2 KAWNEER 1686 CONCEALED EXIT DEVICE FEBRUARY, 2015 INSTALLATION INSTRUCTIONS EC 95424-057 CYLINDER PAD ASSEMBLY: 1) Insert a 15/16" cylinder into the mounting pad and secure with the retaining ring. Note: If using a cylinder longer than 15/16", cylinder rings will be required to maintain the 3/8" projection.
  • Page 3 INSTALLATION INSTRUCTIONS OPTIONAL TRIM 1686 CONCEALED EXIT DEVICE LEVER HANDLE TRIM ASSEMBLY/INSTALLATION INSTRUCTIONS: 1) Trim mounting base is non-handed to accommodate a left or right handle application. To construct a left hand (LH) lever handle, rotate cam clockwise making sure the cam pin aligns with slot on left side of cam guide. (See Illustration below) Once the pin is in position, slightly push up and hold cam guide and cam while inserting lever handle firmly into place within the trim mounting base.
  • Page 4 KAWNEER 1686 CONCEALED EXIT DEVICE FEBRUARY, 2015 INSTALLATION INSTRUCTIONS EC 95424-057 Non. Wall Thickness 1/8" or 3/16" Note: Threadlocker See Step #6 Fastener slot cut-out 1/4"-20 x 3/4" PPHS 1/4"-20 x 3/4" PPHS 15/16" 1/8" Cylinder Projection 0.800" Cam Sweep...
  • Page 5 KAWNEER 1686 CONCEALED EXIT DEVICE FEBRUARY, 2015 EC 95424-057 INSTALLATION INSTRUCTIONS DEVICE ATTACHMENT: 1) Undog exit device before attaching to door. 2) Attach exit device onto pivot stile and lock stile of door with fasteners provided, as indicated below. 3) Install cover brackets (on top & bottom of device) onto exit device with fasteners provided.

  • Page 6: Final Assembly

    KAWNEER 1686 CONCEALED EXIT DEVICE FEBRUARY, 2015 INSTALLATION INSTRUCTIONS EC 95424-057 FINAL ASSEMBLY: 1) Slide pivot stile filler into device, attach pivot stile end cap with fasteners provided. 2) Slide lock stile filler into device, install cover over brackets on lock stile and attach with fasteners provided.
  • Page 7 KAWNEER 1686 CONCEALED EXIT DEVICE FEBRUARY, 2015 EC 95424-057 INSTALLATION INSTRUCTIONS BOTTOM BOLT FABRICATION: DOOR STOP INSTALLATION: 1) Fabricate threshold for bottom bolt cutout as indicated below, Using 033-981 threshold stop package as a template, for single or pair of doors.
  • Page 8 KAWNEER 1686 CONCEALED EXIT DEVICE FEBRUARY, 2015 INSTALLATION INSTRUCTIONS EC 95424-057 038310 kawneer.com...
  • Page 9 KAWNEER 1686 CONCEALED EXIT DEVICE FEBRUARY, 2015 EC 95424-057 INSTALLATION INSTRUCTIONS kawneer.com 038310...
  • Page 10 KAWNEER 1686 CONCEALED EXIT DEVICE FEBRUARY, 2015 INSTALLATION INSTRUCTIONS EC 95424-057 Kawneer Company, Inc. Technology Park/Atlanta 555 Guthridge Court Norcross, GA 30092-3503 038310 kawneer.com...
