Page 1: User Manual

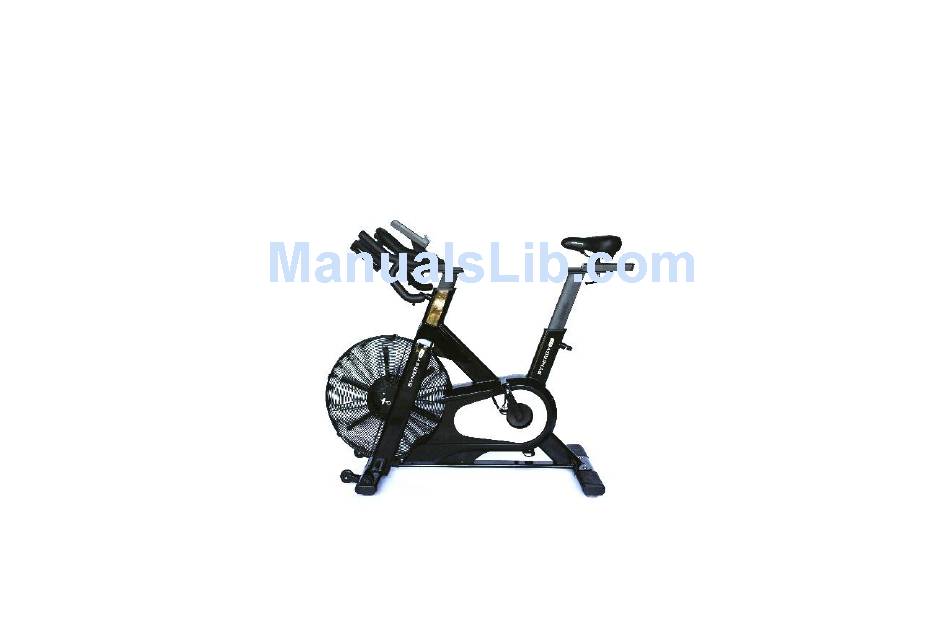

Synergy Air Cycle Ergometer SYN-KACE User Manual Version: 1.2... -
Page 2: Table Of Contents
WARNING ......................7 Synergy Air Cycle Ergometer ASSEMBLY INSTRUCTIONS ........8 Technical Specifications ..................13 Synergy Air Cycle Ergometer INSTRUCTIONS FOR USE ........14 Installation ......................14 Seat adjustment ............Error! Bookmark not defined. Adjusting the seat height and Apt ........ Error! Bookmark not defined. -
Page 3: Before You Start
BEFORE YOU START The following safety sign is affixed to the Synergy Air Cycle Ergometer. *Please read the following safety instructions, precautions and information before operating the Synergy Air Cycle Ergometer. Failure to adhere to the following will void warranty. pg. 3... -
Page 4: Safety Instructions
Do not attempt to use this bike at high speeds or in standing positions until you have practiced and are comfortable at lower speeds. • The user is to wear appropriate clothing and shoes whilst using the Synergy Air Cycle Ergometer. Baggy or loose clothes will catch on the equipment and must be avoided. •... -
Page 5: Danger
• Any liquid container in proximity to the Synergy Air Cycle Ergometer must have a tight fitting cap or lid. Do not use the Synergy Air Cycle Ergometer if a liquid has been spilt on any surface. - Page 6 Please consult your physician before commencing any exercise program. If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising immediately and consult your physician before continuing. Permission must be obtained from a health professional for any of the following health conditions of the user: •...
-
Page 7: Warning
Keep hands away from all moving surfaces and components. Do not allow a towel or clothing to become caught in the moving surface of the Synergy Air Cycle Ergometer. Shoelaces must be enclosed and short enough not to touch the foot pedals. Do not use high heels, or shoes with leather soles. -
Page 8: Synergy Air Cycle Ergometer Assembly Instructions
Synergy Air Cycle Ergometer ASSEMBLY INSTRUCTIONS In your cardboard box you will find the following: pg. 8... - Page 9 Parts 1. Frame 2. Rear Ground Tube 3. Screw M10 x 2 4. Washer x 4 5. Bolt M10 x 2 6. Front Ground Tube 12. Handlebar Set 13. Washer x 2 14. Screw M6 x 6 16. Console 18. Console Cable 19.
- Page 10 ASSEMBLY STEPS Align and assemble the front Align and assemble the rear Gentle pull the cable (18) from stabiliser (6) to the frame by using stabiliser (2) by using the bolt (3), the frame the bolt (5) and washer (4). washer (4).
- Page 11 ASSEMBLY STEPS Secure the cable (18) to console Connect the console (16) to cable Attach the drink holder (23) to holder and slide the handlebar onto (18) and screw the console to the the handlebar (12) by using the designated rail console holder using the console- the two 4mm Allen bolts (24) screws (17).
- Page 12 ASSEMBLY STEPS Thread the right side pedal (46R) to Thread the left side pedal (46L) to Install the seat post (54) in the right hand crank (45R) and the left side crank (45L). Loosely the seat post holder. Loosen loosely tighten with fingers before tighten with fingers before using the seat clamp (59) and place using tool...
-
Page 13: Technical Specifications
Technical Specifications The Synergy Air Cycle Ergometer does not require any electrical wall outlet. The Synergy Air Cycle Ergometer is a non-motorized product. The Synergy Air Cycle Ergometer uses air turbine to provide resistance. Dimensions: 105cm (H) x 60cm (W) x 120cm (L) 30”... -
Page 14: Synergy Air Cycle Ergometer Instructions For Use
Synergy Air Cycle Ergometer INSTRUCTIONS FOR USE The model SYN-KACE is designed to be used as an individual or group cycle in fitness studios and health clubs. It has a fixed wheel driven fan and should only be used under professional supervision. -
Page 15: Pedals And Toe Straps
In environments with severe pollution, the frequency of inspections and maintenance should be increased. Daily Maintenance Daily cleaning and inspection, and lubrication will keep the Synergy Air Cycle Ergometer in optimal condition. Listen out for any unusual noise and loose components. Do not ignore but address the issue immediately. -
Page 16: Weekly Maintenance
Weekly Maintenance Clean the frame and plastic surfaces with a soft cloth or brush. Do not use abrasive cleaning materials or brushes. Protect all metal surfaces with Lanolin Spray. Spray onto a cloth and wipe surfaces. Note- Do not apply ... - Page 17 pg. 17...
-
Page 18: Exploded Diagram
Exploded diagram pg. 18... -
Page 19: Synergy Air Duty Of Care Acknowledgement
Synergy Air Duty of Care Acknowledgement DUTY OF CARE ACKNOWLEDGEMENT: I acknowledge & understand that the fitness equipment being supplied to our Facility must be used correctly and that incorrect use or using excessive weight relative to the capability of the user can easily result in injury. Accordingly, as part of our 'Duty of Care', I understand that it is our responsibility to ensure: 1.
