your solution partner

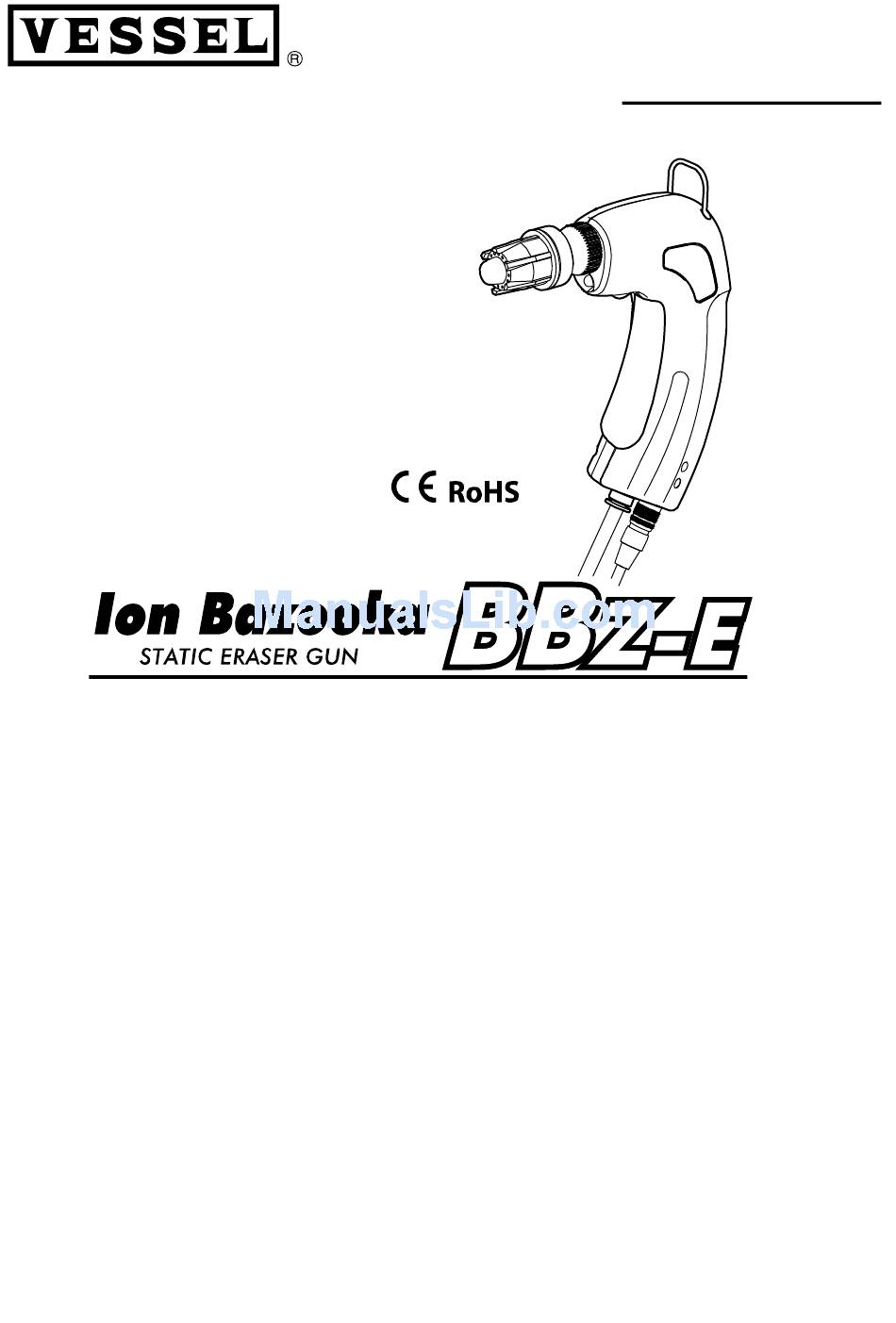

Thank you for purchasing our Stat Clean No. BBZ-E.
Read this instruction manual before use. Keep it in a safe handy place for future reference.
Table of Contents
■For Your Safety·······························P.2
■Product Features ···························P.3
■Production Specifications·············P.4
■External View··································P.5
■Performance ···································P.6
■Installation ······································P.7
■Operation ········································P.8
■Maintenance ···································P.10
■Troubleshooting ·····························P.13
■Storage············································P.14
■Warranty··········································P.16
Instruction Manual
Advertisement
Table of Contents
Summary of Contents for Vessel Ion Bazooka BBZ-E
- Page 1 your solution partner Instruction Manual Thank you for purchasing our Stat Clean No. BBZ-E. Read this instruction manual before use. Keep it in a safe handy place for future reference. Table of Contents ■For Your Safety·······························P.2 ■Product Features ···························P.3 ■Production Specifications·············P.4 ■External View··································P.5 ■Performance ···································P.6 ■Installation ······································P.7...
-
Page 2: Safety Precautions
●Safety precautions in this instruction manual are categorized into two types by the degree of danger associated with each on the followings. Based on danger analyses performed by Vessel, all precautions in this instruction manual are of the CAUTION level. -
Page 3: Special Features
■Product Features Special Features The BBZ-E is the high-performance ionizer that is focused on the noise reduction, the expansion of the static eliminating area and the durability. * Corona Discharge AC type AC corona discharge performance won't dirt the needle nor the Ion balance off. High frequency voltage transformer produces ion in its high performance without ion re-uniting loss. - Page 4 / humidity Cable length ：DC output cable: 5 m , AC input cable:1.8m Weight ：240g (without AC input cable) *The measurement values were obtained using the VESSEL measurement environment, so error could be induced depending on the operation environment.
-
Page 5: External View
External View No.BBZ-E No.AD24-ITB-E... -
Page 6: Cautions In Installation
80.5 83.2 85.5 *The measurement values were obtained using the VESSEL measurement environment, so error could be induced depending on the operation environment. *The values of Ion balance and decay time are measured at 150mm distance from the nozzle to Charge plate monitor *Noise is measured at 1m distance from the nozzle. -
Page 7: Installation Site
Installation Installation Site Select a location that is suitable for work and near to an air source and 100-240V AC supply. Air tube Use an air tube (ODφ6 mm x IDφ4 mm) with sufficient withstand pressure. Please bundle Air tube and Power adapter cord with tape. Air supply Remove all impurities with a mist separator (0.3μm). -
Page 8: Operation
Operation Air blow point part. ①Silent Nozzle Pulling Trigger for airblow / static bustering gets started. ②Trigger Lights up while the trigger pulled and static bustering. ③"POWER ON" LED ④High Voltage Alarm LED H.V. ALARM LED lights while high voltage alarm. To hang on this gun while not in use. -
Page 9: Cautions In Operation
Operation CAUTIONS IN OPERATION PROHIBITED Do not use the BBZ-E for anything other than static erasure or dust removal. REMEMBER If noticing anything strange, stop using the BBZ-E immediately. Supply clean dry air. Improper air quality can lead to BBZ-E deterioration and REMEMBER work contamination. -
Page 10: Cautions In Maintenance
Maintenance CAUTIONS IN MAINTENANCE DO NOT Do not perform any maintenance on the BBZ-E except for the electrode wire. DISASSEMBLE Before cleaning the electrode wire, shut OFF power and unplug the adapter REMEMBER from its electrical outlet. Shut off air supply at the source and disconnect the air hose. -
Page 11: Replaceable Parts
Maintenance 3. How to Replace the Electrode Needle Electrode needle replacement is made with Electrode needle replacement screwdriver G-7DR (separately sold) only. Pull off power supply adapter first before the cleaning of Electrode needle. Replacement Order: 1-2. Remove the Nozzle. 3. -
Page 12: Optional Parts
Maintenance 6.Optional Parts Standard Nozzle Flare Nozzle Consent Nozzle Silent Nozzle G-7SN N-2FN N-2TN N-2WN Electrode needle Brush Brush Relay Cable replacement screwdriver G-7B (60mm) G-7B (60mm) BB-ZC5 G-7DR Speed Controller Micro Filter G-7SC G-7F... -
Page 13: Troubleshooting
Troubleshooting CAUTIONS IN TROUBLESHOOTING Do not use the BBZ-E in the following situations. Use can result in fire or electric shock. PROHIBITED *If the power cable is damaged or hot *If the BBZ-E has been damaged because of dropping or shock. UNPLUG Unplug Power cable if BBZ-E has adefect. - Page 14 Storage CAUTIONS IN STORAGE Do not store the BBZ-E in the following places. Adverse environments can cause product breakdown. ● Where exposed to marked vibrations or shock ● Where temperature and humidity are outside specified ranges ● Where dewing occurs PROHIBITED ●...
-
Page 16: Limited Warranty
Defective products must be returned to VESSEL Osaka Japan with proof of purchase date. And if your unit is out of warranty, VESSEL will quote repair charges necessary to ship your unit freight prepaid to where you have originally purchased. - Page 17 Advice to use the BBZ-E for a long time Before starting using the BBZ-E, band the air hose and the power cable together with the provided “self-fusion butyl rubber tape”, by bowing the power cable as shown in the photograph below. It can prevent the air hose and the power cable from scattering, and it can also improve durability of the power cable.
