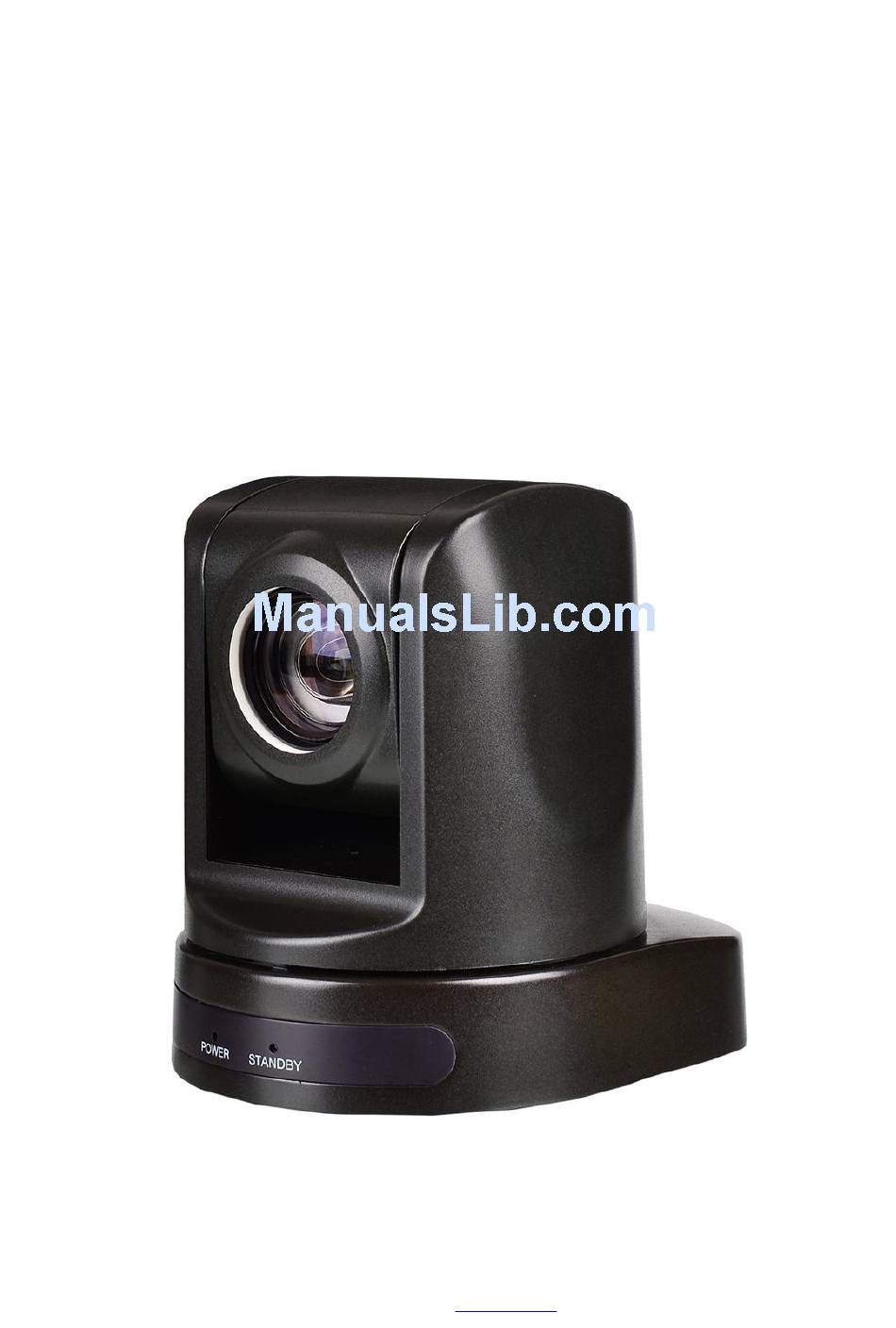

Summary of Contents for Shenzhen PUAS Industrial Co., Ltd PUS-OHD200S SERIES
-
Page 1: User Manual
Video Conference Camera User Manual Shenzhen PUAS Industrial Co., Ltd vc@szpuas.com www.szpuas.com... -
Page 2: Table Of Contents
CONTENT 1. Precaution..............................- 1 - 2. Application system diagram..........................- 2 - 3. Performance..............................- 3 - 3.1Dome parameter..........................- 3 - 3.2Camera parameter..........................- 3 - 3.3 Performance&Features........................- 4 - 4. Functions............................... - 5 - 4.1 Positions of control system.........................- 5 - 4.2 Dimension............................ -
Page 3: Precaution
1. Precaution Electrical Safety Confirm country and local electrical safety standard when using or installing the product. The product itself has no power switch. Please stop power supply or plug out power socket when it is not in good working . Video wire and control wire should be insulated and individual connected, can not mix-up with other wires. -
Page 4: Application System Diagram
2. Application system diagram HD-SDI HD video conference camera application system diagram, as shown in the picture - 2 -... -
Page 5: Performance
Physical： Visca :128 1.7kg (Small base) Net weight Presets 1.7kg Remote controller: 9 3.2 Camera parameter Model PUS-OHD200S SERIES Spec Imaging element 1/2.8Type Exmor CMOS Sensor Scanning system 1080P60/50 1080P30/25 1080I/60（30PSF） 1080I/50（25PSF） 720P60/50 Effective pixel 2.2 Mega pixel 0.05lux 0.095lux... -
Page 6: Performance&Features
3.3 Performance&Features Remark: The parameter for each video camera module is different; please refer to the details in Chapter 3.2 System Video Signal: 1080P60,1080P50,1080P30,1080P25,1080I60,1080I50,720P60,720P50,720P30/25 Pixel:3.27 Mega Pixel Minimum distance for imaging (wide view, the nearest settings under Visca ... -
Page 7: Functions
4. Functions 4.1 Positions of control system 4. 1.1 Small base video conference camera control key position - 5 -... -
Page 8: Dimension
In above list, "1" indicating the dial switch is ON "0" indicating the dial switch is OFF 4.2 Dimension 4.2.1 The Size for Small base High definition video conference camera is as below: - 6 -... -
Page 9: Remote Controller Introduction
4.3 Remote controller introduction POWER]: Press this button one time will enable the camera switch to standby mode, ①[ press twice will reboot the camera. CAMERA SELECT]: Camera ID select, select the target camera you need. ②[ AUTO]: Auto-focus button. ③[ FAR]: Manually focus button. -
Page 10: Operation Instruction
5. Operation instruction 5.1 Camera ID select Select the target camera ID(from No.1 to No.4) When the camera ID is beyond (No.1-No.4), select No.1 will enable you to operate the camera. 5.2 Pan/Tilt control 5.2 Pan/Tilt control Turn up Press Turn down Press Turn left Press Turn right Press... - Page 11 Back light imaging Strong background ray can make back-lighting objects engender shadow press [BACKLIGHT] to activate the back light mode.Quit the back light mode press [BACKLIGHT] button. Zoom Press the four [ZOOM] buttons to zoom the target object - 9 -...
-
Page 12: Preset Setting
5.4 Preset setting Save the preset press [PRESET] button first ,then press any of the numbers you need 1、 (from1-9) to save the preset. Notice You can save at most 9 presets through the remote controller. ： Call the preset press the saved preset number from1-9 will activate the corresponding 2、... - Page 13 6. 1 System setting Operate remote controller, Press [DATA SCREEN] enter OSD menu, press the arrow keys to move to[SYSTEM SETTING] press right button to enter sub menu; as the right picture. [ZOOM LABEL]Display/hide the zoom label [POS MODE] Camera coordinate inquiry protocol , D70 and D30/ D70-2 [INITIAL INFO Dome initialization information display, as the right pictures shown: Initialization information including...
-
Page 14: Camera Setting
[SPEED-TILT MAPPING]Setting VISCA Tilt speed and video conference camera speed matching list VISCA default pan speed range 1-24,Tilt speed range 1-23,Video conference speed range 1-63.User are allowed to change video conference camera rotate speed while it follows the VISCA speed command according to this speed PAN/TILT mapping. 7. -
Page 15: Camera [Color] Setting
[SLOW SHUTT ER] Slow shutter control [OFF] Close slow shutter [ON] Open slow shutter [BLC] Back-light compensation function [OFF] Close back light compensation [ON] Open back light compensation [EX-COMP] Exposure compensation function [WIDE-D] Wide Dynamic Range [ANTI FLICKER] Anti-flicking. -
Page 16: Camera [Focus] Setting
to set the chroma , or select[RED][GREEN]and others to set the corresponding chroma. [DEGREE]set the value of chroma , Range -14°~+14° [C.SUPPRESS]Set the chromaticity inhibition Camera [FOCUS] setting Operate remote controller, Press [DATA SCREEN] 1、 enter OSD menu, press the arrow keys to move to [CAMERA SETTING]press right button to enter sub menu;... -
Page 17: Ptz Setting
[GAMMA]Gamma correction [HI-RESOLUTION]Camera built - in high-resolution capabilities , refer to the camera types [NOISE REDUSE ]Noise reduce processing [MIRROR]Mirror image function [FILP]The function of Auto flip when the camera rotates pan 180 degrees [SHARPNESS]image sharpness setting ... - Page 18 Operate remote controller, press [DATASCREEN]enter 1、 OSD menu, press the arrow keys to move to [VIDEO OUT] press right button to enter sub menu;As the right picture [YPbPr/CVBS]Select YPbPr output interface YPbPr or CVBS [RGB /YUV]Signal output format [HDCP]High-bandwidth digital content protection ...
-
Page 19: Installation Instruction
10. Installation instruction 10.1 Small base video conference camera Installation instruction 1.To drill 4 M4 screw hole in ceiling 3. Hang the discreteness made in (see above sketch), use 4pc STP4 16 step2 on the installation board, cross screws to fix the upside-down showed as the below sketch. -
Page 20: Maintenance Service Terms
11. Maintenance service terms 1. Range of warranty The product will be maintained free for one year. The product will be obtained the free maintenance service if the same malfunction appears again within three payable maintenance months. Malfunction of products caused by force majeure (such as war, earthquake, lightning strike and so on ), abuse, non-standard operation, change of construction, non-normal wear or accident are non-free of warranty.
