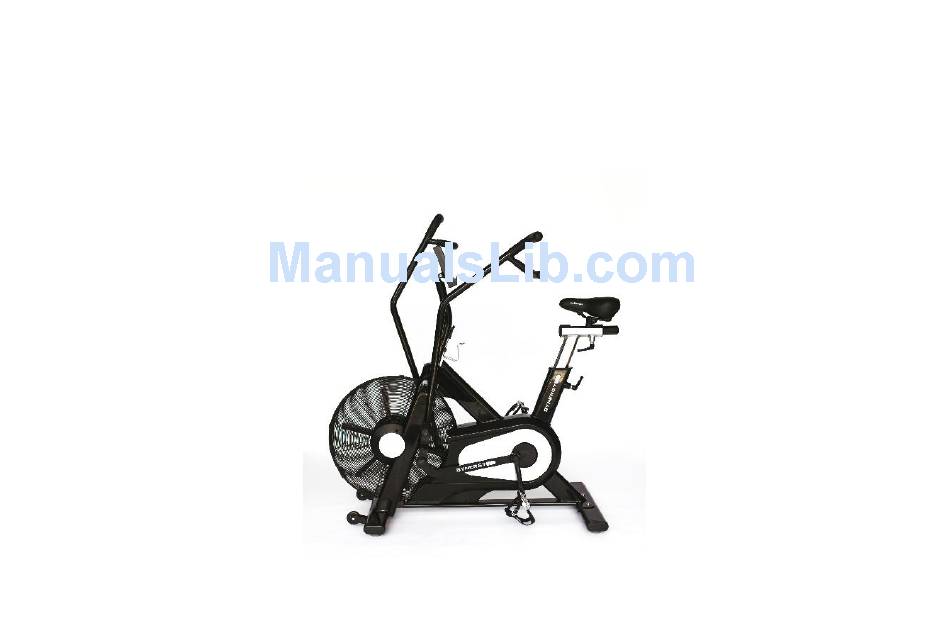

- Page 1 Synergy Air Bionic Cycle SYN-KABC User Manual Version: 1.2...
-
Page 2: Table Of Contents
Safety Instructions ....................4 DANGER ....................... 5 ATTENTION ......................5 WARNING ......................7 Synergy Air Bionic Cycle ASSEMBLY INSTRUCTIONS .......... 9 Technical Specifications ..................14 SYN-KABC INSTRUCTIONS FOR USE ..............16 Installation ......................16 Handlebar and seat adjustment ................16 Adjusting the Seat height (plus forward &... -
Page 3: Before You Start
BEFORE YOU START The following safety sign is affixed to the Synergy Air Bionic Cycle. *Please read the following safety instructions, precautions and information before operating the Synergy Air Bionic Cycle. Failure to adhere to the following will void warranty. pg. 3... -
Page 4: Safety Instructions
Do not attempt to use this bike at high speeds or in standing positions until you have practiced and are comfortable at lower speeds. • The user is to wear appropriate clothing and shoes whilst using the Synergy Air Bionic Cycle. Baggy or loose clothes will catch on the equipment and must be avoided. •... -
Page 5: Danger
• Any liquid container in proximity to the Synergy Air Bionic Cycle must have a tight fitting cap or lid. Do not use the Synergy Air Bionic Cycle if a liquid has been spilt on any surface. - Page 6 Please consult your physician before commencing any exercise program. If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising immediately and consult your physician before continuing. Permission must be obtained from a health professional for any of the following health conditions of the user: •...
-
Page 7: Warning
Keep hands away from all moving surfaces and components. Do not allow a towel or clothing to become caught in the moving surface of the Synergy Air Bionic Cycle. Shoelaces must be enclosed and short enough not to touch the foot pedals. Do not use high heels, or shoes with leather soles. - Page 8 pg. 8...
-
Page 9: Synergy Air Bionic Cycle Assembly Instructions
Synergy Air Bionic Cycle ASSEMBLY INSTRUCTIONS The model SYN-KABC is designed to be used as an individual or group cycle in fitness studios and health clubs. In your cardboard box you will find the following: pg. 9... - Page 10 Parts 1. Frame 2. Rear Ground Tube 3. Screw M10 x 2 4. Washer x 4 5. Bolt M10 x 2 6. Front Ground Tube 16. Console 17. Console fixing plate 18. Console Cable 19. Front stem 20. Screw M8 x 2 21.
- Page 11 62. Axle peg 96. Saddle 96a. Saddle clamp 97. Rhambus post with hexagon sliding tupe Assembly ASSEMBLY STEPS Align and assemble the front Align and assemble the rear Pull the cable (18) through the stabiliser (6) to the frame by using stabiliser (2) by using the bolt (3), front stem (19) before securing the bolt (5) and washer (4).
- Page 12 ASSEMBLY STEPS Place seatpost (97) into frame, and Slide right dual swing bar (47R) Attach the dual swing bar (47R) place saddle (96) with saddle onto right side, followed by nylon to linkage arm using washer clamp (96A). nut (53), dust cover (54) and (58), nylon nut (30), and pivots finally screw on the axle peg (62).
- Page 13 ASSEMBLY STEPS Slide left dual swing bar (47L) onto Attach the dual swing bar (47R) to Attach the right peddle to the right side, followed by nylon nut linkage arm using washer (58), right crank (53), dust cover (54) and finally nylon nut (30), and pivots cap (59).
-
Page 14: Technical Specifications
ASSEMBLY STEPS Attach the left peddle to the left Attach the cable (18) to the console Attach the bottle holder (23) crank (16). Screw on the console (16) to using the screws (24) to the the console post (19) console post(19) Use a 15mm open wrench +/- screw driver 4mm allen key... - Page 15 The Synergy Air Bionic Cycle does not require any electrical wall outlet. The Synergy Air Bionic Cycle is a non-motorized product. The Synergy Air Bionic Cycle uses air turbine to provide resistance. Dimensions: 143cm(H) x 60cmW) x 120cm(L) 56” x 23” x 47”...
-
Page 16: Syn-Kabc Instructions For Use
SYN-KABC INSTRUCTIONS FOR USE The model SYN-KABC is designed to be used as an individual or group cycle in fitness studios and health clubs. It has a fixed wheel driven fan with handlebars and should only be used under professional supervision. -
Page 17: Pedals And Toe Straps
Like any other mechanical cycling device, the SYN-KABC should be regularly maintained. Daily Maintenance Daily cleaning and inspection, and lubrication will keep the Synergy Air Bionic Cycle in optimal condition. Listen out for any unusual noise and loose components. Do not ignore but address the issue immediately. -
Page 18: Weekly Maintenance
Weekly Maintenance Clean the frame and plastic surfaces with a soft cloth or brush. Do not use abrasive cleaning materials or brushes. Protect all metal surfaces with Lanolin Spray. Spray onto a cloth and wipe surfaces. Note- Do not apply Lanoline to handles and/or Foot plates Clean the console with a soft cloth. -
Page 19: Exploded Diagram
Exploded diagram pg. 19... -
Page 20: Synergy Air Duty Of Care Acknowledgement
Synergy Air Duty of Care Acknowledgement DUTY OF CARE ACKNOWLEDGEMENT: I acknowledge & understand that the fitness equipment being to our Facility must be used correctly and that incorrect use or using excessive weight relative to the capability of the user can easily result in injury.
