Summary of Contents for Edaphic Scientific ESSAN-01

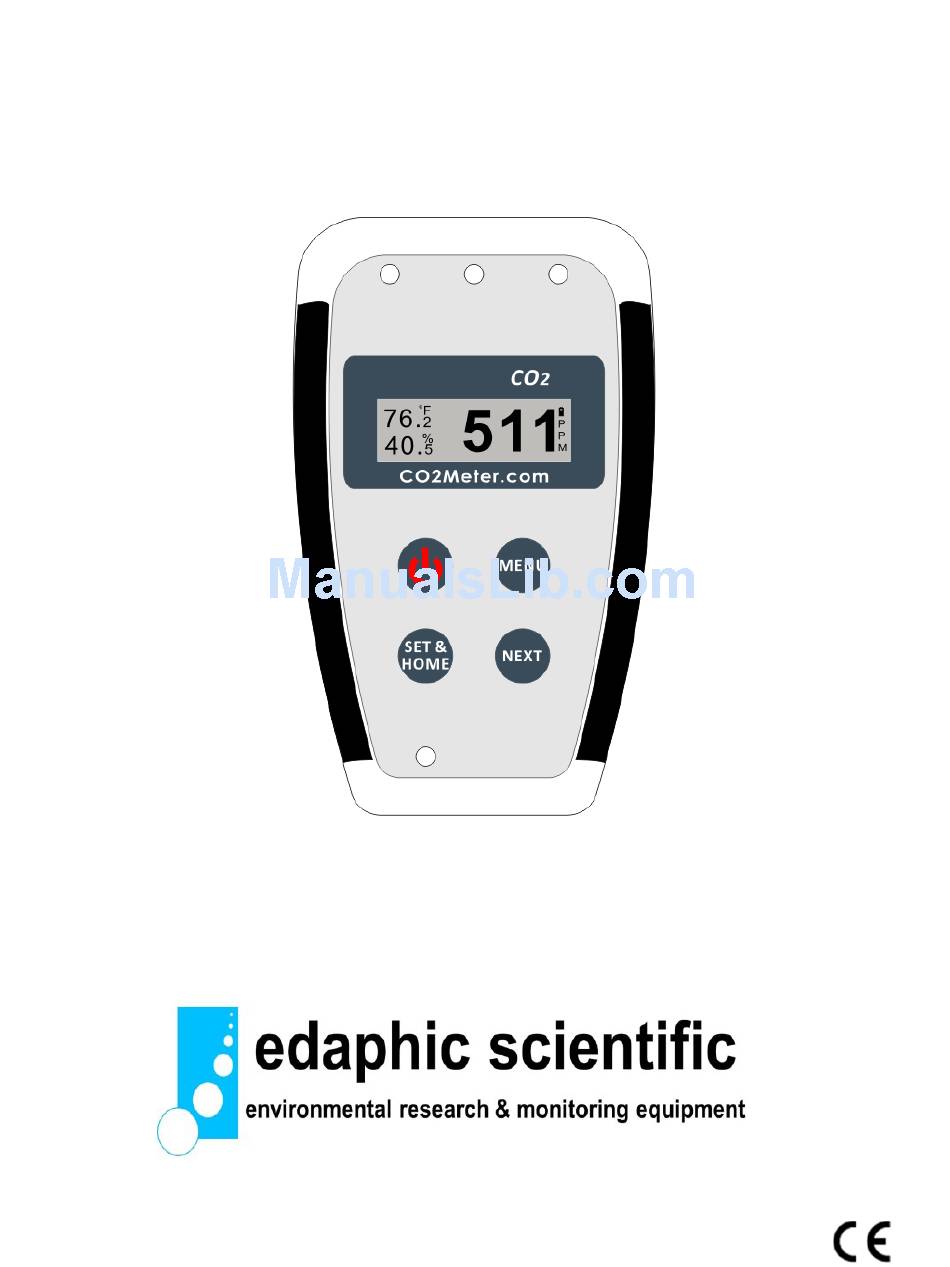

- Page 1 Pocket CO2 Monitor & Data Logger ESSAN‐01 Distributed and Supported By: User Manual Rev 1.61 Copyright ©2016 CO2Meter Inc. All rights reserved including the right of reproduction in whole or in part in any form. ...
-
Page 2: Table Of Contents
Contents INTRODUCTION ........................... 3 FEATURES ............................ 3 DESCRIPTION .......................... 4 LCD DISPLAY .......................... 4 OPERATION .......................... 5 Power Button .......................... 5 Daily Bump Test ........................ 5 MENU OPTIONS .......................... 6 1. Set Alarm Threshold ...................... 6 2. Set Temperature Units ...................... 7 3. Calibration ........................... 7 4. Altitude Correction ...................... 8 5. Data Logging ........................ 8 DATA LOGGING software ...................... 9 ... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the ESSAN‐01 Pocket CO2 Monitor and Data Logger. This personal, battery operated carbon dioxide (CO2) monitor is designed to monitor CO2 levels indoors or in confined spaces. Normal indoor air quality levels are shown by Green (good), Yellow (normal) and Red (warning) LEDs. If dangerously high CO2 levels are detected, the monitor will alert the user to immediately seek fresh air with a combination of visual, audible and vibrating alarms. This ... -
Page 4: Description
DESCRIPTION 1. Green LED ‐ good 2. Yellow LED ‐ normal 3. Red LED ‐ warning 4. LCD display 5. Power button 6. Menu button 7. Set & Home button 8. Next button 9. High CO2 alarm LED 10. USB charging port 10, 11. Gas entry ports LCD DISPLAY 1. CO2 concentration in ppm or % (> 9,999 ppm) 2. Air Temperature 3. % Relative Humidity 4. Battery Charge Level Indicator Green/Yellow/Red LEDs CO2 level indicator for indoor Air Quality (IAQ): Green LED ‐ CO2 is below 800 ppm Yellow LED ‐ CO2 between 800‐1,200 ppm Red LED ‐ CO2 level is above 1,200 ppm 4 ... -
Page 5: Operation
OPERATION For daily operation, you should only need to perform 3 steps: power the monitor on, verify that the battery is charged, and perform a bump test. Power Button 1. Press the power button to turn the monitor on. 2. When the monitor is on, press the power button for 3 seconds to turn it off. When the monitor is initially turned on, it will perform a 5 second countdown, then display the current CO2, temperature, and humidity levels. The monitor starts taking measurements when powered on, and will update the display every 3 seconds until it is powered off. Check the battery level indicator on the LCD. If you do not have at least half a battery in the display, the monitor may not have enough power to run for a full day. Note: To conserve power, the LCD backlight turns off automatically after 5 seconds of inactivity. Press any button to turn the display on again. Daily Bump Test “Bump Test” is an industry term for verifying that the monitor will sound the alarm when it senses high levels of CO2. While you are encouraged to perform a full bump test daily, at a minimum you should perform a quick bump test daily before entering any enclosed areas. Full Bump Test 1. Turn the device on and wait for it to complete the 5 second warm up cycle. 2. Use 5% CO2 calibration or test gas with the balance nitrogen. Gas can be purchased online, or by contacting CO2Meter at (386) 872‐7665. 3. Note: 5% CO2 gas can be dangerous. Do not bump test in an enclosed area! 4. Place the tubing from the calibration gas directly on the back left hand side hole near the clip, this hole is directly above the sensor. Turn on the gas. 5. The alarm will sound depending on the alarm level you set. By default, the alarm is factory set at 5,000ppm. 6. Remove the tubing and turn off the gas. As the CO2 gas inside the case is displaced, the CO2 level will return to normal. 7. -
Page 6: Menu Options
Quick Bump Test The quick bump test will only work if the alarm is set to the factory default of 5,000ppm. 1. Turn the device on and wait for it to complete the 5 second warm up cycle. 2. Place the top end of the monitor close to your mouth and breathe into the holes repeatedly. 3. The CO2 in your breath will cause the CO2 in the case to increase. Continue to blow until the alarm sounds. You can verify this on the screen. 4. Stop blowing. As your breath inside the case is displaced, the CO2 level will return to normal. 5. If the monitor does not pass the bump test, do not use it. First, perform a full bump test. If the full bump test fails, contact CO2Meter support at (386) 256‐4910 or e‐mail us at support@CO2Meter.com MENU OPTIONS Press the Menu button to enter the menu mode. There are 5 menu pages: Alarm, Temperature units, Calibration, Altitude and Data Logging. Press the Set/Home button ... -
Page 7: Set Temperature Units
Place the tubing from the calibration gas directly on the back left hand side hole near the clip. This hole is directly above the sensor. Run the nitrogen until the ppm level on the LCD displays approximately zero ppm. Note: the screen may show a warning for humidity error. This is normal during the calibration process. 1. Press Menu 3 times to select calibration. 2. Press Next to select Yes. 3. Press Set to begin calibration. Calibration takes 5‐10 seconds. 4. “Calibration succeeded” will appear once calibration is complete. Turn off the gas and let the monitor stabilize. It will return to the normal indoor CO2 level. Two different ESSAN-01 monitors may show different CO2 levels after calibration. If they are within 40ppm ±3% of the actual CO2 level, they are within the sensor’s specifications. To quickly verify the calibration, you can take the monitor outdoors. If the Altitude is set properly, the CO2 level should drop to approximately 400ppm depending on your location 7 ... -
Page 8: Altitude Correction
4. Altitude Correction The CO2 level displayed is affected by the altitude. This monitor is shipped with the altitude set at sea level (zero feet). If it is used at a higher altitude, you should first correct for altitude to insure maximum accuracy. Once the altitude correction is set, it will be saved in memory. See Appendix B for more information. 1. Press Menu 4 times to select Altitude Correction. 2. Press Next to raise the altitude in increments of 500 feet (150 meters) above sea level until the closest altitude to yours is reached. When altitude reaches 20,000 feet, it will return again to zero feet. 3. Press to save the current altitude setting and return to normal display. 5. Data Logging The date, time, CO2, temperature and relative humidity are continuously recorded every 30 seconds while the monitor is powered on. A total of 65,520 records (approximately 22 days) can be stored. If the memory is not reset, it will “roll over” and new data will overwrite the memory beginning at the oldest record. 1. Press Menu ... -
Page 9: Data Logging Software
DATA LOGGING SOFTWARE Included with your monitor is our GasDataLogging Software. This Windows PC program allows you to view the stored data offline with a user‐friendly graphical interface. It can also be used to manage logs stored in the monitor’s internal memory as well as export data to a text file for use in spreadsheets. While GasDataLogging is included on the USB drive with the manual, from time to time we may update the software to include additional features. Be sure to visit the CO2Meter.com download page regularly to get the latest GasDataLogging software updates at no charge. ... -
Page 10: Quick Start Guide
Quick Start Guide 1) Install GasDataLogging from thumb drive or from the website at: http://www.co2meter.com/pages/downloads 2) You must install the software before connecting the monitor. After you have launched the GasDataLogging software, connect the monitor to the computer with the included USB cable. 3) The GasDataLogging software will automatically list the available monitor(s). 4) Clicking on the Meter Select section to select the meter you want to connect. 5) Click the Connect button. 6) Click the Download Data button to download and view data logs stored in the meter’s internal memory. A progress bar indicates the download process. 7) A message will pop up when the download is complete. 8) Click the Save Data button in the Data Archive section to save the current log to your computer when download complete. 10 ... -
Page 11: Installing The Software
Installing the Software Double click or select Run from the popup menu to launch the GasDataLogging executable program as shown in Figure 1. Figure 1：GasDataLogging Software IMPORTANT: THE FTD2XX.DLL FILE IS REQUIRED TO CONNECT THE MONITOR VIA USB. IT MUST BE IN THE SAME FOLDER AS THE GASDATALOGGING EXECUTABLE PROGRAM. Connecting the Monitor Once the software is successfully installed, you can connect the monitor using the provided USB data cable. Your software is now ready to use. Main Screen Overview The GasDataLogging interface has various sections and buttons that you should familiarize yourself with before using the software. A brief description of each section is shown below. Figure 2：GasDataLogging Main Screen 11 ... -
Page 12: Meter Select
Meter Select The Meter Select section is located on the top left area of the GasDataLogging main screen, as shown in Figure 2. Each meter’s COM port is automatically assigned when it is connected to your PC through USB cable. Click on the COM number to select the monitor you want to connect. Then click the Connect Meter button to communicate with your CO2 monitor. Downloading Data Once your monitor is connected to your computer, the Data Section allows you to download all the current logs stored in the monitor’s internal memory. When you click the Download Data button, a progress bar indicates the download process (See figure 3). Once download is complete, you will see all data including CO2 level, temperature and relative humidity in the Raw Data Window and the Graph Sections. Figure 3: Download Progress Bar The data read by your computer can be displayed both graphically in the Graph Sections and in raw format listed in the Raw Data Window. The Raw Data Window allows the user to see the actual data that was stored on your monitor. Click the Clear Data button to clear the Raw Data Window and the Graph. NOTE: clearing the data in the software does not delete the raw data stored inside the monitor. To clear the monitor’s data, you must select “Reset memory” from the Data Logging option in the monitor’s setup menu. Viewing Data as a Graph The Graph Sections allows you to see the values after the computer has download the data from the monitor. Data will automatically be graphed showing the CO2 levels in ppm or %, Temperature in Fahrenheit or Celsius, and Relative Humidity in %. This data is shown in the Gas Concentration Graph Section, Temperature Graph Section and Relative Humidity Graph Section respectively. You ... -
Page 13: Data Archive
buttons allow moving the time forward or backward if the log time is longer than 6 hours. Data Archive This section of the screen includes two buttons: Save Data button and Open File button. After downloading the data from the monitor, you can click the Save Data button to save the current log files to your computer. The Open File button allows you to select and display previously saved log files from your computer. To exit the software, click the EXIT button. MAINTENANCE Calibration The ESSAN‐01 comes pre‐calibrated from the factory. However, the CO2 sensor should be calibrated at least once a year, or as described in your company’s safety procedures. You can perform ... -
Page 14: Troubleshooting
Troubleshooting Cannot power on Press the Power Button for more than 0.5 seconds. Check that the Li‐ion battery is charged. If monitor is charged but will not turn on, contact support. Monitor is not Verify that software and drivers are installed correctly before attaching recognized by monitor to PC. computer or Verify the software and drivers were installed before the monitor was software plugged into the PC with the USB cable. Verify that the ftd2xx.dll file is in the same folder as the GasDataLogging executable program. Try using a different USB cable. Windows reports Go to CO2Meter.com, select the App Notes tab, and follow the “unknown device” instructions for error AN153: Troubleshooting Software Driver Installation (PDF). Slow response The log file stored in the monitor is very large. The monitor needs time to transfer data to your computer. Readings do not Confirm the monitor is correctly connected to the computer. Make sure change the computer recognizes your monitor and connects with your monitor successfully. Monitor’s data logs ... -
Page 15: Specifications
SPECIFICATIONS Device Specifications Operating Environment 0°C~50°C (32°F~122°F), <95% RH non‐condensing Storage ‐10°C~60°C (14°F~140°F), <99% RH non‐condensing Power Supply Li‐ion battery (4.2V, 1000mAh), Micro USB cable w. Wall charger Dimensions 100x60x17mm (3.9x2.4x0.7") Weight 85 grams (2.73 oz.) CO2 Sensor Specifications CO2 Sensor Single‐beam NDIR diffusion sampling Measurement Range 0~50,000ppm (5% Vol) Display Resolution 1ppm / 0.01% Accuracy ±40ppm or ±3% of reading Repeatability ±20ppm @ 400ppm Temperature Typ. ±0.3% of reading per °C or ±4ppm per °C, whichever is greater, Dependence referenced to 25 °C Pressure Dependence 0.13% of reading per mmHg Response Time < 60 seconds Warm‐up Time < 5 seconds at 22°C IAQ LED Display Green: <800ppm • Yellow: 800~1200ppm • Red: >1200ppm Measurement interval 2 seconds Temperature Sensor Specifications Temperature Range ‐10.0~60.0°C (14~140°F) display Display Resolution ... -
Page 16: Warranty
Authorization) number must be obtained from CO2Meter, Inc. After the item is received, CO2Meter will repair or replace the item at our discretion. To obtain an RMA number, contact Edaphic Scientific Pty Ltd: info@edaphic.com.au. When requesting an RMA number, please provide the reason for return and the original order ... -
Page 17: Appendix A: Co2 Levels And Guidelines
APPENDIX A: CO2 LEVELS AND GUIDELINES 1. CO2 Alarm Guidelines The Occupational Safety & Health Administration (OSHA) requires by law that workers must be protected from potentially dangerous high levels of CO2. There are 3 CO2 safety limits that must all be followed: 5,000 ppm CO2. This is the OSHA exposure limit for CO2 averaged over a 40 hour week. 5,000 ppm CO2 TWA (Time‐weighted Average). A workplace is considered unsafe if workers are subjected to an average of 5,000 ppm CO2 or above for an 8‐hour workday. 3% CO2 STEL (Short Term Exposure Limit). At this CO2 level, an alarm must sound immediately and workers/occupants must leave the area. Visit www.osha.gov for more details and to determine which alarm settings are best for your application. 2. Indoor Air Quality The Green/Yellow/Red LEDs are provided as a quick check of indoor air quality (IAQ) in schools, offices and similar buildings. -
Page 18: Appendix B: Altitude Correction
APPENDIX B: ALTITUDE CORRECTION CO2 sensor modules are calibrated at sea level, and are not designed to automatically compensate for changes to CO2 at higher altitudes. The CO2 level will be approximately 3% lower for every increase of 1,000 feet (300m) in altitude. For example, at 5,000 feet a meter reading 400 ppm calibrated at sea level would read approximately 340 ppm. Rather than making this calculation each time you use the monitor, you can look up your location’s altitude online and enter the closest value into the monitor’s menu settings. Then the ... -
Page 19: Appendix C: Log File Format
APPENDIX C: LOG FILE FORMAT The following technical details allow you to manually read the raw data from the monitor using a serial terminal program or your own software. Serial Interface Specifications: Baud rate=57,600 8bit, one stop bit, no parity bit For example: SetBaudRate(FT_BAUD_57600); // Set baud rate to 57600 SetDataCharacteristics(FT_BITS_8, FT_STOP_BITS_1, FT_PARITY_NONE); Commands to download log from monitor: The server must send “SAN‐0001” or “san‐0001” ASCII code through the USB port to start the download. For example: 0X53 0X41 0X4E 0X2D 0X30 0X30 0X30 OR 0X73 0X61 0X6E 0X2D 0X30 0X30 0X30 Data Stream ...
