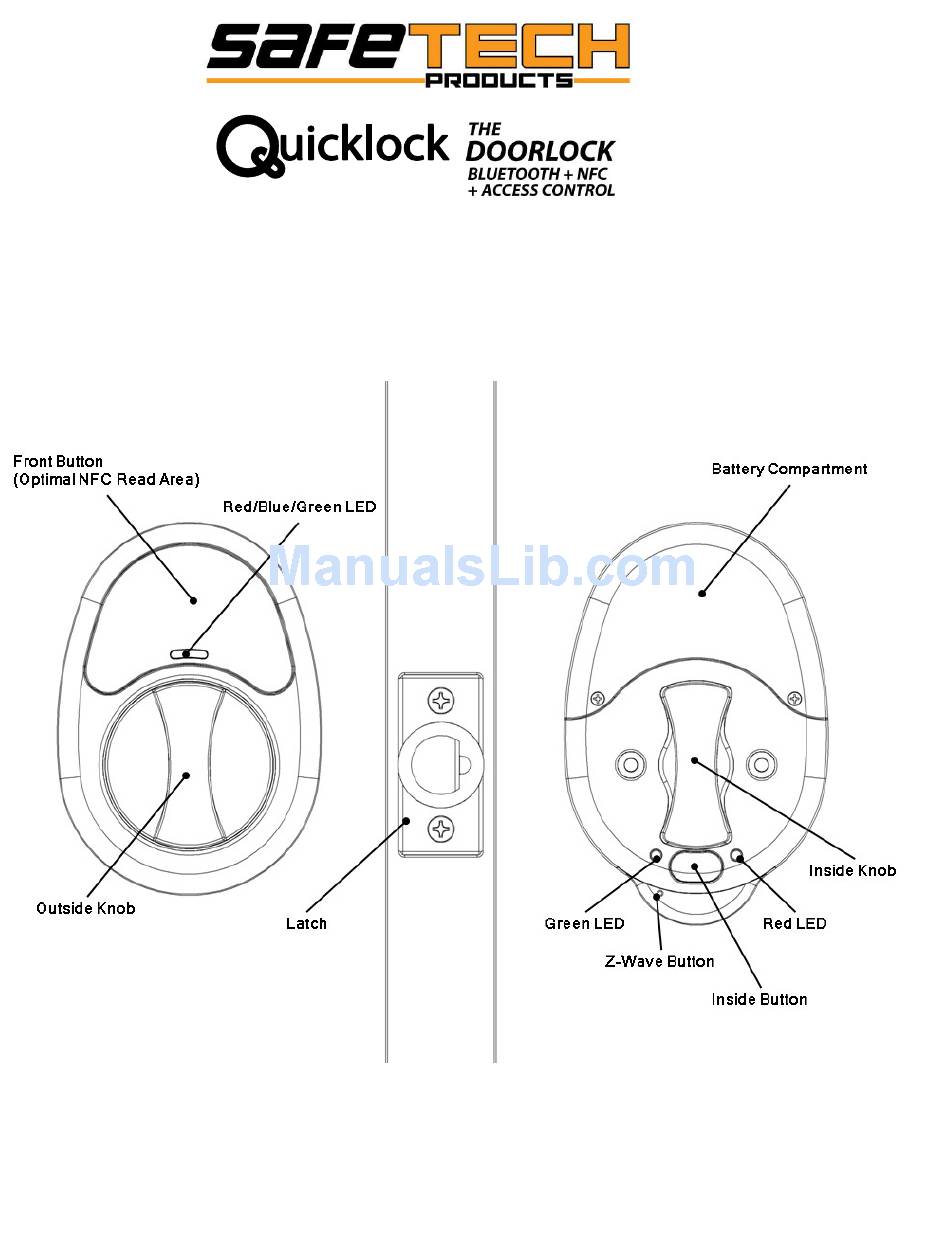

- Page 1 Online at: Online at: safetechproducts.com safetechproducts.com thequicklock.com thequicklock.com User Manual Doorlock Assembly Outside Inside Inside...
- Page 2 App Layout: Setting up the Bluetooth Application: Download the iPhone app from iTunes or the Android app from the Google Play Store and Install to handheld device. After installing, open the app. The app will prompt the user to input a user name. Enter a unique user name and press OK.
- Page 3 Once the doorlock is connected, the application will prompt the user to enter a password. The default password is: 12345678 Once the password is entered the handheld device will be connected to the doorlock via the application and all application functionality will be enabled while the handheld device is connected. ...
- Page 4 Auto Unlock: By pressing the outside button, the blue LED on the front cover will flash showing the Doorlock is trying to connect via Bluetooth. The doorlock will try to connect to a handheld device with a valid connection for up to 10 seconds. If the application is configured so the “Auto Unlock”...
- Page 5 Using the inside button to set persistent state: o Press and hold the inside button for 3 seconds to change the persistent state. -Persistent locked- the doorlock will unlock when the button is pressed on the outside, and activated via Bluetooth or RFID, and then auto-lock after 3 seconds. The Doorlock can be opened from the inside, but will not unlock the Doorlock.
- Page 6 o Gearbox will disengage lock. o Turn the front knob to disengage the latch. Erase stored tags o Press outside button once to turn on RF reading. o Scan a programmed tag. o Press button again to enter programming mode. o Press and hold button for 5 seconds.
- Page 7 will be activated notifying the electronics that the latch has been opened and the gearbox will be toggled to the “unlocked position” causing the outside knob to unlock. Inside LED Indicators o The Inside LED’s indicate the current toggle state of the inner locking mechanism. The inner locking mechanism controls if the outside knob is free to move or not.
- Page 8 The Doorlock is a Security Enabled Z The Doorlock is a Security Enabled Z-Wave Plus device. To fully utilize all Z-Wave functions of The Wave functions of The Doorlock, it must be used with a Security Enabled Z Doorlock, it must be used with a Security Enabled Z-Wave controller.
- Page 9 Installation Installation Instructions Parts Tools required for installation - Standard Phillips screwdriver - Hammer...
- Page 10 Installation Exploded View Installation steps The Quicklock Doorlock is designed to be installed on any standard interior or exterior door. is designed to be installed on any standard interior or exterior door. is designed to be installed on any standard interior or exterior door.
- Page 11 3. Install the door latch in the door as shown below. Ensure the bevel of the latch Install the door latch in the door as shown below. Ensure the bevel of the latch Install the door latch in the door as shown below. Ensure the bevel of the latch assembly faces the door jamb.
- Page 12 4. Insert the exterior assembly into the lockset hole a Insert the exterior assembly into the lockset hole and hold in place. nd hold in place. 5. Install the Latch Shaft with the larger diameter facing down. Install the Latch Shaft with the larger diameter facing down.
- Page 13 6. Attach cable from the exterior assembly to the interior assembly. Attach cable from the exterior assembly to the interior assembly. 7. Install the interior assembly in to the lockset hole and insert screws. Make sure that Install the interior assembly in to the lockset hole and insert screws. Make sure that Install the interior assembly in to the lockset hole and insert screws.
- Page 14 8. Install four AAA batteries in the battery compartment. Batteries should be oriented as Install four AAA batteries in the battery compartment. Batteries should be oriented as Install four AAA batteries in the battery compartment. Batteries should be oriented as shown.
- Page 15 LIMITED WARRANTY The warranty obligations of SafeTech Products, LLC (SAFETECH PRODUCTS) for this product are limited to the terms set forth below: WHAT IS COVERED: This limited warranty covers defects in materials and workmanship in this product. WHAT IS NOT COVERED: This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.
- Page 16 LIMITATION ON LIABILITY: THE MAXIMUM LIABILITY OF SAFETECH PRODUCTS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, SAFETECH PRODUCTS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY.
