USBGEAR BTS-100 User Manual

Bt rs-232 dongle
Hide thumbs

Advertisement

Quick Links

Download this manual

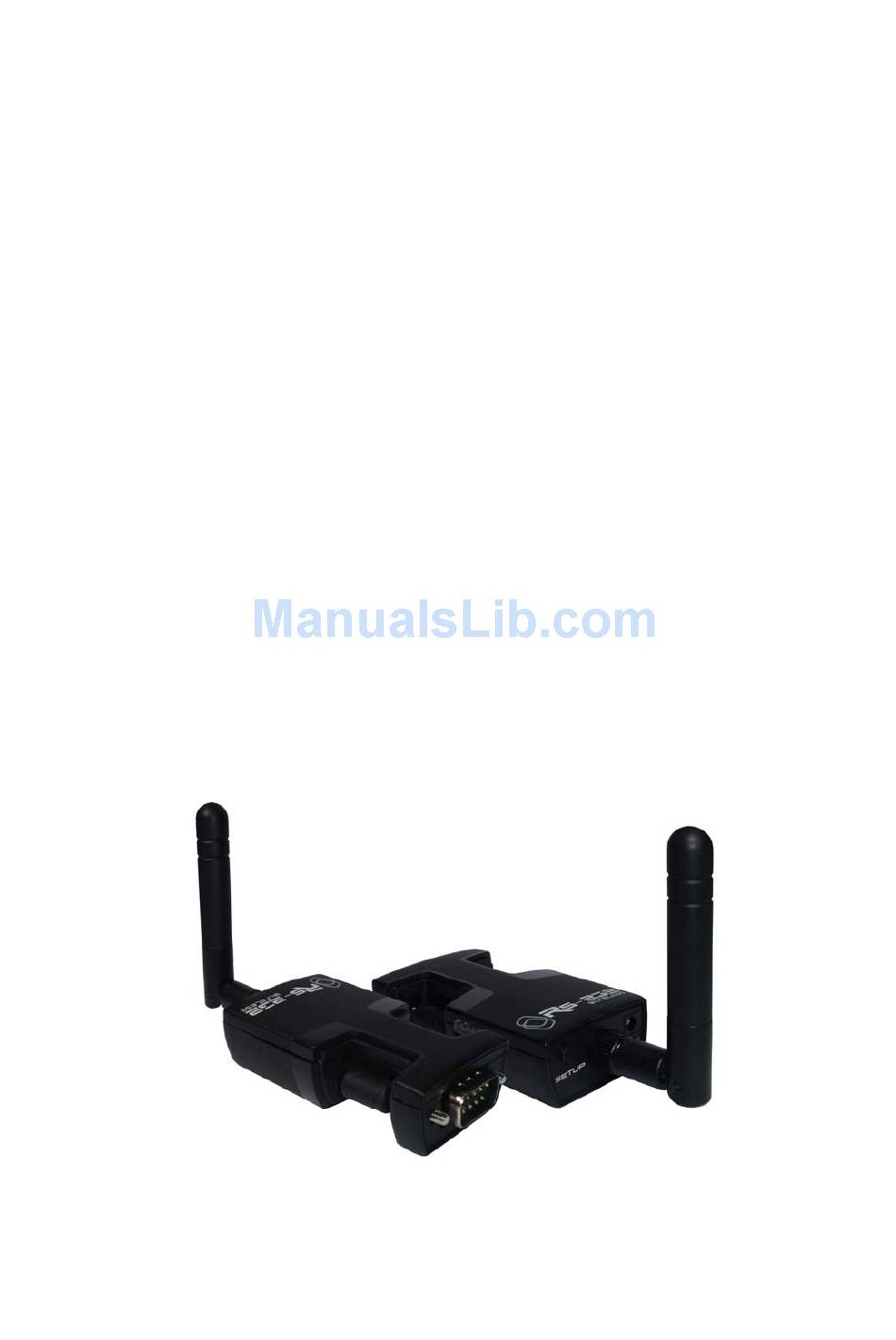

BT RS-232 Dongle
User's Manual
BTS-100

Advertisement

loading
Need help?

Need help?

Do you have a question about the BTS-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for USBGEAR BTS-100

  • Page 1 BT RS-232 Dongle User’s Manual BTS-100...

  • Page 2: Table Of Contents

    Table of Contents 1. INTRODUCTION......................2 2. PHYSICAL DIAGRAM.....................3 3. RS-232 INSTALLATION ..................4 4. HYPERTERMINAL SETTING & CONFIGURATION ..........6 5. BT PAIRING AND CONNECTING.................10 6. REGULATORY COMPLIANCE ................19...

  • Page 3: Introduction

     Frequency 2402 ~ 2480MHz  Baud Rate Supports 9.6/19.2/38.4/57.6/115.2/230.4 kbps  Modulation GFSK-1 Mbps, DQPSK-2 Mbps, and 8-DPSK-3 Mbps 1.2 Specifications: Model No. BTS-100 Frequency 2.400 to 2.4835GHz Connector DB-9 Male Standard BT specification version 2.1 Tx Power Max. 13 dBm (Class 1)

  • Page 4: Physical Diagram

    2. Physical Diagram Front view BT antenna DB9 Male connector Pin Assignment Pin No. Definition Signal Name Receive Data RS-232 pin out Transmit Data Ground Request to Send Clear to Send Side view LED Indicators (1) RX: Orange (2) PWR: Red (3) TX: Orange...

  • Page 5: Rs-232 Installation

    Rear view (1) SETUP push button (2) DC power jack SETUP push button DC power jack 3. RS-232 Installation Please follow below ways for serial (RS-232) installation. 3.1 Take one DB9 F/F cable and plug one end of DB9 female to the BT device, then put the other end of DB9 female on the host computer.
  • Page 6 3.3 Install the utility ‘AP_UartConfig.exe’ and two appendix items of CD provided. 3.4 Plug the power adapter to the device’s power jack. The PWR LED indicator (Red) lights up. Push the SETUP button, and the PWR LED indicator will light off. Then the TX LED indicator (Orange) should start blinking and go next step for configuration.

  • Page 7: Hyperterminal Setting & Configuration

    4. HyperTerminal setting & Configuration The ‘AP_UartConfig.exe’ programmer only can be operated and compliant with Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 or higher. It is not applicable to operate on iOS/Mac OS or Linux. 4.1 Double click ‘AP_UartConfig.exe’...
  • Page 8 4.3 Confirm the COM Port Number is what you selected and click ‘OK’, then reboot the computer. In this case the serial COM port is detected as COM11; we change its COM port number to COM3 instead. Now you may plug in the RS-232 port of the BT dongle.
  • Page 9 4.4 Back to the configuration wizard ‘BTConfiguration Tool V2.10’, and further check the default setting. You may click ‘Read’ and get the information of this device. 4.5 When the host computer is checking the default setting, the TX & RX LED indicators start blinking alternately in 10 seconds then light off.
  • Page 10 4.6 Complete your setting baud rate and BT Configuration as below. The default password is 1234. Or you may apply changes to any desired settings on the BT dongle. (1) UART Format (2) Device Name (3) Password 4.7 Confirm your configuration or accept the changes and click ‘Write’. The TX & RX LED indicators start blinking alternately in 3~5 seconds and light off.

  • Page 11: Bt Pairing And Connecting

    5. BT pairing and connecting For the compatibility, the BT pairing is not applicable to operate on iOS devices such as iPhone, iPad etc. 5.1 Click the BT icon on the taskbar of computer OS and plug the power adapter to the dongle’s power jack. The PWR LED indicator (Red) illuminates.
  • Page 12 5.3 Once the device is detected, it will show the ‘Wireless 2.4G RS232’ on the screenshot of ‘Add a device’. 5.4 Click ‘Wireless 2.4G RS232’ and pair.
  • Page 13 5.5 Click ‘Enter the device’s pairing code’. 5.6 Enter the pairing code and click ‘Next’. (Default is 1234)
  • Page 14 5.7 It may fail to pair and pop up error message if you can not enter pairing code in 60 seconds. Please check your BT device is working and pair again. 5.8 When the pairing is succeeded, the BT device will have its COM port number and ready to use. In this case, COM9 &...
  • Page 15 5.9 When the BT device is connected successfully, click ‘Close’. 5.10 Click the device icon ‘Wireless 2.4G RS232’...
  • Page 16 5.11 Select ‘Hardware’ and you will see ‘Standard Serial over Bluetooth link (COM9)’ in the screenshot that indicates the COM port number used for connection with the BT device. (Ex. COM9) 5.12 Open the Windows Device manager; it shows a new COM port has been established.
  • Page 17 5.13 Congratulation! You have finished pairing the BT device successfully. 5.14 Pairing master & slave units Typical application diagram...
  • Page 18 Open the configuration wizard ‘BTConfiguration Tool V2.10’ and set the two BT dongles which can be paired by one is set as ‘Master’, another is set as ‘Slave’. And then it can transfer data thru the two BT dongles successfully. 5.14.1 Check the Mac address of ‘Slave’...
  • Page 19 5.14.2 Setting the ‘Master’ unit: Overwrite the Mac address 001C.97.1F1021 on the 3 columns behind ‘Pre-defined Remote BD Address’. And then select the ‘Master Mode’; tick off ‘Pre-defined Remote BD Address’ and click ‘Write’. 5.14.3 Setting the ‘Slave’ unit: Check the Mac address of ‘Slave’ unit thru BT Configuration and select the ‘Slave Mode’;...

  • Page 20: Regulatory Compliance

    6. Regulatory Compliance Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
