REPAIR AND MAINTENANCE

Before beginning repair or maintenance:
• Read the instructions
• Disconnect charger
• Turn the power button OFF and
Remove Battery

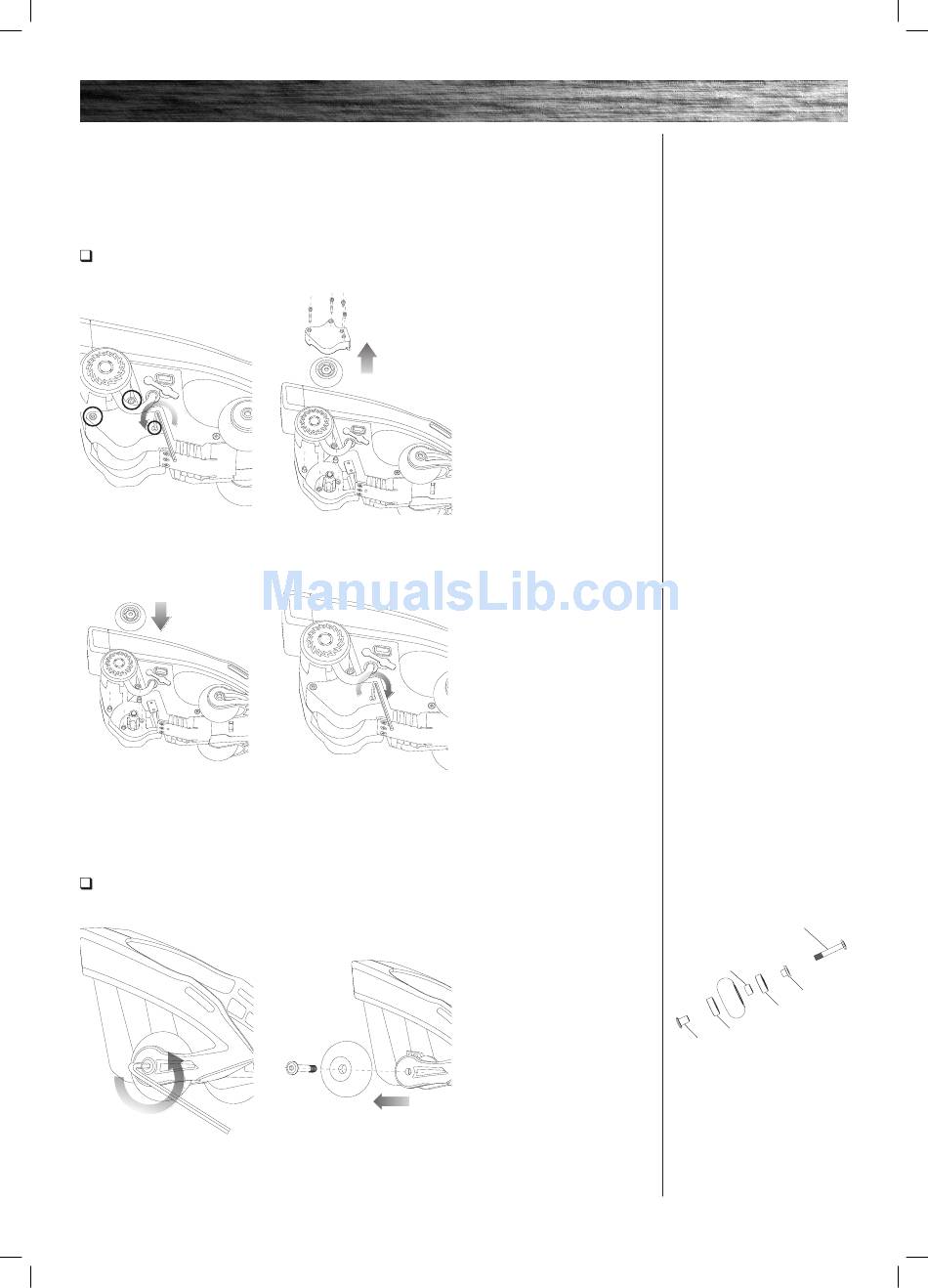

Drive Wheel Replacement
Tool Required: 2.5 mm Allen Wrench
A
A
B
1
Remove the four (4) hex bolts
using 2.5 mm Allen wrench.
3
Replace new wheel.
Wheel Replacement
Tool Required: 4 mm Allen Wrench
1
Loosen axle bolt using 4 mm
Allen wrench.
• Exercise caution around
exposed parts
• Contact Razor Customer Service
if unsure about any repair or
maintenance
A
B
A–Long
A
B
B–Short
2
Remove cover and wheel.
4
Replace cover, and reinstall four
(4) hex bolts, and tighten securely.
2
Pull axle bolt out and remove
wheel.
8
1-1
1-4
1-2
1-3
1-3
1-5
Wheel
1-1 Axle Bolt (X2)
1-2 Plastic Bushing Short (X2)
1-3 Bearing (X4)
1-4 Spacer (X2)
1-5 Plastic Bushing Long (x2)
