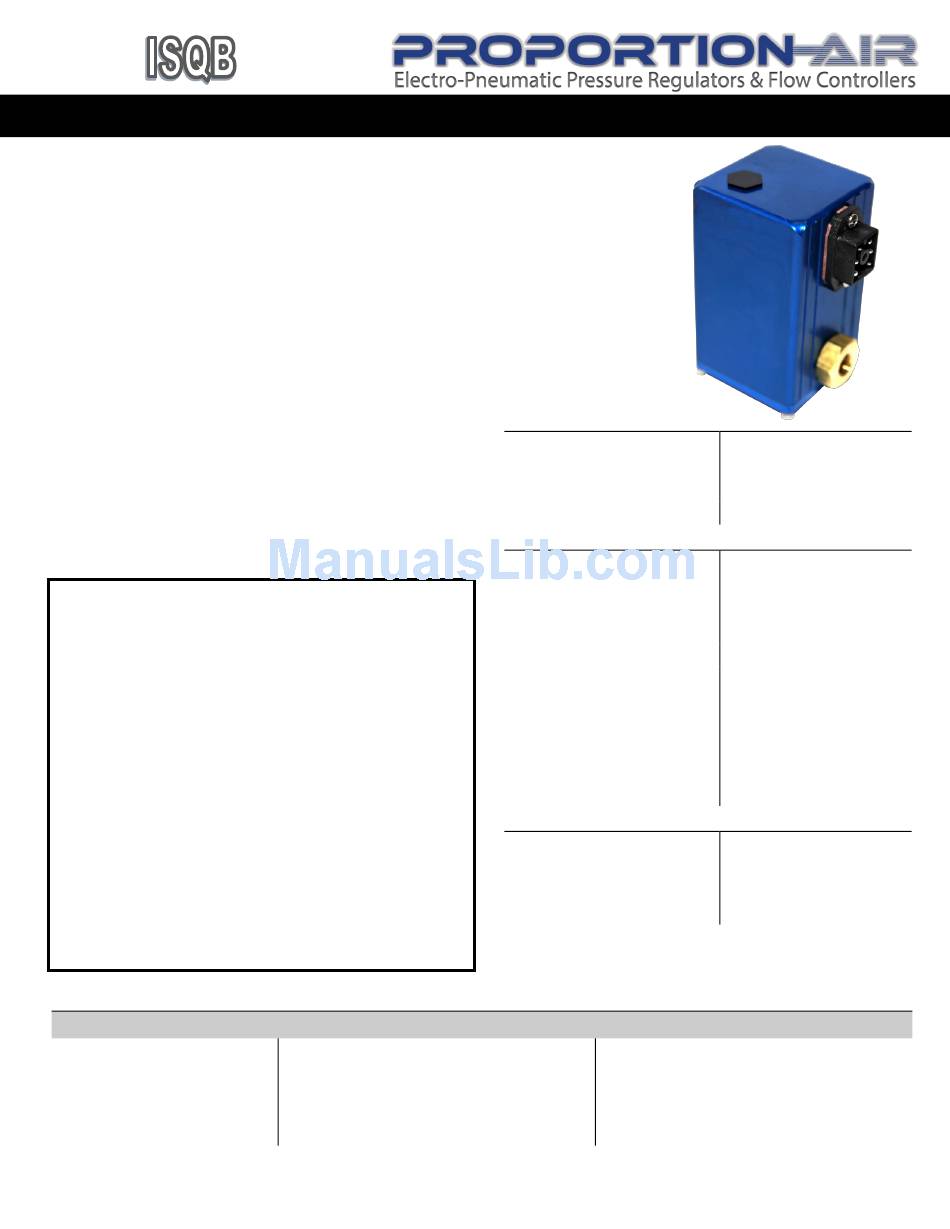

INSTALLATION & MAINTENANCE INSTRUCTIONS
DESCRIPTION / IDENTIFICATION
The ISQB1 series control valve is an electronic
pressure regulator
proportionally control the pressure of gaseous media
based on an electronic control signal.
The ISQB1 operates using two normally closed
solenoid valves, a pressure sensor, and a control
circuit. One valve is actuated to allow supply media
into the system. The second valve is actuated to allow
working media to vent through a threaded port to
atmosphere. The pressure sensor provides feedback
to the control circuit. The control circuit compares the
pressure sensor feedback to the user supplied
electronic command
appropriate valve until the two signals match.
The ISQB1 series can be teamed with a variety of air
piloted pressure volume boosters for even greater
flow.
HAZARDOUS AREA CLASSIFICATION
The ISQB is rated Intrinsically Safe and is
Factory Mutual approved for Class I, II &
III, Division 1, Groups C, D, E, F & G
Entity Parameters:
V Max = 29 VDC
I Max = 150 MA
Ci = 0.26uF
Li = 0
ISQB-96026-2
Field Wiring Drawing:
NOTES: End user must determine fitness and
suitability of the ISQB1 control valve for their application.
The ISQB requires the use of Intrinsically Safe Barriers.
PARAMTERS
COVERS
SUBSTRATE
ADHESIVES
ELECTRONIC COMPONENTS
1
designed to precisely
signal and actuates
Port 1 (Pressure Port)
High Temperature Polyamide
Alumina Ceramic
Epoxy, RTV
Ceramic, Silicon
PROPORTION-AIR, INC.
8250 N. 600 West
and
McCordsville, IN 46055
877.331.1738
info@proportionair.com
SPECIFICATIONS
ELECTRICAL
the
COMMAND SIGNAL IMPEDANCE Current=100 Ω
MECHANICAL
OUTPUT PRESSURE† 0-100% of range
Min CLOSED END VOLUME 1 in
FILTRATION RECOMMENDED 20 Micron
LINEARITY/HYSTERESIS <±0.15% F.S. BFSL
PHYSICAL
OPERATING TEMERPATURE 32-104°F (0-40°C) (T4)
PROTECTION RATING NEMA 4
† Pressure ranges are customer specified. Output pressures other
than 100% are available.
WETTED MATERIALS
SUPPLY VOLTAGE 13.9 to 29 VDC (MAX)
SUPPLY CURRENT < 80 mA
COMMAND SIGNAL 4-20 mA Differential
PRESSURE RANGES Full Vacuum - 150 psig
(29.9 in. HG (Vac) - 10.3 Bar)
FLOW RATE 0.80 SCFM @ 80 PSIG
(23 L/min @ 5.52 Bar)
3
PORT SIZE 1/8" NPT
REPEATABILITY <±0.02% F.S.
ACCURACY <±0.2% F.S.
WEIGHT 2.5 lbs. (1.1 Kg)
HOUSING Blue Anodized Aluminum
Port 2 (Reference Port)
High Temperature Polyamide
Alumina Ceramic
Epoxy, RTV
Silicon, Glass, Gold, Solder
ISQB1 Installation Guide - 2/13/2015 | SSS
(included)
