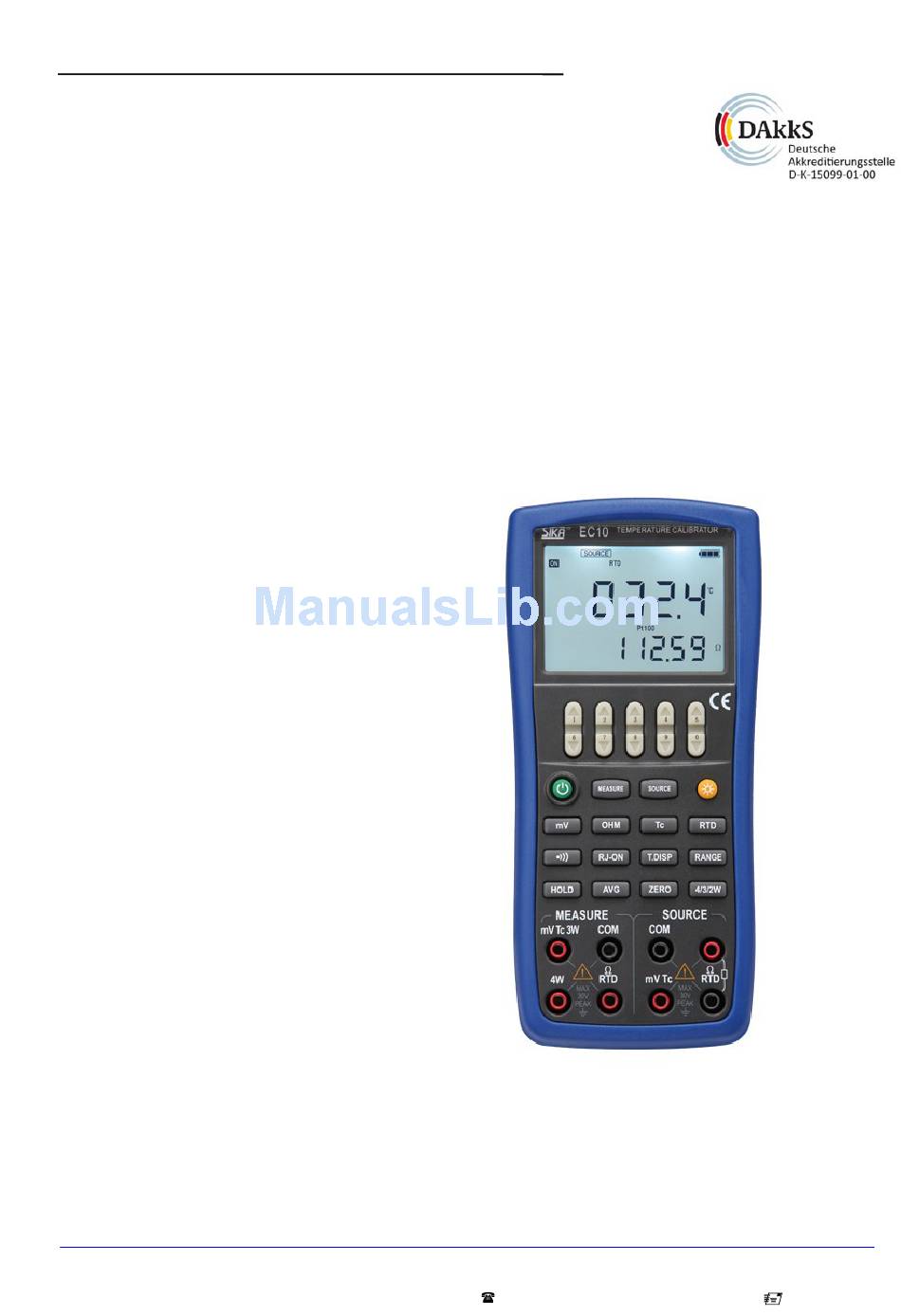

- Page 1 ELMTEC Operation Instruction RTD & TC Calibrator EC 10 www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
-
Page 2: Standard Accessories
A set of Testing Lead （CC807130） A set of Alligator clip A quick reference guide A User's Manual One Fuse 50mA/250V www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •... -
Page 3: Safety Information
Disconnect the power and discharge all high-voltage capacitors before testing resistance or continuity. Use the proper jacks, functions, and ranges for the measurement or source operation. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de... - Page 4 Figure 2 shows the measurement /source terminals of the calibrator. Table 2 explains their use. Figure 2 Measurement/ Source Terminals Figure 3 keys www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
- Page 5 ⑤ Source Signals：（+）DCV、TC ⑥ Source Signals：（-）OHM、RTD All the common (return ) （-） terminals of source ⑦ function ⑧ Source Signal：（+）OHM、RTD www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
- Page 6 In ohm/RTD measurement function, select 2W,3W or 4W method. AVG Key Measuring average value ZERO Key Set the source value to default value www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
-
Page 7: Display Screen
RTD measurement / source r：room temperature/ Tc(mV) or RTD( ) subsection value s：Unit of room temperature/ Tc(mV) or RTD( ) Unit of subsection value www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •... -
Page 8: Before Starting Source/Measurement
Ambient temperature range: 0 to 50℃ Ambient humidity range: 20 to 80% RH. Use the instrument under non-condensing condition. Flat and level locations www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •... - Page 9 Step 3: Install four alkaline batteries of same type in the battery holder with their positive and negative electrodes positioned correctly as indicated on the holder. Step 4: After replacement, reattach the battery holder cover. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
- Page 10 The backlight automatically turns off after 10 seconds. Press the key once more to relight it. The time could be reset in the factory default parts, see Chapter 10 “Factory Default”. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de...
-
Page 11: Connecting Cables To Terminals
Step 2: Connect the other ends of the cables to the input of equipment under test while making sure the polarities are correct. Figure 5: Sourcing DC voltage, TC www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •... - Page 12 Maxim or Minimum value. Pressing the〔 〔 〔 〔 ZERO〕 〕 〕 〕 key initializes the output set point to the default value (0). Step 3: The calibrator sources the DC-voltage signal between the output terminals. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de...
- Page 13 Maxim or Minimum value. Pressing the〔 〔 〔 〔 ZERO〕 〕 〕 〕 key initializes the output set point to the default value(0). Step 3: The calibrator sources the preset resistance value between the output terminals. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de...
- Page 14 Pressing the〔 〔 〔 〔 T.DISP〕 〕 〕 〕 key once more, the assistance district of the LCD shows the preset room temperature value. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de...
- Page 15 In any range of DC voltage, ohm, TC and RTD functions, pressing the 〔 〔 〔 〔 ZERO〕 〕 〕 〕 key selects clearing off function, which initializes the preset source value for the convenience of user to reset source value. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de...
- Page 16 Step 2: Connect the other end of the cable to the measuring terminals of equipment under test while making sure the polarities are correct. Figure 7 Measuring DC voltage www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
- Page 17 Step 2: Connect the two clips of the cables to the measuring terminals of equipment under test while making sure the polarities are correct. Figure 9 Measuring continuity ,ohm/RTD signal with 2w method www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
- Page 18 Exercise the utmost care when carrying out the measurement task. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de...
-
Page 19: Measuring Dc Voltage
“RJ-ON” mark displays on the middle of the screen, and the environmental temperature displays on the screen. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de... -
Page 20: Measuring Continuity
Connecting the devices as shown in Figure 9,the beeper sounds continuously if the loop circuit resistance under measurement is less than 50 ,and LCD shows the present measured resistance value. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de... - Page 21 LCD. Repressing the〔 〔 〔 〔 T.DISP〕 〕 〕 〕 key cancels the room temperature value. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de...
-
Page 22: Factory Default
When the default value is 0, the backlight won’t be off automatically if turned on except that you turn it off manually. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de... -
Page 23: Setting Temperature Unit
Any change of setting to the above-mentioned function, press the 〔 〔 〔 〔 SOURCE〕 〕 〕 〕 key to save the value. Any press of the〔 〔 〔 〔 SOURCE〕 〕 〕 〕 key saves the nearest setting value. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de... -
Page 24: Replacing Batteries Or Fuse
Blinking of the indicating light means the charger is not connected or no battery is inside. Note: Do not use the calibrator when it undergoes charging, otherwise, the charging will be prolonged. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •... -
Page 25: Maintenance
Conductive Rubber Sponge：length×width×height＝40×6×6 wire LCD Circuit Panel Sponge：length×width×height＝48×10× Screw M3*8 Outer Protector Terminal Cover Cover Door Main Circuit Panel Bottom Panel www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •... - Page 26 Figure 17 Replacing parts www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
- Page 27 CALCT Temperature A000019 Probe TC Plug R/S/K/E/J/T/N/ B/L/U Test Hoop TP907110 CA Battery Parcel A000021 CA Charger A000020 Figure 18 Options www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
-
Page 28: Specifications
0.0～1300.0 ℃: 0.9 ℃ 600～800 ℃: 2.2 ℃ 1 °C 600 °C～1820 °C 800～1000 ℃: 1.8 ℃ 1000～1820 ℃: 1.4 ℃ www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •... - Page 29 The accuracy of the temperature probe: ±0.2℃. The range of the measured temperature is form -20℃-100℃. Maximum voltage between VΩHz terminal and COM terminal: 30 Vpk www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
- Page 30 -200.0～1300.0 ° C -100.0～900.0℃: 0.7 ℃ 9000～1300.0℃: 0.8 ℃ 600～800℃ : 1.5 ℃ 1 ° C 600～1820 ° C 800～1820℃: 1.1 ℃ www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
- Page 31 Maximum voltage between any output terminal and earth: 30Vpk The accuracy of the temperature probe: ±0.2℃,the range of the measured temperature is from -20℃-100℃. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
- Page 32 The functions described in this operation instruction should not be used as grounds to apply this product to a particular purpose. www.elmtec.de ELMTEC Ing. GmbH • Kattreppeln 28 • 38154 Königslutter • 05353 / 9545 - 0 • info@elmtec.de •...
