Summary of Contents for Applied Research and Technology’s USB Phono Plus

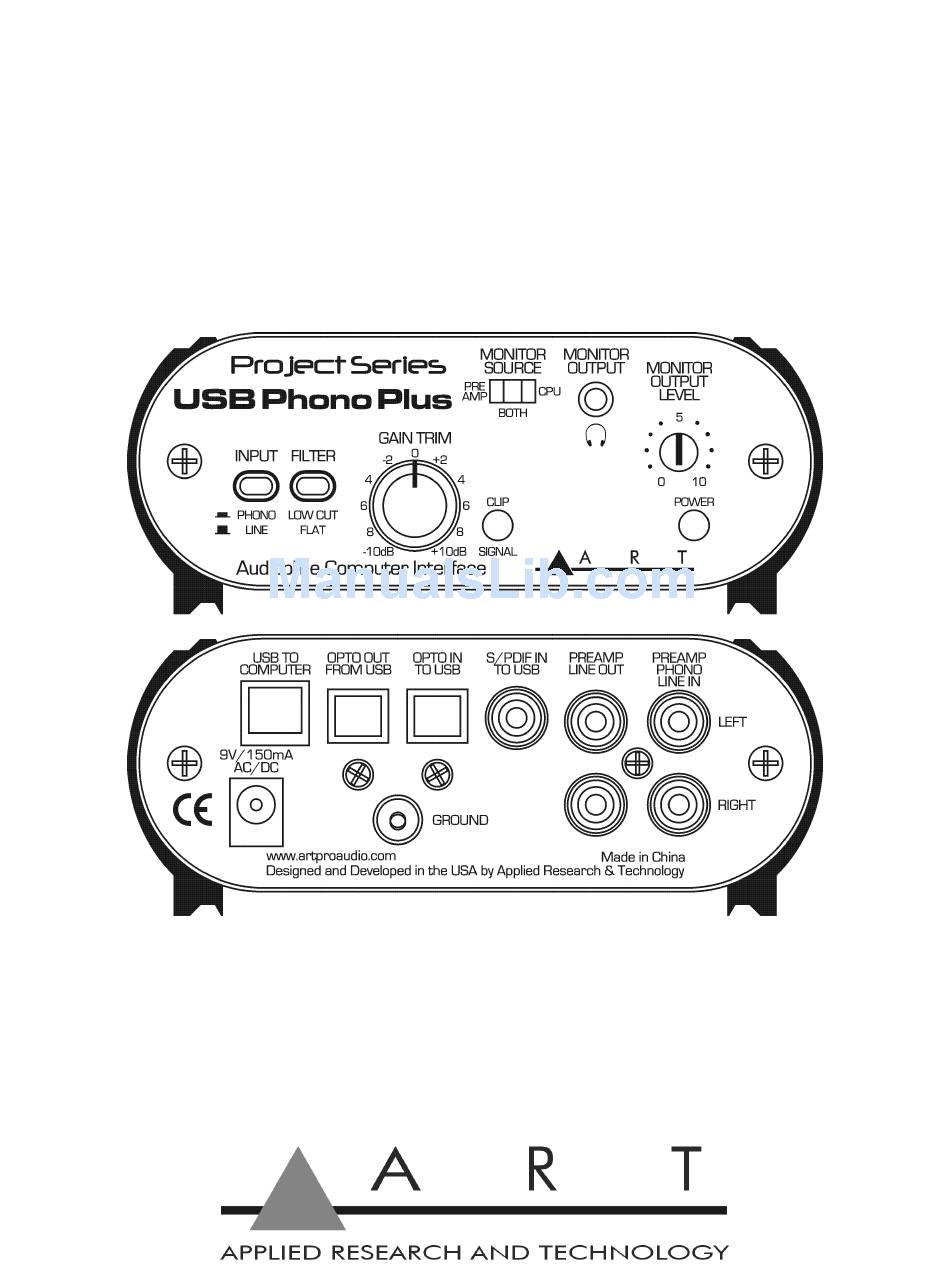

- Page 1 USB Phono Plus Audiophile Computer Interface Project Series USER’S MANUAL...
- Page 2 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltage inside the enclosure-voltage instructions in the accompanying literature. that may be sufficient to constitute a risk of shock.
- Page 3 INTRODUCTION The USB Phono Plus Project Series is a high quality USB audio interface with a built-in phono preamp. It acts as an interface between your computer and a wide variety of analog and digital sources. The analog inputs are switchable between Phono and Line level signals and a Low Cut filter removes rumble and wind noise while leaving the audio pristine.
- Page 4 USB connections on your computer. This connection also powers the USB circuitry inside the USB Phono Plus Project Series and will power the whole product if no other power source is available. This connection looks like a standard “USB Audio CODEC” to your computer, and your...
- Page 5 The Monitor Output Level control adjusts the signal level available at the Monitor Output jack. The red Power LED indicator lights whenever the USB Phono Plus Project Series is being pow- ered either through the USB connection from your computer or via the external power connection on...
-
Page 6: Installation
Select LINE or PHONO input for the analog source type. Use the LOW CUT Filter for removing turntable rumble or other low frequency noise if you find it is desirable. 2. Connect the USB Phono Plus Project Series USB connection to the appropriate USB input on your computer. -
Page 7: Operation With A Computer
USB Mix is reconnected to the computer. Your recording software may also select which inputs or outputs are being used. NOTE: The USB Phono Plus Project Series interface uses the standard “USB Audio CODEC”. This driver is built into most modern operating systems, including most current versions of Linux. - Page 8 BLOCK DIAGRAM AND SIGNAL FLOW...
-
Page 9: Warranty Information
WARRANTY INFORMATION Limited Warranty Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. - Page 10 SERVICE The following information is provided in the unlikely event that your unit requires service. Be sure that the unit is the cause of the problem. Check to make sure the unit has power, all cables are connected correctly, and the cables themselves are in working condition. You may want to consult with your dealer for assistance in troubleshooting or testing your particular configu- ration.
-
Page 11: Specifications
1.35 lbs, 0.61 kg Note: 0 dBu = 0.775Vrms ART maintains a policy of constant product improvement. Therefore, specifications are subject to change without notice. Go to www.artproaudio.com for the latest information and on the USB Phono Plus Project Series... - Page 12 E-mail: support@artproaudio.com © 2018 Applied Research & Technology / Yorkville Sound USB Phono Plus Project Series 169-5004-106...
