Move Green Global RC204 Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

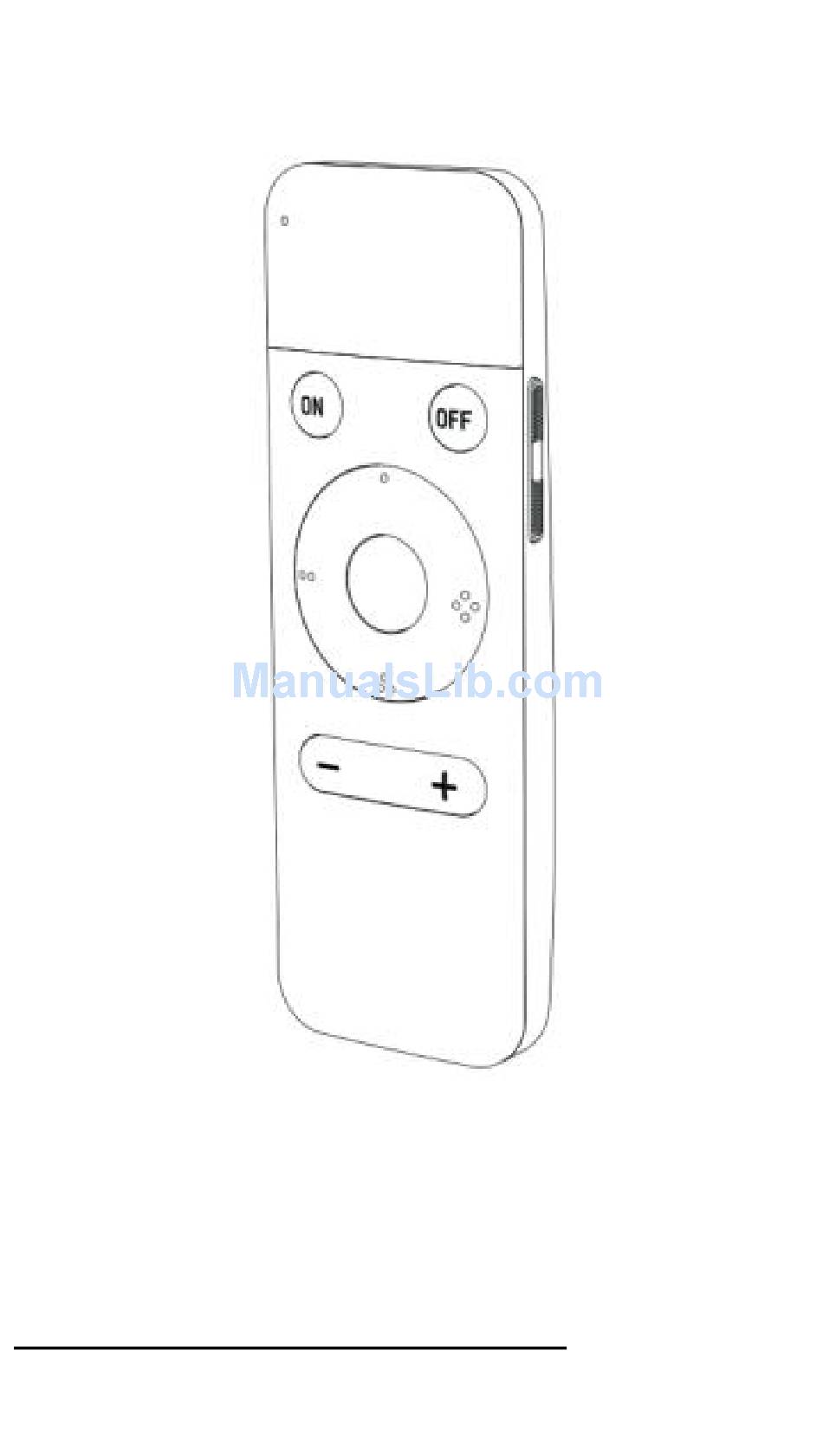

RC204 ZigBee Remote Control
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC204 and is the answer not in the manual?

Questions and answers

Summary of Contents for Move Green Global RC204

  • Page 1 RC204 ZigBee Remote Control Quick Start Guide...

  • Page 2: Get To Know Your Device

    1. Introduction The RC204 ZigBee Remote Control is used to control up to four devices either at one time or individually. Take controlling CCT Tunable LED bulbs as an example, you are able to use it to control the following.
  • Page 3 Main LED indicator All ON/OFF buttons Lock Switch Reset button Individual ON/OFF buttons & status LED indicators...
  • Page 4 Color temperature adjustment button Status button Brightness adjustment button...

  • Page 5: Buttons And Switch

    2.2. Buttons and switch All ON and all OFF button  Turn on and off all the paired devices such as LED bulbs, smart plugs and power relays. Four individual ON/OFF buttons  Turn ON/OFF the corresponding device individually. Status button ...

  • Page 6: Micro Usb

    2.3. Switch Lock Switch  Set the device to be unable to bind with other devices. 2.4. Micro USB The micro USB is used to charge the battery of this device. Connect it to a power outlet using the standard Micro USB cable and USB power adapter.
  • Page 7 LED status What it means Main LED The battery charging is complete solid Green Red LED The device is charging solid 1. After pairing with an individual device Green LED 2. After restart (3 seconds reset flashes one button push) time 3.
  • Page 8 Status LED indicators Individual LED status indicators LED status What it means Individual When pressing the status button if indicator the individual indicator shows solid shows solid green then the paired device is ON green Individual When pressing the status button if indicator the individual indicator shows solid shows solid...

  • Page 9: Get Started

    LED bulb)  The mobile app Then follow the steps below: Step 1: Check the RC204 status. Press any button to check if the main LED indicator flashes red for three times. Tip: if not, please return it to default factory settings by...
  • Page 10 Step 3: Use a pin key tool to press the RC204 reset button. Then the device will join the ZigBee network of the gateway. Step 4: If the remote control is paired into the gateway successfully, the main LED indicator will flash green three times.
  • Page 11 (3) Place the remote control near to the LED bulb, then press and hold one of the individual ON/OFF for three seconds until the main LED indicator flashes green once. Individual ON/OFF buttons (4) After successful pairing, the LED bulb will stop flashing, and the corresponding status LED indicator will flash green three times.
  • Page 12 4. FAQ Q1. How to return this device to default factory settings? A1: Use a pin key tool to press and hold the reset button for ten seconds until the LED indicator flashes green twice, then after you release the main LED indicator will rapidly flashes ten times.

  • Page 13: Technical Specifications

    Note: All below devices need to return to default factory settings before you continue. (1) Place the RC204 Remote Control near to the LED622, press and hold the one of the individual ON/OFF buttons of the RC204 for about three seconds until the LED flashes green three times.

  • Page 14: Safety Notice

    6. Safety Notice WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the device or other property. Read all the safety notices below before using the device.  Avoid high humidity or extreme temperatures. ...
