Summary of Contents for DTS Q220

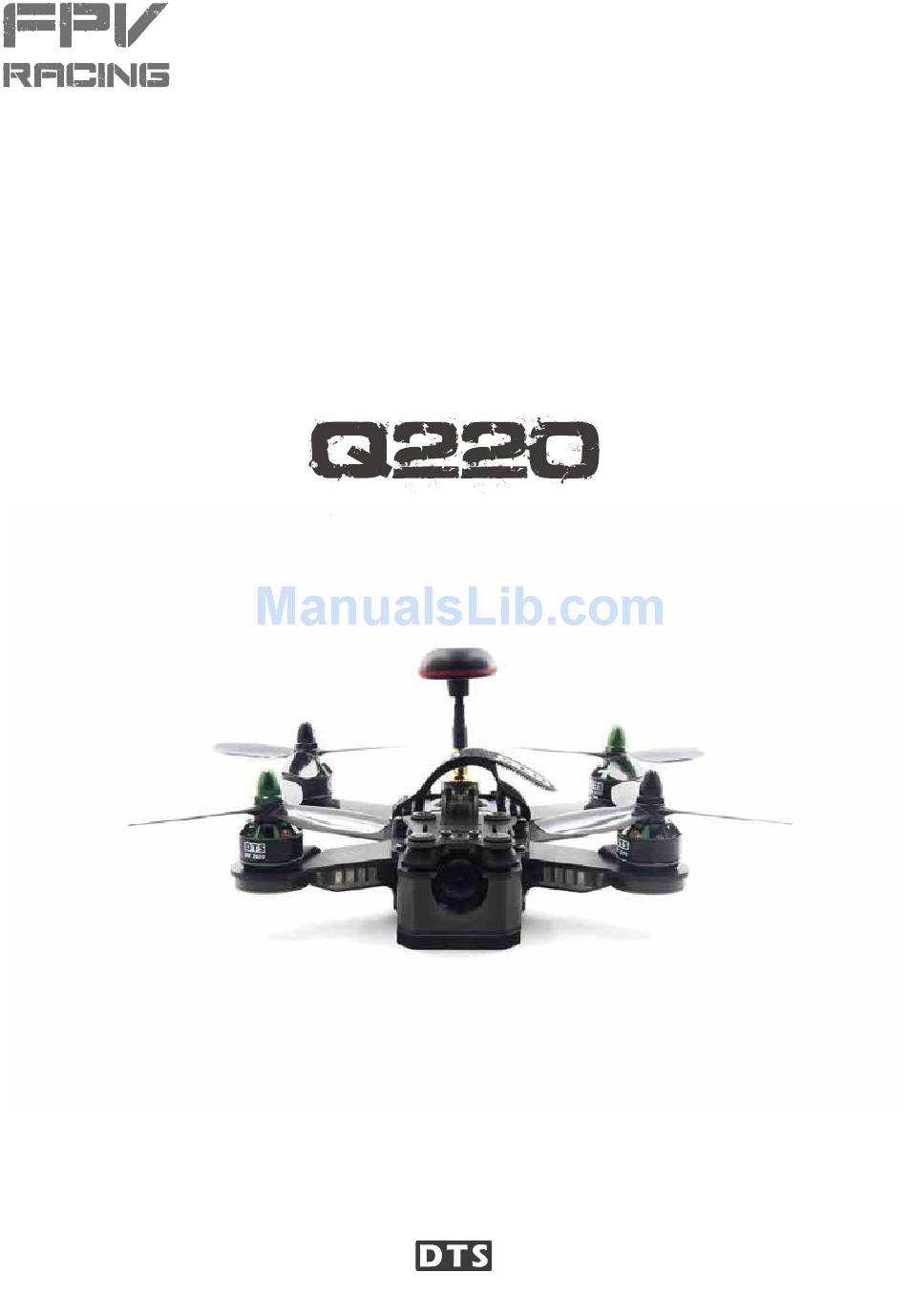

Page 1 快速操作手冊 - Quick Guide User Manual...
Page 2: Table Of Contents
Table of Contents RAcing Introduction Important Notes / Warning Label Legend Safety Note (General / Battery Installation) Safety Note (Install Compatible RC Receiver / Setup the Video Link)* Safety Note (Receiver Setting - CleanFlight / Pre-flight Check)* 3 - 9 Safety Note (Racing Instruction / Remove Props / Li-po Low V.
Page 3: Safety Note (General / Battery Installation)
Please read this manual carefully before operating, and make sure to be conscious of your own personal safety and the safety of others nearby when operation all DTS products. Manufacturer and seller assume no liability for the operation or the use of this product. This product is intended for use only by adults with experience flying remote control aircraft at legal flying fields.
Page 4 Safety Note (Intall Compatible RC Receiver) RAcing DTS Q-series is compatible with CPPM (all PPM channels down one single cable) receivers out of the box, and can support S-Bus, or Spektrum receivers with an optional cable. It is also compatible with standard R/C receivers with multiple channels of PWM out...
Page 5 Safety Note (Receiver Setting - CleanFlight) RAcing Select Receiver Signal (PWM,PPM,SBUS,DSM) - Download CleanFlight into your Computer as https://chrome.google.com/webstore/detail/cleanflight-configurator/enacoimjcgeinfnnnpajinjgmkahmfgb?hl=en-US - Download the Version 1.2.4 and install it as Extensions in Goggle Chrome as https://github.com/cleanflight/cleanflight-configurator/releases/tag/CLFL_v1.2.4 - Connect the Main Control Board to computer by USB Cable - Enter the Receiver table - Select the Receiver Brand which you are using - Clean Flight Setting:...
Page 6 Safety Note (Receiver Setting - CleanFlight) RAcing PWM Signal - Download CleanFlight into your Computer as https://chrome.google.com/webstore/detail/cleanflight-configurator/enacoimjcgeinfnnnpajinjgmkahmfgb?hl=en-US - Download the Version 1.2.4 and install it as Extensions in Goggle Chrome as https://github.com/cleanflight/cleanflight-configurator/releases/tag/CLFL_v1.2.4 - Plug PWM receiver into correspondence port (Port Position please refer to P.14- Main Control Board Introduction) - Power on the Main Control Board - Connect the Main Control Board to computer by USB Cable Clean Flight Setting :...
Page 7 Safety Note (Receiver Setting - CleanFlight) RAcing PPM Signal - Download CleanFlight into your Computer as https://chrome.google.com/webstore/detail/cleanflight-configurator/enacoimjcgeinfnnnpajinjgmkahmfgb?hl=en-US - Download the Version 1.2.4 and install it as Extensions in Goggle Chrome as https://github.com/cleanflight/cleanflight-configurator/releases/tag/CLFL_v1.2.4 Plug PPM receiver into correspondence port (Port Position please refer to P.14- Main Control Board Introduction) - Power on main control board - Connect the Main Control Board to computer by USB Cable Clean Flight Setting :...
Page 8 Safety Note (Receiver Setting - CleanFlight) RAcing SBUS Signal - Download CleanFlight into your Computer as https://chrome.google.com/webstore/detail/cleanflight-configurator/enacoimjcgeinfnnnpajinjgmkahmfgb?hl=en-US - Download the Version 1.2.4 and install it as Extensions in Goggle Chrome as https://github.com/cleanflight/cleanflight-configurator/releases/tag/CLFL_v1.2.4 Plug PWM receiver into correspondence port (Port Position please refer to P.14- Main Control Board Introduction) - Power on main control board - Connect the Main Control Board to computer by USB Cable Clean Flight Setting :...
Page 9 Safety Note (Receiver Setting - CleanFlight) RAcing DSM SIgnal - Download CleanFlight into your Computer as https://chrome.google.com/webstore/detail/cleanflight-configurator/enacoimjcgeinfnnnpajinjgmkahmfgb?hl=en-US - Download the Version 1.2.4 and install it as Extensions in Goggle Chrome as https://github.com/cleanflight/cleanflight-configurator/releases/tag/CLFL_v1.2.4 Plug DSM receiver into correspondence port (Port Position please refer to P.14- Main Control Board Introduction) - Switch all channel switch to bottom - Power on the main control board.
Page 10: Safety Note (Racing Instruction / Remove Props / Li-Po Low V. Alarm)
Safety Note (Receiver Setting - CleanFlight) RAcing Receiver Channel Range Setting - Adjust the transmitter parameter (Travel), let Roll, Pitch, Yaw, Throttle Lowest value within 1000 - 1096, and the largest value within 1944 - 1999 in the Receiver Table. - AUX 1 and 2 are on your transmitter, and there will be have 3 switches.
Page 11 Safety Note (Pre-flight Check) RAcing Motor Lock Mode - Throttle channel locked (Middle condition LED flashing in Yellow) Chcek the transmitter stick and condition LED is it at the same direction (MUST process in Motor Lock Mode) - Push Elevator Stick to Top (Left / Right Condition LED flashing in Yellow) - Push Aileron Stick to Left (Left Condition LED flashing in Yellow) - Push Aileron Stick to Right (Right Condition LED flashing in Yellow) - Push Throttle Stick to Top in Motor Lock Mode (Middle Condition LED solid in Blue and Green)
Page 12 REMOVE ALL PROPS, unless you are just about ready to fly. Safety Note (Li-po Low Voltage Alarm) DTS Q-series quad included LI-po Low Voltage alarm. Alert“Bi~Bi~” when battery in low voltage to prevent over discharge. This function is compatible with GWY COBRA V, due to it has buzzer function.
Page 13 Safety Note (General) RAcing FORBIDDEN Do not fly near buildings , high voltage cables, or tress to ensure the safety of yourself. 禁止 Do not attempt to modify the aircraft to alter its intended design. Please use only designated FORBIDDEN 禁...
Page 14: Details Packing Contents
Details Packing Contents RAcing 5.8G Circular Q220 Quadcopter Q220 - Main Props Polarization Antenna Receiver Signal Cable Receiver Signal Cable (PWM,PPM) (SBUS,DSM2/X) Landing Skid - Rubber L Shape Hex Key Round Head Socket Screw Velcro (Hard x 1 Rough x 1) M2.5x6mm x 1 / M2.5x6mm x 1...
Page 15 Equipment Required RAcing Transmitter - 6 Channel or above Receiver - 6 Channel or above, PPM,DSM,SBUS signal (Aircraft / Multicopter system) FPV Goggle Balance Charger 3 cells or 4 cells Li-po Battery Flight Steps 1. Install Receiver (self-provided) (Please refer to P.2 - Intall Compatible RC Receiver) to quad 2.
Page 16 Main Control Board Introduction RAcing Rear Front AUX2 AUX1 CH4 PWM Wiring Diagram 1. 5V Camera Socket (with VOL-L/R) 5 PIN 11. B. ECS Power Connecter S4 External Buzzer / Conditional LED Socket 2. 5V Camera Socket 3 PIN 22. PPM Signal Input Socket Low V.
Page 17: Welding Introduction
Welding Introduction RAcing FRONT Motor Motor Motor Motor...
Page 18: Assembly Introduction
Assembly Introduction RAcing (Before Assembly, Ensure Motor and ESC has been welding on the Main Control Board) Specification Quantity Front Body Cover (Plastic) Rear Body Cover (Plastic) Mount Rod for Front and Rear Arm Cover (Front) Left Body Cover (Plastic) Arm Cover (Rear) LED Light Set (Green) Right Body Cover (Plastic)
Page 19: Assembly Introduction
Assembly Introduction RAcing (Before Assembly, Ensure Motor and ESC has been welding on the Main Control Board) Spare Parts DTS006871 (Optional Equipment) Specification Quantity Camera Damping Rod Camera Damping Plate Camera Damping Ball Antenna mount Top Fixed Plate (Front) Camera Damping Ball Ring M2*5 Screw M2*12 Screw Camera Mount...
Page 20 Assembly Introduction RAcing (Before Assembly, Ensure Motor and ESC has been welding on the Main Control Board) CW Brushless Motor CCW Brushless Motor CCW Brushless Motor CW Brushless Motor Step Three Diagram Specification Quantity M2*5 Screw Battery Fixed Plate (Side) O Ring Cover for Receiver Placement Antenna Mount...
Page 21: Main Blade Assembly Introduction
Assembly Introduction RAcing (Before Assembly, Ensure Motor and ESC has been welding on the Main Control Board) Specification Quantity M2*5 Screw Specification Quantity Antenna Mount A Channel Switcher Cover Antenna Mount B Landing Skid (Sponge) Extension Tube 5.8G Antenna CCW Blade Bullet Head Nut (CW) CW Blade Bullet Head Nut (CCW)
Page 22: Control Mode
Flight Control Introduction RAcing Mode 2 Throttle Elevator Rudder Aileron Mode 1 Elevator Throttle Rudder Aileron Mode 2 is the most common mode in USA, always use on RC Helicopter and Multicopter. To identify Mode 2, we can find where is the throttle stick, if the left stick push to the top and it wasn’t bounce back to middle, it should be Mode 2.
Page 23 (AUX1) Flight Mode Switch RAcing Three flight modes are configured by the Clear Flight, and are maped by default to channel 5 (AUX1) of the R/C Tx. These modes are as follows： Angle (Pos 1) Angle mode is the easiest to learn. When the sticks are centered, the flight controller is always working to level the quad.
Page 24: Compatible Open Source
DTS. The variant of the open source flight controller firmware that we chose to power the DTS is Clenflight, mainly die to it is solid support of the OneShot ESC control protocol.
Page 25: Spare Parts
Spare Parts RAcing DTS006881 DTS006882 GWY006883 DTS006885 Body Cover (Four Sides) Arm Cover (Plastic) LED Light Set (Front / Rear) Motor Mount Set DTS007091 3S 11.1V 1350mAh 40C DTS006887 DTS006888 DTS006889 Li-Po Battery Brushless Motor (CCW) Brushless Motor (CW) Main Plate (Bottom) DTS006890 DTS006891 DTS006892...
Page 26 Spare Parts RAcing GWY006894 GWY007087 GWY007084 GWY007088 Main Control Board Main Control Board Main Control Board Main Control Board With 20A 25mW PAL With 30A 25mW PAL With 20A 25mW NTSC With 30A 25mW NTSC GWY007085 GWY007089 GWY007086 GWY007090 Main Control Board Main Control Board Main Control Board Main Control Board...
Page 27 Spare Parts RAcing GWY006831 GWY006952 GWY006954 GWY006955 Long Lens - NTSC Short Lens - NTSC Long Lens - PAL Short Lens - PAL GWY00xxxx GWY007083 GWY007082 GWY006939 720P/60F Storage Camera Aluminium Box DSM Signal Output Receiver SBUS Signal Output Receiver GWY006227 GWY007092 AH6T Transmitter (Mode 2)
Page 28 Specification RAcing Q220 Quadcopter Circular Polarized Antenna Transmitter Main Blade：5 x 4 x 3 Operating Frequency ： 5.8GHz Wheelbase：220mm Antenna Gain ： 1 dBi Length x Width：~170mm x ~200mm Operating Temperature ： -20°C ~ 80°C Height : ~65mm (Not included Antenna) Impedance ：...
Page 29 RAcing...
