Summary of Contents for BBV CTI/1

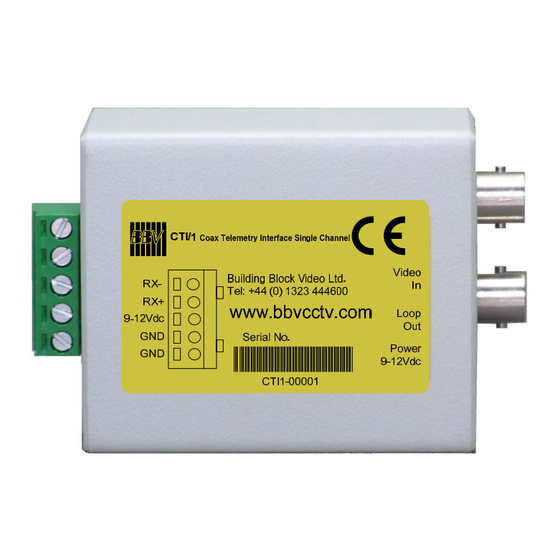

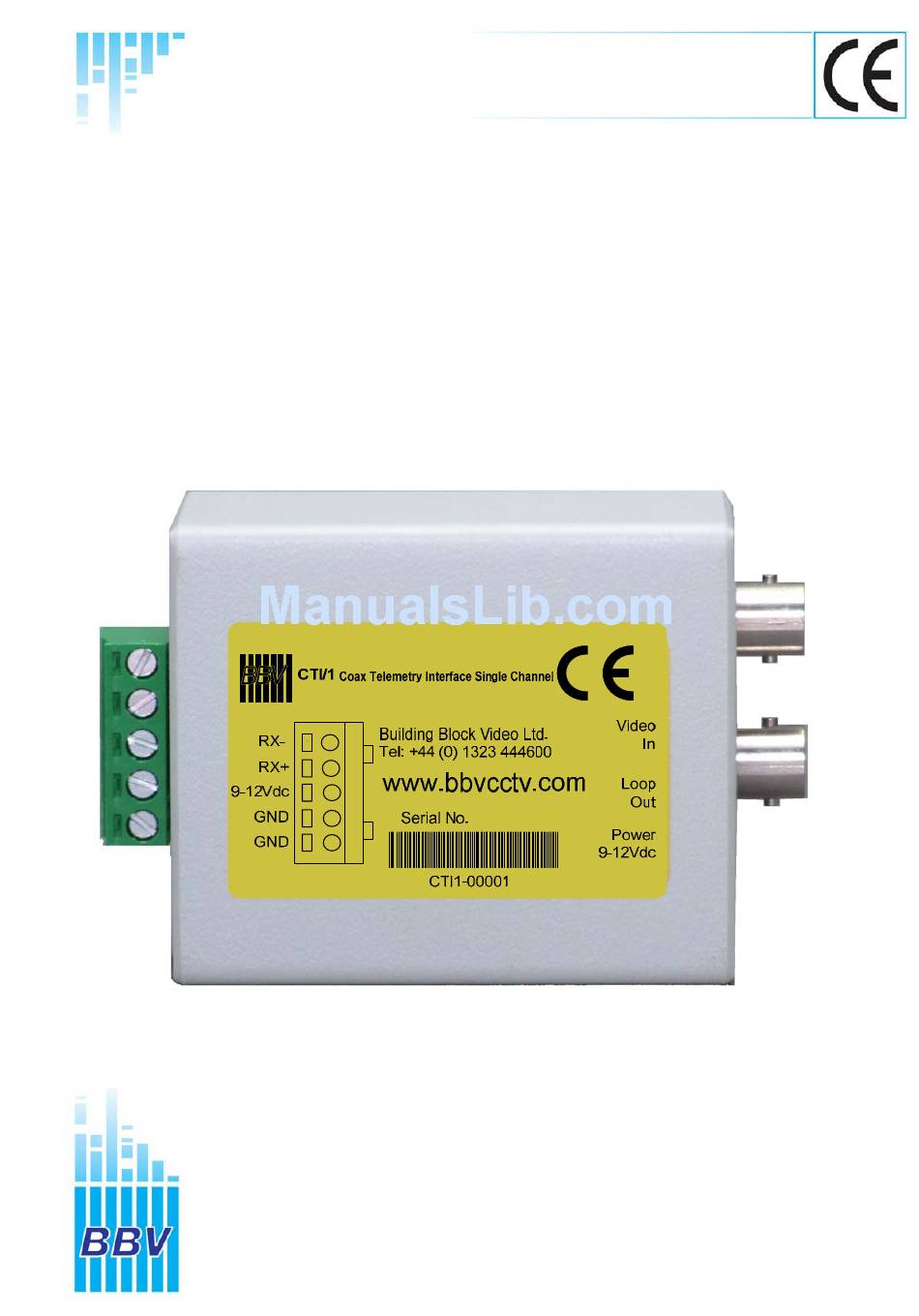

- Page 1 CTI/1 RS422/BBV Coax Telemetry Interface Single Channel Installation Guide Building Block Video Ltd 17 Apex Park, Diplocks Industrial Estate, Hailsham, East Sussex, BN27 3JU, UK Tel: + 44 (0) 1323 842727 Fax: +44 (0) 1323 842728 www.bbvcctv.com...
- Page 2 CTI 1 Manual V2 Aug 11...
-
Page 3: Table Of Contents
Contents Introduction Page 4 Address Setting Procedure Page 8 Pre – Installation Checks Page 5 Function Command Table Page 8 Technical Specification Page 6 Example System Drawing Page 9 Software Version History Page 6 Test Mode Page 10 Connection Diagram Page 7 CTI 1 Manual V2 Aug 11... -
Page 4: Introduction
Please Note: The CTI/1 supports eight addresses only Protocols supported are: BBV & Pelco P The CTI/1 has been tested with the BBV FBM Matrix, BBV TX1500 Matrix, BBV TX400DC/RS485 and a number of products that transmit Pelco P 9600 N81,... -
Page 5: Pre - Installation Checks
5 only /J3 Pads card (5.08 mm pitch) RS422/BBV Coax Telemetry CTI/1 Interface single channel Retain Packaging - The shipping carton is the safest container in which to transport the unit. Retain undamaged packaging for possible future use. -
Page 6: Technical Specification
Technical Specification Power Requirements 9-12Vdc 500mA Inputs BBV RS422 or Pelco P 2 Wire RS485 or 2 Wire RS422 Simplex via 5 pin Green Screw Terminal Connector Maximum Cable Distance Belden 8723 = 1200mtrs Outputs 1 x BBV Coax Telemetry via BNC Connectors... -
Page 7: Connection Diagram
CTI/1 Connection Diagram Power & valid address data LED Test sw. PCB08007 ISS2 Video In Video in from camera 9-12Vdc Video In Video Out Video out from camera to transmitter COAX TX REG1 Supply 9-12Vdc www.bbvcctv.com Coax telemetry active LED In normal operation the Power LED is ON, when receiving valid serial telemetry the LED flashes OFF &... -
Page 8: Address Setting Procedure
Function Command Table BBV support a number of commands that are referred to as # commands these are used to enter the menu of the camera or receiver. In addition BBV coax telemetry also supports 2 preset patrols & an Autopan command, all of the fore-mentioned commands can be called from preset commands these are all listed below. -
Page 9: Example System Drawing
Example System Drawing up to 250m RG59 BBV RS422 or Pelco P up to 500m CT125 9600 N81Protocol CTI/1 up to 5m RG59 IP ENCODER RX10X NVR SYSTEM UNDEFINED DOME CTI 1 Manual V2 Aug 11... -
Page 10: Test Mode
Test Mode There will be occasions where it will be necessary to test if the CTI/1 is sending coax telemetry to the camera or receiver connected to the remote end of the coax. As you will see from the drawing below only one coax is needed to be connected. -
Page 11: Cti 1 Manual V2 Aug
CTI 1 Manual V2 Aug 11... - Page 12 BBV: BBV 3 Year Warranty If this card is returned with the serial number of the product and the Installation company details BBV will extend the warranty period from 12 Months to 36 Months. Number of Units, Start Serial No.
