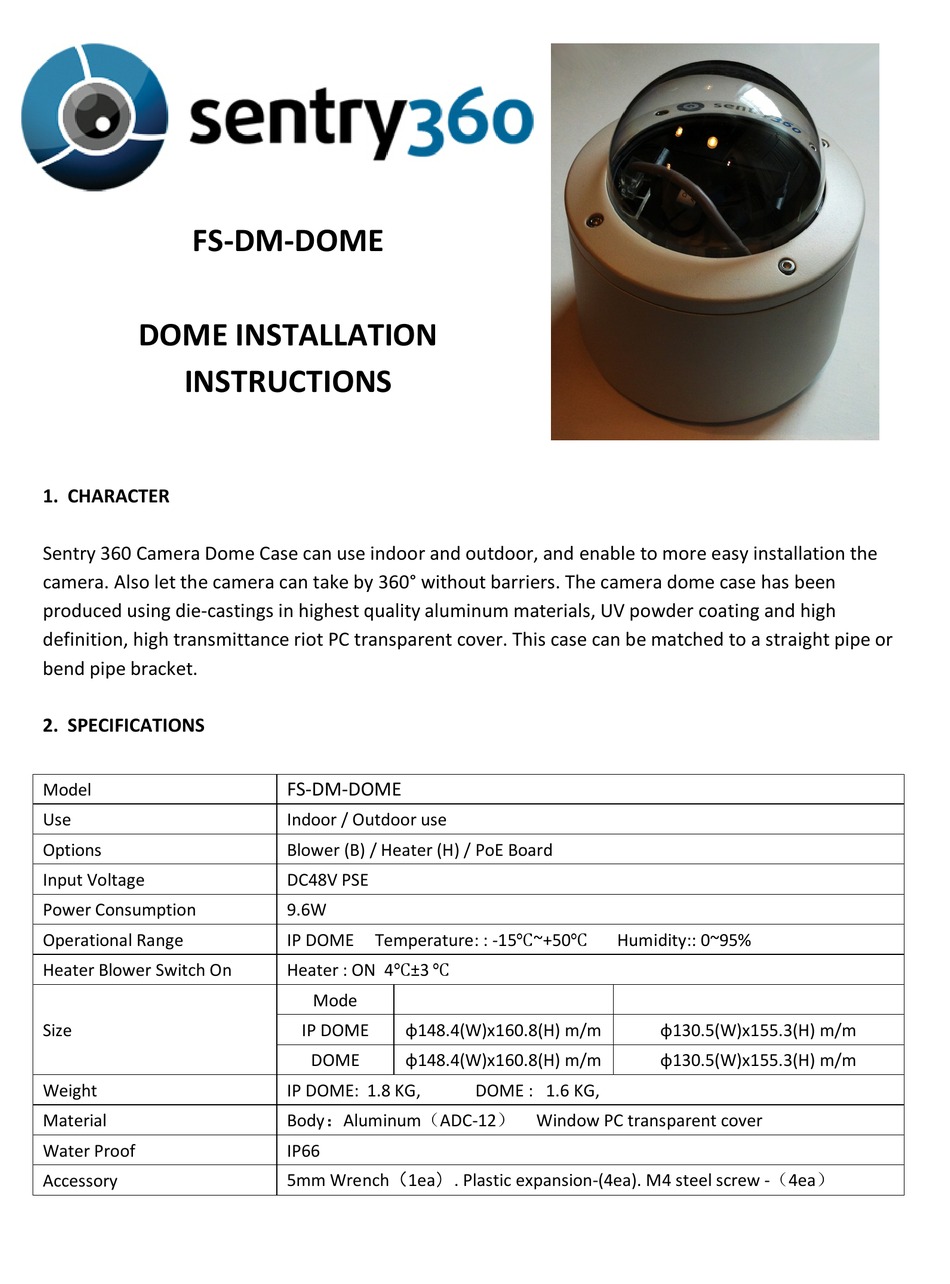

Sentry360 FS-DM-DOME Installation Instructions

FS-DM-DOME
DOME INSTALLATION
INSTRUCTIONS

1. CHARACTER

Sentry 360 Camera Dome Case can use indoor and outdoor, and enable to more easy installation the
camera. Also let the camera can take by 360° without barriers. The camera dome case has been
produced using die-castings in highest quality aluminum materials, UV powder coating and high
definition, high transmittance riot PC transparent cover. This case can be matched to a straight pipe or
bend pipe bracket.

2. SPECIFICATIONS

Model
Use
Options
Input Voltage
Power Consumption
Operational Range
Heater Blower Switch On
Size
Weight
Material
Water Proof
Accessory
FS-DM-DOME
Indoor / Outdoor use
Blower (B) / Heater (H) / PoE Board
DC48V PSE
9.6W
Heater : ON 4℃±3 ℃
IP DOME Temperature: : -15℃~+50℃
Mode
IP DOME φ148.4(W)x160.8(H) m/m
DOME φ148.4(W)x160.8(H) m/m
IP DOME: 1.8 KG,
Body：Aluminum（ADC-12）
IP66
5mm Wrench（1ea）. Plastic expansion-(4ea). M4 steel screw -（4ea）
Humidity:: 0~95%
DOME : 1.6 KG,
Window PC transparent cover
φ130.5(W)x155.3(H) m/m
φ130.5(W)x155.3(H) m/m
