  • Page 1 Unique lighting solutions.
  • Page 3: Table Of Contents

    Table 0f Contents Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������2 Product Description ������������������������������������������������������������������������������������������������������������������������������������������������2 Safety Information ��������������������������������������������������������������������������������������������������������������������������������������������3-10 Safety Symbols �������������������������������������������������������������������������������������������������������������������������������������������������������������3 General Advice ��������������������������������������������������������������������������������������������������������������������������������������������������������������4 Protection from Radiation and Eye Injury �����������������������������������������������������������������������������������������������5 Protection from Electric Shock ����������������������������������������������������������������������������������������������������������������������� 6 Dimming Versions�������������������������������������������������������������������������������������������������������������������������������������������������������7 Protection from Fire ������������������������������������������������������������������������������������������������������������������������������������������������� 8 Protection from Injury And Damage ���������������������������������������������������������������������������������������������������������� 9 Environmental Advice �������������������������������������������������������������������������������������������������������������������������������������������10 Functional Advice �����������������������������������������������������������������������������������������������������������������������������������������������������10 Technical Information �����������������������������������������������������������������������������������������������������������������������������������������11...
  • Page 4: Introduction

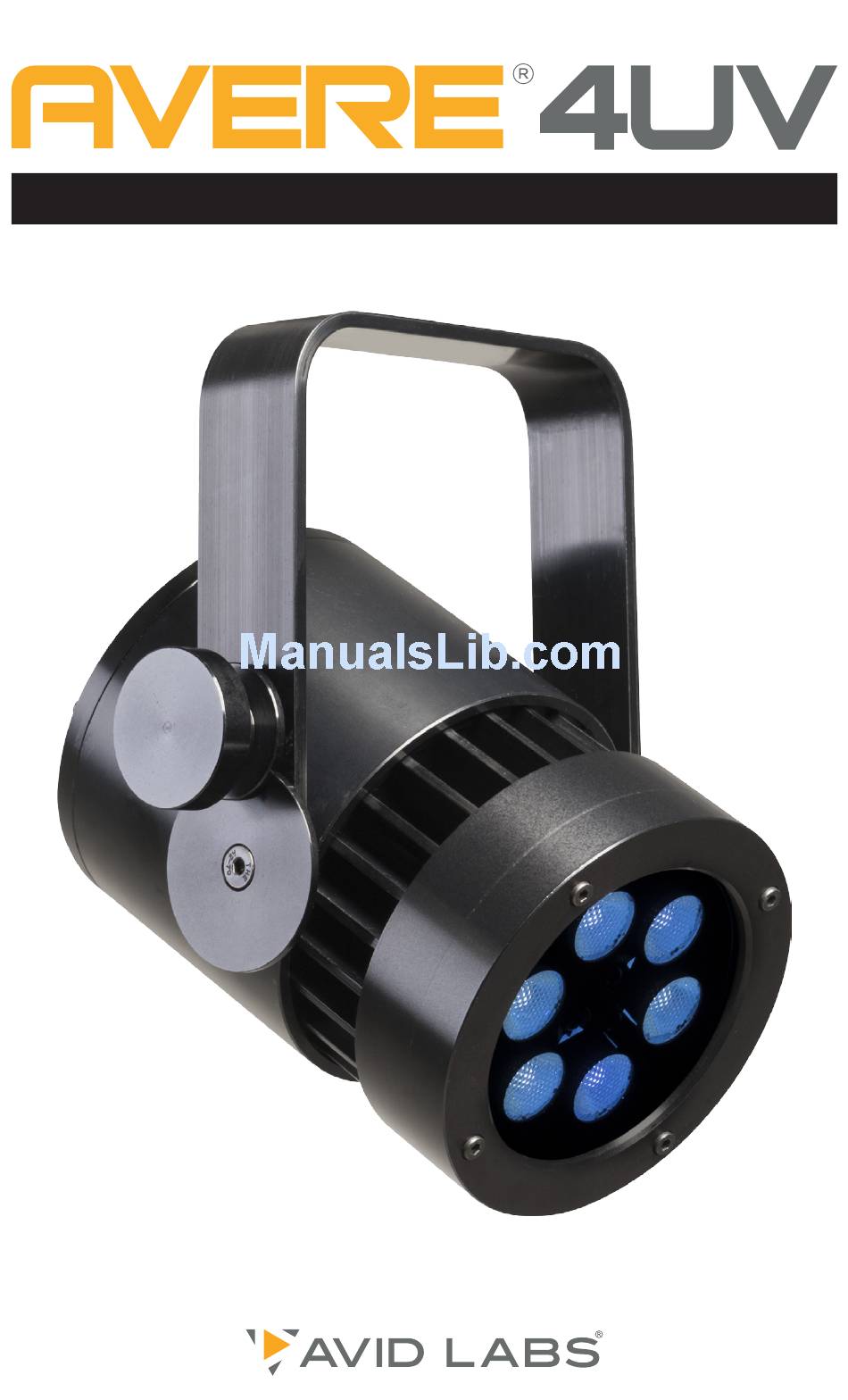

    Let our team help you create the design you envisioned. Together we can make great things. Joel Nichols, Owner/CEO AVID Labs, LLC Product Description The AVERE 4UV fixture is a dimmable UV LED fixture that is IP65, UL Outdoor ®...
  • Page 5: Safety Information

    Safety Information The following symbols are used in this document: WARNING! Read manual before installation, operation or servicing. MISE EN GARDE ! Lire le manuel avant l’installation, de fonctionnement ou de réparer. WARNING! Safety hazard. Risk of injury or death. MISE EN GARDE ! Danger pour la sécurité.
  • Page 6: General Advice

    Safety Information GENERAL ADVICE 1. Read this manual completely before using the product. 2. Keep this manual with your records for future reference. 3. Follow all instructions printed in this manual, otherwise warranty may become void. 4. Follow all printed security advice on the device. 5.
  • Page 7: Protection From Radiation And Eye Injury

    Safety Information PROTECTION FROM RADIATION AND EYE INJURY 1. Warning: This fixture emits Ultraviolet Radiation (UV) at a primary wavelength of 365nm, the radiation emitted is not in the visible spectrum and can cause skin cancer, retinal burns and damage to the eye.
  • Page 8: Protection From Electric Shock

    Safety Information PROTECTION FROM ELECTRIC SHOCK 1. Only connect this unit to a mains socket outlet with a protective earth connection, ground-fault (earth-fault) and overload protection. Ne branchez cet appareil sur une prise de courant avec une prise de terre protectrice, défaut à la terre (défaut à la terre) et protection contre les surcharges.
  • Page 9: Dimming Versions

    Safety Information PROTECTION FROM FIRE 1. Do not place the unit near sources of heat (e.g. powerful amplifiers, fog machines). Ne pas placer l’appareil près de sources de chaleur (par ex. puissants amplificateurs, machines à fumée). 2. Allow at least 6" (15cm) between this unit and other devices or walls to allow for proper cooling.
  • Page 10 Safety Information DIMMING VERSIONS 4UV uses ELV line voltage The dimmable version of the AVERE ® dimmers. The fixture can also be used with a straight plug in. The unit is s not designed for use with trailing edge TRIAC dimmers. We can not guarantee smooth dimming performance with TRIAC systems.
  • Page 11: Protection From Injury And Damage

    La source de lumière contenues dans ce luminaire ne doit être remplacé par le fabricant ou son agent de service ou une personne qualifiée. 7. According to EN60598, the AVERE 4UV is a Class 1, IP65 luminaire. Selon EN60598, l'AVERE 4UV est de classe 1, IP65 luminaire. Unique lighting solutions.
  • Page 12: Environmental Advice

    Safety Information ENVIRONMENTAL ADVICE It is highly recommended that North American users follow environmentally safe disposal/recycling practices. FUNCTIONAL ADVICE The unit's power supply complies with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 13: Technical Information

    Technical Information Total Max Output mW Standard: 4000mW (Min) – 5000mW (Max) – No Lens Dimmable: 5000mW (Min) – 6000mW (Max) – No Lens Drive Engine Standard: 5 x 2.8W 365nm High Efficacy UV LEDs Dimmable: 6 x 2.8W 365nm High Efficacy UV LEDs Optics 15˚...
  • Page 14: Secure Mounting

    Secure Mounting The AVERE 4UV fixture should be mounted using the mounting hole in the yoke. ® A suitable mounting clamp (sold separately) should be used. HANGING/RIGGING, CEILING MOUNTED OPERATION RISK OF INJURY: Overhead mounting requires extensive experience, including, among others, calculating working load limits, good knowledge of the installation material being used, and periodic safety inspection of all installation material and the unit.
  • Page 15 Secure Mounting • Check the flat head M6 socket cap screws that attach the yoke to the fixture to ensure they are not loose. Vérifiez le bouchon de prise M6 tête plate vis que pour attacher le joug sur le montage pour s’assurer qu’ils ne sont pas lâches. •...
  • Page 16: Ac Power Connection

    AC Power Connection The AVERE 4UV fixture can be used on 85V - 264V supplies with nonstandard ® plug and cord. Standard version (non-dimmable) only. UL Listed on 120V 60Hz in North America only. RISK OF FIRE / SAFETY RISK The fixture requires an AC power source with sufficient power carriage and correct grounding to ensure safe operation.
  • Page 17: Maintenance

    Maintenance This device does not need regular maintenance. If the unit fails to operate, return the unit to the manufacturer for service. There are no user serviceable parts inside. Cet appareil ne nécessite pas d’entretien régulier. Il l’appareil ne fonctionne pas, renvoyez-le à...
  • Page 18: Warranty

    Warranty Items are covered for defects in materials and workmanship for two years, including repair parts and repair labor on defective item, from date of the manufacturer invoice. The warranty covers freight for 30 days after initial purchase. The manufacturer does not cover any other loss resulting from product failure. Products being returned for warranty repair must display the original serial number.
  • Page 20 WARNING UV light hazard. Avoid looking directly at light. 365nm 4121 Fourier Road • Fort Wayne, IN 46818 260.969.9225 AVIDLabs.com © Copyright 2016 AVID Labs, LLC 11/16...
