Rockboard MOD 1 Manual

The RockBoard® MODs offer you the solution you need to organize all the connections to and from your RockBoard®.
Fitting all RockBoard®'s, except the Duo 2.1, each MOD has various cable connections to fit a wide variety of needs as a convenient 'thru box'.
RockBoard® MODs allow you to hook up your pedals permanently underneath your board and have a central access point for your instrument,
amp and power supply. You are using TRS, XLR, MIDI or USB in your setup? We've got you covered!
The RockBoard® MODs provide you with all the connections you'll need.
Installation is as easy and convenient as it gets:
Depending on your choice, the RockBoard® MODs offer different options, but let's start with the ones they have in common:
• TRS In/Output: You can use these for MONO, STEREO or Balanced Inputs or Outputs, Effects Loops, Looper Switcher and
basically anything that uses a 1/4" jack
• IEC In/Output: This allows you to connect the AC IEC of your multi-power supply
1
Here are the connections only found in MOD 1:
• XLR IN/Output: This allows the routing of any audio signal from a DI box or other balanced output directly into a mixing board
or audio interface for recording purposes
• DC In/Output: Some multi-Power supplies use an external power adapters instead of an AC IEC cable,
like the RockBoard® Power Block or the MXR M238 ISO-Brick

MOD 1 Connections:

5x TRS In/Output

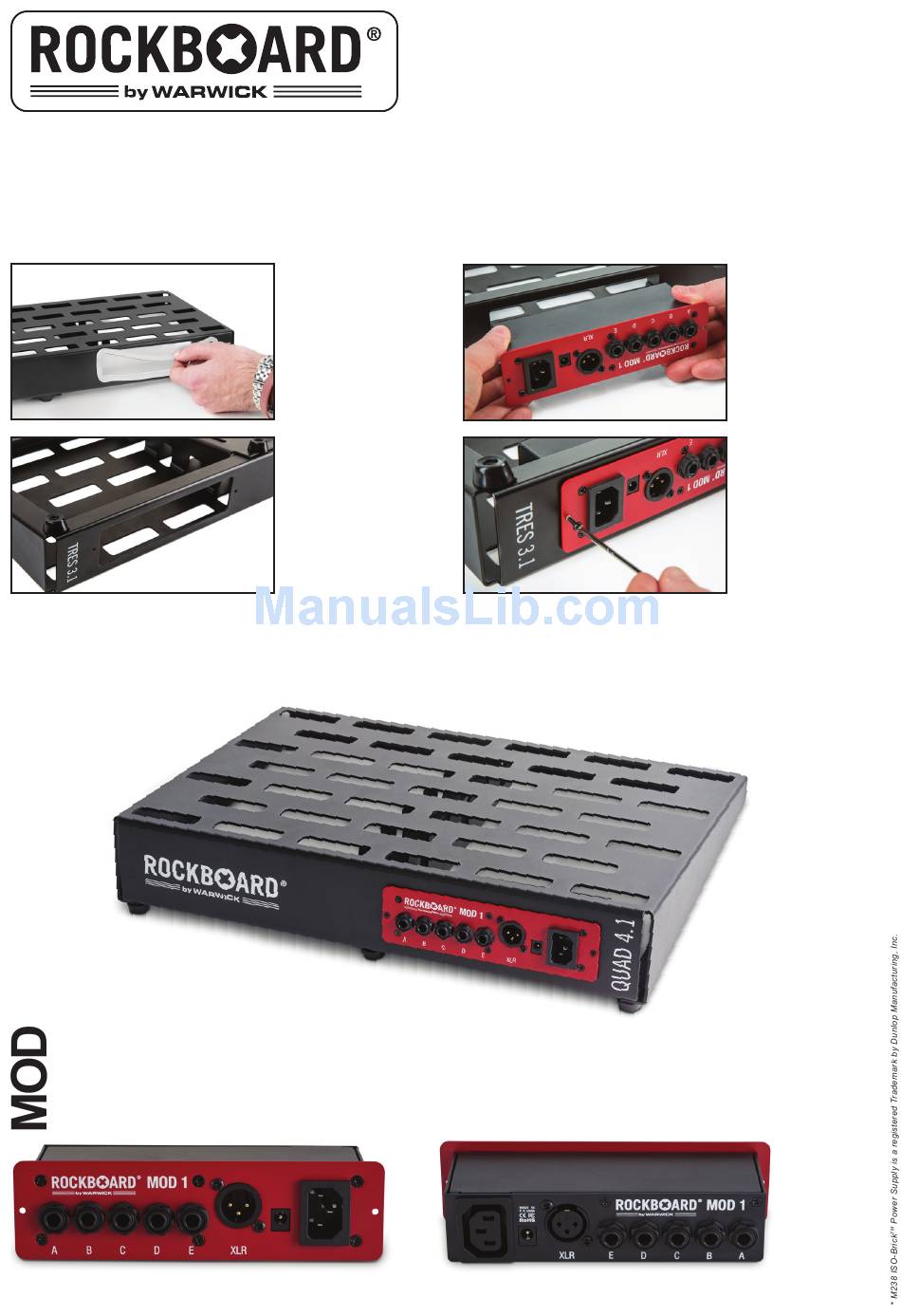

STEP 1
Remove the rubber
frame of your
RockBoard®'s front
cavaity.
STEP 2
Turn the RockBoards®
pedalboard upside
down.
XLR 9V AC IEC
In/Out Input Input
MOD
* Power Supply for example. We've got that covered, too
TM
AC IEC 9V XLR 5x TRS In/Output
Input
Input In/Out
1 + 2 + 3
manuals
STEP 3
Load your chosen
MOD from the front
into the slot.
STEP 4
Secure the MOD
using the included
screw nuts, and
TX10 wrench.
That's all, now you
are ready to go!
