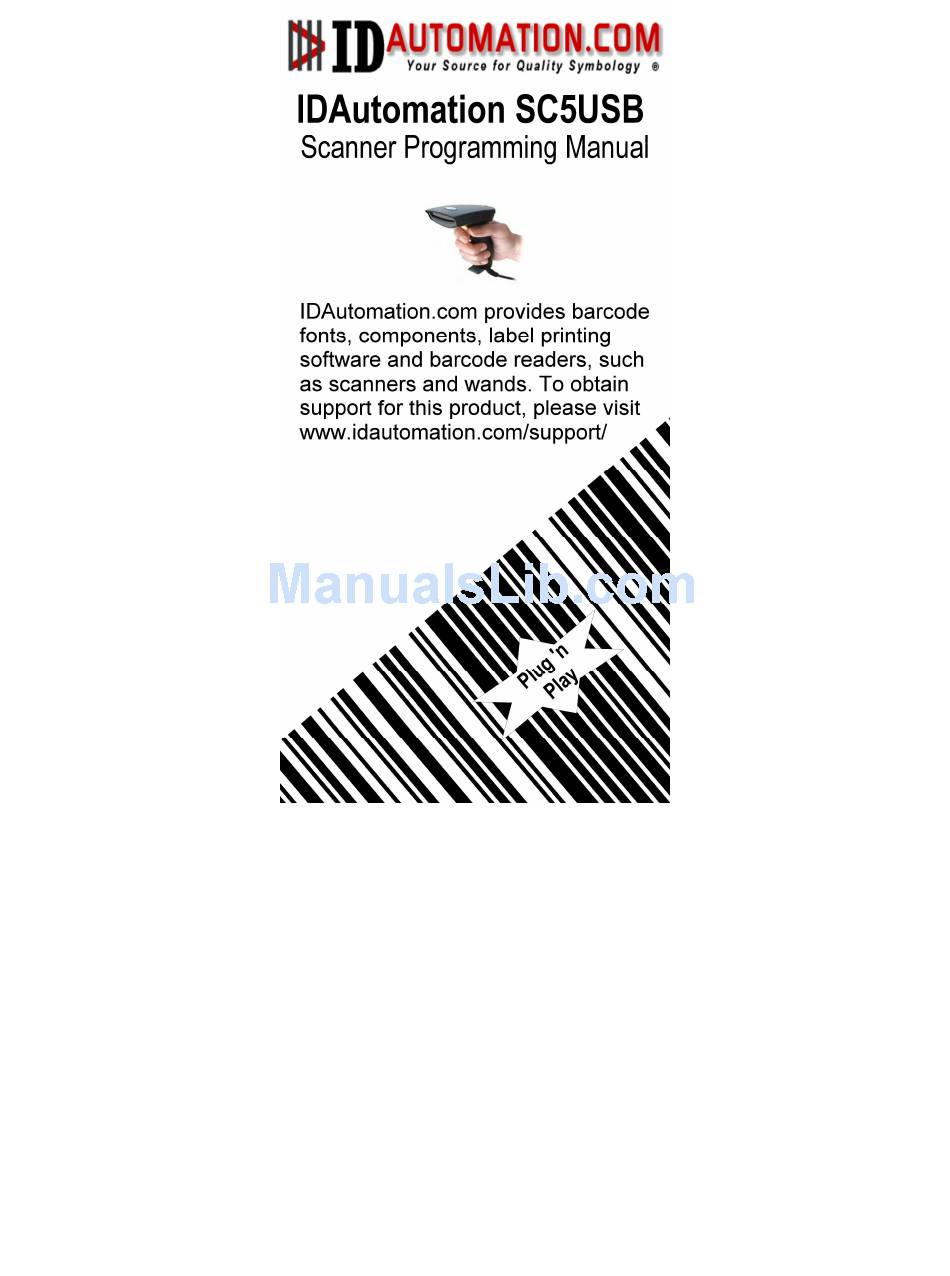

IdAutomation SC5USB Programming Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC5USB and is the answer not in the manual?

Questions and answers

Related Manuals for IdAutomation SC5USB

Summary of Contents for IdAutomation SC5USB

  • Page 2 Introduction - Installation - USB (Keyboard Emulation [Default] ) Connect the USB cable between scanner and PC. Your operating system will automatically detect the USB device and emulate a USB keyboard. - - - - USB (RS-232 Emulation) Connect the USB cable between scanner and PC. Windows will automatically detect the USB device.
  • Page 3 The default setting for each barcode is shown in the chart below: Read Checksum Checksum Code Code Type Enable Verification Transmission Enable Enable UPC-A UPC-E EAN-13 EAN-8 ＊ Code-39 Interleaved 2 of 5 Industrial 2 of 5 Matrix 2 of 5 Codabar Code-128 V two digits...
  • Page 4 IDAutomation Scanner Specifications Operational Light Source 660 nm Visible Red LED Optical System 2048 pixel CCD (Charge-coupled device) Depth of Scan Field 0-250 mm (CODE 39, PCS=90%, 20mils) Scanning Width 120 mm Scan Speed 200 scans/sec Resolution 0.1mm(4mils) Code39,PCS=90% Print Contrast...
  • Page 5 Weight 160 g Cable – K/B wedge Straight 2.0 m Cable- USB Straight 2.0 m Connector type RJ-45 connector Case material Cushion material Rubber Electrical Input Voltage 5 VDC ± 0.25V Power - Operating 1275 mW Power - Standby 600 mW Current - Operating 255 mA @ 5 VDC Current - Standby...

  • Page 6: Programming The Scanner

    Programming the Scanner To program the scanner, you must scan a series of programming barcodes in the correct order. In the back of this manual, you will see a table of alphanumeric barcodes, which are used to program the various options presented. To program each option, you must: 1.

  • Page 7: Interface Selection

    Interface Selection The decoder in the scanner supports interfaces such as USB, keyboard wedge, RS232 serial wedge and wand emulation. In most of the cases, simply selecting an appropriate cable with a device code will work for a specific interface. Program Option Bar Code Option...
  • Page 8 Keyboard wedge As a keyboard interface, the scanner supports most of the popular PCs and IBM terminals. The installation of the wedge is a fairly simple process without any changes of software or hardware. Keyboard Type: Select the keyboard type connector for your host computer.
  • Page 9 Keyboard wedge & USB Keyboard Emulation Keyboard Layout: The selecting of keyboard layout supports many country languages other than the USA keyboard layout. Keyboard Speed: By selecting, you can change the output speed of the scanner to match the host computer. This is generally set to 00 or 01 to work in high speed mode.
  • Page 10 Spanish Swedish Switzerland Latin American Japanese 00-08 ＊ 0 : high clock rate Keyboard speed Disable ＊ Enable Function key Emulation ＊ Alphabetic key Numeric keypad Numeric key Alt+Keypad Exit...

  • Page 11: Disable

    Keyboard wedge & USB Keyboard Emulation Caps Lock: By selecting Caps lock”ON” or Caps lock”OFF”, the scanner can get Caps Lock status. Power-on simulation: It is recommended to Enable this function if you are working without a keyboard installed. It simulates a keyboard.
  • Page 12 RS-232 CTS: Clear To Send (Hardware Signal) RTS: Request To Send (Hardware Signal) Xon: Transmit On (ASCII Code 11 Xoff: Transmit Off (ASCII Code13 Flow control: None-The communication only uses TxD and RxD signals without regard for any hardware or software handshaking protocol.
  • Page 13 RS-232 Program Option Bar Code Option Alphanumeric Entry None ＊ RTS/CTS Flow control Xon/Xoff ACK/NAK 00-99 (msec) 00-99 ＊ Inter-character delay 00-99 (10 msec) 00-99 ＊ Block transmission delay 00-99 (100 msec) 00-99 ＊ Response delay Exit...
  • Page 14 RS-232 Program Option Bar Code Option Alphanumeric Entry 300 BPS 600 BPS Baud rate 1200 BPS 2400 BPS 4800 BPS 9600 BPS ＊ 19200 BPS 38400 BPS None ＊ Parity Even 8 bits ＊ 7 bits Data bit One bit ＊...

  • Page 15: Wand Emulation

    Wand Emulation Bar/space polarity: High/low- Black will be transmitted as a high voltage level (+5) and space as low level (0V). Low/high- Black will be transmitted as a low voltage level (0V) and space as high level (+5). Initial polarity: Initial signal state is a High voltage level (+5) or a Low voltage level (0V).

  • Page 16: Second

    Wand Emulation Output speed: This setting is the same as the serial transmission baud rate, and it must be approbated to your wand decode resolution. The unit of speed is a width of minimum narrow bar (X dimension). Margin delay: The width of margin time will be added before and after in each barcode data automatically when it is transmitted.
  • Page 17 ＊ Reserved 00-99 (10 pixel) 00-99 ＊ Margin delay 00-99 (10 msec) 00-99 ＊ Transmit delay Exit...
  • Page 18 Scan Scanning mode: Good-read off-The trigger button must be pressed to activate scanning. The light source of the scanner stops scanning when there is a successful read or no code is decoded after the Stand-by duration elapses. Momentary-The trigger button acts as a switch. Press the button to activate scanning and release the button to stop scanning.

  • Page 19: Second

    Program Option Bar Code Option Alphanumeric Entry Good-read off ＊ Momentary Scanning mode Alternate Timeout off Continuous 05 (Test only) 01-99 (second) 00-99 ＊ (8110/8210) Stand-by duration 10＊ (8150/8310) 01-99 (10 msec) 01-99 ＊ Double read timeout 00-99 00-09 ＊ (00: no double Double confirm confirm)
  • Page 20 Scan Multi field scan: The scanner can read many sets of barcode data on the same scanning line at the same time, even if they are different barcode symbologies. Global min./max. code length: Global Minimum and Maximum length can be set to qualify data entry. The length is defined as the actual barcode data length to be sent.
  • Page 21 Scan Program Option Bar Code Option Alphanumeric Entry ＊ Disable Enable Multi field scan Option Bar Code 00-63 00-63 ＊ Global min. code length 00-63 04-63 ＊ Global max. code length ＊ Disable Enable Inverted image scan ＊ Disable Enable CTS trigger...
  • Page 22 ＊ Disable 30 second Position indication 60 second 90 second 120 second 150 second 180 second Continue Exit...
  • Page 23 Indications Exit Power on alert: An alert signal to indicate a successful self-test. LED indication: After each successful scan, the LED above the scanner will light up to indicate a good barcode reading. Beeper indication: After each successful reading, the scanner will beep to indicate a good barcode reading.
  • Page 24 Program Option Bar Code Option Alphanumeric Entry Disable ＊ Enable Power on alert Disable ＊ Enable LED indication Disable ＊ Enable Beeper indication 00-07 00-07 ＊ Beep loudness 00-99 (100Hz) 00-99 ＊ Beep tone freq. 00-99 (10 msec) 00-99 ＊ Beep tone duration Exit...

  • Page 25: Upce

    UPCA For more information about this symbology, please visit http://idautomation.com/upceanfaq.html Read: Format Leading Data Digits Check Zero (11 Digits) Digit Checksum transmission: By setting to Enable, the checksum will be transmitted. Truncate leading/ending: The leading or ending digits of the barcode data characters can be truncated when these values are set to non-zero.
  • Page 26 Disable ＊ Enable Checksum verification Disable ＊ Enable Checksum transmission 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < A > Code ID setting 00-44 00-44 ＊ Insert group selection Exit...

  • Page 27: None

    UPCA Supplement digits: The Supplement digits barcode is the supplemental 2 or 5 characters for the UPC code. Format Supplement Digits Leading Data Digits Check 2 or 5 or Zero (11 Digits) Digit UCC / EAN Truncation / Expansion: The leading “0” digit of the UPCA data characters can be truncated when the function is enabled.

  • Page 28: Digits

    UPCE For more information about this symbology, please visit http://idautomation.com/upceanfaq.html Read: Format Leading Data Digits (6 Check Digit Zero Digits) Checksum transmission: By setting to Enable, the checksum will be transmitted. Program Option Bar Code Option Alphanumeric Entry Disable ＊...
  • Page 29 UPCE Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA. Supplement digits: Program Format Leading Data Digits Check Supplement Digits Zero (6 Digits) Digit Truncate Leading zero: Refer to Truncate Leading zero of...

  • Page 30: Table Of Contents

    00-ffH ASCII 00-ffH ＊ code < E > Code ID setting 00-44 00-44 ＊ Insert group selection ＊ None 2 digits Supplement digits 5 digits UCC/EAN 128 Auto detection ＊ Disable Enable Truncation/Expansion ＊ Disable Enable Expansion ＊ Disable Enable *OAM* UPCE-1 Exit...
  • Page 31 EAN-13 For more information about this symbology, please visit http://idautomation.com/upceanfaq.html Program Read: Format Data Digits (12 Digits) Check Digit Option Bar Code Option Alphanumeric Entry Disable ＊ Enable Read Disable ＊ Enable Checksum verify Disable ＊ Enable Checksum transmission 0-15 00-15 ＊...
  • Page 32 EAN-13 Code ID setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA. Supplement digits: Format Supplement Digits Data Digits Check 2 or 5 or (12 Digits) Digits UCC / EAN ISBN/ISSN: The ISBN (International Standard Book Number) and ISSN (International Standard Serial Number) are two types of barcodes for books and magazines.

  • Page 33: Auto Detection

    Program Option Bar Code Option Alphanumeric Entry 00-ffH ASCII 00-ffH ＊ code < F > Code ID setting 00-44 00-44 ＊ Insert group selection ＊ None 2 digits Supplement digits 5 digits UCC/EAN 128 Auto detection ＊ Disable Enable ISBN/ISSN conversion Exit...
  • Page 34 EAN-8 For more information about this symbology, please visit http://idautomation.com/upceanfaq.html Read: Format Data Digits Check (7 Digits) Digit Checksum transmission: By setting to Enable, the checksum will be transmitted. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 35 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending Two characters 00-ffH, 00-ffH ＊ 00-ffH ASCII < FF > Code ID setting code 00-44 00-44 ＊ Insert group selection Exit...
  • Page 36 EAN-8 Program Supplement digits: Format Supplement Digits Data Digits Check 2 or 5 or (7 Digits) Digits UCC/EAN 128 Expansion: Refer to Expansion of UPCE. Option Bar Code Option Entry ＊ None 2 digits Supplement digits 5 digits UCC/EAN 128 Auto detection ＊...
  • Page 37 Code 39 For more information about this symbology, please visit http://idautomation.com/code39faq.html Read: Format Start Data Digits Checksum “★” ( Variable) (Optional) “★” Checksum verification: The checksum of Code-39 is optional. Checksum transmission: By setting to Enable, the checksum will be transmitted.
  • Page 38 Code 39 Max./Min. code length: Each symbology has its own Max./Min. Code Length. They can be set to qualify data entry. If their Max./Min. Code Length is zero, the Global Min./Max. Code Length is in effect. The length is defined as to the actual barcode data length to be sent.
  • Page 39 0-20 00-20 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < > Code ID setting 00-44 00-44 ＊ Insert group selection ＊ Standard Full ASCII Format Exit...
  • Page 40 Code 39 Append: This function allows several symbols to be concatenated and be decoded as one single data entry. The scanner will not transmit the embedded appending code (space for Code-39). If Enabled and other symbols were read again with the appended code, then codes will be transmitted without Code ID, Preamble and Prefix.

  • Page 41: Interleaved 2 Of 5

    Interleaved 2 of 5 For more information about this symbology, please visit http://idautomation.com/itffaq.html Read: Format Data Digits Checksum (Variable) (Optional) Checksum verification: Verify mod 10 checksum. Checksum transmission: By setting to Enable, the checksum will be transmitted. Program Option Bar Code...
  • Page 42 Interleaved 2 of 5 Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA. Option Bar Code Option Alphanumeric Entry 00-64 00-64 ＊ Max. code leading 00-64 00-64 ＊ Min. code leading 0-15 00-15 ＊...

  • Page 43: Industrial 2 Of 5

    Industrial 2 of 5 Read: Format Data Digits Checksum (Variable) (Optional) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 44 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < i > Code ID setting 00-44 00-44 ＊ Insert group selection Exit...

  • Page 45: Matrix 2 Of

    Matrix 2 of 5 Read: Format Data Digits Checksum (Variable) (Optional) Checksum Verification: Verify mod 10 checksum. Checksum Transmission: By setting to Enable, the checksum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.
  • Page 46 Checksum Transmission 00-64 00-64 ＊ Max. code length 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < B > Code ID setting 00-44 00- 44 ＊ Insert group selection Exit...
  • Page 47 Codabar Read: Format Start Data Digits (Variable) Checksum (Optional) End Checksum Verification: Verifies the MOD 16 check digit. Checksum Transmission: By setting to Enable, the checksum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.
  • Page 48 ＊ Disable Enable Checksum Transmission 00-64 00-64 ＊ Max. code length 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < % > Code ID setting Exit...
  • Page 49 Codabar Insertion group selection: Refer to Insertion group selection of UPCA. Start/End type: Codabar has four pairs of Start/End patterns; you may select one pair to match your application. Start/End Transmission: Refer to Start/End Transmission of Code 39. Program Option Bar Code Option Alphanumeric Entry...
  • Page 50 Code-128 For more information about this symbology, please visit http://idautomation.com/code128faq.html Read: Format Data Digits Checksum (Variable) (Optional) Checksum Verification: The checksum is the sum mod 103 of all data digits. Checksum Transmission: By setting to Enable, the checksum will be transmitted.
  • Page 51 Code-128 Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA. Format: Code 128 can be translated to the UCC/EAN-128 format if it starts with FNC1 character.
  • Page 52 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < # > Code ID setting 00-44 00-44 ＊ Insert group selection ＊ Standard UCC/EAN-128 Format ＊ Disable Enable Append 00-ffH ASCII 00-ffH ＊ code <...
  • Page 53 Code-93 Read: Format Data Digits Checksum1 Checksum2 (Variable) Checksum Verification: Verifies two mod 47 check digits. Checksum Transmission: By setting to Enable, the checksum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.
  • Page 54 ＊ Disable Enable Checksum Transmission 00-64 00-64 ＊ Max. code length 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < & > Code ID setting 00-44 00-44 ＊...
  • Page 55 Code-11 Read: Format Data Digits Checksum1 Checksum2 (Variable) Checksum Verification: The checksum is presented as the sum module 11 of all data digits. Checksum Transmission: By setting to Enable, checksum1 and checksum2 will be transmitted upon your selected checksum verification method. Max./Min.
  • Page 56 ＊ Disable Enable Checksum Transmission 00-64 00-64 ＊ Max. code length 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < O > Code ID setting 00-44 00-44 ＊...
  • Page 57 MSI/plessey Read: Format Data Digits Checksum1 Checksum2 (Variable) Checksum Verification: MSI/Plessey has one or two checksum digits. The checksum may be decoded in 3 different methods Mod10, Mod10/10 and Mod 11/10. The checksum1 and checksum2 will be calculated as the sum module 10 or 11 of the data digits.
  • Page 58 Mod 11/10 ＊ Disable Enable Checksum Transmission 00-64 00-64 ＊ Max. code length 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < @ > Code ID setting 00-44 00-44 ＊...
  • Page 59 UK/plessey Read: Format Data Digits Checksum1+2 (Variable) (Optional) Checksum Verification: The UK/Plessey has one or two optional checksum digits. The checksum1 and checksum2 will be calculated as the sum module 10 or 11 of the data digits. Checksum Transmission: By setting to Enable, the checksum will be transmitted.
  • Page 60 ＊ Disable Enable Checksum Transmission 00-64 00-64 ＊ Max. code length 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < @ > Code ID setting 00-44 00-44 ＊...
  • Page 61 Telepen Read: IATA (International Air Transport Association). Checksum Verification: The checksum is presented as the sum mod 10 or 11 of the data digits. Checksum Transmission: By setting to Enable, the checksum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39.
  • Page 62 Transmission 00-64 00-64 ＊ Max. code length 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < S > Code ID setting 00-44 00-44 ＊ Insert group selection Numeric only ＊...

  • Page 63: Standard 2 Of

    Standard 2 of 5 Read: Format Data Digits Checksum1 (Variable) (Optional) Checksum verification: The checksum is made as the sum mod 10 of the numerical values of all data digits. Checksum transmission: By setting to Enable, the checksum will be transmitted. Max./Min.
  • Page 64 verification: Checksum transmission: 00-64 00-64 ＊ Max. code length 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < i > Code ID setting 00-44 00-44 ＊ Insert group selection Exit...
  • Page 65 RSS-14 Read: Format Data Digits Checksum1 (Variable) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 66 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < R4 > Code ID setting 00-44 00-44 ＊ Insert group selection ＊ Disable Enable UCC/EAN128 emulation Exit...
  • Page 67 RSS-Limited Read: Format Data Digits Checksum1 (Variable) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 68 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < RL > Code ID setting 00-44 00-44 ＊ Insert group selection ＊ Disable Enable UCC/EAN128 emulation Exit...
  • Page 69 RSS-Expanded Read: Format Data Digits Checksum1 (Variable) (Optional) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 70 00-99 00-99 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < RX > Code ID setting 00-44 00-44 ＊ Insert group selection ＊ Disable Enable UCC/EAN128 emulation Exit...

  • Page 71: China Post

    China Post Read: Format Data Digits Checksum1 (Variable) (Optional) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 72 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 00-ffH ＊ code < t > Code ID setting 00-44 01-44 ＊ Insert group selection Exit...

  • Page 73: Italian Pharmacode

    Italian Pharmacode Read: Format Data Digits Checksum1 (Variable) (Optional) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 74 00-64 00-64 ＊ Min. code length 0-15 00-15 ＊ Truncate leading 0-15 00-15 ＊ Truncate ending 00-ffH ASCII 01-ffH ＊ code < p > Code ID setting 00-44 00-44 ＊ Insert group selection ＊ Disable Enable Leading “A” Exit...
  • Page 75 String setting Prefix characters: Up to 22 ASCII characters may be sent before the data digits. Prefix Data Digits Suffix Suffix characters: Up to 22 ASCII characters may be sent after the data digits. Preamble/ Postamble characters: They are appended to the data automatically when each barcode is decoded.
  • Page 76 ＊ None 1-22 characters 00-ffH ASCII Preamble characters code setting ＊ None 1-22 characters 00-ffH ASCII Postamble code characters setting ＊ None 1-22 characters 00-ffH ASCII Insert G1 characters code setting ＊ None 1-22 characters 00-ffH ASCII Insert G2 characters code setting ＊...
  • Page 77 String setting Insert G1/G2/G3/G4 character setting: The scanner offer 4 positions and 4 characters to insert in the decoded the symbol. Example: Barcode “1 2 3 4 5 6”. Output- Barcode “1 2 A B 3 4 C D 5 6”. Steps: 1) Scan Programming and Insert G1 characters setting barcode.
  • Page 78 ＊ None 1-22 characters 00-ffH ASCII Insert G3 characters code setting ＊ None 1-22 characters 00-ffH ASCII Insert G4 characters code setting Exit...
  • Page 79 Transmission Preamble transmission: By setting to Enable, the Preamble will be appended before the data is transmitted. Postamble transmission: By setting to Enable, the Postamble will be appended after the data is transmitted. Insert data group 1-4 position: The scanner offers 4 positions of insertion.
  • Page 80 00-63 00-63 ＊ (00: no insertion) Insert data group 1 position 00-63 00-63 ＊ (00: no insertion) Insert data group 2 position 00-63 00-63 ＊ (00: no insertion) Insert data group 3 position 00-63 00-63 ＊ (00: no insertion) Insert data group 4 position ＊...
  • Page 81 Transmission Code ID transmission: If your application requires a Code ID, you must set this to a Proprietary ID or the AIM ID. Code length transmission: A number of data digits can be transmitted before the data when Enable is selected. The length is a number with two digits.
  • Page 82 transmission ＊ Disable Enable Code name transmission ＊ Disable Upper case Case conversion Lower case *For barcode data only Exit Format of barcode data transmission: Code Barcode Prefix Name Preamble Postamble Suffix Length data Insert groups...
  • Page 83 Test Chart Test Chart Test Chart Test Chart CODABAR CODE-11 CODE-128 CODE-39 CODE-93 EAN-13...
  • Page 84 STANDARD-25 EAN-8 INDUSTRIAL-25 UPCE PARA INTERLEAVED-25...
  • Page 85 MATRIX 25 MSI/PLESSEY UPCA UK/PLESSEY...
  • Page 86 ASCII Code Table Note: For Function Key Emulation only. Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ “ & ‘ ★ ﹛ ， < ＼ ︱ ﹜ > 〜...
  • Page 87 Parameter Setting List Program Barcode standard parameter setting list Used to display the current configuration of your scanner over the host terminal/computer. Unique parameter list Used to display the unique parameter setting list. System parameter setting list Displays product information and revision number of your scanner.
  • Page 88 Firmware version list If you wish to display the firmware version, scan the Firmware version list. WARNING: Default value initialization If you wish to return to all the factory default settings, scan the Default value initialization bar code. Exit...
  • Page 89 Finish...
