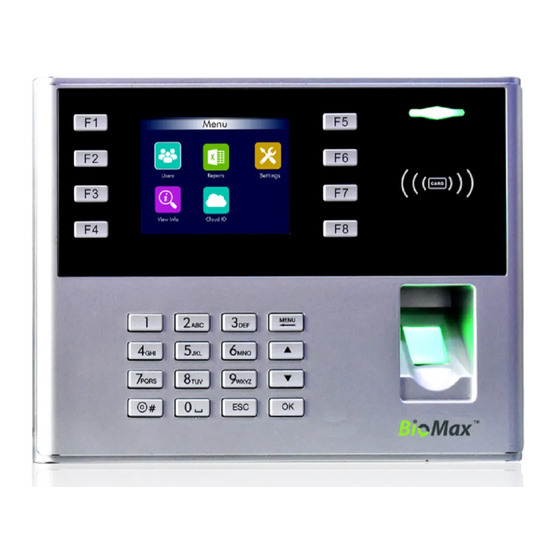

Page 1 User Manual Applicable Model : X990 www.biomaxsecurity.com...
Page 2 3 inches Facial & Fingerprint Recognition Series Product User Manual Version: 3.3 About This Manual This document introduces the user interface and menu operations of 3 inches Facial & Fingerprint Recognition Series product. For installation, please refer to the Installation Guide or Quick Guide.
Page 4 Important Claim Firstly thank you for purchasing this facial and fingerprint hybrid terminal, before use, please read this manual carefully to avoid the unnecessary damage! The company reminds you that the proper user will improve the use affect and authentication speed. No written consent by our company, any unit or individual isn’t allowed to excerpt, copy the content of this manual in part or in full, also spread in any form.
Page 5 About this manual  Not all the devices have the function with. The real product prevails.  The photograph in this manual may be different from that of the real product. The real product prevails.
Page 6: Table Of Contents
Contents Table of Contents 1. Instructions for Use ..............1 1.1 Standing Position, Posture and Face Expressions ..... 1 1.2 Enrollment Face Expressions ..........2 1.3 Finger Placement ............. 3 1.4 Use of the Touch Screen ............. 4 1.5 Touch Operations ..............5 1.6 Appearance of Device ............
Page 7 Contents 3.10 User Access Settings ........... 35 4. User Management ..............38 4.1 Edit a User ................. 39 4.2 Delete a User ..............40 4.3 Query a User ..............41 5. Communication Settings ............42 5.1 Communication Settings ............ 43 5.2 WIFI Configuration...
Page 8 Contents 6.7.6 Duress Alarm Parameters ........... 77 6.7.7 Anti-Pass back setting ..........78 6.8 Update ................79 7. Data Management ..............80 7.1 Query Record ..............82 7.2 SMS ................84 7.2.1 Set a Short Message ..........84 7.2.2 View a Short Message ..........88 7.3 Work Code .................
Page 9 Contents 12.6 Print function ............... 108 12.7 Multi-combination Authentication Mode ..... 113 12.8 Anti-Pass Back ............117 12.9 Statement on Human Rights and Privacy ..... 120 12.10 Environment-Friendly Use Description ......122...
Page 10: Instructions For Use
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 1. Instructions for Use 1.1 Standing Position, Posture and Face Expressions 1. Recommended standing-distance from device: For users 5-6 feet tall (1.55m-1.85m) we recommend users stand about 2 feet (0.5m) from the wall.
Page 11: Enrollment Face Expressions
3 inches Facial & Fingerprint Recognition Series Product User Manual 1.2 Enrollment Face Expressions During the enrollment, position your head such way that your face appears in the center of the device display window, and follow the voice prompts "Focus eyes inside the green box".
Page 12: Finger Placement
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 1.3 Finger Placement Recommended fingers: The index finger, middle finger or the ring finger is recommended; the thumb and little finger are not recommended (because they are usually clumsy when pressing on the fingerprint collection screen).
Page 13: Use Of The Touch Screen
3 inches Facial & Fingerprint Recognition Series Product User Manual 1.4 Use of the Touch Screen Touch the screen with one of your fingertips or the edge of a fingernail, as shown in the following figure. A broad point of contact may lead to inaccurate pointing.
Page 14: Touch Operations
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 1.5 Touch Operations 1. Enter numbers: Press the [User ID] key. The system will automatically display the number input interface. After entering the user ID, press [OK] to save or press [X] to cancel and return to the previous interface.
Page 15 3 inches Facial & Fingerprint Recognition Series Product User Manual 3. Modify parameters: Press the default value of a parameter and the system will automatically switch to another value of this parameter.  Note: The Enroll Fingerprint, User Access and 1: G is optional function, only some machines have.
Page 16: Appearance Of Device
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 1.6 Appearance of Device 1. Type 1 (1) Front View LED Indicator Touch Screen Touch keys Camera Push Buttons Fingerprint Sensor ID Card Swipe Area (2) Side View Reset Button USB Port...
Page 17 3 inches Facial & Fingerprint Recognition Series Product User Manual 2. Type 2 (1) Front View LED Indicator Touch Screen Touch keys Camera ID Card Swipe Area (2) Side View USB Port...
Page 18 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 3. Type 3 (1) Front View LED Indicator Touch Screen Touch Keys Camera Push Buttons ID Card Swipe Area (2) Side View Reset Button USB Port...
Page 19: Main Interface
3 inches Facial & Fingerprint Recognition Series Product User Manual 1.7 Main Interface  Date  Time  Attendance Status  1:1 Switch Key  Menu ① Date: The current date is displayed. ② Screen Shortcut Keys: Press these shortcut keys to display the attendance status.
Page 20 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. ⑥ Menu: You can enter the main menu by pressing this key.  Note: 1. The Enroll Fingerprint, User Access, Door Bell Button and 1:1 Switch Button is an optional function, some machines have these function.
Page 21: Verification Modes
3 inches Facial & Fingerprint Recognition Series Product User Manual 1.8 Verification Modes 1.8.1 Fingerprint Verification 1. 1: N fingerprint verification The terminal compares current fingerprint collected by the fingerprint collector with all fingerprint data on the terminal. (1) To enter the fingerprint verification mode. The device automatically distinguishes face and fingerprint verification, just pressing finger on the collector.
Page 22 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. (1) Press [1:1] on the screen or [1:1] button to enter the 1:1 fingerprint recognition mode. (2) Enter User ID or Group No., then press the "Fingerprint” icon to enter the 1:1 fingerprint recognition mode.
Page 23: Face Verification
3 inches Facial & Fingerprint Recognition Series Product User Manual 1.8.2 Face Verification 1. 1: N Face Verification The terminal compares current face image collected by the camera with all face data on the terminal. (1) The device automatically distinguishes face and fingerprint verification.
Page 24 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 1.1 Standing Position, Posture and Face Expressions. (4) If the verification is successful, the device will prompt "Verified". The system will return to the main interface if the verification is not passed within 20 seconds. 3.
Page 25: Password Verification
3 inches Facial & Fingerprint Recognition Series Product User Manual figure 1) to enter 1: G facial recognition mode. (3) Compare the facial in a proper way. For details, see 1.1 Standing Position, Posture and Face Expressions. Current Group No. is displayed on the comparison interface, shown as following figure 2.
Page 26: Id Card Verification
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 2. Enter the user ID and then press the "Key” icon to enter the password verification mode. If the prompt “Unregistered user!” is displayed, the user ID does not exist.
Page 27: Combination Verification
3 inches Facial & Fingerprint Recognition Series Product User Manual If the verification is not successful, the device will prompt “Not Enrolled”.  Note: (1) The machines that have Photo ID function’s successful verification interface is shown as figure 1 above; (2) The machines that don’t have Photo ID function’s successful verification interface is shown as figure 2 above.
Page 28 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. FACE&PIN/FP/RF/PW、 FP&PW、 FP&RF、 FACE&FP、 FACE&PW、 FACE&RF、 FP、PW、RF、FACE&PIN、FP/RF、PW/RF、FP/PW、PW&RF、PIN&FP、 FP&PW&RF、PIN&FP&PW、FP&RF/PIN、FACE&FP&RF、FACE&FP&PW etc. For the detail, please refer to 12.7 Multi-combination Authentication Mode.  Note: RF means ID card verification. Only the products with the built-in ID card module support the ID card verification.
Page 29 3 inches Facial & Fingerprint Recognition Series Product User Manual 4. If the verification is successful, the device will prompt “Verified”. The system will return to the main interface if the verification is not passed within 20 seconds. Otherwise, the FACE&FP combination verification can perform such as FACE (1: N) + FP, PIN + FACE (1:1) + FP, PIN + FP (1:1) + FACE etc.
Page 30: Main Menu
2. Main Menu 2. Main Menu There are two types of rights respectively granted to two types of users: the Ordinary users and administrators. Ordinary users are only granted the rights of face, fingerprint, password or card verification, while administrators are granted access to the main menu for various operations apart from having all the privileges granted to ordinary users.
Page 31 3 inches Facial & Fingerprint Recognition Series Product User Manual modify or delete a user’s information. Comm.: Through this submenu, you can set related parameters for communication between the device and PC, including the IP address, gateway, subnet mask, baud rate, device No. and communication password.
Page 32 2. Main Menu information. Any user can access the main menu by pressing the [Menu] key if the system does not have an administrator. After administrators are configured on the device, the device needs to verify the administrators’ identity before granting them access to the main menu. To ensure device security, it is recommended to set an administrator when using the terminal initially.
Page 33: Add User
3 inches Facial & Fingerprint Recognition Series Product User Manual 3. Add User Press [Add] on the [User Mgt.] interface to display the [Add User] interface as shown below. User ID: Enter a user ID. 1 to 9 digits user IDs are supported by default.
Page 34: Entering A User Id
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 3.1 Entering a User ID The device automatically allocates an ID starting from 1 for every user in sequence. If you use the ID allocated by the device, you may skip this section.
Page 35: Entering A Name
3 inches Facial & Fingerprint Recognition Series Product User Manual 3.2 Entering a Name Use T9 input method to enter the user name through the keyboard. 1. Press [Name] on the [Add User] interface to display the name input interface. 2.
Page 36: Enrolling A Fingerprint
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 3.3 Enrolling a Fingerprint 1. Press [Fingerprint] on the [Add User] interface to display the [Enroll Fingerprint] interface. 2. On the displayed [Enroll Fingerprint] interface, place your finger on the fingerprint sensor properly according to the system prompt.
Page 37 3 inches Facial & Fingerprint Recognition Series Product User Manual...
Page 38: Enrolling A Password
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 3.4 Enrolling a Password 1. Press [Password] on the [Add User] interface to display the password management interface. 2. On the displayed keyboard interface, enter a password and press [OK].
Page 39: Enrolling An Id Card
3 inches Facial & Fingerprint Recognition Series Product User Manual 3.5 Enrolling an ID card 1. Press [Card] on the [Add User] interface to display the [Enroll Card] interface. 2. The [Punch Card!] interface pops up as shown below. Swipe your ID card properly in the swiping area. For details, see 1.6 Appearance of Device.
Page 40: Enrolling A Face
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 3.6 Enrolling a Face 1. Press [Face] on the [Add User] interface to display the face enrollment interface. 2. On the displayed face enrollment interface, turn your head to the left and right slightly, raise and lower your head according to the voice prompts, so as to enroll different parts of your face into the system to...
Page 41: Entering A Group No
3 inches Facial & Fingerprint Recognition Series Product User Manual 3.7 Entering a Group No. 1. Press [Group No.] on the [Add User] interface to display the group No. management interface. 2. On the displayed keyboard interface, enter your group No. and press [OK]. 3.
Page 42: Modifying User Rights
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 3.8 Modifying User Rights  Note: There are two types of rights respectively granted to two types of users: the ordinary users and administrators. Ordinary users are only granted the rights of face, fingerprint, or password verification, while administrators are granted the access to the main menu for various operations apart from having all the privileges granted to ordinary users.
Page 43: Enroll Photo
3 inches Facial & Fingerprint Recognition Series Product User Manual 3.9 Enroll Photo If you had enrolled your photo in the system, the system will display your enrolled photo in addition to your ID and name after you pass the verification. 1.
Page 44: User Access Settings
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 3.10 User Access Settings Press [User Access] on the [Add User] interface to display user access settings interface. User Access settings are to set the user’s rights to verify and open the door, such as the Verify Type, Time Zone and...
Page 45 3 inches Facial & Fingerprint Recognition Series Product User Manual mode. 2. Time Zone (1) Group Time Zone: If the user uses the group time zone that he belong to. (2) Individual time zone: Select the time zone of this user instead of the group time zone.
Page 46 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. (2) Cancel duress FP Press [Can. Duress FP] on the [User Access] interface to pop-pup the confirm message. Select [YES] to delete the enrolled duress FP, otherwise select [NO] to cancel the operation.
Page 47: User Management
3 inches Facial & Fingerprint Recognition Series Product User Manual 4. User Management Browse the user information, including the user ID, name, fingerprint, face, ID card, password, rights, group No. and user access settings through this interface. To add, edit or delete the basic information of users. Press [User Management] on the main menu interface to display the user management interface.
Page 48: Edit A User
4. User Management 4.1 Edit a User Press a user name from the list to enter the [User Info] interface. The User ID cannot be modified, and the other operations are similar to those performed in add a user. You can re-enroll your fingerprint and face, change your password, modify the management rights and Group No....
Page 49: Delete A User
3 inches Facial & Fingerprint Recognition Series Product User Manual 4.2 Delete a User On the [User Info] interface, you can delete all or partial user information. 1. Press [Delete] to delete a user. 2. On the displayed interface, click [YES] to delete the current user or [NO] to return to the previous interface.
Page 50: Query A User
4. User Management 4.3 Query a User To facilitate administrators to locate a user quickly from a large number of enrolled users, the device enables to query by “User ID”. User ID Query: 1. Press [Query] on the [User Management] interface to display the User ID query interface.
Page 51: Communication Settings
3 inches Facial & Fingerprint Recognition Series Product User Manual 5. Communication Settings You can set related parameters for the communication between the device and PC, including the IP address, Gateway, Subnet Mask, Baud Rate, Device ID, and Comm Key. ...
Page 52: Communication Settings
5. Communication Settings 5.1 Communication Settings IP Address: The IP address is 192.168.1.201 by default and can be changed as required. Subnet Mask: The subnet mask is 255.255.255.0 by default and can be changed as required. Gateway: The gateway is 0.0.0.0 by default and can be changed as required. (RS232/RS485), you need to check the following settings: RS232: This parameter is used to enable or disable the RS232 communication.
Page 53 3 inches Facial & Fingerprint Recognition Series Product User Manual USB232: Decide whether use USB to communicate or not, that is to say if you use the USB communication, and then selected the item as "Yes". Otherwise as "No". Device ID: This parameter is used to set the ID of device from 1 to 254. If the RS232/RS485 communication is adopted, you need to enter the device ID on the software communication interface.
Page 54: Wifi Configuration
5. Communication Settings 5.2 WIFI Configuration Available WLANs Available WLANs around a mobile phone can be searched. Select Available WLAN to enter the Available WLAN interface and click Refresh, then the available WLANs around the mobile phone are listed on the interface, as well as their signal strengthen. As shown in the third of the preceding figures, a user can search its wireless route and set a password.
Page 55 3 inches Facial & Fingerprint Recognition Series Product User Manual WIFI Configuration Before the mobile phone is accessed to the WLAN, other physical components of the 802.11 network are required, including access points, distribute systems, and wireless media. In addition, the service set identifier (ESSID) must be available.
Page 56 5. Communication Settings interface. The designated IP address is the IP address of a mobile phone in the wireless network, and does not have any relationship with comm. WIFI IP can not share the same network segment with the machine IP. Subnet mask and gateway: The subnet mask and gateway address of the designated IP address must be designated and input.
Page 57 3 inches Facial & Fingerprint Recognition Series Product User Manual Click the inputting button of the password and input a password after starting the T9 IME. Designate an IP address When the setting of local IP addresses is in manual mode, designate and input a correct IP address, subnet mask, and gateway address on the Manual IP designation interface.
Page 58: Wiegand Output
5. Communication Settings 5.3 Wiegand Output Wiegand Format: The system has two built-in formats Wiegand 26-bits and Wiegand 34-bits, and also supports the format customization function to meet individualized requirements. Failed ID: Refers to the value output by the system upon verification failure.
Page 59 3 inches Facial & Fingerprint Recognition Series Product User Manual 25 26 Even parity User ID/Card Number Odd parity bit Definition of Fields: Field Meaning Even parity bit Judged from bit 2 to bit 13. The even parity bit is 1 if the character has an even number of 1 bit;...
Page 60: Wiegand 34-Bits Output Description
5. Communication Settings 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 Even parity bit Failed ID = Binary code of 1 Odd parity bit ...
Page 61: Customized Format
3 inches Facial & Fingerprint Recognition Series Product User Manual Odd parity bit Judged from bit 18 to bit 33. The odd parity bit is 1 if the character has an even number of 1 bit; otherwise, the odd parity bit is 0. For example, for a user with the user ID of 123456789, the enrolled card number is 0013378512 and the failed ID is set to 1.
Page 62 5. Communication Settings as the meaning of each bit. The data bits output by Wiegand can be a card number (C), site code (s), facility code (f), manufacturer code (m) and parity bits (p). Parity Format bits define the check mode of each bit in data bits and ensure the correctness of data bits during transfer through the parity check.
Page 63 3 inches Facial & Fingerprint Recognition Series Product User Manual Display Input Display the Numb Cancel Input Backspace Confirm Input Clear Input Characters used to define Card Format bits and their meanings: c: Indicates the card number, that is, the output contents, it can be set to User ID/Card Number through menu operations.
Page 64 5. Communication Settings bit is 0 and there are already three 1’s. After 0 is suffixed to 1000110, there is still an odd number of 1’s. e: Indicates the even check, that is, there is an even number of 1’s in the bit sequence (including one parity bit).
Page 65 3 inches Facial & Fingerprint Recognition Series Product User Manual Wiegand37 Card Format bits: pmmmffffffffffssssssccccccccccccccccp Parity Format bits: eeeeeeeeeeeeeeeeeeooooooooooooooooooo Note: Wiegand37 consists of 37 bits. The first bit is the even parity bit of bits 2 to 18; the 34 bit is the odd parity bit of bits 19 to 36;...
Page 66: Wiegand Input
5. Communication Settings 5.4 Wiegand Input Wiegand Format: The system has two built-in formats Wiegand 26-bits and Wiegand 34-bits, and also supports the format customization function to meet individualized requirements. About the Wiegand format, please refer to 5.3 Wiegand Output. Bit counts: Wiegand data digit length.
Page 67: System Settings
3 inches Facial & Fingerprint Recognition Series Product User Manual 6. System Settings Through the [System] menu, you can set system-related parameters, including the General, Display, Fingerprint, Face, Log settings, Shortcut Def, Access Control Set, and Firmware Update, to enable the device to meet user requirements to the greatest extent in terms of functionality and display.
Page 68: General Parameters
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 6.1 General Parameters Keyboard Clicks: This parameter is used to set whether to generate beep sound in response to every keyboard touch. Select “ON” to enable the beep sound, and select “OFF”...
Page 69: Interface Parameters
3 inches Facial & Fingerprint Recognition Series Product User Manual 6.2 Interface Parameters Language: This parameter is used to display the current language used device. multilingual-capable devices, you can switch between different languages through this parameter. Then you should restart the device. Toolbar: This parameter is used to display the style of the shortcut keys on the initial interface.
Page 70: Fingerprint Parameters
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 6.3 Fingerprint Parameters 1: 1 Threshold: This parameter is used to set the threshold of matching between the current fingerprint and the fingerprint template enrolled in the device in the 1:1 verification mode.
Page 71 3 inches Facial & Fingerprint Recognition Series Product User Manual Always Show: Display the fingerprint on the screen in enrolling and verifying process. Never Show: Never display the fingerprint on the screen in any case.
Page 72: Face Parameters
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 6.4 Face Parameters 1: 1 Threshold: This parameter is used to set the threshold of matching between the current face and the face template enrolled in the device in the 1:1 verification mode.
Page 73 3 inches Facial & Fingerprint Recognition Series Product User Manual adopting the face algorithm when their quality is higher than the threshold; otherwise, it filters these face images.  Note: Improper adjustment of the Exposure and Quality parameters may severely affect the performance of the device. Please adjust the Exposure parameter only under the guidance of the after-sales service personnel from our company.
Page 74: Log Settings
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 6.5 Log Settings Log Alert: When the available space is insufficient to store the specified number of attendance records, the device will automatically generate an alarm (Value scope: 1-99).
Page 75: Shortcut Definitions
3 inches Facial & Fingerprint Recognition Series Product User Manual 6.6 Shortcut Definitions Define touch screen functional shortcut keys. For the device with face grouping function (MENU--System--Log Settings--1: G Verify), the definition method of shortcut keys is described as follows: 1.Set shortcut keys The method to set shortcut keys is described as follows: (1) Click the Shortcut Def.
Page 76 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. options for the status) to change it to the corresponding label; the user can modify the label of the status key according to practical needs. (3) The Code cannot be modified;...
Page 77 3 inches Facial & Fingerprint Recognition Series Product User Manual (5) After the setting is completed, click [Save] to save the setting and return to the Shortcut Def. screen. 2. Use shortcut keys Click on the initial interface, and the related status and function keys are displayed on the right corner of the interface for use.
Page 78: Access Settings
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 6.7 Access Settings Access control settings are to set user’s open door time zone, control lock and set related device parameters. It is not enabled by factory default, you can click [MENU]-[System]-[Display]-[Enable access], select YES or NO.
Page 79: Holiday Setting
3 inches Facial & Fingerprint Recognition Series Product User Manual minute. If end time is smaller than start time (23:57- 23:56), the whole day is forbidden. If end time is bigger than start time (00:00- 23:59), it is effective section. Effective time zone for user unlocking: 00:00-23:59 or end time is bigger than start time.
Page 80 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 2. Edit holiday Select the holiday to be edited and enter the edit interface. The edit operation is similar to add holiday. After editing, press [Save] to save and return to the previous interface.
Page 81: Group Time Zone Setting
3 inches Facial & Fingerprint Recognition Series Product User Manual 6.7.3 Group time zone setting Grouping is to manage employees in groups. Employees in group use group time zone by default. Group members can also set user time zone. Every group can hold three time zones.
Page 82 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. Authentication Mode.  Notice: (1) If the holiday is valid, only when there is an intersection between group zone and holiday time zone, can the group member open the door. (2) If the holiday is invalid, the access control time of group member won’t be affected by holiday.
Page 83: Unlock Combination Setting
3 inches Facial & Fingerprint Recognition Series Product User Manual 3. Delete group time zone Select the line to be deleted. Press [Delete] to popup the confirm interface as follows. Select [Yes] to delete this holiday, otherwise select [No] to cancel the operation.
Page 84 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 2. Edit Unlock Combination Select the line to be edited. Press the item directly to enter the edit interface. After editing, press [Save] to save the current information and return to the previous interface;...
Page 85: Access Control Parameter
3 inches Facial & Fingerprint Recognition Series Product User Manual 6.7.5 Access control parameter Through the [Access] menu, you can set the parameters of the electronic locks and related access control devices. Lock Delay: Indicates the duration for the device to place the electric lock in open state.
Page 86: Duress Alarm Parameters
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here.  Notice: 1. If the Time Zone of normally open or normally closed has been set, please switch door sensor to no, otherwise it will produce alarm signal during Normal close Time Zone or Normal open Time Zone.
Page 87: Anti-Pass Back Setting
3 inches Facial & Fingerprint Recognition Series Product User Manual 6.7.7 Anti-Pass back setting Set the device Anti-Pass back function. APB Direction: There are four options: None, APB-Out, APB-In, APB-Out/In. Device Status: There are three options: Exit Control, Entry Control and None. For Anti-Pass back function, please refer to 12.8 Anti-Pass...
Page 88: Update
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 6.8 Update You can upgrade the device firmware by using the upgrade file in the USB disk through this function. If you need the firmware upgrade file, please contact our technical support personnel.
Page 89: Data Management
7. Data Management 7. Data Management Through the [Data Mgt.] menu, you can perform management of data stored on the device, for example, delete the attendance records, delete all data, clear administrator, restore the device to factory settings, and query user records.
Page 90 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. factory settings. SMS: Operators can write public or personal short messages and display them for designated persons at designated time. In addition, operators can prepare short messages in advance.
Page 91: Query Record
7. Data Management 7.1 Query Record After check-in successfully, the employee’s attendance records are saved in the device. You can easily query these attendance records. User ID: Enter the user ID of the employee to query. If this field is left blank, you can query the attendance records of all the employees.
Page 92 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. For example, press User ID and enter the edit interface, input the ID number and press [Query], the query result will display as below.
Page 93: Sms
7. Data Management 7.2 SMS Short messages are similar to announcements and notices. Operators can write a short message according to the contents to be announced in advance, and display the short message on the screen during a designated period. Short messages are classified into public and personal short messages.
Page 94 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. period. Type: Reserved: means that the short message is prepared in advance but not configured as personal or public. Personal: means that the short message can only be read by a specific person.
Page 95 3 inches Facial & Fingerprint Recognition Series Product User Manual Press the number key to input values to be set, and click OK to save the settings and return to the previous interface. Click Type to switch the types of a short message, including personal, public, and reserved.
Page 96 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. As shown in the following figures, click Done to save the settings and return the previous interface. After that, click Save to store the short message and goes back to the previous interface.
Page 97: View A Short Message
3 inches Facial & Fingerprint Recognition Series Product User Manual a short message. Delete a short message By clicking Delete on the Edit interface, the short message to be deleted is removed. In addition, any information related to the message is deleted at the same time.
Page 98 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. After the viewing is finished, click Return to exit the View interface and return the initial interface.  View a personal short message After a user is authorized, his short message will be displayed, as shown in the following figure:...
Page 99: Work Code
3 inches Facial & Fingerprint Recognition Series Product User Manual 7.3 Work Code Easy for users quickly deal with data of distinguish different situation. Please click [System]--[Shortcut Definitions]--[Undefine], select [Workcode] and save, can opening working code function. For detail operation in [Data Management]--[Workcode].
Page 100: Edit And Delete A Work Code
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 7.3.2 Edit and delete a work code 1. Press the row of a work code on the WorkCode interface to display the [Edit] interface.
Page 101: Date/Time Setting
3 inches Facial & Fingerprint Recognition Series Product User Manual 8. Date/Time Setting 8.1 Set Date/Time The date and time of the device must be set accurately to ensure the accuracy of attendance time. 1. Press [Menu] on the initial interface to display the main menu interface.
Page 102: Bell Setting
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 8.2 Bell Setting Lots of companies need to ring their bells to signal the start and end of work shifts, and they usually manually ring their bells or use electric bells. To lower costs and facilitate management, we integrated the time bell function into the device.
Page 103 3 inches Facial & Fingerprint Recognition Series Product User Manual Ring Tone: This parameter is used to set the bell ring tone. Volume: This parameter is used to set the volume of ring tone. Repeat: This parameter is used to set the alarm times. State: This parameter is used to set whether to enable the bell.
Page 104: Daylight Saving Time (Dlst)
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 8.3 Daylight Saving Time (DLST) DLST, also called Daylight Saving Time, is a system to prescribe local time in order to save energy. The unified time adopted during the system date is called “DLST”.
Page 105 3 inches Facial & Fingerprint Recognition Series Product User Manual 3. Click [DST settings], enter the DLST edit interface. Mode1 Mode2 4. After setting, click [Save] to complete and return.
Page 106: Auto Test
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 9. Auto Test The auto test enables the system to automatically test whether functions of various modules are normal, including the screen, sensor, voice, face, keyboard and clock tests.
Page 107 3 inches Facial & Fingerprint Recognition Series Product User Manual properly by checking whether the collected face images are clear and acceptable. Press [Exit] to exit the test. 5. Test Keyboard: The device tests whether every key on the keyboard works normally.
Page 108: Usb Disk Management
10. USB Disk Management 10. USB Disk Management Through the [Dn/Upload] menu, you can download user information and attendance data stored in a USB disk to related software or other fingerprint recognition equipment. 1. Download Transactions: Download all the attendance data from the device to a USB disk.
Page 109: System Information
3 inches Facial & Fingerprint Recognition Series Product User Manual 11. System Information You can check the storage status as well as version information of the device through the [System Information] option. Records: number enrolled users, administrators and passwords are displayed on the [Records] interface;...
Page 110: Appendix
12. Appendix 12. Appendix 12.1 T9 Input Instructions The device supports to input English characters, numbers symbols. Press related button to input text. For example, press [Name] to display the text input interface, as shown in the figure: ① Keyboard Area ②...
Page 111 3 inches Facial & Fingerprint Recognition Series Product User Manual To enter a name, proceed as follows: 1. Press [Name] on the [Add] interface, as shown in figure below. 2. Enter the letter characters, and a list of characters in relation to the letter is presented in the text display area.
Page 112: Usb
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 12.2 USB 1. USB Host Fingerprint device may be used as USB host to exchange data with external U-disk. The data transmission speed is quick, the traditional fingerprint device only supports the RS232, RS485 or Ethernet way for data transmission, when as a result of physical condition limit, data quantity big, and the data transmission cost quite long time.
Page 113: Introduction Of Wiegand
3 inches Facial & Fingerprint Recognition Series Product User Manual 12.3 Introduction of Wiegand Wiegand26 is an access control standard protocol established by the Access Control Standard Subcommittee affiliated to the Security Industry Association (SIA). It is a non-contact IC card reader interface and output protocol. Wiegand26 defines the interface between the card reader and controller used in the access control, security and other related industrial fields.
Page 114 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. Figure: Sequence Diagram Table: Pulse Time Symbol Definition Typical Value of Reader Pulse Width 100 µs Pulse Interval 1 ms...
Page 115: Photo Id Function
3 inches Facial & Fingerprint Recognition Series Product User Manual 12.4 Photo ID Function The Photo ID function is used to display the photo enrolled by a user or stored in a USB disk on the screen in addition to such information as the user ID and name.
Page 116: Work Code
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 12.5 Work Code [Function Description] The concept of work code is introduced to facilitate the software to handle the verification records according to different cases. For example, we define “1” for eating, “2”...
Page 117: Print Function
3 inches Facial & Fingerprint Recognition Series Product User Manual 12.6 Print function  External printer [Explain] This device is available only for USB interface export. To connect serial port printer, first use USB cable to transport to RS232. After the printer is connected, direct printing is available.
Page 118 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. [Instructions] In the device menu, enter Menu–>Comm. –> Comm. and select the print mode. There are 6 print modes to choose.  Note: 1.
Page 119 3 inches Facial & Fingerprint Recognition Series Product User Manual (1)Press [company name], on the displayed keyboard interface, enter a company name and press [X]. For details of operations on the keyboard interface, see 12.1 T9 Input Instructions. (2)After the company name is entered, press [Save] to save the current information and return to the comm.
Page 120 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. Press YES to print record in mode 5. Press "NO" to not print record. For example: San punched the card at 11:02:42 on June 11, 2012, there are different print formats to select, shown as below: Version 1 000000001...
Page 121 3 inches Facial & Fingerprint Recognition Series Product User Manual ID.NO: 000000001 Name:San Check-In 12-06-11 11:02:42  Notice: (1)In mode 2, paper will be changed automatically after printing. (2)If you want to customize other print modes, please contact our commercial representatives or pre-sales technical supporters.
Page 122: Multi-Combination Authentication Mode
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 12.7 Multi-combination Authentication Mode Besides this function only is owned by the fingerprint access control machine that has been appointed, most of the fingerprint machines only have two ways to verify by fingerprint and password, we provide a personal or group Multi-combination Authentication Mode for high security Access control area, verification type main include five elements that are User Number (PIN),...
Page 123 3 inches Facial & Fingerprint Recognition Series Product User Manual 2) PIN+FP(1:1)+PW+“OK” 3) PIN+PW+“OK”+FP FP&RF FP + RF are verified 1) RF+FP(1:1) 2) FP(1:N)+RF 3) PIN+FP(1:1)+RF FACE&FP FACE + FP are verified 1) FP(1:N)+FACE 2) FACE(1:N)+FP 3) PIN+FACE(1:1)+FP 4) PIN+FP(1:1)+FACE FACE&PW FACE + PW are verified 1) FACE(1:N)+PW+“OK”...
Page 124 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. FP/RF FP or RF is verified 1) PIN+FP(1:1) 2) RF(1:N) 3) FP(1:N) PW/RF FP or RF is verified 1) PIN+PW+“OK” 2) RF(1:N) FP/PW FP or PW is verified 1) PIN+FP(1:1)
Page 125 3 inches Facial & Fingerprint Recognition Series Product User Manual 3) RF(1:N)+FACE+FP 4) PIN+FP(1:1)+FACE+RF 5) PIN+FACE(1:1)+FP+RF FACE&FP&PW FACE + FP + PW are verified 1) FACE(1:N) +PW+“OK”+FP 2) FP+PW+“OK”+FACE(1:1) 3) PIN+FP(1:1) +PW+“OK”+FACE 4) PIN+FACE(1:1) +PW+“OK”+FP 5) PIN+PW+“OK”+FP+FACE  Note: For combined verification, it is better to enroll all the elements in need for using verification mode, or verification will fail.
Page 126: Anti-Pass Back
Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. 12.8 Anti-Pass Back [Overview] Sometimes, some illegal people follow the other one into the gate, which will cause the security problems. To prevent such risks, this function is enabled. The In record must match the Out record, or the gate won’t open.
Page 127 3 inches Facial & Fingerprint Recognition Series Product User Manual record and out record must be matched. This machine supports out, in, or out-in anti-pass back. When the master machine is set as “out anti-pass back”, if user wants to come in and go out normally, his recent record must be “in”, or he cannot go out.
Page 128 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. Device status: There are three options: Control-in, control-out and none Control-in: When it is set, the verified records on the device are in-records. Control-out: When it is set, the verified records on the device are out-records.
Page 129: Statement On Human Rights And Privacy
3 inches Facial & Fingerprint Recognition Series Product User Manual 12.9 Statement on Human Rights and Privacy Dear Customers: Thank you for choosing the hybrid biometric products designed and manufactured by us. As a world-renowned provider of biometric technologies and services, we pay much attention to the compliance with the laws related to human rights and privacy in every country while constantly performing research and development.
Page 130 Error! Use the Home tab to apply 标题 1 to the text that you want to appear here. Unlawful arrest, detention or search of citizens of the People's Republic of China is prohibited; infringement of individual privacy is prohibited. The personal dignity of citizens of the People's Republic of China is inviolable.
Page 131: Environment-Friendly Use Description
3 inches Facial & Fingerprint Recognition Series Product User Manual 12.10 Environment-Friendly Use Description The Environment Friendly Use Period (EFUP) marked on this product refers to the safety period of time in which the product is used under the conditions specified in the product instructions without leakage of noxious and harmful substances.
