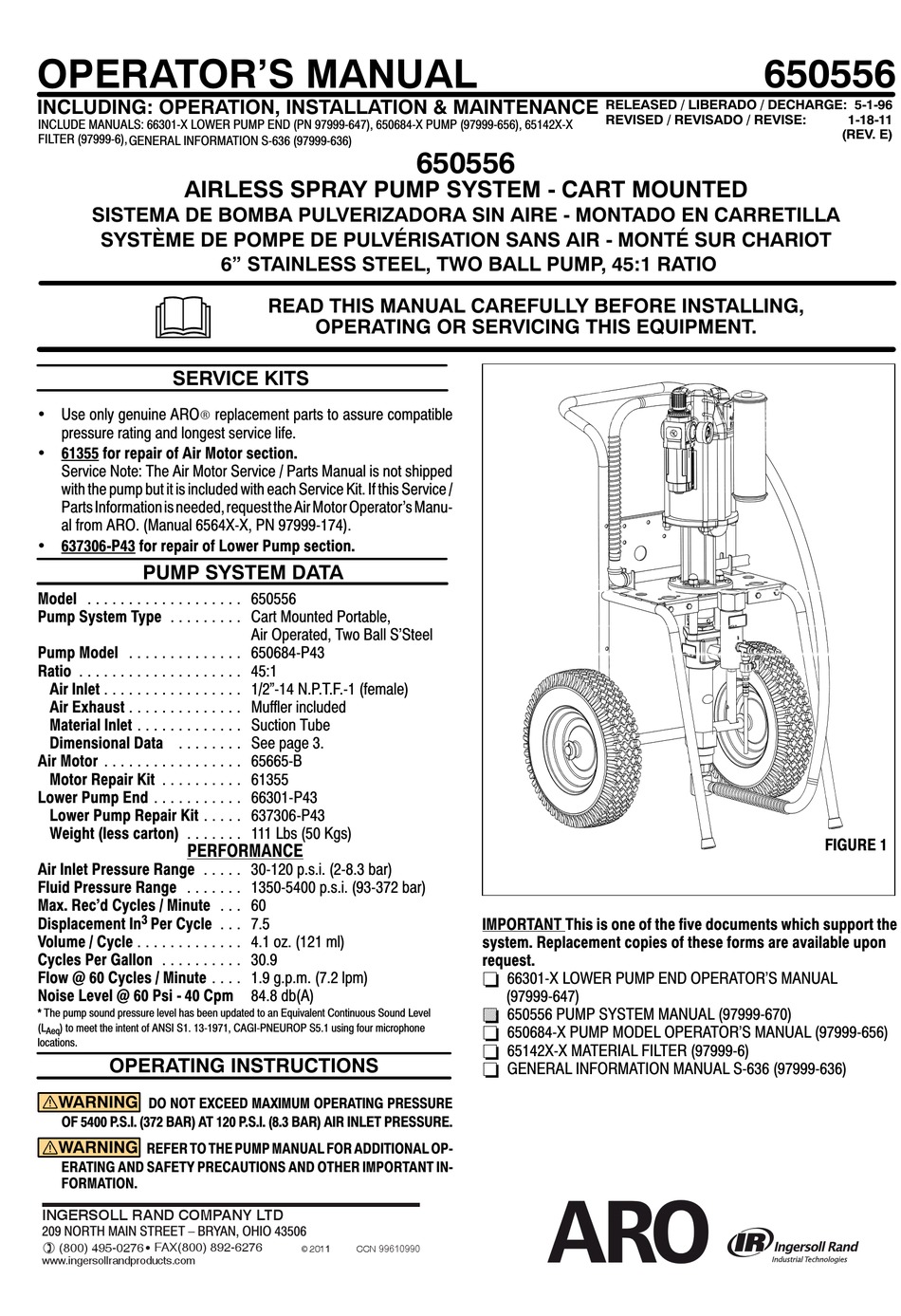

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
INCLUDE MANUALS: 66301-X LOWER PUMP END (PN 97999-647), 650684-X PUMP (97999-656), 65142X-X
FILTER (97999-6), GENERAL INFORMATION S-636 (97999-636)
AIRLESS SPRAY PUMP SYSTEM - CART MOUNTED
SISTEMA DE BOMBA PULVERIZADORA SIN AIRE - MONTADO EN CARRETILLA
SYSTÈME DE POMPE DE PULVÉRISATION SANS AIR - MONTÉ SUR CHARIOT

SERVICE KITS

Use only genuine ARO R
pressure rating and longest service life.
61355 for repair of Air Motor section.
Service Note: The Air Motor Service / Parts Manual is not shipped
with the pump but it is included with each Service Kit. If this Service /
Parts Information is needed, request the Air Motor Operator's Manu-
al from ARO. (Manual 6564X-X, PN 97999-174).
637306-P43 for repair of Lower Pump section.
PUMP SYSTEM DATA
Model . . . . . . . . . . . . . . . . . . .
Pump System Type . . . . . . . . .
Pump Model . . . . . . . . . . . . . .
Ratio . . . . . . . . . . . . . . . . . . . .
Air Inlet . . . . . . . . . . . . . . . . .
Air Exhaust . . . . . . . . . . . . . .
Material Inlet . . . . . . . . . . . . .
Dimensional Data . . . . . . . .
Air Motor . . . . . . . . . . . . . . . . .
Motor Repair Kit . . . . . . . . . .
Lower Pump End . . . . . . . . . . .
Lower Pump Repair Kit . . . . .
Weight (less carton) . . . . . . .
PERFORMANCE
Air Inlet Pressure Range . . . . .
Fluid Pressure Range . . . . . . .
Max. Rec'd Cycles / Minute
3
Displacement In Per Cycle
Volume / Cycle . . . . . . . . . . . . .
Cycles Per Gallon . . . . . . . . . .
Flow @ 60 Cycles / Minute
Noise Level @ 60 Psi - 40 Cpm
* The pump sound pressure level has been updated to an Equivalent Continuous Sound Level
(L ) to meet the intent of ANSI S1. 13-1971, CAGI-PNEUROP S5.1 using four microphone
Aeq
locations.

OPERATING INSTRUCTIONS

WARNING
DO NOT EXCEED MAXIMUM OPERATING PRESSURE
OF 5400 P.S.I. (372 BAR) AT 120 P.S.I. (8.3 BAR) AIR INLET PRESSURE.
WARNING
REFER TO THE PUMP MANUAL FOR ADDITIONAL OP-
ERATING AND SAFETY PRECAUTIONS AND OTHER IMPORTANT IN-
FORMATION.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com
6" STAINLESS STEEL, TWO BALL PUMP, 45:1 RATIO
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
replacement parts to assure compatible
650556
Cart Mounted Portable,
Air Operated, Two Ball S'Steel
650684-P43
45:1
1/2"-14 N.P.T.F.-1 (female)
Muffler included
Suction Tube
See page 3.
65665-B
61355
66301-P43
637306-P43
111 Lbs (50 Kgs)
30-120 p.s.i. (2-8.3 bar)
1350-5400 p.s.i. (93-372 bar)
. . . 60
. . . 7.5
4.1 oz. (121 ml)
30.9
. . . . 1.9 g.p.m. (7.2 lpm)
84.8 db(A)
© 2011 CCN 99610990
650556
IMPORTANT This is one of the five documents which support the
system. Replacement copies of these forms are available upon
request.
- 66301-X LOWER PUMP END OPERATOR'S MANUAL
(97999-647)
= 650556 PUMP SYSTEM MANUAL (97999-670)
- 650684-X PUMP MODEL OPERATOR'S MANUAL (97999-656)
- 65142X-X MATERIAL FILTER (97999-6)
- GENERAL INFORMATION MANUAL S-636 (97999-636)
650556
RELEASED / LIBERADO / DECHARGE: 5-1-96
REVISED / REVISADO / REVISE: 1-18-11
(REV. E)
FIGURE 1
