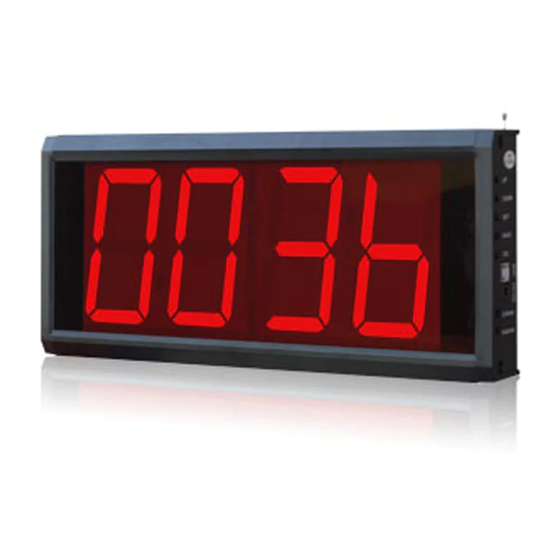

CallingSYS ZJ-49PC User Manual

999-channel wireless calling receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Wireless Calling Receiver
User Manual
(ZJ-49PC )
Wireless calling system

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZJ-49PC and is the answer not in the manual?

Questions and answers

Summary of Contents for CallingSYS ZJ-49PC

  • Page 1 Wireless Calling Receiver User Manual (ZJ-49PC ) Wireless calling system...

  • Page 2: Technical Data

    999-channel Wireless Calling Receiver ZJ-49PC User Manual Summary Thanks for choosing this wireless calling system. The receiver host adopts RF wireless and learning code technology. It can easily pair up to 999 channels of wireless calling transmitters and 1 manager remote controller.

  • Page 3: Button Function

    Diagram Display screen Antenna Calling number area Function area Function button (for transmitter or room) (A/B/C/H) Button Function Short press to turn up the number; Long press to turn up the number quickly; Browse the calling record. DOWN Short press to turn down the number; Long press to turn down the number quickly;...
  • Page 4 Settings Diagram First class Second class Value Settings menu Settings menu Number spk Prompt music Music Dingdong Volume Volume No cycle Display cycle time setting No delete Delete time setting Timeout No prompt prompt time Standby Standby 2-key mode Key switch 4-key mode Manager Number...
  • Page 5 Note: 1. Long press “SET” for 2 sec to settings menu. 2. In second class settings menu, press “UP/DOWN” to adjust the parameter value. 3. First time use, please set the working mode in advance. 4. For more information of each item, please check the below instruction. Display screen function Normal mode (Cd8: mode 0, 1 and 2)

  • Page 6: Operation Instruction

    Operation Instruction 1. Self test when power on When the receiver host is power on, it starts initialization program. The 4 corner LED indicators will flicker and display will show the digits from 000 to 999 along with the prompt music. 2.
  • Page 7 Before do the pairing, please refer to (8) "Cd8" to set the working mode. Such as normal restaurant mode, area mode, room mode or hospital mode. Press "SET" button to enter "Cd7" submenu. The display will show "001", then press "UP/DOWN"...

  • Page 8: Packing List

    6) Cd6: 5 (4 key mode) 7) Cd7: 001- (no paired transmitter) 8) Cd8: 0 (normal mode) 9) Cd9: 2013 (time setting) 10) Cd11: 0 (timekeeping off) Select one option and press “SET” button, after 3s the host will restore to default settings and turn back to standby status automatically.
