Summary of Contents for Tarts Basic control

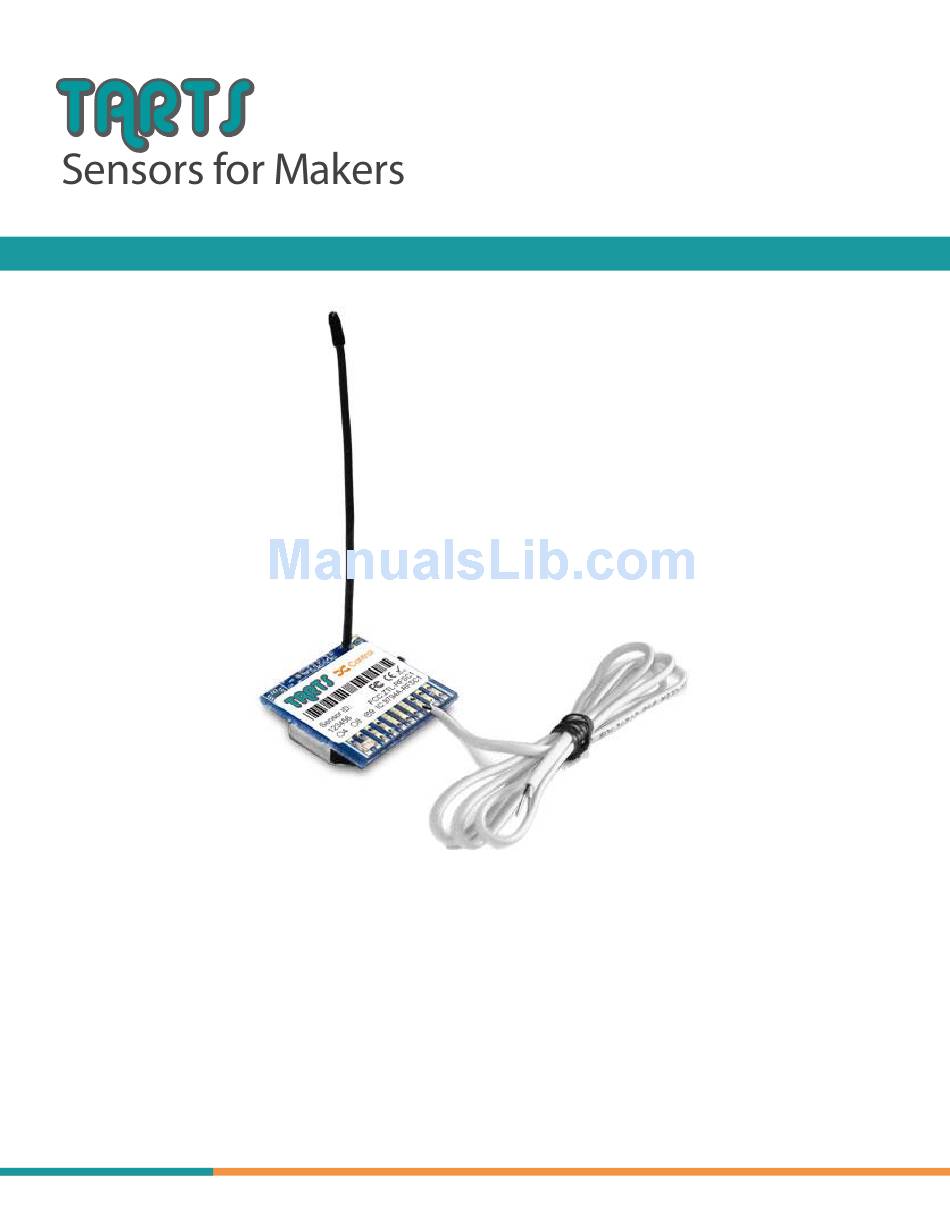

- Page 1 Tarts Basic Control User’s Guide...
-
Page 2: Table Of Contents
Antenna Orientation ................................5 Light Indicators ..................................5 Tech specs for this device: ..............................7 Warranty Information ................................7 Limitation of Warranty and Remedies............................ 8 Certifications................................... 9 Tarts Basic Control User’s Guide (12/14) © 2014 Tarts Sensors, LLC. All Rights Reserved. -
Page 3: Overview
Overview Tarts Basic Control is a wireless node on the network that has the ability to act as a switch on a power circuit. It communicates directly to the gateway checking for instruction to change the switch’s state. Such a command may be initiated when the temperature goes out of bounds, or when water is detected, or when motion is introduced into an environment. - Page 4 The switch is an NPN transistor: The NPN Collector input can handle up to 40 VDC and up to 30 mA, with a switching time of less than 100 ns. Tarts Basic Control User’s Guide (12/14) © 2014 Tarts Sensors, LLC. All Rights Reserved.
-
Page 5: Serial Identification Numbers
Light Indicators Tarts Basic Control comes equipped with an LED light. If power consumption on the device is an issue, the light can be disabled so that it no longer consumes power. Other options include having the LED go on and off with the relay, or only flashing when Tarts Basic Control is polling the gateway for command updates. - Page 6 Interval, Retry, and Recovery are also valid for this device. Therefore, it defines its own sensor type. Tarts Basic Control can be used to activate a switch (open it or close it), or you can create an application such that the unit reacts to other sensor types, such as temperature (ie, if a temperature sensor reports above 30°C, Basic Control will...
-
Page 7: Tech Specs For This Device
When this property is FALSE, the device will listen for commands continuously, consuming power constantly. If an application is such that it needs Tarts Basic Control to react immediately to things, use this mode. However, you will need to power the Basic Control unit with a 3.0 – 3.3 VDC power adapter. -
Page 8: Warranty Information
Tarts will have no warranty obligation with respect to products subjected to abuse, misuse, negligence or accident. If any device firmware fails to conform to the warranty set forth in this section, Tarts shall provide a bug fix or firmware patch correcting such non-conformance within a reasonable period after Tarts receives from customer (i) notice of such non-conformance, and (ii) sufficient information regarding such non-conformance so as to permit Tarts to create such bug fix or software patch. -
Page 9: Certifications
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by Tarts could void the user’s authority to operate the equipment. - Page 10 Additional Information and Support For additional information or more detailed instructions on how to use Tarts Wireless Sensors for Raspberry Pi, please visit us on the web at http://www.tartssensors.com.
