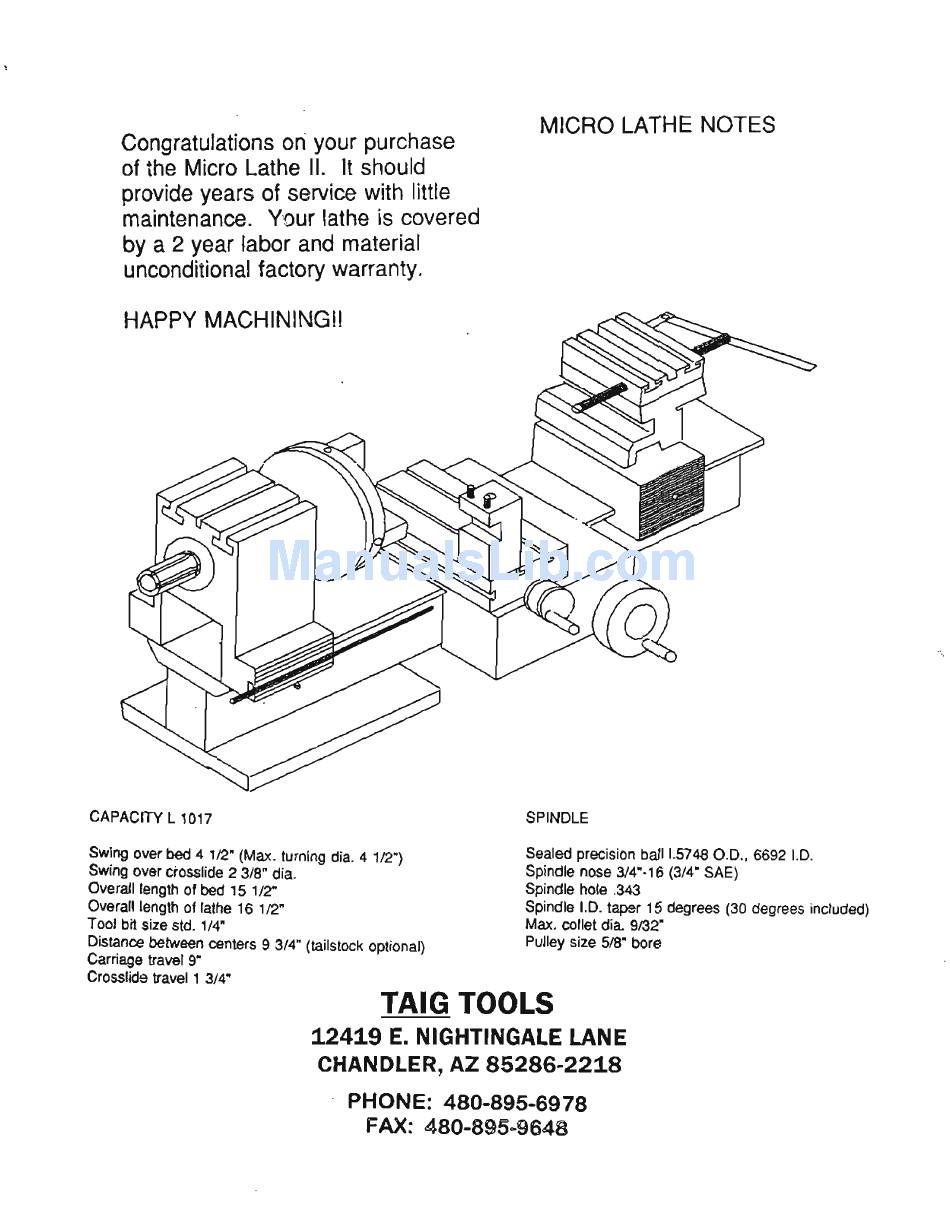

Taig Tools Micro Lathe II User Manual

Congratulations on your purchase
of the Micro Lathe II. It should
provide years of service with little
maintenance. Y'our lathe is covered
by a 2 year labor and material
unconditional fact9ry warranty-
HAPPY MACHININGI!
CAPACITY L 1017
Swing ov~r bed
4 1/2"
(Max. turning dia.
4
1/2")
Swing over crossfide 2 3/S" dia.
Overall length
of bed 15 1/2"
Overall length of lathe
16 1/2" .
Tool bit size std. 1/4"
Distance
between
centers 9
3/4"
(tailstock optional)
Carriage
traver 9"
Crosslide travel 1
3/4"
MICRO LATHE NOTES
SPINDLE
Sealed precision ball 1.5748 0.0.,6692 1.0.
Spindle nose 3/4"..16 (3/4" SAE)
Spindle hole
.343
Spindle 1.0. taper 15 degrees
(30
degrees included)
Max. collet dia. 9/32"
Pulley size 5/8" bore
TAIG TOOLS
12419 E. NIGHTINGALE LANE
CHANDLER, AZ 85286-2218
PHONE: 480-895-6978
FAX: 480-8900.9648
