Summary of Contents for Creative Cedar Designs 3512

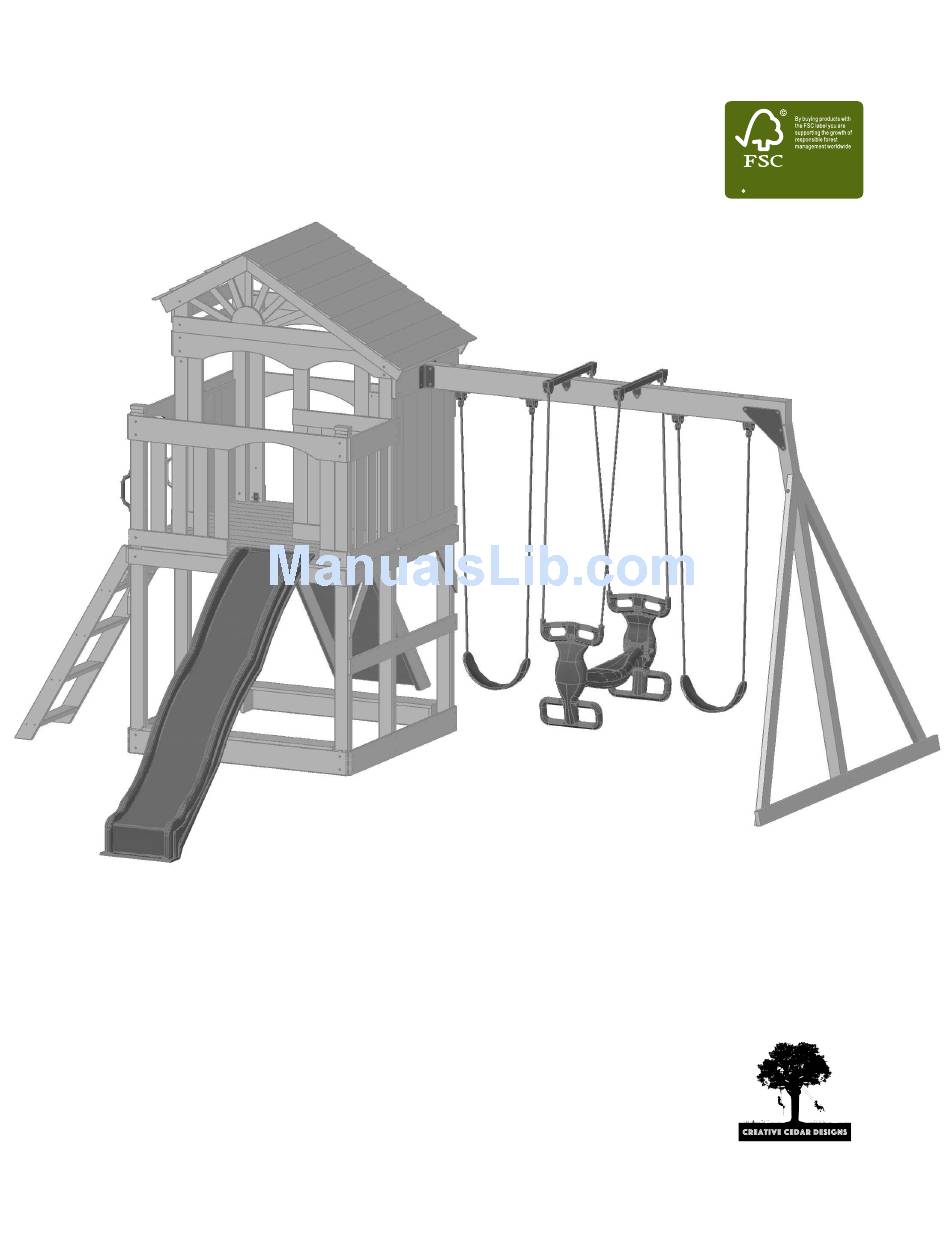

Page 1 Owner's Manual Assembly Instructions For FSC certified products look for the FSC label SGS-COC-005310 1996 Forest Stewardship Council A.C. Timber Valley Model: 3512...
Page 2: Table Of Contents
Thank you for purchasing a Creative Cedar Designs Playcenter. We hope it will bring you and your children many years of safe and enjoyable backyard fun. Table of Contents Letter to Customer Positioning Your Playcenter Tools Required for Assembly Helpful Installation Hints...
Page 3 STOP…PLEASE READ!! IF YOU HAVE ANY QUESTION OR ARE MISSING A PART, PLEASE DO NOT CONTACT THE RETAILER THAT YOU PURCHASED THIS PRODUCT FROM. PLEASE VISIT www.creativecedardesigns.com OR CONTACT US DIRECTLY AT OUR OFFICE, 1-888-363-4967 WE WILL ANSWER YOUR QUESTIONS, OR HELP WITH WHAT YOU NEED. For more efficient service, please log onto our website at www.creativecedardesigns.com...
Page 4: General Information
Creative Cedar Designs equipment is recommended for use by children 3 to 10 years of age. Creative Cedar Designs structures are not intended for public use. Creative Cedar Designs does not warranty any of its residential structures subjected to commercial use.
Page 5: Positioning Your Playcenter
The instructions and owner’s manual for your new Playcenter should be read in its entirety before assembly, to minimize problems and safety issues. We recommend reading the owner’s manual thoroughly after you have identified all of the parts for your Playcenter as discussed in the Helpful Installations Hints section below.
Page 6: Helpful Installation Hints
8. Swing hangers should be buried past the threads, so that the loop is against the swing beam. Creative Cedar Designs is not responsible for incorrect installations of swing hangers. Failure to properly install swing hangers may cause severe injury.
Page 7: Suggested Playground Surfacing
Suggested Playground Surfacing Playground equipment should never be placed on hard surfaces such as concrete or asphalt. Do not install loose fill surfacing over hard surfaces such as concrete or asphalt. Shredded bark mulch, wood chips, fine sand and fine gravel, are added as shock absorbing materials after assembly.
Page 8: Operating Instructions
Operating Instructions: NOTE: Your children’s safety is our #1 concern. Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Please review these safety rules regularly with your children. 1. This Playcenter is designed for the use of 6 occupants, who have a combined weight not exceeding 420 pounds, 4 occupants on the swing area, who have a combined weight of 350 pounds ,...
Page 9: Maintenance Instructions
Ropes, cables and chains should be removed and replaced if excessive wear is found. Contact Creative Cedar Designs for replacement parts. 6. For rusted areas on metallic members such as monkey bars, hand supports, brackets, etc., sand and repaint, using a non lead-based paint meeting the requirements of Title 16 CRF Part 1303.
Page 10 APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material Also see the following website for additional information: https://www.cpsc.gov/PageFiles/122146/324.pdf...
Page 11: Assembly Instructions
Timber Valley Play S et Assembly Instructions WARNING: CHOKING HAZARD Unassembled parts may be a choking hazard to children 3 years and younger CAUTION: Adult Assembly Required. Hardware contains small pieces with sharp points. Keep parts out of the reach of children until assembled. Parts of this product can present dangers ifi mproperly assembled.
Page 12 Basic Setup Dimensions Place the set on level ground, not less than 6ft (1.83M) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines or electrical wires. 27'-7" SAFETY AREA SAFE HEIGHT Ht=15'-3" Ht=9'-3" 15'-19" Important Assembly Notes Fig.
Page 13 Parts Identification Wood Components (8) WD3039 Roce Board-A 1×4×21 (2) WF3001 Sanbox board-A 1×6×54 (2) WF3018 Top Double Arch Board 1×6×54 (8) WD3040 Roce Board-B 1×4×21 (1) WQ3002a Upringt-A 3×4×78 3/4 (1) WF3019 Top Arch Board 1×6×31 (1) WC3042 Roce Board-C 1×3×21 (1) WQ3002b Upright-B 3×4×78 3/4 (1) WD3020 Top Brace 1×4×31 (2) WD3043 Sunburst Frame-A 1×4×45...
Page 14 Parts Identification Accessories (2) GREEN ANGLE BRACKET (5") - M005 (2) GLIDER SUPPORT ASSEMBLY - A501 (4) SWING HANGER - M020 (8) COUNT BAG - CLIMBING ROCKS - B10LGR (14) GREEN L-BRACKET - M003 (2) 100° TRIANGLE PLATE - M100 (6) PLASTIC STAKES - P004 (2) PAIR - HAND GRIP - P002 (2) SWING SEAT W/ CHAIN ( PLASTIC ) - A101...
Page 15 Hardware Identification 1/4x31/2" Socket Pan-Head Bolt 2 1/4" Wood Screws e1 (4) 1/4MT11/4 (10) #8DS3/4 1/4x7/8" Socket Pan-Head Bolt 1 3/4" Wood Screws e2 (4) 1/4MT11/4 #6DS3/4 1 1/8 " Wood Screws 5/16"×4 1/8" Socket Pan-Head Bolt (428) #6DS3/4 e3 (8) 7/8"...
Page 16 Hardware Identification 5/16"×6 1/4" Hex Bolts 5/16HB6 5/16"×5 3/4" Hex Bolts 5/16HB43/4 5/16" x 4" Hex Bolts 5/16HB4 1/4" 1/2" 3/4" 1" 5/16" Fender Washer 5/16" Lock Nuts 5/16" Split Washers 5/16FWX25 LN5/16 (18) (161) 2" 5/16" T-nuts 5/16" Flat Washer Allen Wrench 3/16"...
Page 17 Quick Overview of Parts FRONT RIGHT...
Page 18 Quick Overview of Parts LEFT BACK...
Page 19 TOWER ASSEMBLY Note: It is vital that the fort STEP : be level after this phase! * Insert all nut barrels "d1" into the uprights respectfully. * Lay out WQ02a, WQ05b and WQ05a as shown. * Attach WD07 into the pre-drilled holes with bolt "e3". * Attach WD04 into the pre-drilled holes with wood screws "b2".
Page 20 TOWER ASSEMBLY Note: It is vital that the fort STEP : be level after this phase! * Insert all nut barrels "d1" into the uprights respectfully. * Lay out WQ06a, WQ06b and WQ02b as shown. * Attach WD07 into the pre-drilled holes with bolts "e3". * Attach WF04 into the pre-drilled holes with wood screws "b2".
Page 21 TOWER ASSEMBLY Note: It is vital that the fort STEP : be level after this phase! * Insert all nut barrels "d1" into the uprights respectfully. * Stand Right Wall from Step1 and Left Wall from Step2. * Attach both WF01 to form the front and back bottom of the tower with bolts "e6". * Attach both WD03 to form the front and back middle of the tower with bolts "e5".
Page 22 Note: It is vital that the fort STEP : be level after this phase! M003 HARDWARE NEEDED ITEMS NEEDED (2) WD08 Floor Support 1×4×52 3/4 M003...
Page 23 TOWER ASSEMBLY Note: It is vital that the fort STEP : be level after this phase! * Lay WF15a, WF15b, WF16 in its rightful place as shown. * Lay all eleven WF14 in between to from the tower deck. * Once all slats are in place, make sure all slats are flush on the left and right side of the tower. * Once all slats are are flush secure slats with wood screw "a3".
Page 24 TOWER ASSEMBLY STEP : Note: It is vital that the fort be level after this phase! * Insert all nut barrels "d1" into the uprights respectfully. * Attach WD23 and WD31 to WQ02a & b with wood screw "b2". * Attach WF22 to WQ02a & b (See diagram below). * From the inside deck, attach four WD24 to the right of the arch with wood screws "a3".
Page 25 TOWER ASSEMBLY STEP : * Attach WD33 and WF26 with wood screws "b2". * From the inside deck, attach WD30 to the right of the arch with wood screws "a3". * From the inside deck, attach seven WD24 to the right of WD30 side by side with no spaces in between with wood screws "a3".
Page 26 TOWER ASSEMBLY STEP : * Insert nut barrel "d1" into the uprights respectfully. * Attach the WD23 and WD31 to the uprights with bolts "e6". * Attach WF22 to the uprights with wood screws "b2". * From the inside deck, attach both WD25b, one on each side of the arch with wood screws "a3". * From the inside deck, attach five WD24 to the right of the WD25b, also on the right of the arch.
Page 27 TOWER ASSEMBLY STEP : * Attach both WD23 with wood screws "b2". * From the inside of the playhouse, attach five WD24 followed by one WD25a to the right ( There should be no spaces). WD25a WD24 WD23 Keep flush the bottom Interior wall assembly ITEMS NEEDED HARDWARE NEEDED...
Page 28 TOWER ASSEMBLY STEP * Attach WD31 with wood screws "b2" from the front . * From the inside of the play house, attach WD25c with wood screws "a3". * Install six L brackets "M003" as shown. WD25c WD25c WD24 WD25a WD25b WD31 M003...
Page 29 TOWER ASSEMBLY Note: It is vital that the fort STEP be level after this phase! * From the inside of the playhouse, place both WQ32 into its place so you can see the correct orientation. * Insert two nut barrels "d1" into both WQ32. * Attach both WQ32 extensions into uprights (WQ06a &...
Page 30 TOWER ASSEMBLY STEP * Attach four WF10 with wood screws "b2". * Attach both WF11 with wood screws "a3". WF10 WF11 WF10 HARDWARE NEEDED ITEMS NEEDED (4) WF10 Sandbox Seat Support 1×6×4 1/2 (2) WF11 Sandbox Seat 1×6×47 1/4...
Page 31 TOWER ASSEMBLY TOWER ASSEMBLY Note: It is vital that the fort be level after this STEP phase! * Insert four T-nuts "h" into the backside of WF29 for use in Step22. * Attach WF29 with bolts "e5" and wood screws "b2". * Attach WF27 and WD09 with wood screws "b2".
Page 32 ROCKWALL ASSEMBLY STEP * Create the rockwall by attaching two WD38 with seventeen rockwall boards. Note the orientation of the holes. * Suggestion: Line up all the rockwall boards and make sure, they are all flush before securing with wood screws "a3" . * From the back of assembled rock wall insert nut barrel "d2".
Page 33 STEP WD38 HARDWARE NEEDED ITEMS NEEDED...
Page 34 LADDER ASSEMBLY STEP * Create the ladder by attaching four WD36 in between WD34 and WD35. They should fit comfortably inside the notches and securing with wood screws "a3". * Attach WD37 to ladder with wood screws "a3". * Attach ladder to the playset's left wall using both L bracket "M003" and wood screws "c1". WD37 WD34 WD35...
Page 35 ROOF ASSEMBLY STEP * Create the short side of the roof by laying out one WF55 and four WF54, and securing WB52 to it with wood screws "a3". * Attach both WD44 onto the short side of the roof, one on either end with wood screws "a3". * Create the long side of the roof by laying out one WF55 and eight WF54, and securing WB53 to it with wood screws "a3".
Page 36 ROOF ASSEMBLY STEP * Create one sunburst for the front and one for the back, with wood screws "a4" (See diagrams below). * Secure both sunburts to the roof from the inside with wood screws "a4". * From the inside, secure one WC46 to longe side of each sunburst with wood screws "a4". * Sunbursts should be mirror images! * Rays of sunburts should be spread out evenly.
Page 37 ROOF ASSEMBLY STEP * Mount the roof to the playhouse. * Secure WD25a, WD26b and WD25c with wood screws "a3". * Secure WC46 with wood screws "a4". WC46 WC46 WD25a WD25c WD25b Inside view of front Inside view of back The shorter roof side gets mounted to the taller post.
Page 38 ROOF ASSEMBLY STEP * Secure the roof with wood screw "b2", three time in the front and three times in the back. WD44 WD45 WD43 Front Back Front HARDWARE NEEDED...
Page 39 HAND GRIP ATTACHMENT STEP * Insert nut barrels "d3" into the upright respectfully. * Attach back wall's hand grips with bolts "e2". * Attach left wall's hand grips with bolts "e1". WD25b WQ02b WQ06b ITEMS NEEDED HARDWARE NEEDED P002...
Page 40 SWING BEAM ASSEMBLY STEP * Prepare swing beam WZ59 by mounting two triangle plates "M100" and two angle brackets "M005" with bolts "f3". * Insert nut barrels "d1" into both WQ56 and WU58. * Create swing beam leg with both WQ56, WQ57 and WU58 with bolts "e4", "e7" and wood screws "b1". * Attach the swing beam WZ59 to the prepared swing beam leg.
Page 41 SWING BEAM ASSEMBLY S T E P * Install both glider supports "A501" with bolts "f3". * Install four swing hangers "M020" with bolts "f2". * Build two person glider with both P206 and P205 ( See diagram ). * Hang the completed glider to glider suport and fasten. * Hang both swings A101 to the swing hangers and fasten.
Page 42 SLIDE ATTACHMENT STEP * Slide SOLD SEPERATLY. Please follow manufacturer's instructions. * If no instructions are provided, please use the following instructions as GUIDELINE ONLY. STEP : STEP : SLIDE FLOOR HARDWARE NEEDED...
Page 43 ACHORING STEP * Place six stakes in to the ground next to the playset as shown. * Secure the stakes with wood screws "a1" ( See diagram ). Note: Failure to use stakes can void warranty & cause injury. Final Step: Double check and make sure every bolt, screw and nut is tight.
Page 44: Limited Warranty
LIMITED WARRANTY Creative Cedar Design (CCD) offers many fun, interactive, and safe play sets. We only guarantee the original purchaser that this product is free of defects for 30 days from the date of purchase. The product registration card, along with a dated purchase receipt, must be returned to CCD within 30 days. Within a 30 day period, CCD will repair or replace, at our option, defective merchandise free of charge, provided that the defective part is a manufacturer’s defect and not seasonal check.
Page 45: Warranty Claim Procedure
3. Photos of warranted parts and of the entire play system. If any of the above steps are not completed, there may be delays in the completion of your claim, or possibly warranty cancellation. Mail information to: Creative Cedar Designs 2700 Riverside Dr Chattanooga, TN 37406 Or email at custservice@creativecedardesigns.com...
Page 46: Product Registration Card
PRODUCT REGISTRATION CARD Please complete this Product Registration Card along with a copy of the receipt and return to Creative Cedar Designs, within 30 days of original purchase in order to validate time of purchase for warranty. Or register at www.creativecedardesigns.com Name:________________________________________________________________ Address: _______________________________________________________________ City, State, Zip Code: ___________________________________________________...
Page 47 Please complete this Product Registration Card along with a copy of the receipt and return to Creative Cedar Designs, within 30 days of original purchase in order to validate time of purchase for warranty. FOLD HERE Place Stamp Here Creative Cedar Designs 2700 Riverside Dr. Chattanooga, TN 37406...
