SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO., LTD
C4050-Q4 Handheld
Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C4050-Q4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shenzhen Chainway ITS Co. C4050-Q4

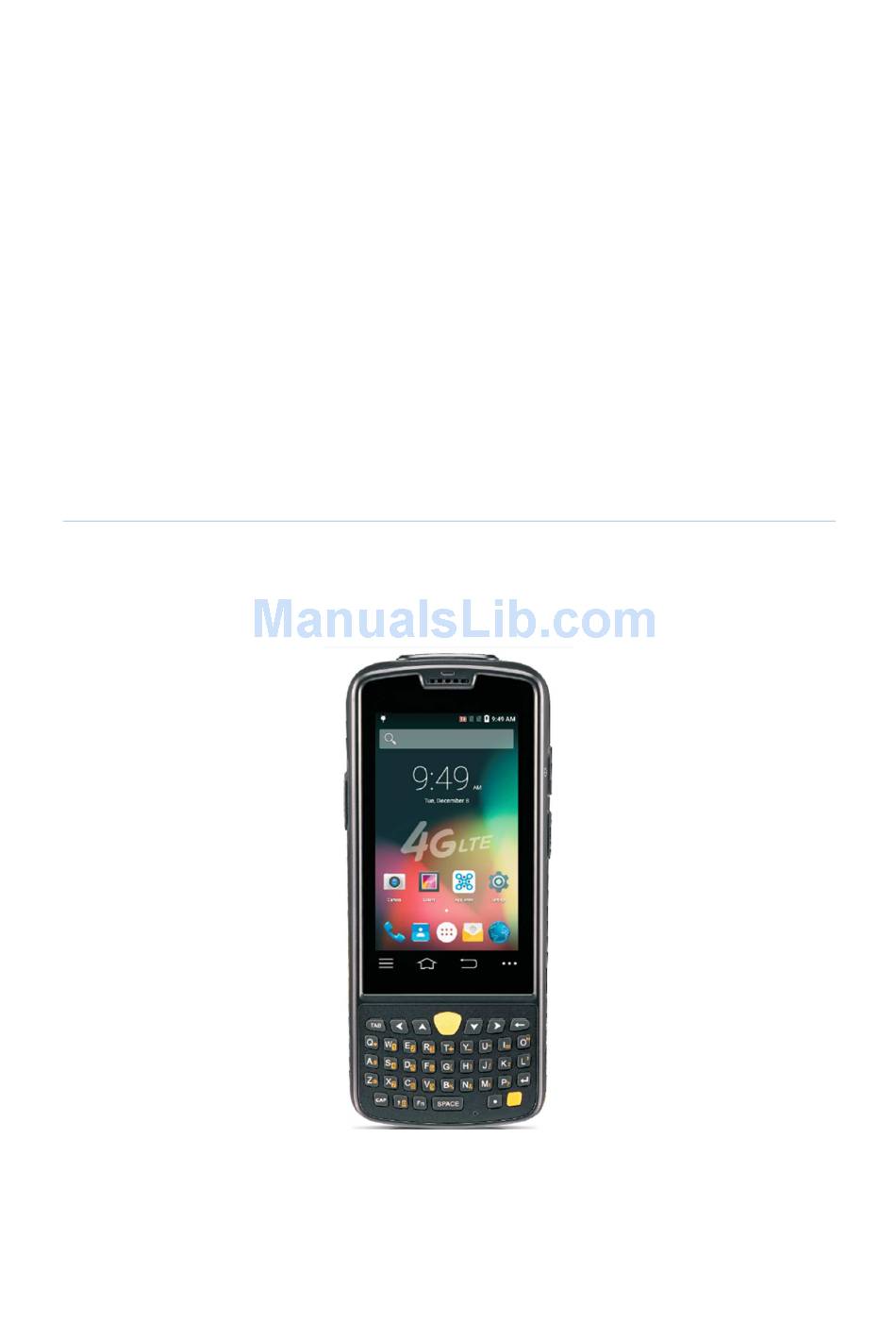

  • Page 1 SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO., LTD C4050-Q4 Handheld Terminal User Manual...

  • Page 3: Table Of Contents

    Contents Statement ............................4 Getting Started ........................5 Brief Instruction ..................5 Precaution before Using Battery ............... 6 About The Device ......................... 8 Structure ....................8 SD Card Installation ................10 SIM Card Installation ................11 Battery Installation .................. 12 Battery Charging ..................
  • Page 4 Other Functions ......................... 27 PING....................... 27 Bluetooth ....................28 GPS ......................30 Volume Settings ..................31 Sensor ....................32 Keyboard ....................33 Network ....................34 Keyboardemulator .................. 35 Device Specification ......................37...

  • Page 5: Statement

    Statement 2017 by Shenzhen Chainway Information Technology Co., Limited. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission written from Shenzhen Chainway. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems.

  • Page 6: Getting Started

    Auto & Accurate data collection is achieved in various business fields via a complete solution of premium options, the flexible solution among options and operators is suited-up. You will find out with C4050-Q4, much easier deployment, reduced complexity, decreased maintenance, are the benefits for enterprises.

  • Page 7: Precaution Before Using Battery

    1.2 Precaution before Using Battery • Do not leave batteries unused for extended periods of time, either in the product or in storage. When the battery has not been used for 6 months, check the charge status and charge or dispose of the battery as appropriate.
  • Page 8 Consider replacing the battery with a new one if you note either of the following conditions: • The battery run time drops below about 80% of the original run time. • The battery charge time increases significantly. • If a battery is stored or otherwise unused for an extended period, be sure to follow the storage instructions in this document.

  • Page 9: About The Device

    2. About The Device 2.1 Structure <Front>...
  • Page 10 <Back> Buttons: Button Function Power Button Press and hold to turn the device on or off App List View Button View a list of apps running Home Button Press to return to the home screen Cancel Button Tap to return to the previous screen...

  • Page 11: Sd Card Installation

    2.2 SD Card Installation Detailed installation steps are as follows: 1. Open the SIM slot as the direction of ‘Open/Lock’ labeled. 2. Open the SD slot as the direction of ‘Open/Lock’ labeled. 3. Install the SD card properly. 4. Lock the SD slot and SIM slot properly.

  • Page 12: Sim Card Installation

    2.3 SIM Card Installation 1. Open the SIM slot as the direction of ‘Open/Lock’ labeled. 2. Install the SIM card correctly. 3. Lock the SIM slot properly.

  • Page 13: Battery Installation

    2.4 Battery Installation 1. Push the battery down into the bottom of the battery. 2. Push the battery to the direction of the array. 3. Turn the battery lock.

  • Page 14: Battery Charging

    2.5 Battery Charging 2.5.1 Direct Charging Use the adapter to charge the battery via the USB connector of the snap-on. 2.5.2 Cradle Charging Connect the adapter with the power cable to charge the device. 2.6 Device Power on/off Press the ‘Power’ button on the side shortly due to turn on/off.

  • Page 15: Call Function

    3. Call Function 3.1 Phone 1. Click this icon 2. Click the number button to input the numbers; 3. Click the button to confirm and dial; 4. Click the to end the calling; Contact Logs Voice Calling Emulated Numeric Keypad...

  • Page 16: Contacts

    3.2 Contacts 1. Click ‘Contacts’ to open the contacts list. 2. Click ‘ ’ to add the new contact. 3. Click ‘ ’ to import/export or delete the contact list. Group Favorites Contact List...

  • Page 17: Messaging

    3.3 Messaging 1. Click ‘ ’ to open the message list. 2. Click ‘ ’ to input the content. 3. Click ‘ ’ to send the message. 4. Click ‘ ’ to add photos, videos.

  • Page 18: Barcode Reader

    4. Barcode Reader 4.1 1D Barcode 1. Open the 1D Barcode Demo in Appcenter. 2. Press the ‘Scan’ button to start scanning, then the auto interval parameters can also be set.

  • Page 19: Barcode

    4.2 2D Barcode 1. Open the 2D Barcode Demo in Appcenter. 2. Press the ‘Scan’ button to start scanning, then the auto interval parameters can also be set.

  • Page 20: S) Barcode

    4.3 2D(S) Barcode 1. Open the 2D(S) Barcode Demo in Appcenter. 2. Press the ‘Scan’ button to start scanning, then the auto interval parameters can also be set. 3. Also, the barcode types enabling/disabling can also be set. Note: Please scan the barcode in a correct way, otherwise the scanning might be failed.

  • Page 21: Rfid Reader

    5. RFID Reader 5.1 Low Frequency 1. Open the RFID_LF Demo within Appcenter and then press the ‘Scan’ button to start reading. 2. Tag types including ID Card/Animal Tag/Hitag/HDX Tag/EM4450 can be also selected, and Hitag-S and EM4305 reading/writing are already supported by the device.
  • Page 22 Please ensure that the LF module is embedded in the device, also please select the tag type correctly, otherwise the operation might not work. Meanwhile, please pay attention to the HDX and FDX-B since they are using different hardware due to the different working principles.

  • Page 23: High Frequency

    5.2 High Frequency 5.2.1 14443A 1. Open the 14443A demo within Appcenter, and press the ‘Scan’ button to start reading. 2. Mifare and UltraLight reading/writing are also supported.
  • Page 24 5.2.2 15693 1. Open the RFID_15693 demo within Appcenter, and press the ‘Scan’ button to start scanning. 2. 15693 writing are also supported.

  • Page 25: Ultra High Frequency

    5.3 Ultra High Frequency 1. Open the UHF demo within Appcenter, and press the ‘Start’ button to start scanning. 2. Multiple tags reading and single tag reading/writing are also supported.

  • Page 27: Fingerprint Reader

    6. Fingerprint Reader 1. Open the Fingerprint Demo in Appcenter. 2. Put the finger to the fingerprint module and set the ID/name of the template under ‘ACQUISITION’. 3. Put the finger to the fingerprint module properly and identify by ID/Name/Score under ‘IDENTIFICATION’. 4.

  • Page 28: Other Functions

    7. Other Functions 7.1 PING 1. Open the Ping in Appcenter. 2. Set the Ping parameters and select the internal/external addresses.

  • Page 29: Bluetooth

    7.2 Bluetooth 1. Open the Bluetooth demo in Appcenter and turn on the Bluetooth. 2. Input the content or select the file, then scan the nearby Bluetooth printer and pair them. 3. Select the printer and click ‘Print’ to print the content.

  • Page 31: Gps

    7.3 GPS 1. Open the GPS demo in Appcenter and turn on GPS module. 2. Set the GPS parameters and get the GPS data information.

  • Page 32: Volume Settings

    7.4 Volume Settings 1. Open the Volume Setting demo in Appcenter. 2. Set the volumes based on the requirements.

  • Page 33: Sensor

    7.5 Sensor 1. Open the Sensor demo in Appcenter. 2. Test the sensor based on the requirements.

  • Page 34: Keyboard

    7.6 Keyboard 1. Open the Keyboard demo in Handset Appcenter. 2. Set and test the key values of the device.

  • Page 35: Network

    7.7 Network 1. Open the Network demo in Appcenter. 2. Test the WIFI/Mobile signal based on the requirements.

  • Page 36: Keyboardemulator

    7.8 Keyboardemulator Keyboard Emulator can be used directly for multiple using environments and the output formats can including prefix/suffix/enter/tap can also be defined, please define the options properly based on the features of the device. 1. Open the KeyboardEmulator which is preinstalled in the device. 2.

  • Page 38: Device Specification

    8. Device Specification Physical Characteristics Dimensions 176mm x 76mm x 29mm/ 6.93 x 2.99 x 1.14in Weight 319g/ 11.25oz Screen 4’’ WVGA (480*800), 16.7M colors Keyboard Numeric / Qwerty Battery Main bat. (rechargeable li-ion polymer, 3.7V, 3200 mAh) Pistol bat. (rechargeable li-ion polymer, 3.7V, 5200 mAh) Expansion Slot MicroSD/TF, maximum capacity of 32G SIM Slot...
  • Page 39 2G: GPRS(900/1800MHz) 3G: WCDMA B1 B8 4G: FDD-LTE:B1 B3 B7 B8 B20 2G: GPRS(850/1900MHz) 3G: WCDMA B1 B2 B5 4G: FDD-LTE: B2 B4 B7 B17 2G: GPRS(850/900/1800MHz) 3G: WCDMA: B1 CDMA EVDD: EVDD Rev.A800MHz TD-SCDMA: B34 B39 4G: TDD-LTE: B38 B39 B40 B41 FDD-LTE: B1 B3 WLAN IEEE802.11a/b/g/n, internal antenna WPAN...
